Black Hill Details

PropertyValue
Rupture Count71
Ruptures Above Sect Min Mag71
Ruptures w/ Nonzero Rates5
Magnitude Range[7.04, 7.95]
Length Range[22, 199] km
Total Rate1.1857061E-5 /yr
Multi-Fault Rate1.1857061E-5 /yr (100.00%)
Directly-Connected Faults3
All Co-Rupturing Faults12

Table Of Contents

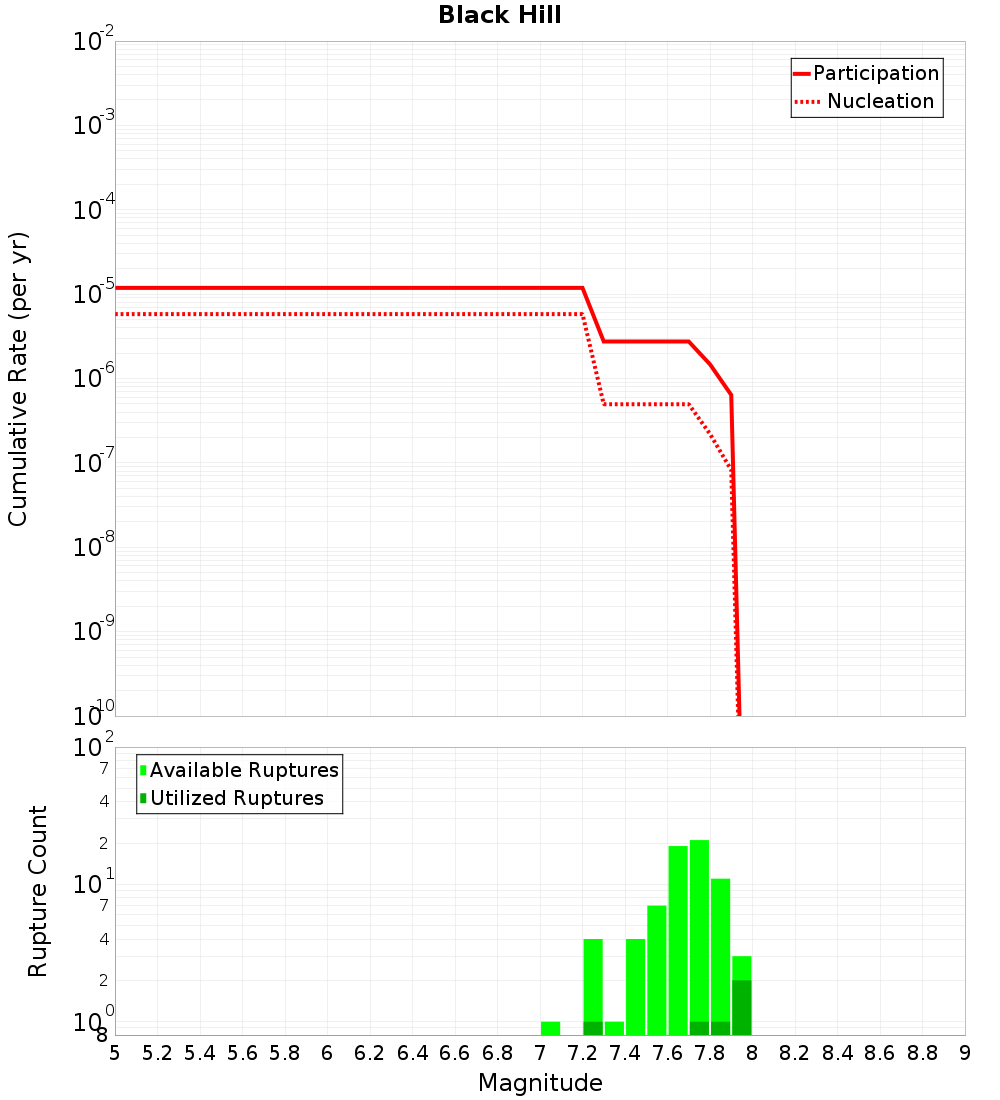

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

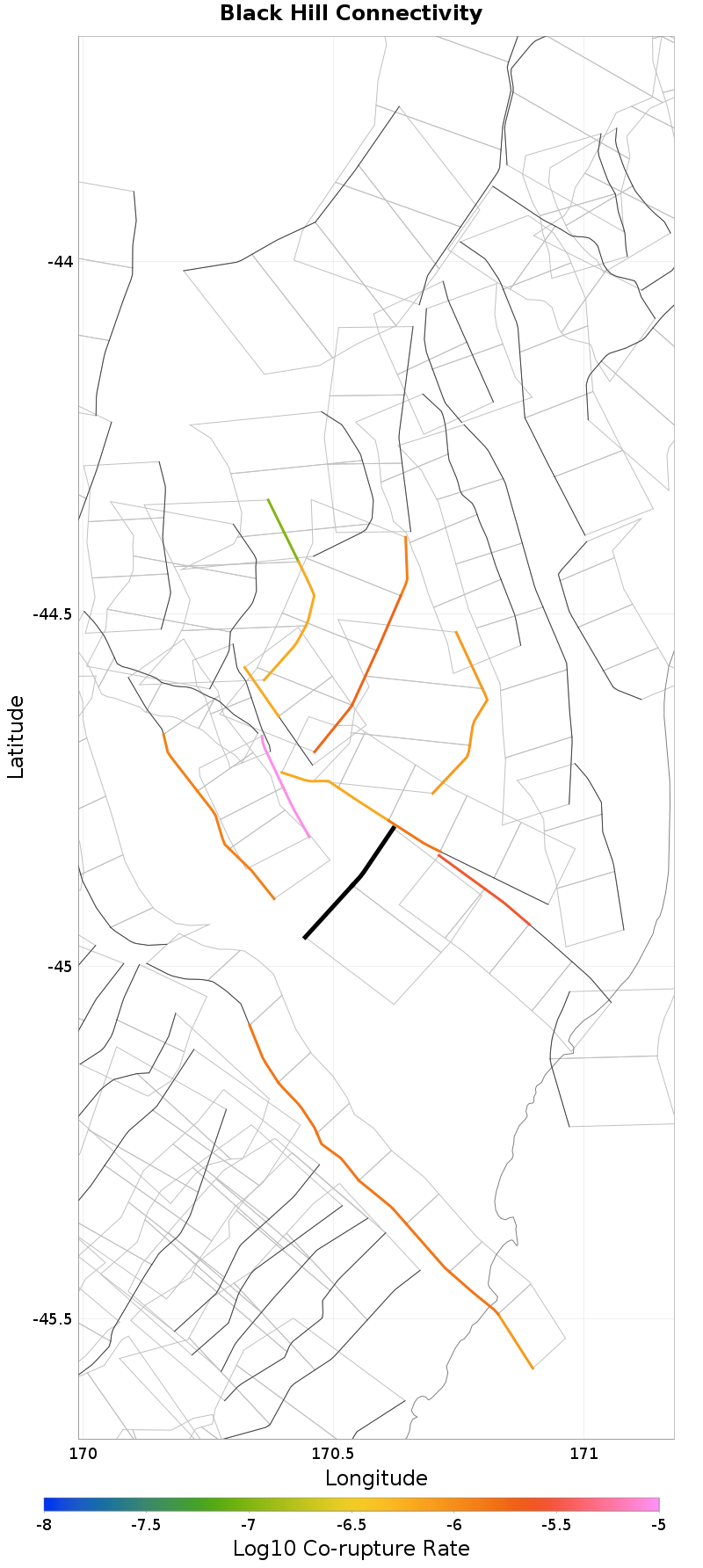

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Waitaki, 0.12 km away
Stonewall, 0.69 km away
Campbell Hills, 7.16 km away
Middle Range, 7.61 km away
Awahokomo, 10.17 km away
Hunters, 11.54 km away
Waimate, 11.81 km away
Waihemo, 13.3 km away
Dryburgh, 16 km away
Kirkliston, 17.29 km away

Waitaki, 0.12 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU0ODguMEo2aVhp
Connected?true
Directly Connected?true
Co-rupture Count63
Co-rupture Rate2.743855E-6

Stonewall, 0.69 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU0ODguMEo2aVhp
Connected?true
Directly Connected?false
Co-rupture Count48
Co-rupture Rate1.4724501E-6

Campbell Hills, 7.16 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU0ODguMEo2aVhp
Connected?true
Directly Connected?false
Co-rupture Count16
Co-rupture Rate8.3428495E-7

Middle Range, 7.61 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU0ODguMEo2aVhp
Connected?true
Directly Connected?false
Co-rupture Count4
Co-rupture Rate1.2714049E-6

Awahokomo, 10.17 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU0ODguMEo2aVhp
Connected?true
Directly Connected?true
Co-rupture Count1
Co-rupture Rate9.113205E-6

Hunters, 11.54 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU0ODguMEo2aVhp
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Waimate, 11.81 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU0ODguMEo2aVhp
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Waihemo, 13.3 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU0ODguMEo2aVhp
Connected?true
Directly Connected?true
Co-rupture Count54
Co-rupture Rate1.4724501E-6

Dryburgh, 16 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU0ODguMEo2aVhp
Connected?true
Directly Connected?false
Co-rupture Count2
Co-rupture Rate6.381651E-7

Kirkliston, 17.29 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU0ODguMEo2aVhp
Connected?true
Directly Connected?false
Co-rupture Count26
Co-rupture Rate1.90957E-6
