Cape Egmont: Central Details

PropertyValue
Rupture Count345
Ruptures Above Sect Min Mag345
Ruptures w/ Nonzero Rates12
Magnitude Range[6.83, 8.03]
Length Range[13, 208] km
Total Rate6.1499E-5 /yr
Multi-Fault Rate6.1499E-5 /yr (100.00%)
Directly-Connected Faults3
All Co-Rupturing Faults13

Table Of Contents

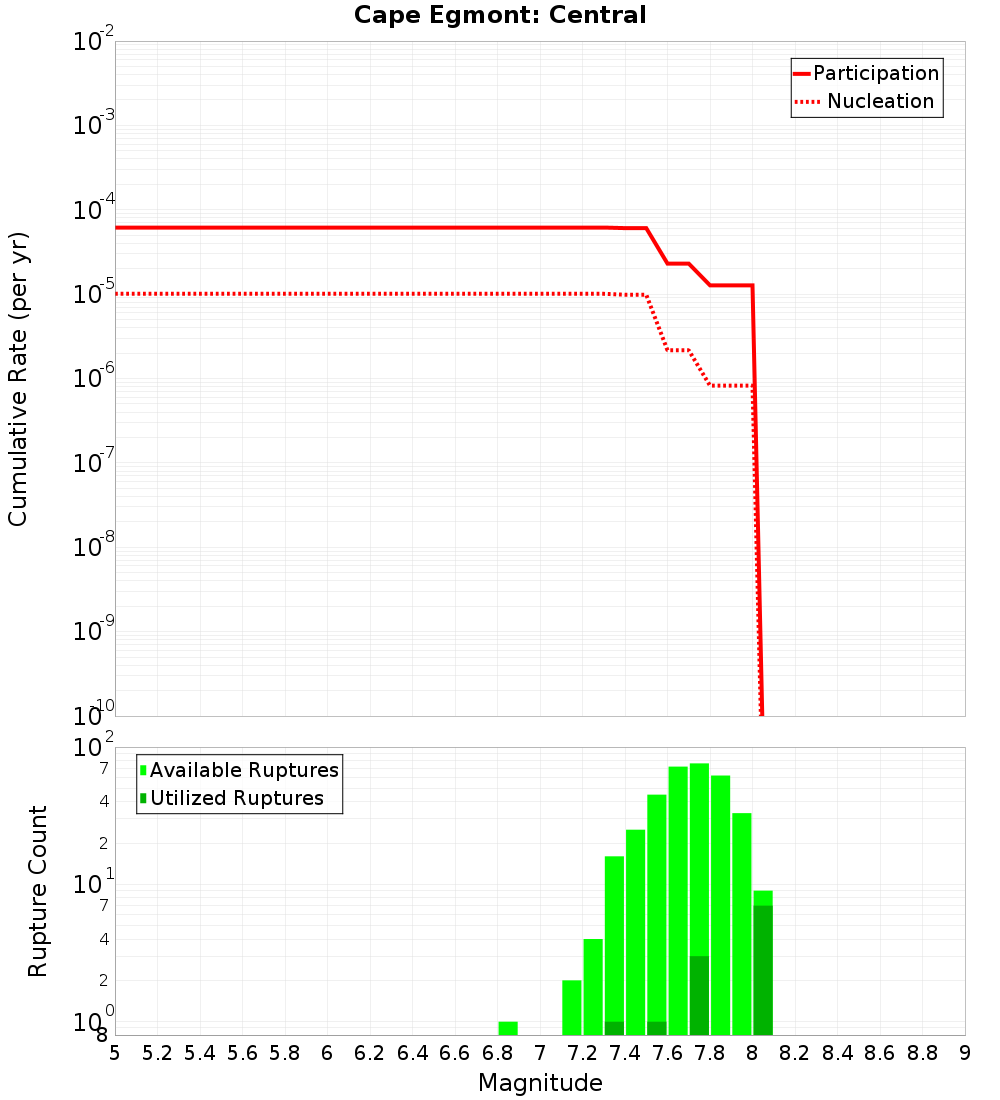

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

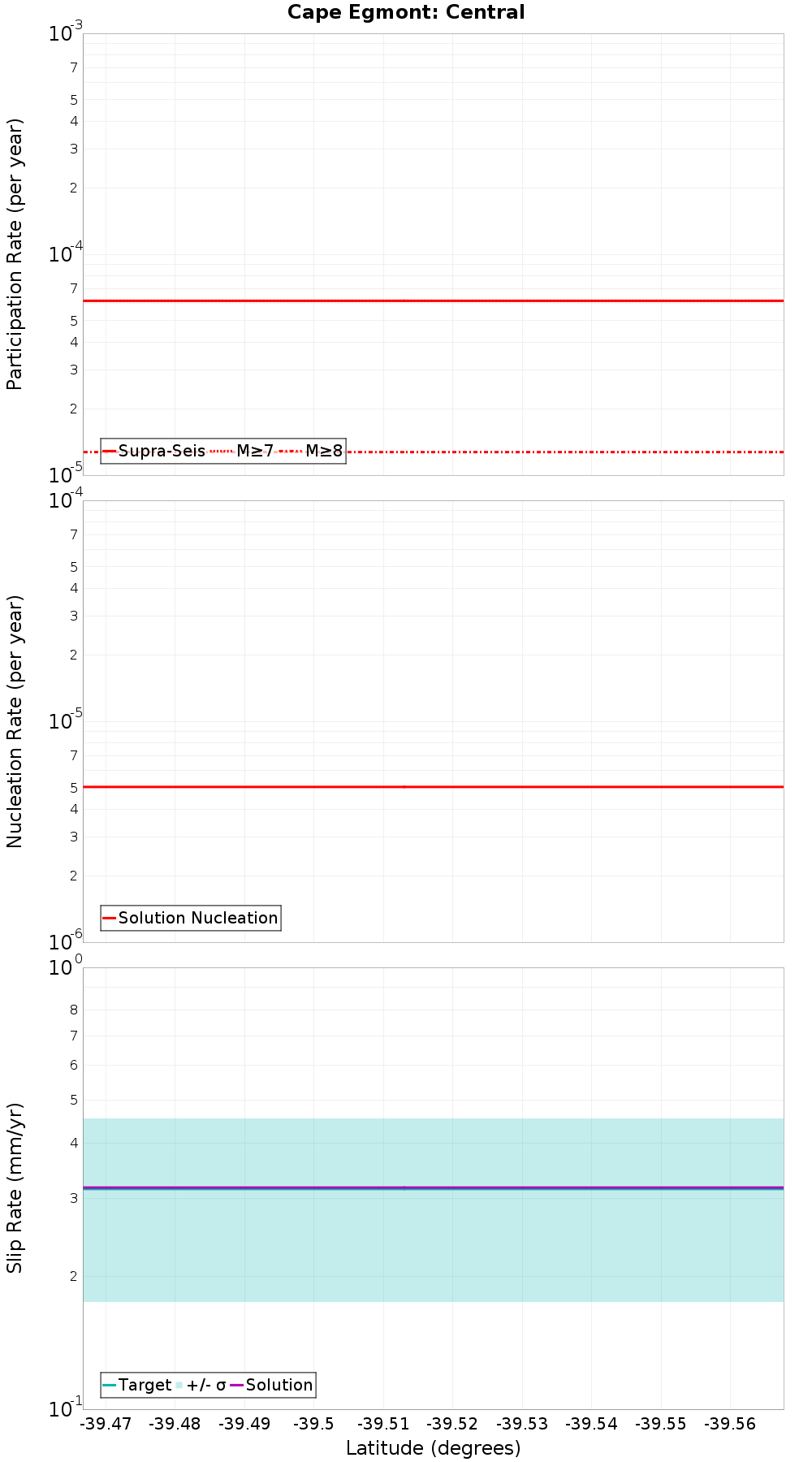

Along-Strike Values

(top)

Along-strike plot

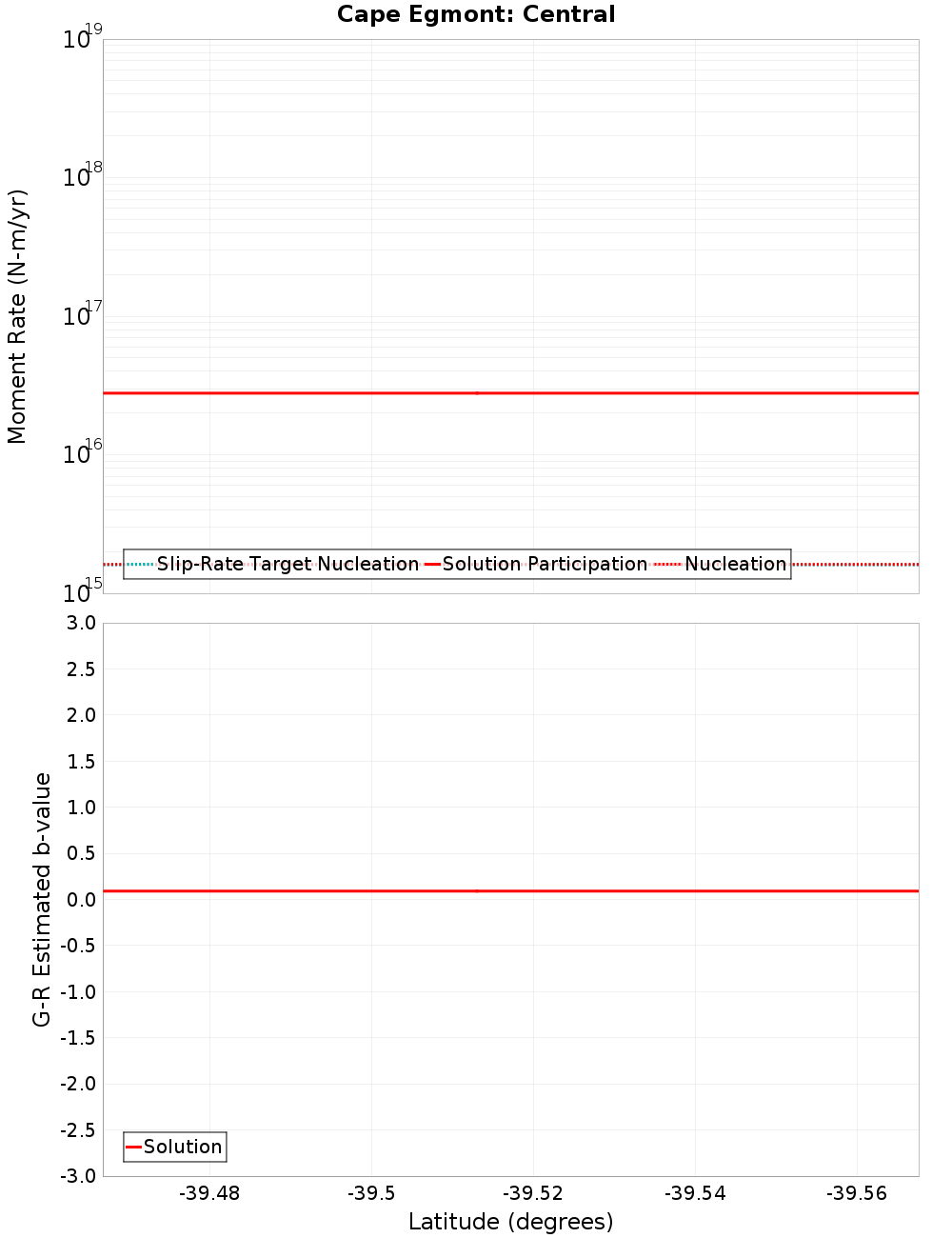

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Cape Egmont: South, 0.35 km away
Pihama, 0.43 km away
Manahi 1, 0.67 km away
Cape Egmont: North, 0.88 km away
Manahi 2, 8.61 km away
Rahotu, 9.89 km away
Ihaia, 10.6 km away
Kiri, 10.8 km away
Oaonui, 13.19 km away

Cape Egmont: South, 0.35 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU0ODguMEo2aVhp
Connected?true
Directly Connected?true
Co-rupture Count241
Co-rupture Rate6.057239E-5

Pihama, 0.43 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU0ODguMEo2aVhp
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Manahi 1, 0.67 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU0ODguMEo2aVhp
Connected?true
Directly Connected?true
Co-rupture Count167
Co-rupture Rate2.7994754E-6

Cape Egmont: North, 0.88 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU0ODguMEo2aVhp
Connected?true
Directly Connected?true
Co-rupture Count229
Co-rupture Rate2.2802167E-5

Manahi 2, 8.61 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU0ODguMEo2aVhp
Connected?true
Directly Connected?false
Co-rupture Count41
Co-rupture Rate0.0

Rahotu, 9.89 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU0ODguMEo2aVhp
Connected?true
Directly Connected?false
Co-rupture Count28
Co-rupture Rate9.526921E-6

Ihaia, 10.6 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU0ODguMEo2aVhp
Connected?true
Directly Connected?false
Co-rupture Count142
Co-rupture Rate9.676358E-6

Kiri, 10.8 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU0ODguMEo2aVhp
Connected?true
Directly Connected?false
Co-rupture Count129
Co-rupture Rate1.2567512E-5

Oaonui, 13.19 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU0ODguMEo2aVhp
Connected?true
Directly Connected?false
Co-rupture Count20
Co-rupture Rate1.6788861E-6
