Manahi 1 Details

PropertyValue
Rupture Count209
Ruptures Above Sect Min Mag209
Ruptures w/ Nonzero Rates7
Magnitude Range[6.82, 8.03]
Length Range[13, 208] km
Total Rate6.619405E-6 /yr
Multi-Fault Rate6.619405E-6 /yr (100.00%)
Directly-Connected Faults5
All Co-Rupturing Faults13

Table Of Contents

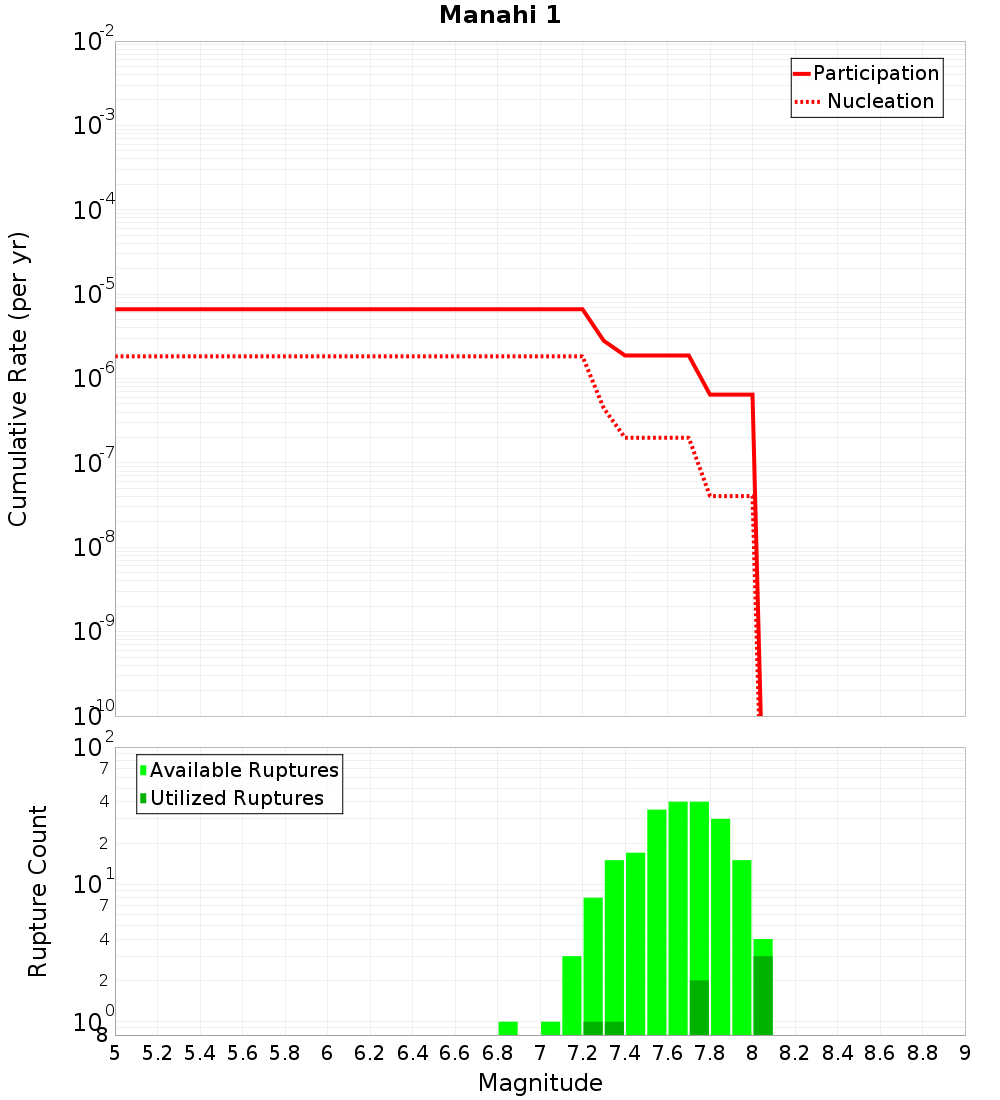

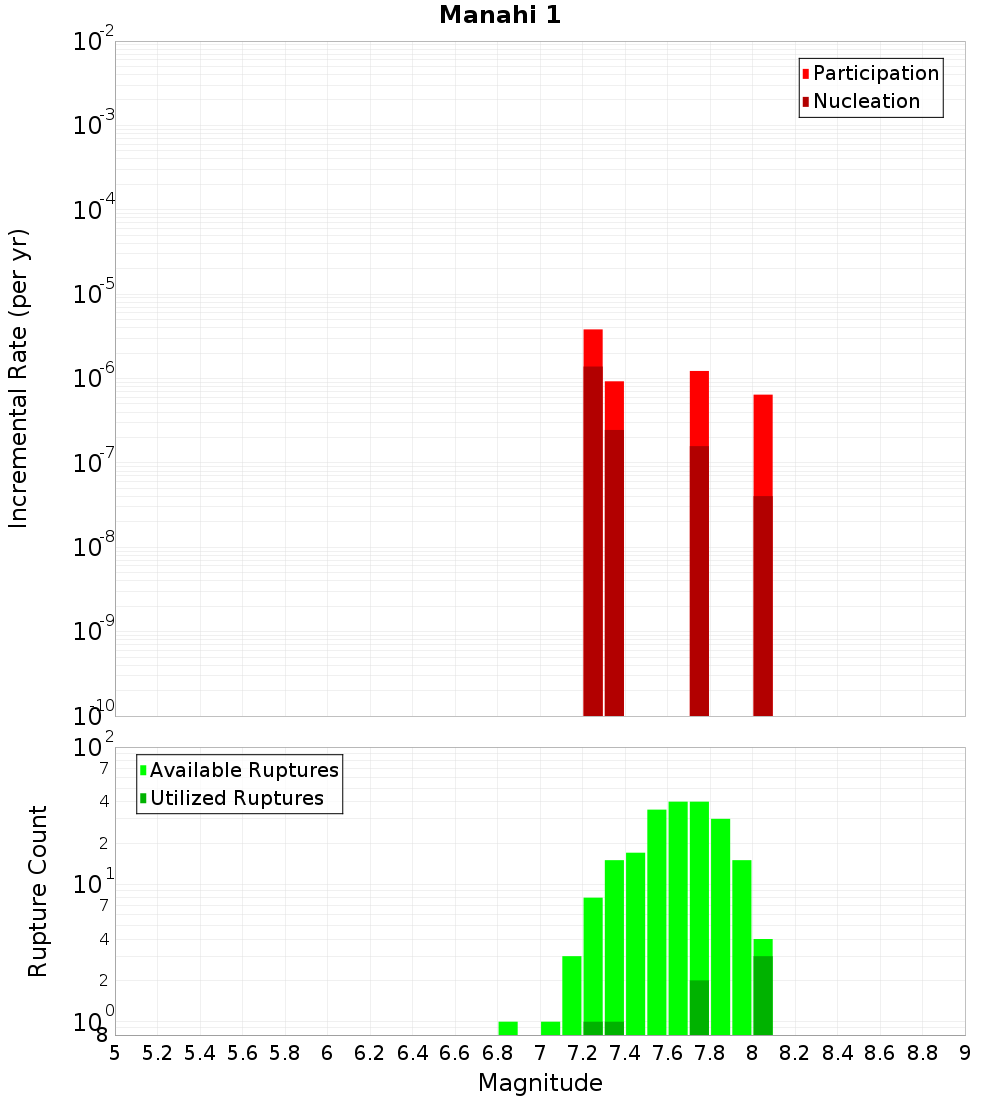

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

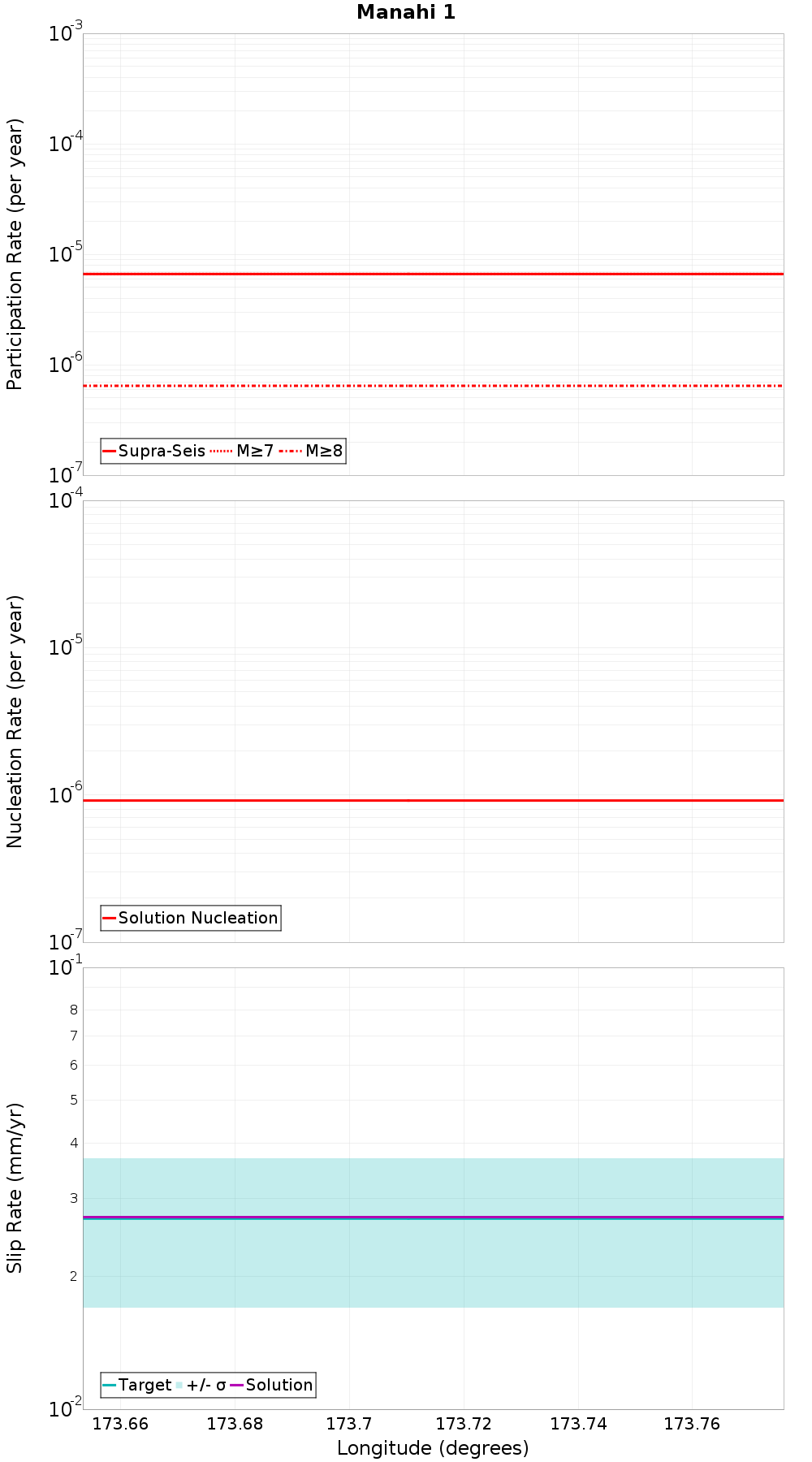

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Pihama, 0.12 km away
Cape Egmont: Central, 0.67 km away
Ihaia, 0.72 km away
Oaonui, 1.04 km away
Kiri, 1.53 km away
Cape Egmont: North, 1.76 km away
Rahotu, 5.59 km away
Cape Egmont: South, 7.93 km away
Manahi 2, 8.53 km away
Warea, 14.59 km away

Pihama, 0.12 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU0ODguMEo2aVhp
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Cape Egmont: Central, 0.67 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU0ODguMEo2aVhp
Connected?true
Directly Connected?true
Co-rupture Count167
Co-rupture Rate2.7994754E-6

Ihaia, 0.72 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU0ODguMEo2aVhp
Connected?true
Directly Connected?true
Co-rupture Count107
Co-rupture Rate6.438519E-7

Oaonui, 1.04 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU0ODguMEo2aVhp
Connected?true
Directly Connected?true
Co-rupture Count17
Co-rupture Rate5.498816E-6

Kiri, 1.53 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU0ODguMEo2aVhp
Connected?true
Directly Connected?true
Co-rupture Count90
Co-rupture Rate4.767374E-7

Cape Egmont: North, 1.76 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU0ODguMEo2aVhp
Connected?true
Directly Connected?false
Co-rupture Count59
Co-rupture Rate5.498816E-6

Rahotu, 5.59 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU0ODguMEo2aVhp
Connected?true
Directly Connected?true
Co-rupture Count22
Co-rupture Rate4.7667044E-7

Cape Egmont: South, 7.93 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU0ODguMEo2aVhp
Connected?true
Directly Connected?false
Co-rupture Count100
Co-rupture Rate1.8728675E-6

Manahi 2, 8.53 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU0ODguMEo2aVhp
Connected?true
Directly Connected?false
Co-rupture Count1
Co-rupture Rate0.0

Warea, 14.59 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU0ODguMEo2aVhp
Connected?true
Directly Connected?false
Co-rupture Count146
Co-rupture Rate6.4391884E-7
