Otakiri Details

Property	Value
Rupture Count	13,955
Ruptures Above Sect Min Mag	13,941
Ruptures w/ Nonzero Rates	6
Magnitude Range	[6.39, 8.40]
Length Range	[10, 587] km
Total Rate	7.9932105E-4 /yr
Multi-Fault Rate	7.9932105E-4 /yr (100.00%)
Directly-Connected Faults	8
All Co-Rupturing Faults	92

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

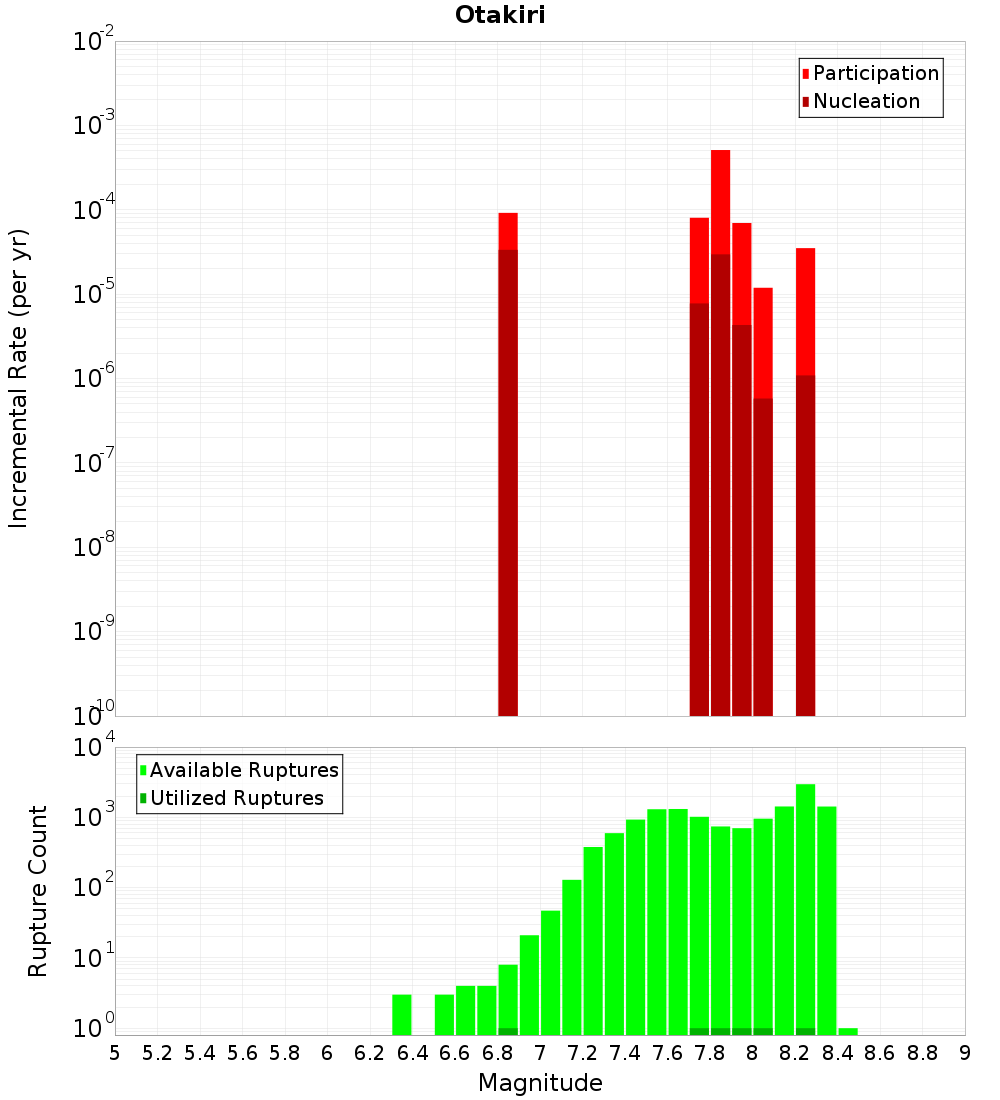

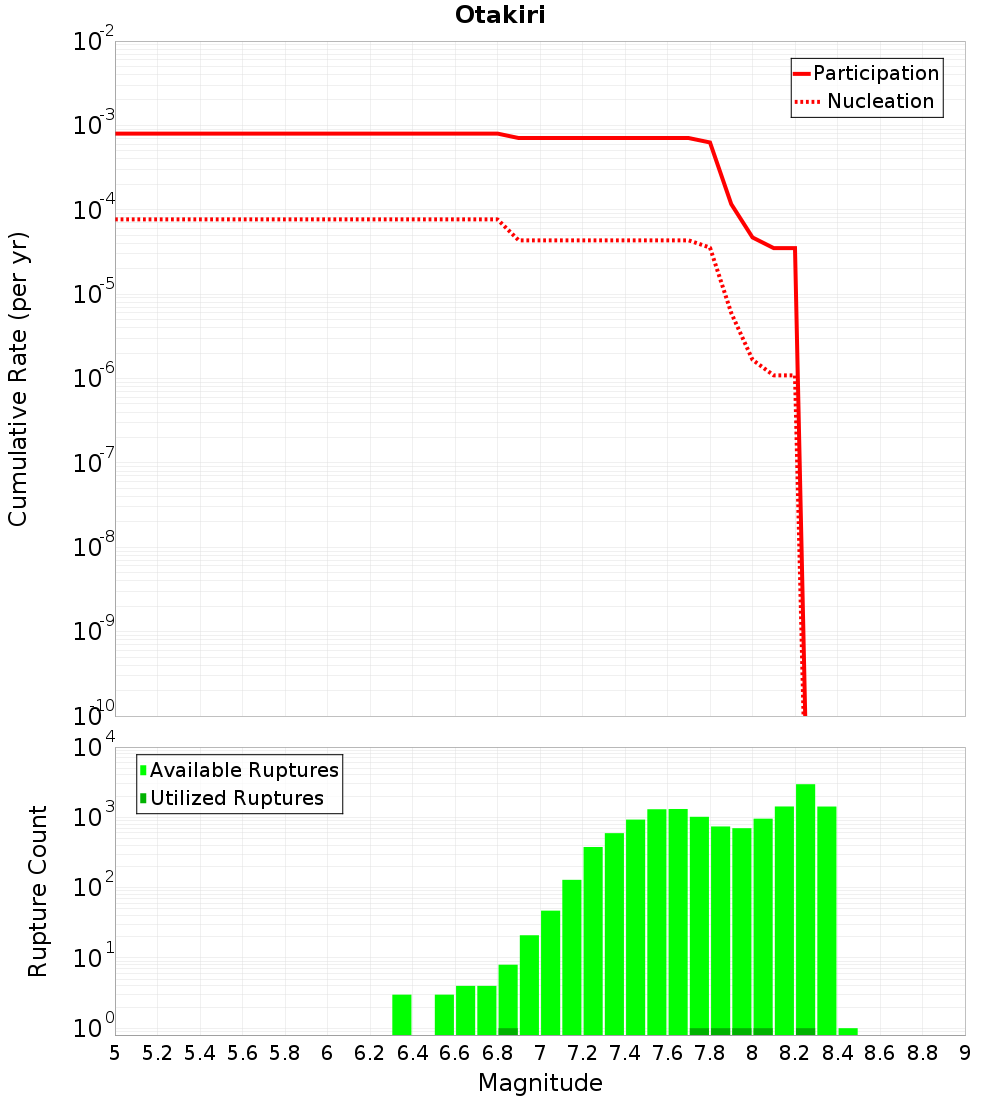

Magnitude-Frequency Distribution

Incremental	Cumulative

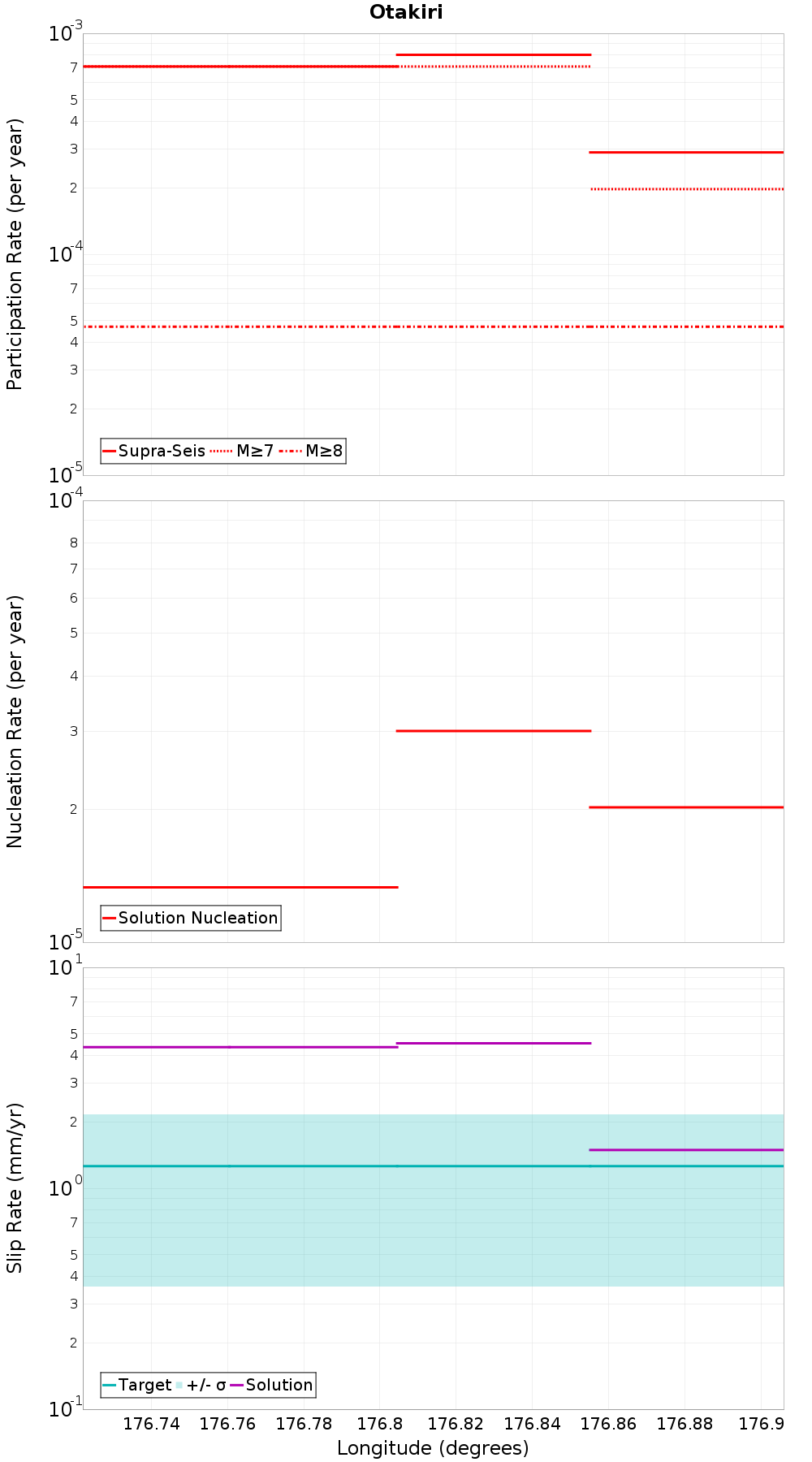

Along-Strike Values

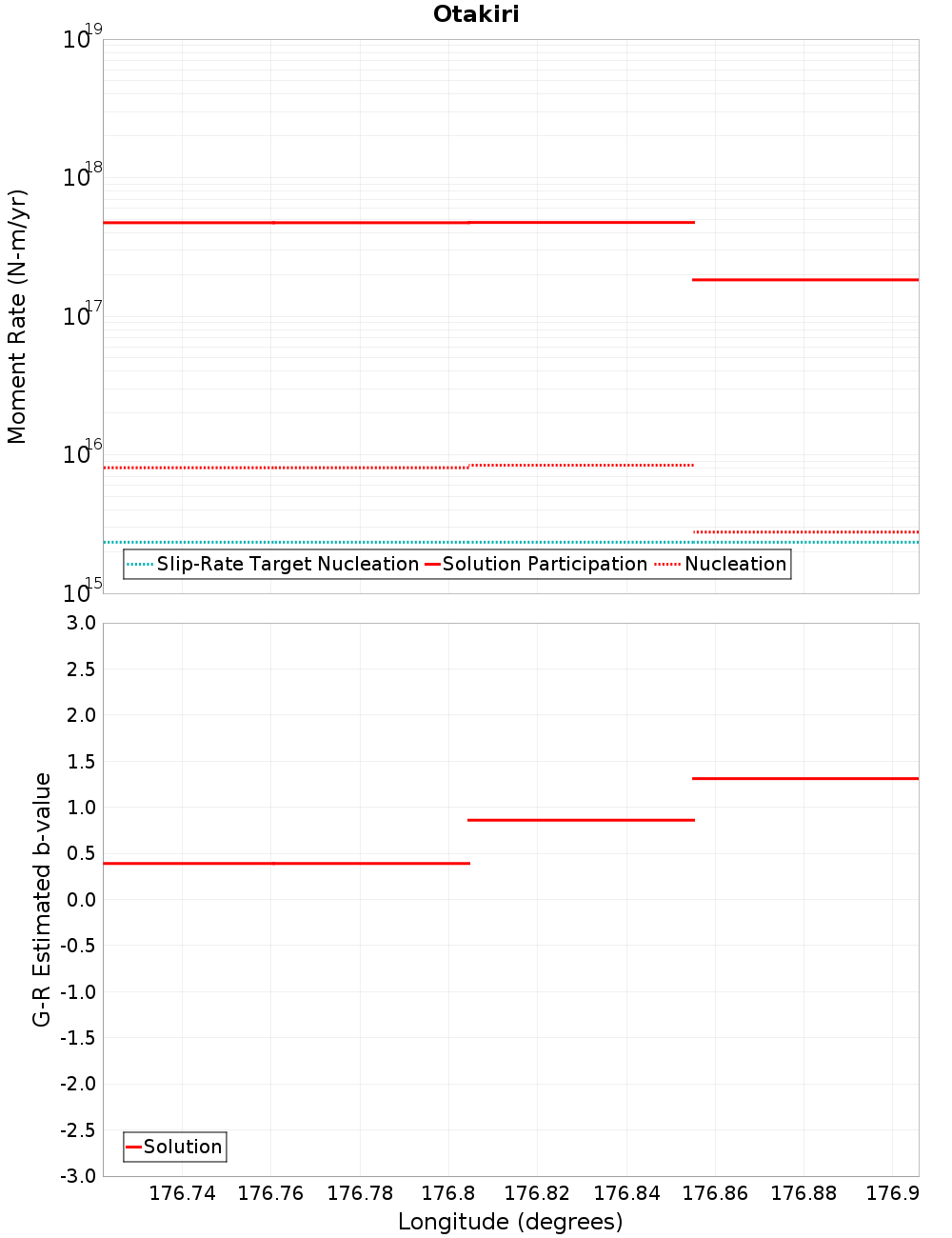

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Awakeri, 0.16 km away
Edgecumbe 1987, 0.16 km away
Whakatane: North, 0.27 km away
Waiohau: North, 0.34 km away
Edgecumbe Coastal, 0.37 km away
Braemar, 0.69 km away
White Island 1, 2.46 km away
Matata, 4.47 km away
Rangitaiki 1, 10.94 km away
Waimana: North, 11.29 km away
Waiotahi: North, 16.27 km away
Rangitaiki 2, 17.19 km away

Awakeri, 0.16 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU0ODguMEo2aVhp
Connected?	true
Directly Connected?	true
Co-rupture Count	797
Co-rupture Rate	0.0

Edgecumbe 1987, 0.16 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU0ODguMEo2aVhp
Connected?	true
Directly Connected?	true
Co-rupture Count	504
Co-rupture Rate	0.0

Whakatane: North, 0.27 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU0ODguMEo2aVhp
Connected?	true
Directly Connected?	true
Co-rupture Count	298
Co-rupture Rate	0.0

Waiohau: North, 0.34 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU0ODguMEo2aVhp
Connected?	true
Directly Connected?	true
Co-rupture Count	10,024
Co-rupture Rate	1.1665752E-4

Edgecumbe Coastal, 0.37 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU0ODguMEo2aVhp
Connected?	true
Directly Connected?	true
Co-rupture Count	2,282
Co-rupture Rate	5.1044393E-4

Braemar, 0.69 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU0ODguMEo2aVhp
Connected?	true
Directly Connected?	true
Co-rupture Count	2,523
Co-rupture Rate	6.826635E-4

White Island 1, 2.46 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU0ODguMEo2aVhp
Connected?	true
Directly Connected?	true
Co-rupture Count	11,397
Co-rupture Rate	7.0745044E-4

Matata, 4.47 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU0ODguMEo2aVhp
Connected?	true
Directly Connected?	true
Co-rupture Count	120
Co-rupture Rate	0.0

Rangitaiki 1, 10.94 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU0ODguMEo2aVhp
Connected?	true
Directly Connected?	false
Co-rupture Count	104
Co-rupture Rate	0.0

Waimana: North, 11.29 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU0ODguMEo2aVhp
Connected?	true
Directly Connected?	false
Co-rupture Count	110
Co-rupture Rate	0.0

Waiotahi: North, 16.27 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU0ODguMEo2aVhp
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Rangitaiki 2, 17.19 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU0ODguMEo2aVhp
Connected?	true
Directly Connected?	false
Co-rupture Count	2,182
Co-rupture Rate	6.7236647E-4
