Ruahine: South Details

Property	Value
Rupture Count	43,913
Ruptures Above Sect Min Mag	43,910
Ruptures w/ Nonzero Rates	9
Magnitude Range	[7.09, 8.70]
Length Range	[24, 1,113] km
Total Rate	2.898606E-4 /yr
Multi-Fault Rate	2.898606E-4 /yr (100.00%)
Directly-Connected Faults	6
All Co-Rupturing Faults	132

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

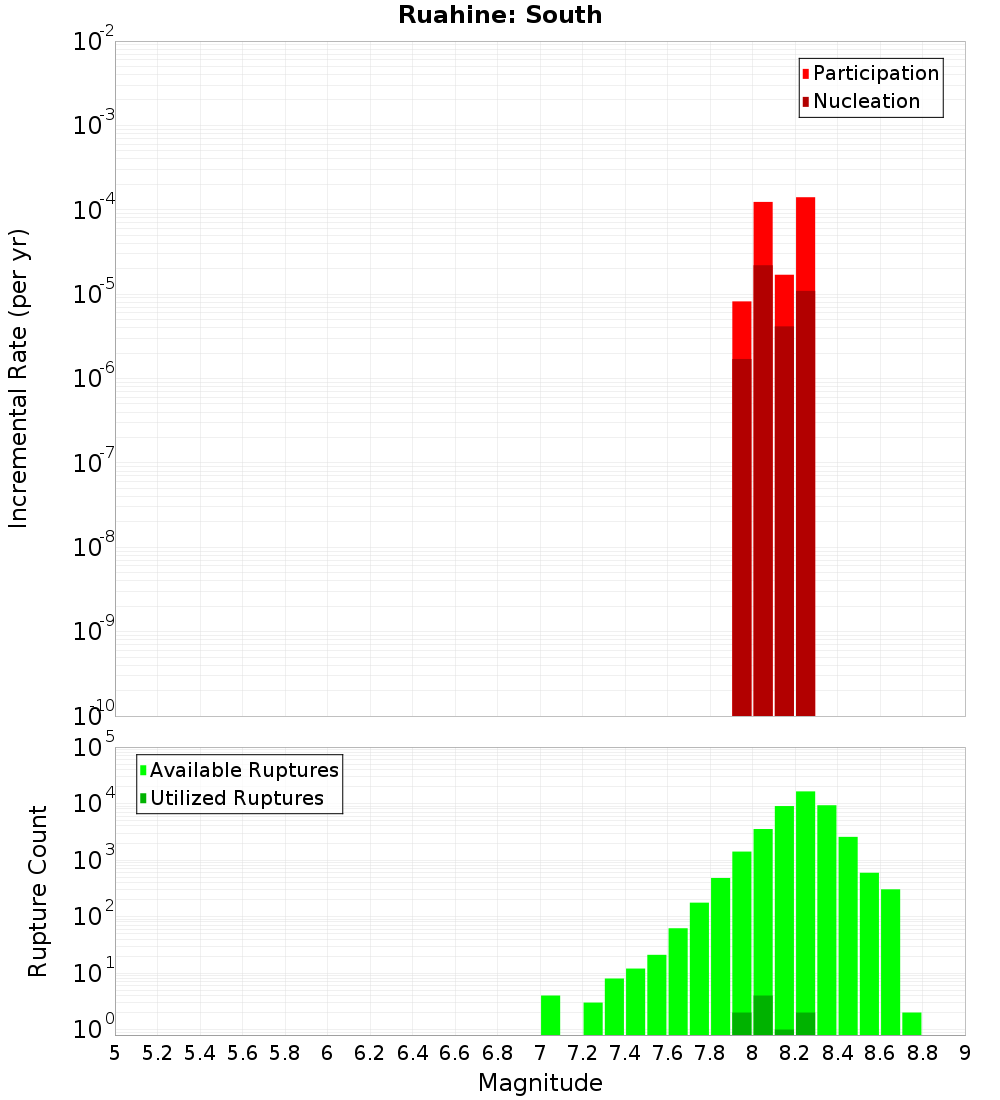

Magnitude-Frequency Distribution

Incremental	Cumulative

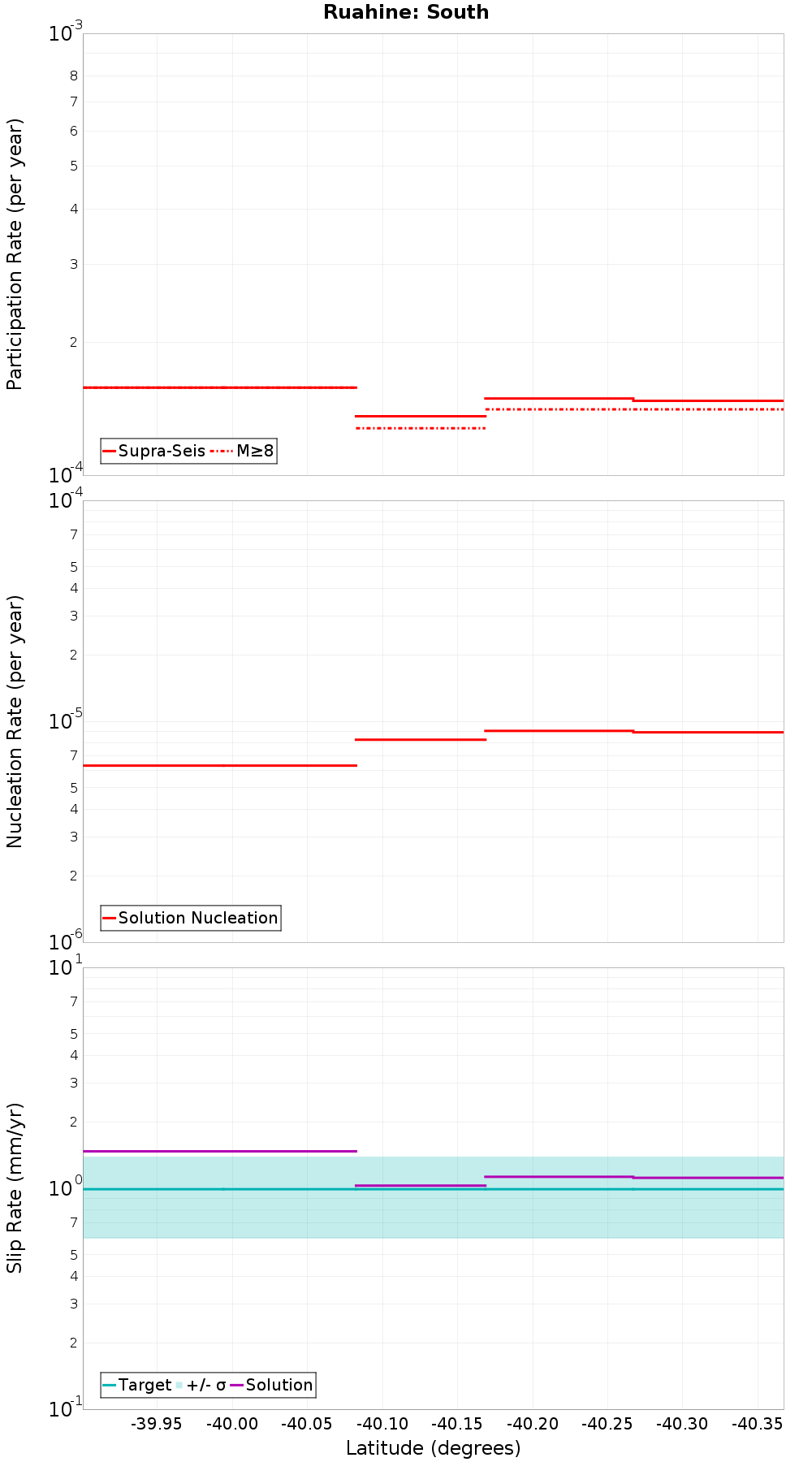

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Wellington: Pahiatua, 0 km away
Mohaka: South, 0 km away
Ruahine: Central, 0.16 km away
Rangefront, 0.19 km away
Woodville, 1.31 km away
Pohangina, 5.25 km away
Pahiatua, 5.97 km away
Ruataniwha, 9.87 km away
Maunga, 13.33 km away
Wakarara, 14.13 km away
Tokomaru, 14.38 km away
Northern Ohariu, 18.29 km away
Taonui, 18.79 km away

Wellington: Pahiatua, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU0ODguMEo2aVhp
Connected?	true
Directly Connected?	true
Co-rupture Count	39,103
Co-rupture Rate	1.4908046E-4

Mohaka: South, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU0ODguMEo2aVhp
Connected?	true
Directly Connected?	true
Co-rupture Count	9,652
Co-rupture Rate	0.0

Ruahine: Central, 0.16 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU0ODguMEo2aVhp
Connected?	true
Directly Connected?	true
Co-rupture Count	29,324
Co-rupture Rate	1.4078013E-4

Rangefront, 0.19 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU0ODguMEo2aVhp
Connected?	true
Directly Connected?	true
Co-rupture Count	2,601
Co-rupture Rate	4.0870247E-5

Woodville, 1.31 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU0ODguMEo2aVhp
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Pohangina, 5.25 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU0ODguMEo2aVhp
Connected?	true
Directly Connected?	true
Co-rupture Count	396
Co-rupture Rate	1.4971305E-5

Pahiatua, 5.97 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU0ODguMEo2aVhp
Connected?	true
Directly Connected?	true
Co-rupture Count	696
Co-rupture Rate	0.0

Ruataniwha, 9.87 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU0ODguMEo2aVhp
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Maunga, 13.33 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU0ODguMEo2aVhp
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Wakarara, 14.13 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU0ODguMEo2aVhp
Connected?	true
Directly Connected?	false
Co-rupture Count	1,988
Co-rupture Rate	1.6979437E-5

Tokomaru, 14.38 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU0ODguMEo2aVhp
Connected?	true
Directly Connected?	false
Co-rupture Count	2,955
Co-rupture Rate	0.0

Northern Ohariu, 18.29 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU0ODguMEo2aVhp
Connected?	true
Directly Connected?	false
Co-rupture Count	6,862
Co-rupture Rate	1.1663037E-4

Taonui, 18.79 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU0ODguMEo2aVhp
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
