Caswell High 4 Details

PropertyValue
Rupture Count590
Ruptures Above Sect Min Mag584
Ruptures w/ Nonzero Rates11
Magnitude Range[6.66, 8.57]
Length Range[14, 836] km
Total Rate1.6837275E-4 /yr
Multi-Fault Rate8.926739E-5 /yr (53.02%)
Directly-Connected Faults3
All Co-Rupturing Faults21

Table Of Contents

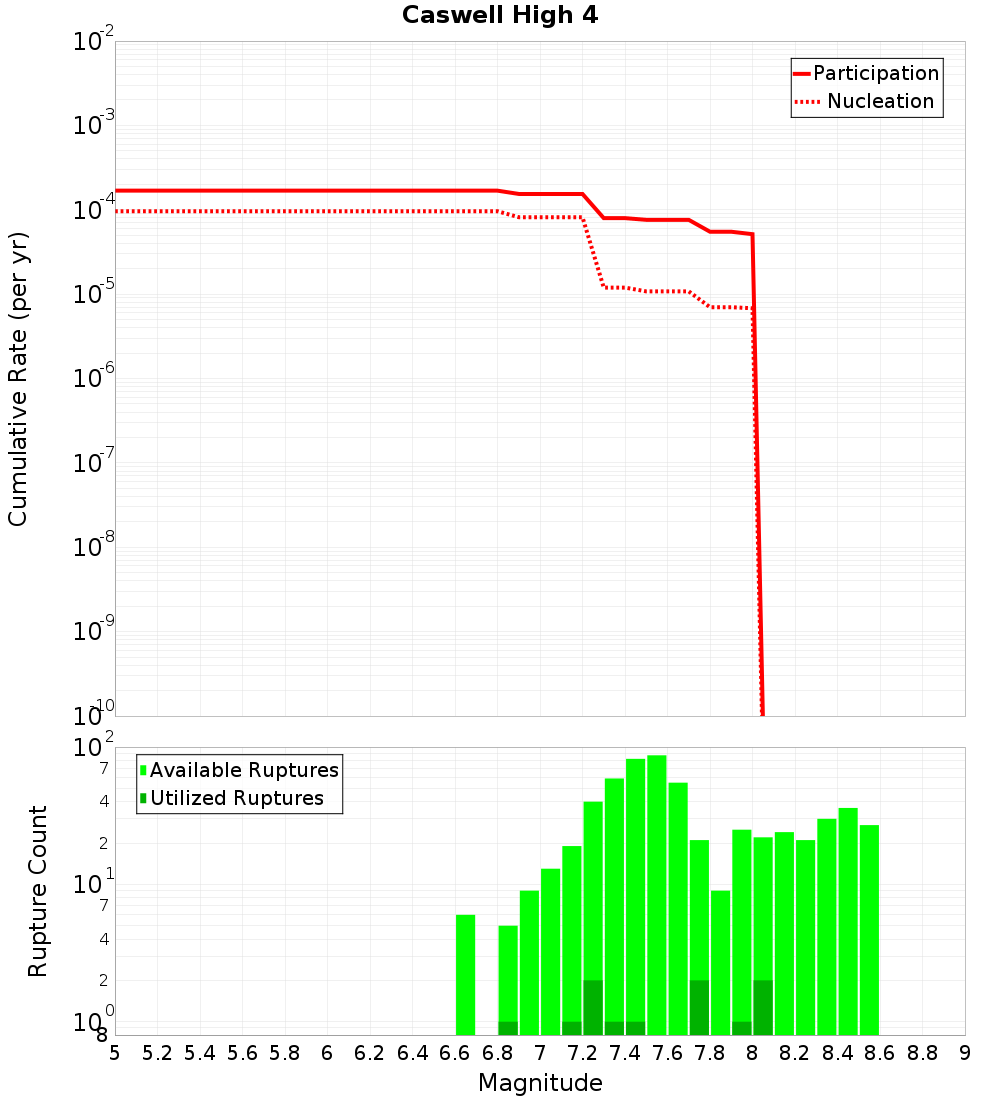

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

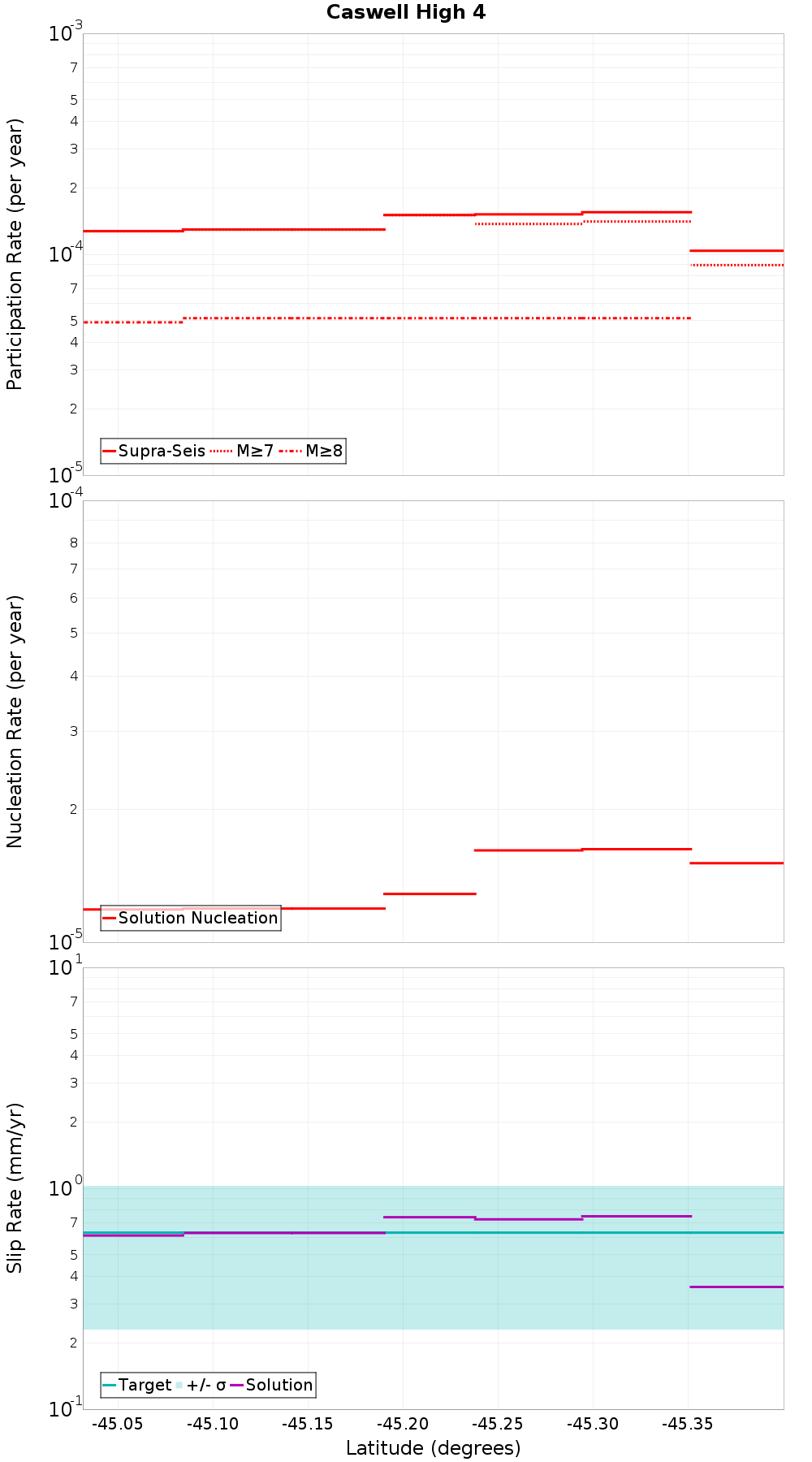

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Caswell High 5, 0.7 km away
Caswell High 3, 0.7 km away
Caswell High 1, 2.01 km away
Caswell 211, 6.16 km away
South Wedge 5, 7.68 km away
Caswell High 67, 8.29 km away
Central Wedge 4 - South Wedge 411, 14.11 km away
South Wedge 3-6-10, 15.05 km away

Caswell High 5, 0.7 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU0OTkuMDl3SnN0
Connected?true
Directly Connected?true
Co-rupture Count227
Co-rupture Rate2.106197E-5

Caswell High 3, 0.7 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU0OTkuMDl3SnN0
Connected?true
Directly Connected?true
Co-rupture Count78
Co-rupture Rate1.3325203E-5

Caswell High 1, 2.01 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU0OTkuMDl3SnN0
Connected?true
Directly Connected?true
Co-rupture Count455
Co-rupture Rate7.955593E-5

Caswell 211, 6.16 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU0OTkuMDl3SnN0
Connected?true
Directly Connected?false
Co-rupture Count55
Co-rupture Rate0.0

South Wedge 5, 7.68 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU0OTkuMDl3SnN0
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Caswell High 67, 8.29 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU0OTkuMDl3SnN0
Connected?true
Directly Connected?false
Co-rupture Count56
Co-rupture Rate2.106197E-5

Central Wedge 4 - South Wedge 411, 14.11 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU0OTkuMDl3SnN0
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

South Wedge 3-6-10, 15.05 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU0OTkuMDl3SnN0
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
