Matata Details

Property	Value
Rupture Count	9,751
Ruptures Above Sect Min Mag	9,690
Ruptures w/ Nonzero Rates	19
Magnitude Range	[5.77, 8.37]
Length Range	[5, 549] km
Total Rate	6.17258E-4 /yr
Multi-Fault Rate	6.17258E-4 /yr (100.00%)
Directly-Connected Faults	6
All Co-Rupturing Faults	83

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

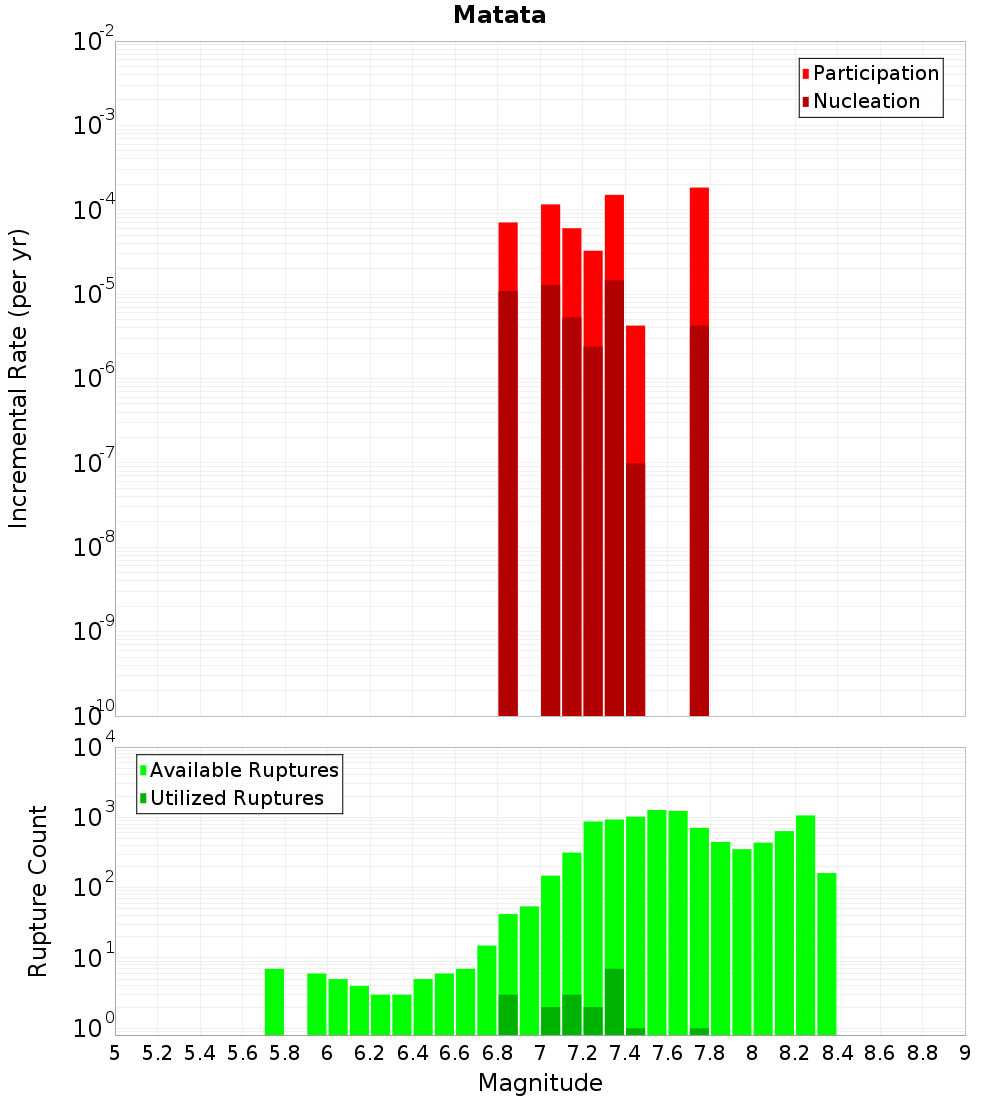

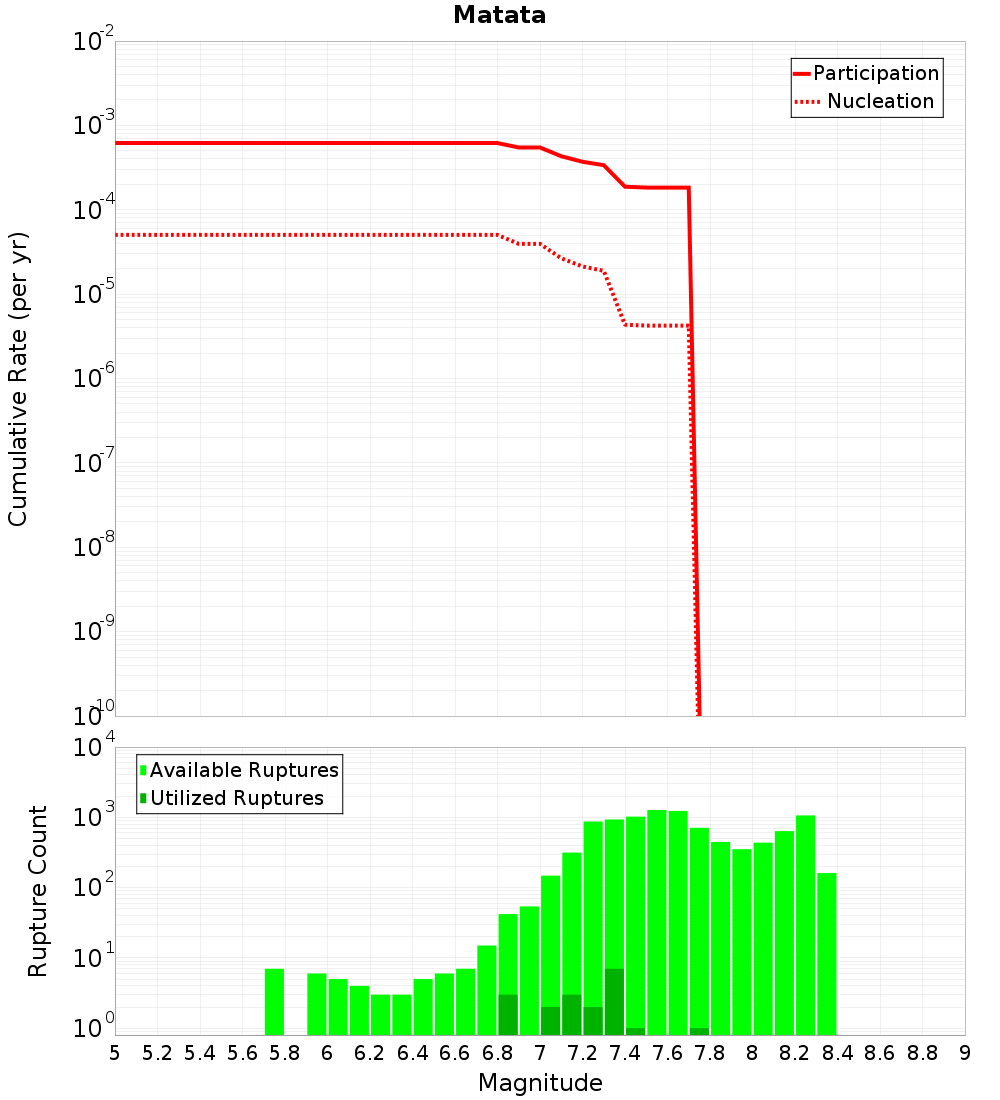

Magnitude-Frequency Distribution

Incremental	Cumulative

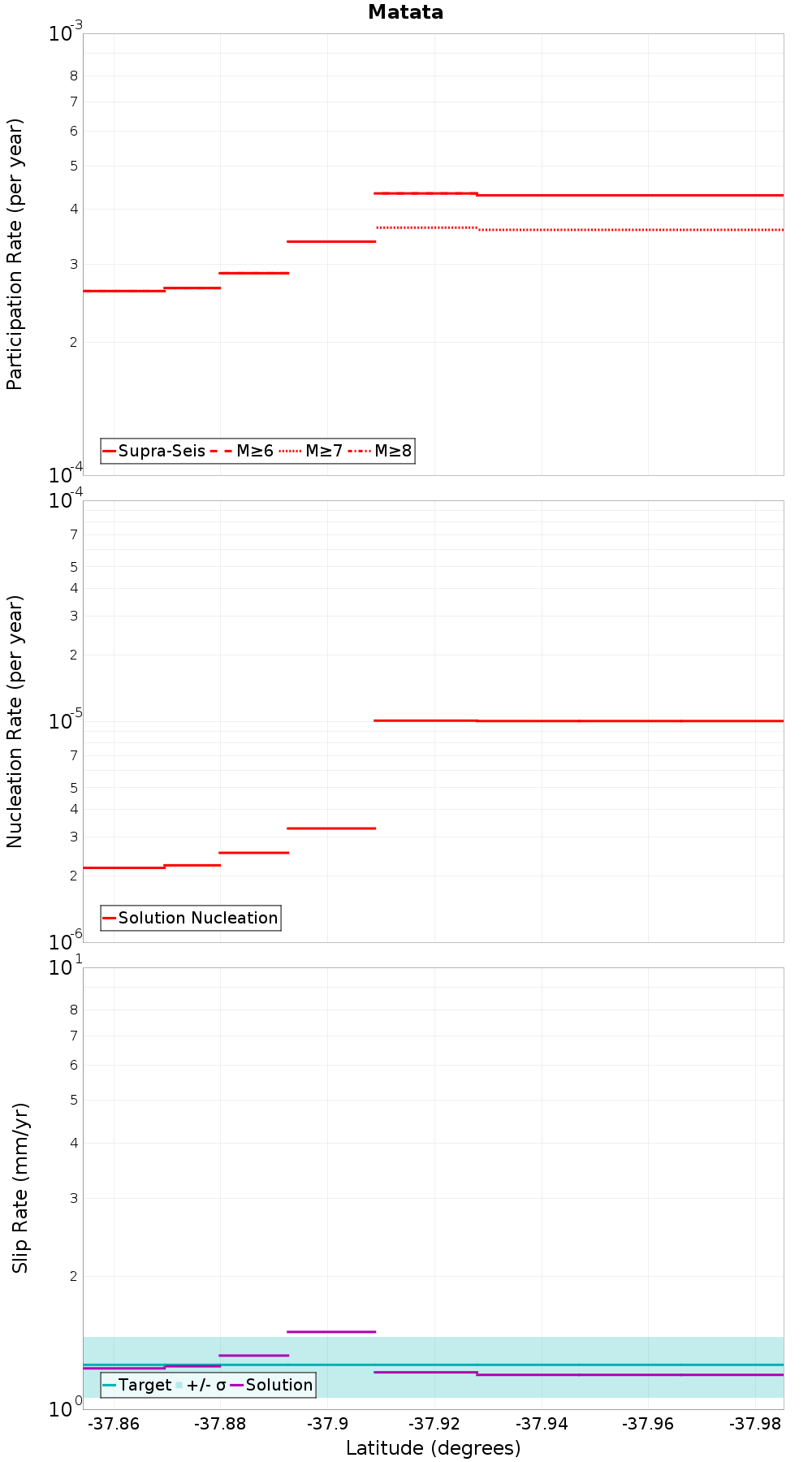

Along-Strike Values

Moment-Rates and b-Values

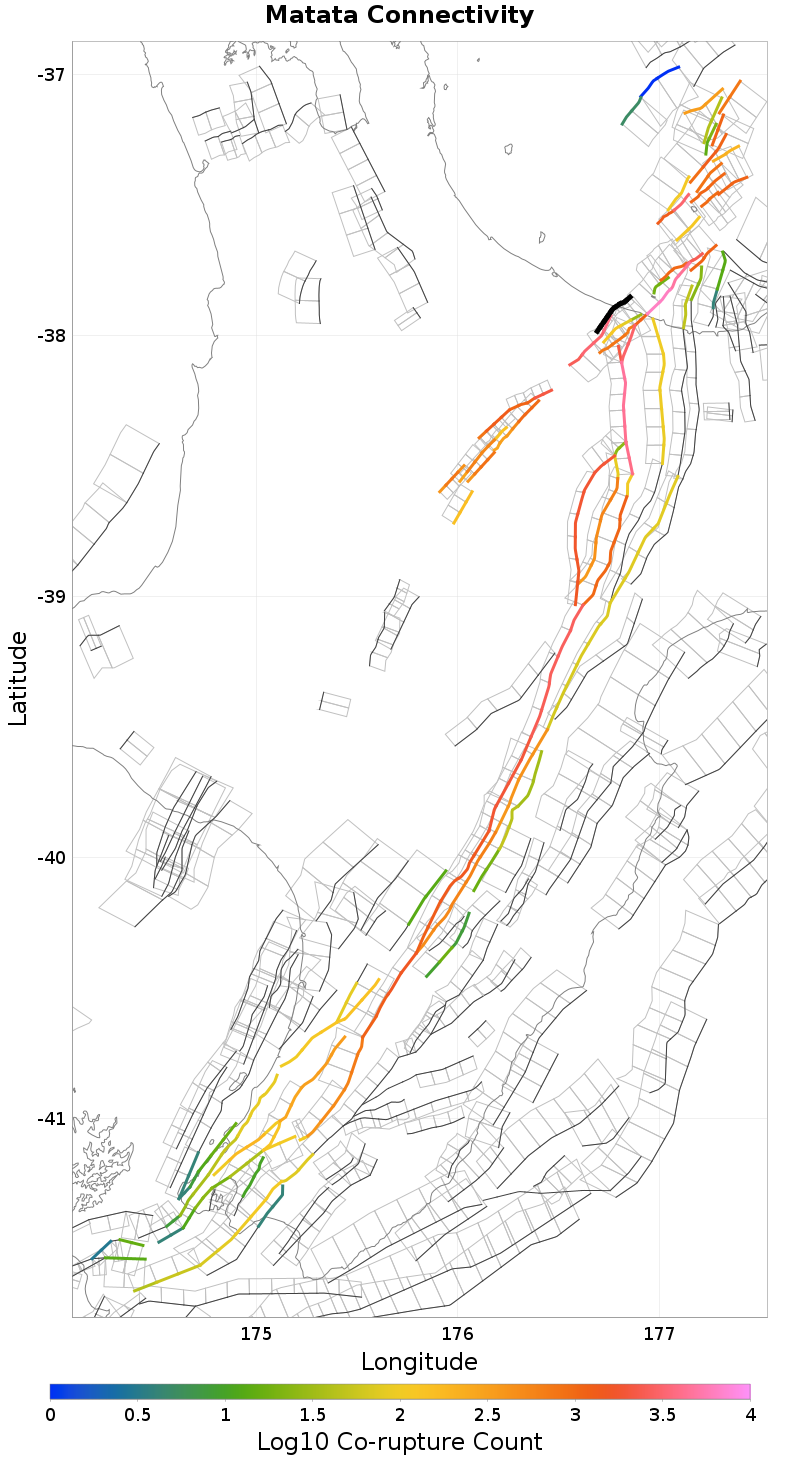

Connectivity

Nearby Sections

Fault Section
Braemar, 1.02 km away
Edgecumbe 1987, 1.18 km away
Edgecumbe Coastal, 2.64 km away
White Island 1, 2.65 km away
Otakiri, 4.47 km away
Awakeri, 5.47 km away
Waiohau: North, 6.41 km away
Whakatane: North, 8.87 km away
Rangitaiki 1, 9.11 km away
Rangitaiki 2, 15.14 km away

Braemar, 1.02 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU0OTkuMDl3SnN0
Connected?	true
Directly Connected?	true
Co-rupture Count	5,488
Co-rupture Rate	6.17258E-4

Edgecumbe 1987, 1.18 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU0OTkuMDl3SnN0
Connected?	true
Directly Connected?	true
Co-rupture Count	779
Co-rupture Rate	0.0

Edgecumbe Coastal, 2.64 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU0OTkuMDl3SnN0
Connected?	true
Directly Connected?	true
Co-rupture Count	1,156
Co-rupture Rate	0.0

White Island 1, 2.65 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU0OTkuMDl3SnN0
Connected?	true
Directly Connected?	true
Co-rupture Count	6,430
Co-rupture Rate	1.8319715E-4

Otakiri, 4.47 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU0OTkuMDl3SnN0
Connected?	true
Directly Connected?	true
Co-rupture Count	120
Co-rupture Rate	0.0

Awakeri, 5.47 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU0OTkuMDl3SnN0
Connected?	true
Directly Connected?	true
Co-rupture Count	2,982
Co-rupture Rate	0.0

Waiohau: North, 6.41 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU0OTkuMDl3SnN0
Connected?	true
Directly Connected?	false
Co-rupture Count	4,582
Co-rupture Rate	0.0

Whakatane: North, 8.87 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU0OTkuMDl3SnN0
Connected?	true
Directly Connected?	false
Co-rupture Count	96
Co-rupture Rate	0.0

Rangitaiki 1, 9.11 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU0OTkuMDl3SnN0
Connected?	true
Directly Connected?	false
Co-rupture Count	18
Co-rupture Rate	0.0

Rangitaiki 2, 15.14 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU0OTkuMDl3SnN0
Connected?	true
Directly Connected?	false
Co-rupture Count	1,034
Co-rupture Rate	1.8319715E-4
