Knowles Top Details

PropertyValue
Rupture Count27
Ruptures Above Sect Min Mag27
Ruptures w/ Nonzero Rates4
Magnitude Range[7.18, 7.99]
Length Range[27, 187] km
Total Rate1.575257E-4 /yr
Multi-Fault Rate2.1049464E-5 /yr (13.36%)
Directly-Connected Faults3
All Co-Rupturing Faults6

Table Of Contents

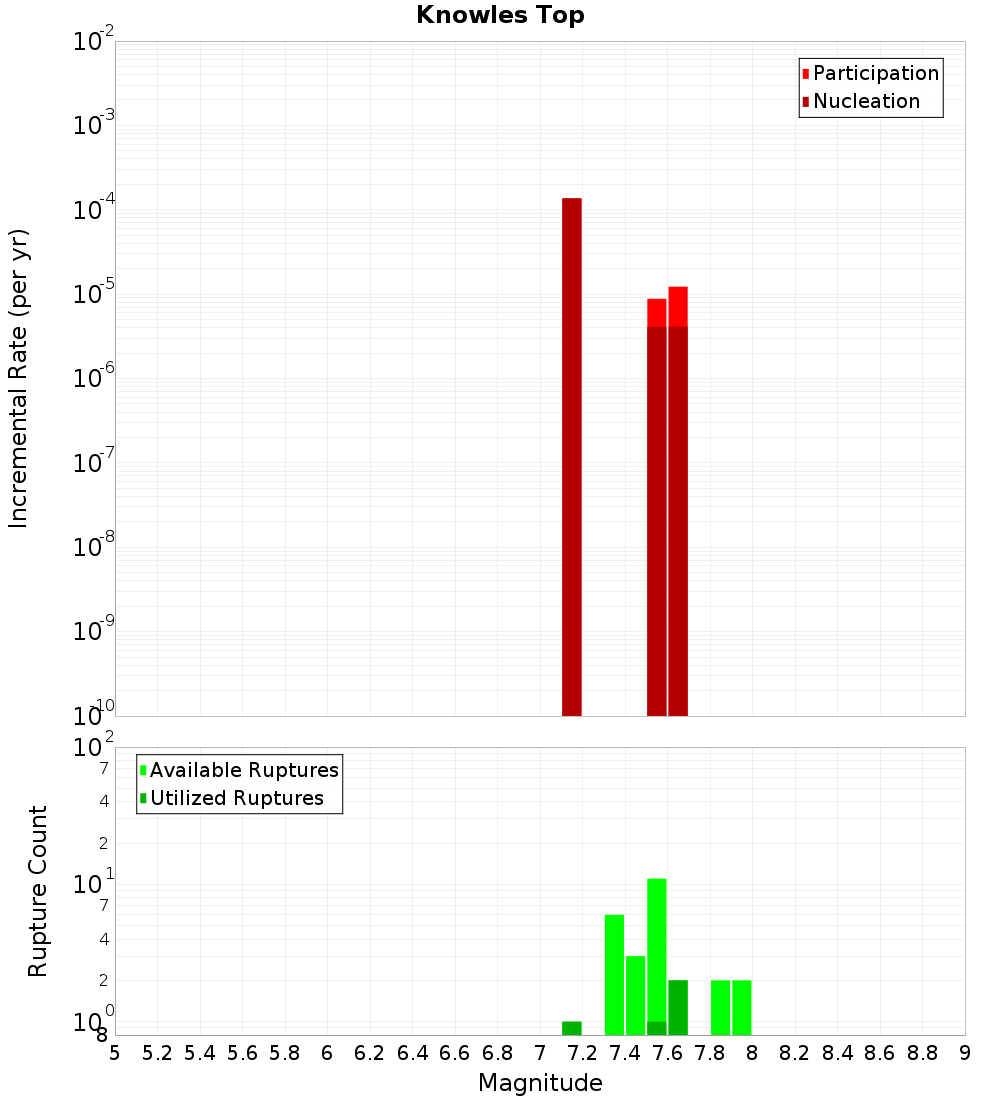

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

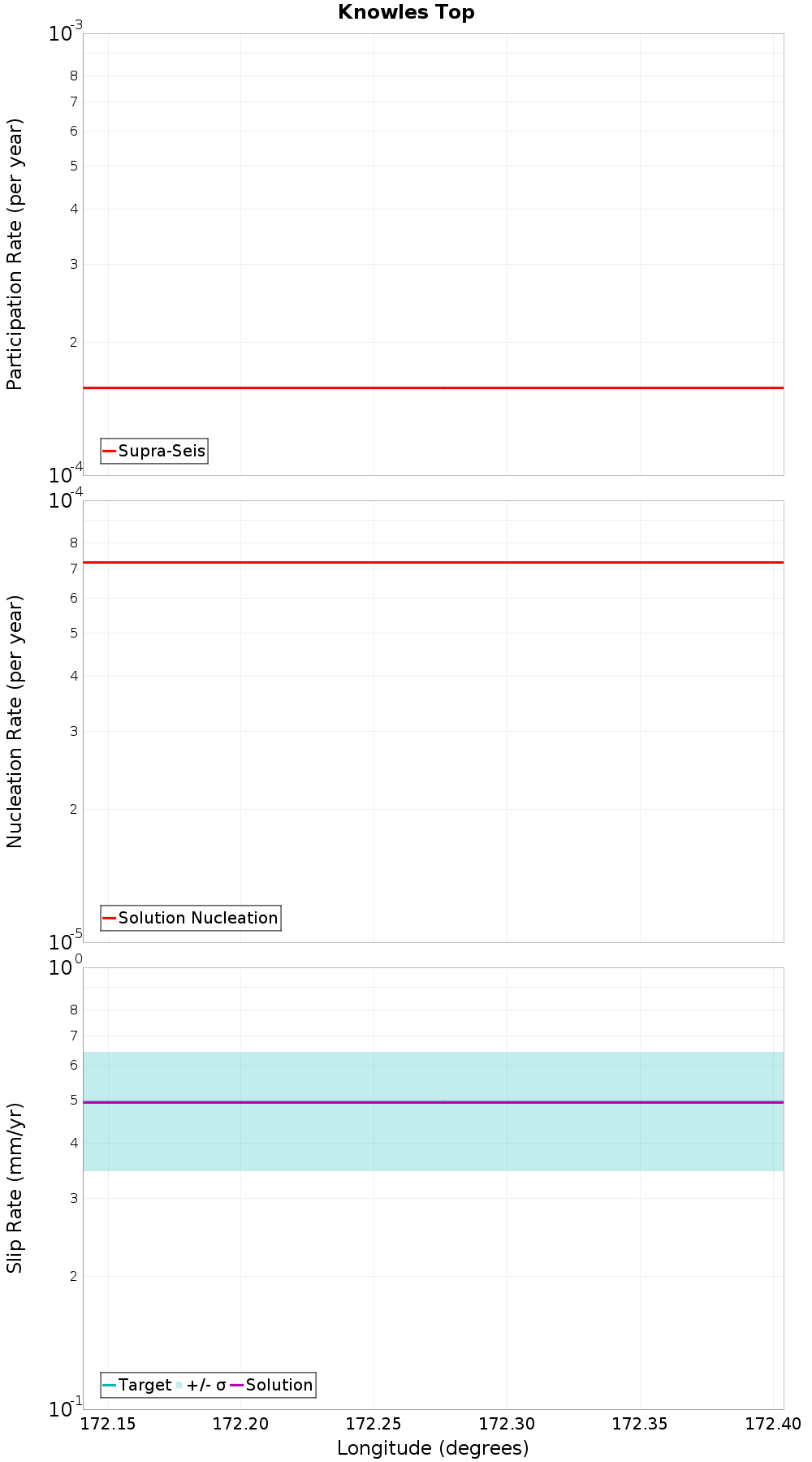

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Lees Valley, 0.13 km away
Esk South, 0.16 km away
Pancake, 0.3 km away
Mt Lawry, 1.45 km away
Starvation - Ashley, 1.58 km away
Mt Arden, 2.59 km away
Kowai - View Hill, 2.87 km away
High Peak - Sheffield, 6 km away
Porters Pass, 6.61 km away
Springbank, 8 km away
Hororata, 10.03 km away
Torlesse, 11.34 km away
Doctors, 12.44 km away
Boby Stream, 13.88 km away
AmberBlyth, 19.54 km away

Lees Valley, 0.13 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU1MDUuME1FVkx5
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Esk South, 0.16 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU1MDUuME1FVkx5
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Pancake, 0.3 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU1MDUuME1FVkx5
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Mt Lawry, 1.45 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU1MDUuME1FVkx5
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Starvation - Ashley, 1.58 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU1MDUuME1FVkx5
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Mt Arden, 2.59 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU1MDUuME1FVkx5
Connected?true
Directly Connected?true
Co-rupture Count13
Co-rupture Rate2.1049464E-5

Kowai - View Hill, 2.87 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU1MDUuME1FVkx5
Connected?true
Directly Connected?true
Co-rupture Count15
Co-rupture Rate2.1049464E-5

High Peak - Sheffield, 6 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU1MDUuME1FVkx5
Connected?true
Directly Connected?true
Co-rupture Count10
Co-rupture Rate0.0

Porters Pass, 6.61 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU1MDUuME1FVkx5
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Springbank, 8 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU1MDUuME1FVkx5
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Hororata, 10.03 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU1MDUuME1FVkx5
Connected?true
Directly Connected?false
Co-rupture Count8
Co-rupture Rate1.2244863E-5

Torlesse, 11.34 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU1MDUuME1FVkx5
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Doctors, 12.44 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU1MDUuME1FVkx5
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Boby Stream, 13.88 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU1MDUuME1FVkx5
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

AmberBlyth, 19.54 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU1MDUuME1FVkx5
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
