Ohena 2 Details

PropertyValue
Rupture Count19
Ruptures Above Sect Min Mag17
Ruptures w/ Nonzero Rates10
Magnitude Range[6.96, 7.52]
Length Range[20, 73] km
Total Rate0.0025802562 /yr
Multi-Fault Rate0.0015350543 /yr (59.49%)
Directly-Connected Faults5
All Co-Rupturing Faults5

Table Of Contents

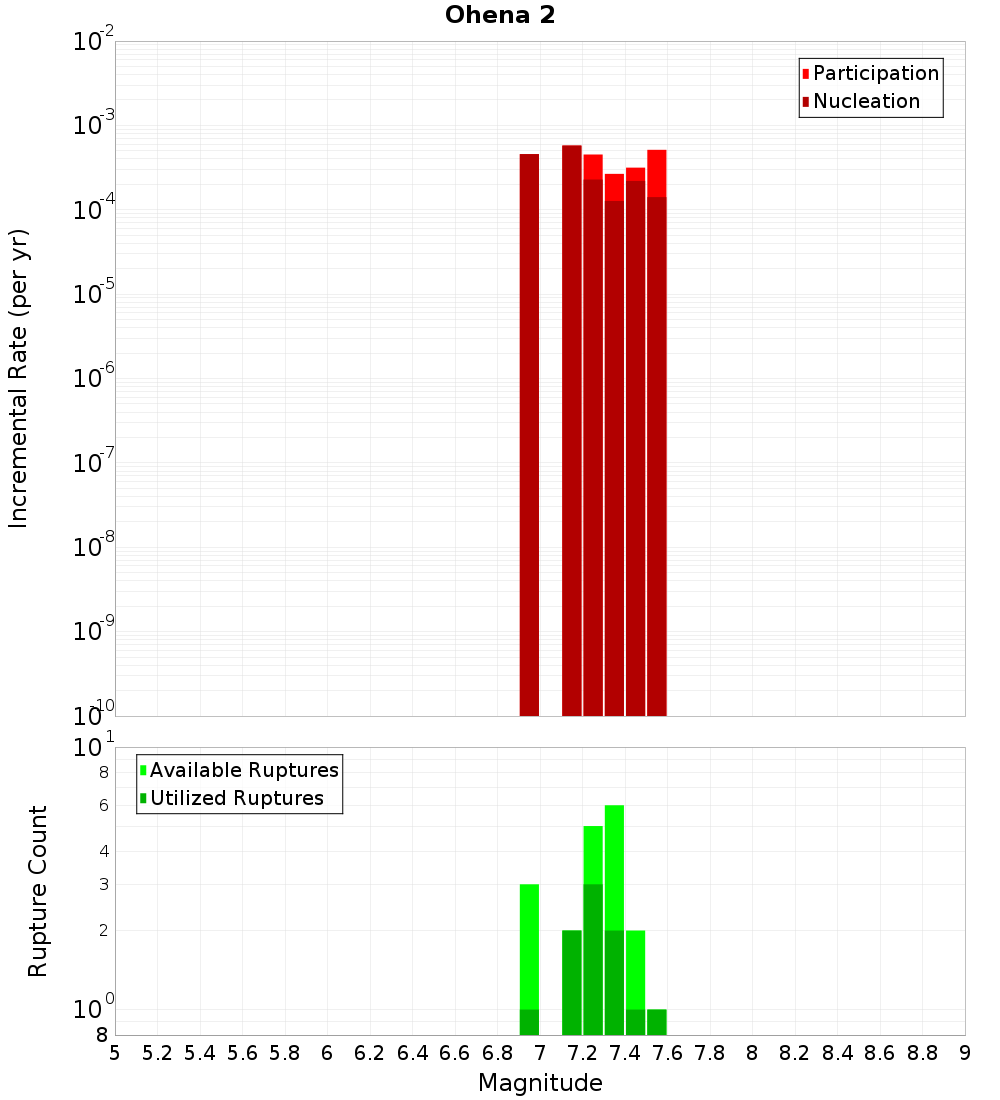

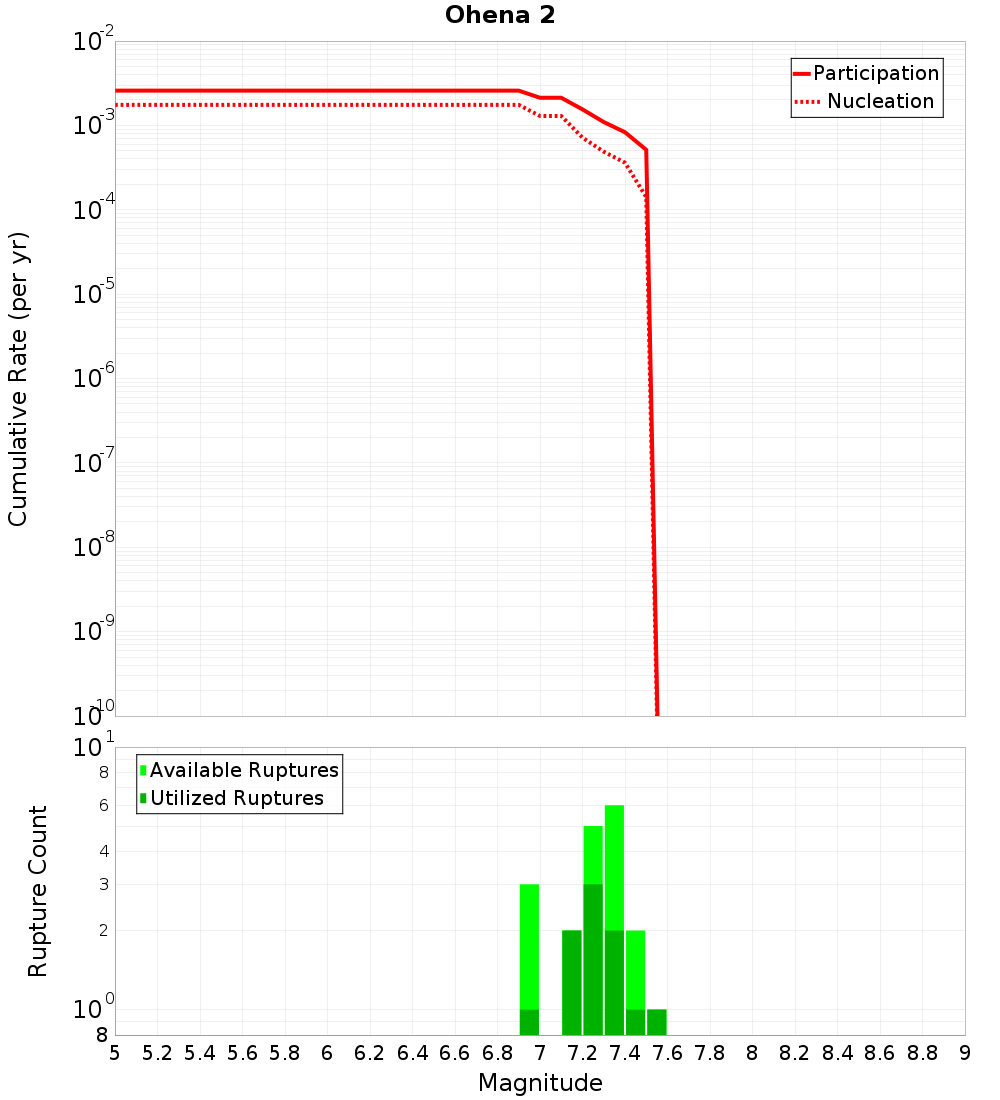

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

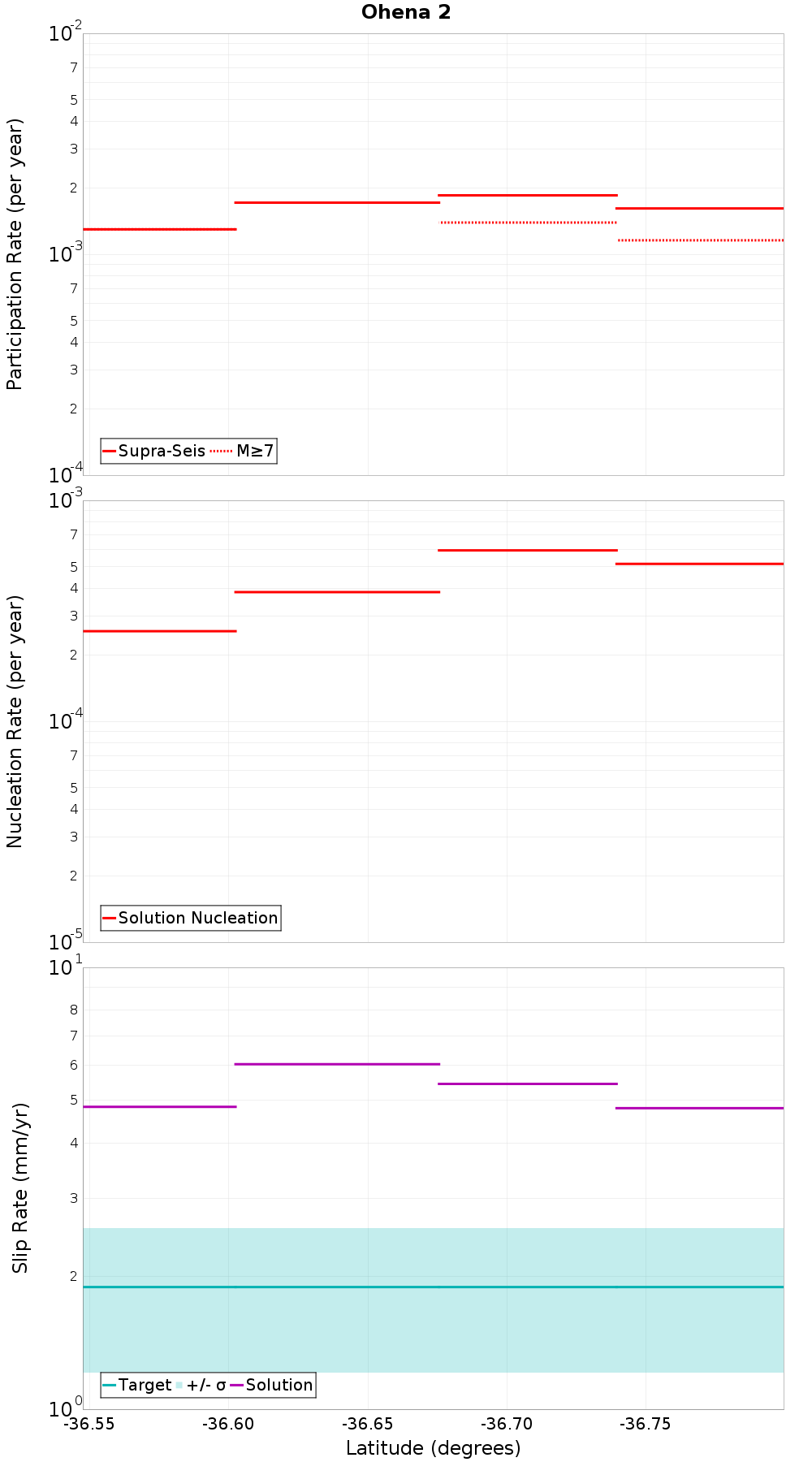

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

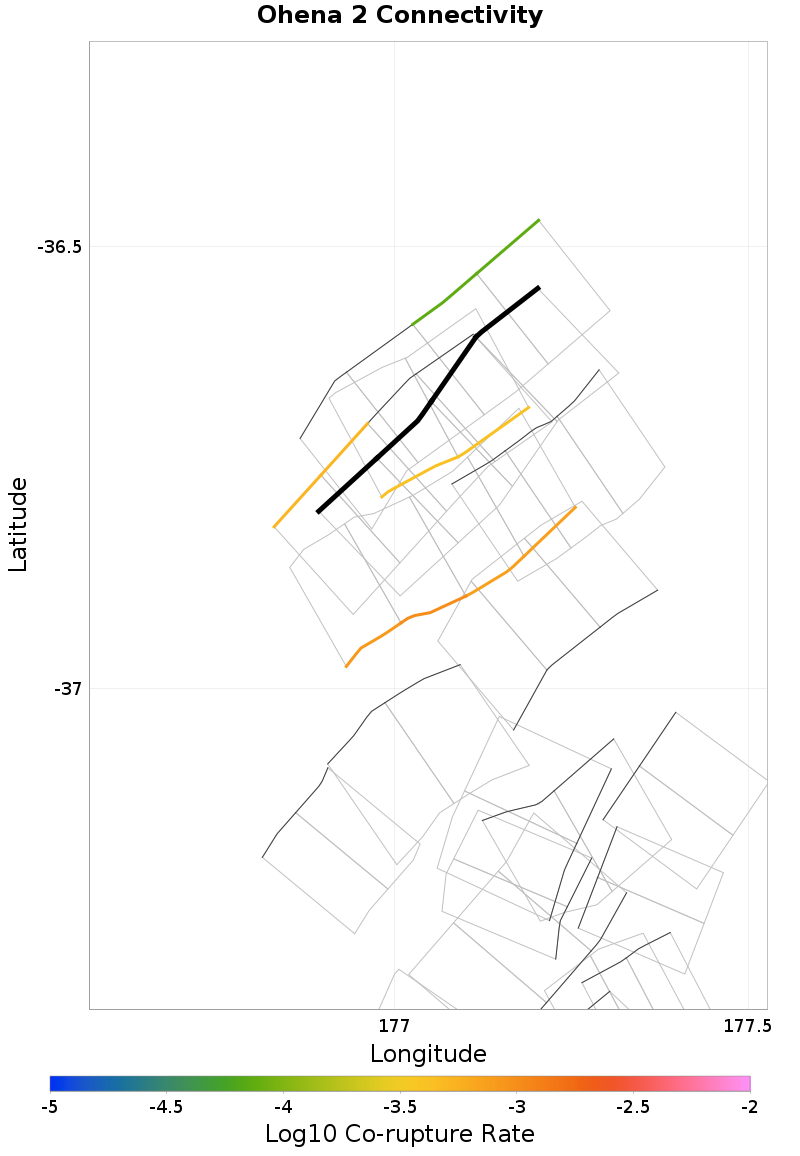

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Ngatoro South 5, 0.1 km away
Tauranga Trough West 2, 0.34 km away
Ohena 3, 0.49 km away
Ohena 4, 4.58 km away
Tauranga Trough East 2, 4.62 km away
Ngatoro South 2, 6.65 km away
Tuakana 7, 19.33 km away
Otara West 2, 19.64 km away

Ngatoro South 5, 0.1 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU1MDUuME1FVkx5
Connected?true
Directly Connected?true
Co-rupture Count1
Co-rupture Rate4.1293964E-4

Tauranga Trough West 2, 0.34 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU1MDUuME1FVkx5
Connected?true
Directly Connected?true
Co-rupture Count7
Co-rupture Rate0.001048923

Ohena 3, 0.49 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU1MDUuME1FVkx5
Connected?true
Directly Connected?true
Co-rupture Count4
Co-rupture Rate5.1337504E-4

Ohena 4, 4.58 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU1MDUuME1FVkx5
Connected?true
Directly Connected?true
Co-rupture Count2
Co-rupture Rate7.319159E-5

Tauranga Trough East 2, 4.62 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU1MDUuME1FVkx5
Connected?true
Directly Connected?true
Co-rupture Count1
Co-rupture Rate0.0

Ngatoro South 2, 6.65 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU1MDUuME1FVkx5
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Tuakana 7, 19.33 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU1MDUuME1FVkx5
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Otara West 2, 19.64 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU1MDUuME1FVkx5
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
