Poulter Details

PropertyValue
Rupture Count768
Ruptures Above Sect Min Mag758
Ruptures w/ Nonzero Rates6
Magnitude Range[6.79, 8.46]
Length Range[16, 658] km
Total Rate4.8220906E-4 /yr
Multi-Fault Rate1.7218127E-4 /yr (35.71%)
Directly-Connected Faults3
All Co-Rupturing Faults33

Table Of Contents

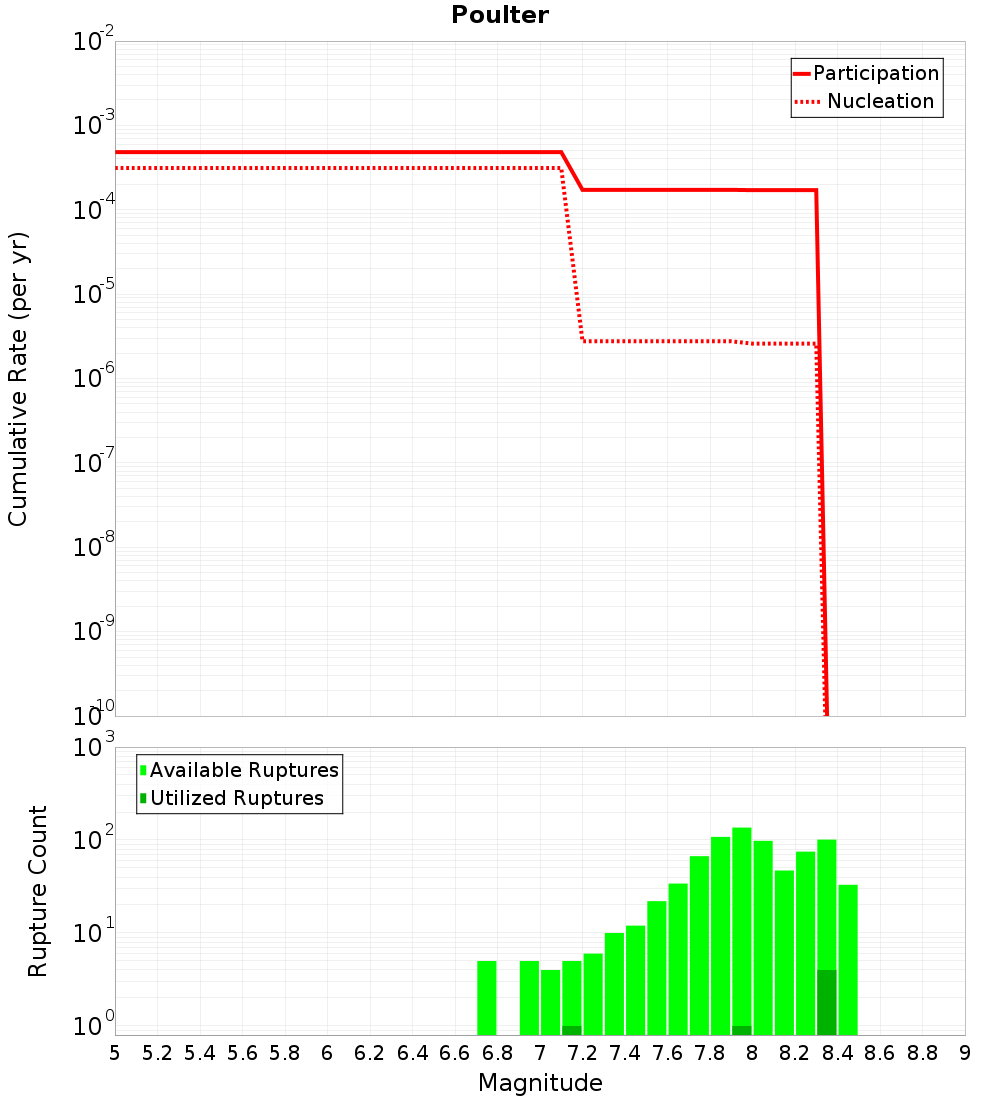

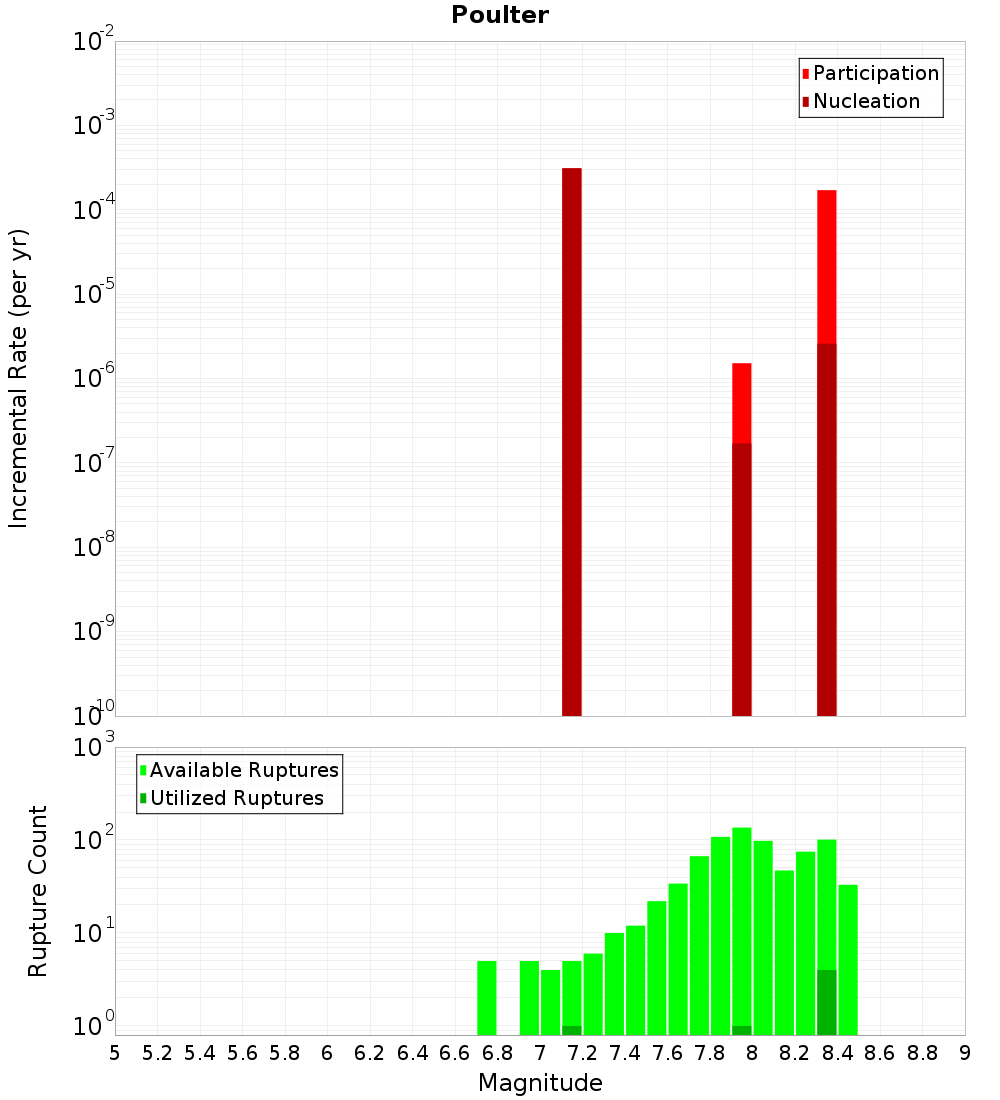

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

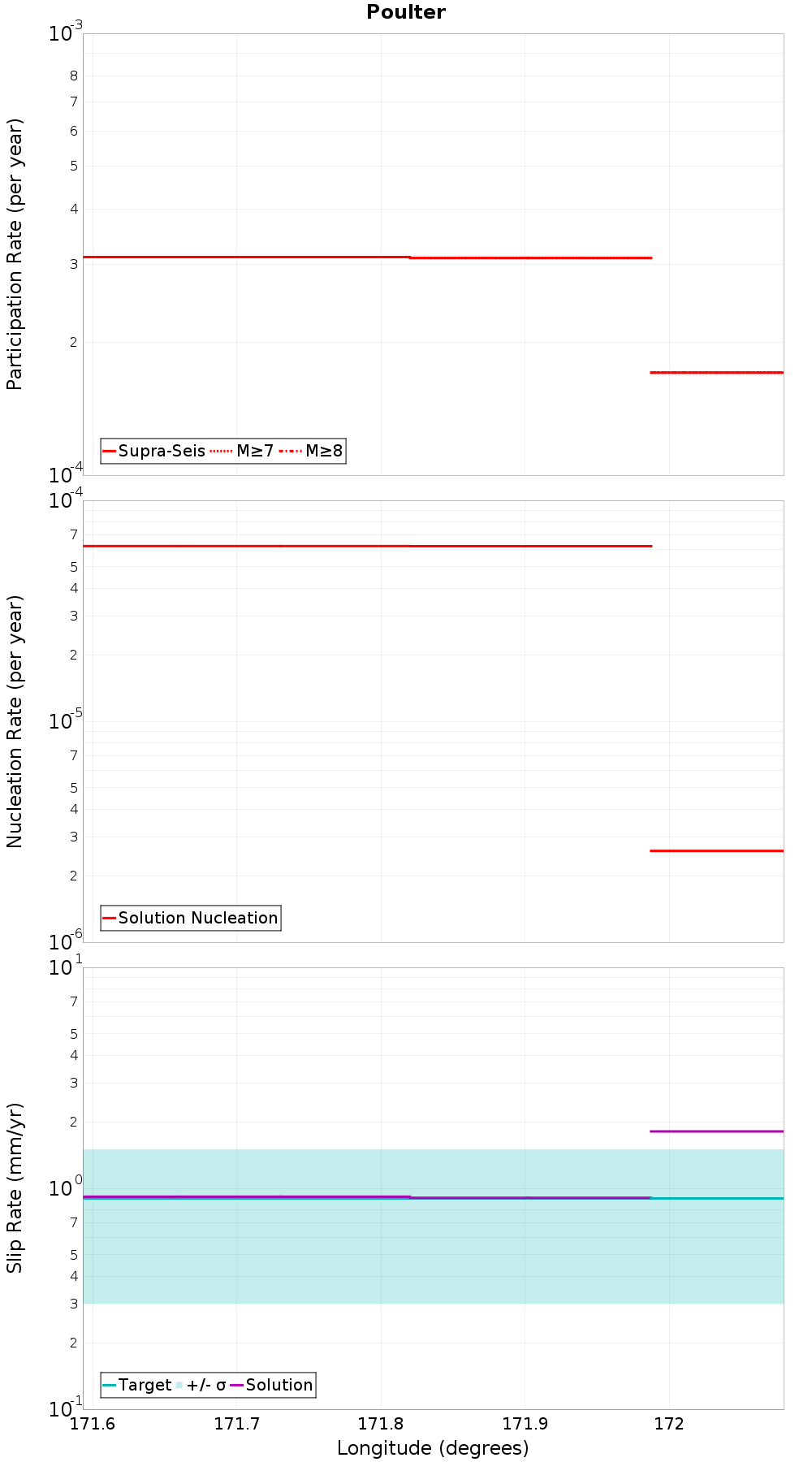

Along-Strike Values

(top)

Along-strike plot

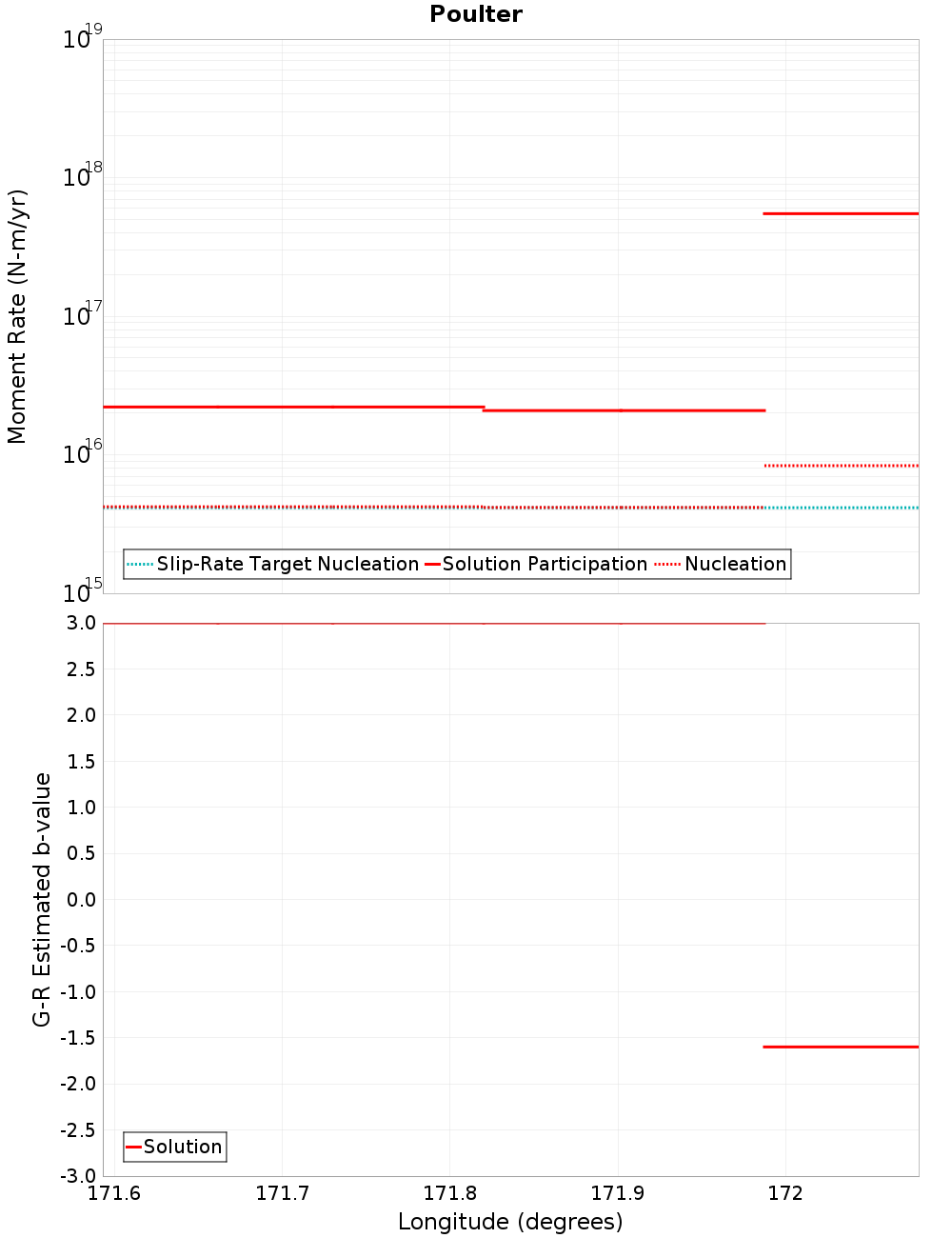

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Kakapo, 5.65 km away
Hope: Hurunui, 7.27 km away
Hope: Taramakau, 7.5 km away
Hope: Hope River, 7.81 km away
Kelly, 9.5 km away
Esk North, 9.54 km away
Cheeseman, 10.59 km away
Sailor, 11.01 km away
Browning Pass, 14.55 km away
Clarence: Southwest, 15.04 km away
Alpine: Kaniere to Springs Junction, 17.51 km away

Kakapo, 5.65 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU1MDcuMFlZVXg0
Connected?true
Directly Connected?true
Co-rupture Count561
Co-rupture Rate1.7066333E-4

Hope: Hurunui, 7.27 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU1MDcuMFlZVXg0
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Hope: Taramakau, 7.5 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU1MDcuMFlZVXg0
Connected?true
Directly Connected?true
Co-rupture Count458
Co-rupture Rate1.7066333E-4

Hope: Hope River, 7.81 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU1MDcuMFlZVXg0
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Kelly, 9.5 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU1MDcuMFlZVXg0
Connected?true
Directly Connected?false
Co-rupture Count381
Co-rupture Rate1.7066333E-4

Esk North, 9.54 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU1MDcuMFlZVXg0
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Cheeseman, 10.59 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU1MDcuMFlZVXg0
Connected?true
Directly Connected?true
Co-rupture Count116
Co-rupture Rate1.5179379E-6

Sailor, 11.01 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU1MDcuMFlZVXg0
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Browning Pass, 14.55 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU1MDcuMFlZVXg0
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Clarence: Southwest, 15.04 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU1MDcuMFlZVXg0
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Alpine: Kaniere to Springs Junction, 17.51 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU1MDcuMFlZVXg0
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
