Motu o Kura East Details
| Property | Value |
|---|---|
| Rupture Count | 7,672 |
| Ruptures Above Sect Min Mag | 7,647 |
| Ruptures w/ Nonzero Rates | 6 |
| Magnitude Range | [6.61, 8.47] |
| Length Range | [18, 1,127] km |
| Total Rate | 2.836837E-4 /yr |
| Multi-Fault Rate | 2.836837E-4 /yr (100.00%) |
| Directly-Connected Faults | 3 |
| All Co-Rupturing Faults | 63 |
Table Of Contents

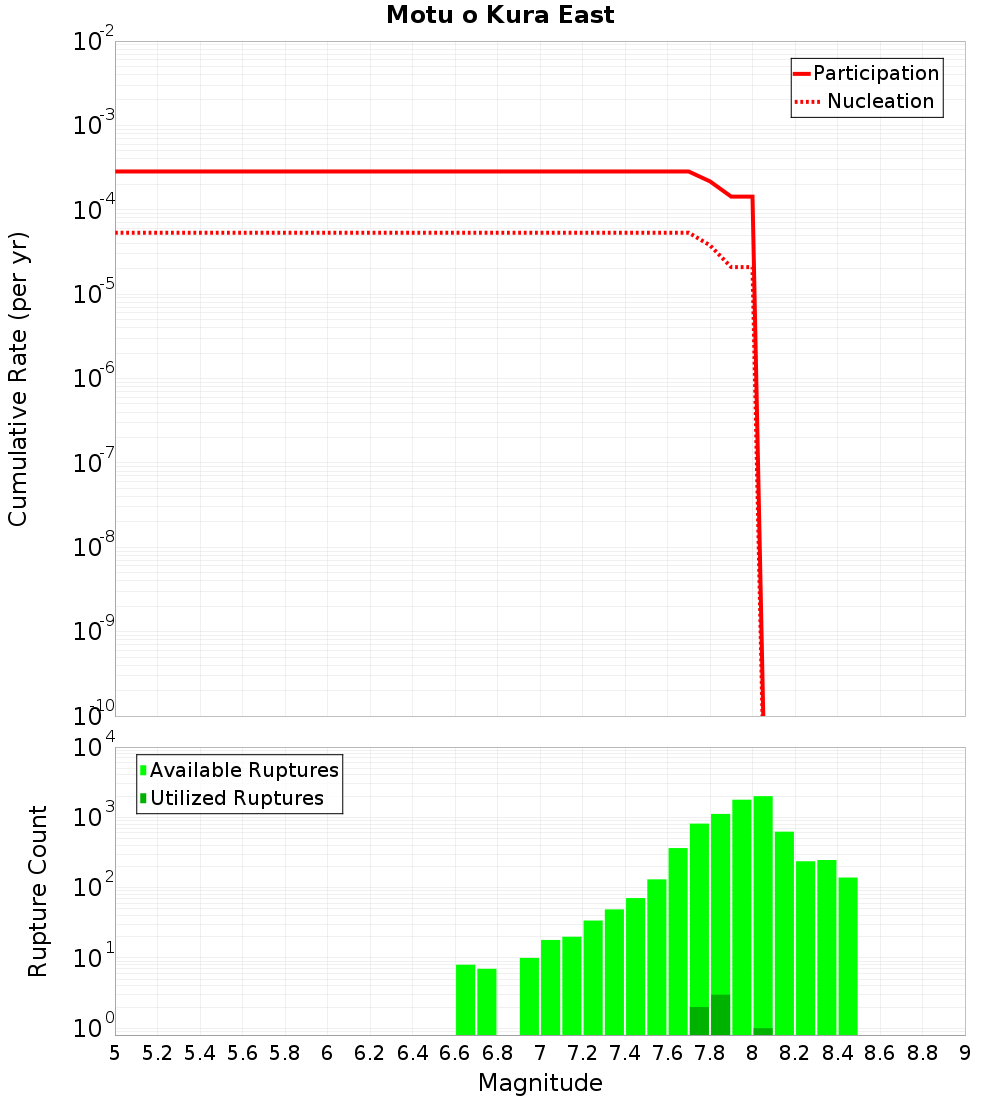

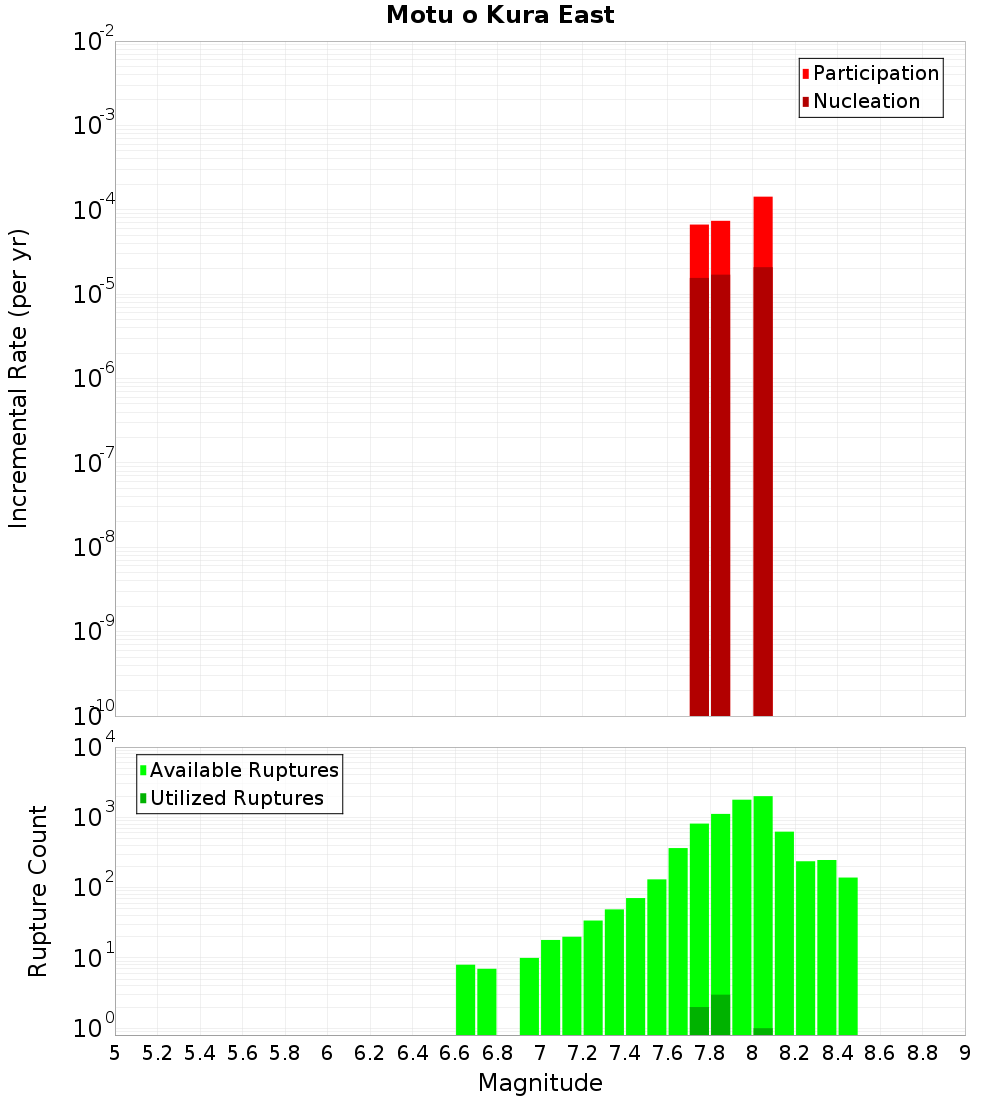

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

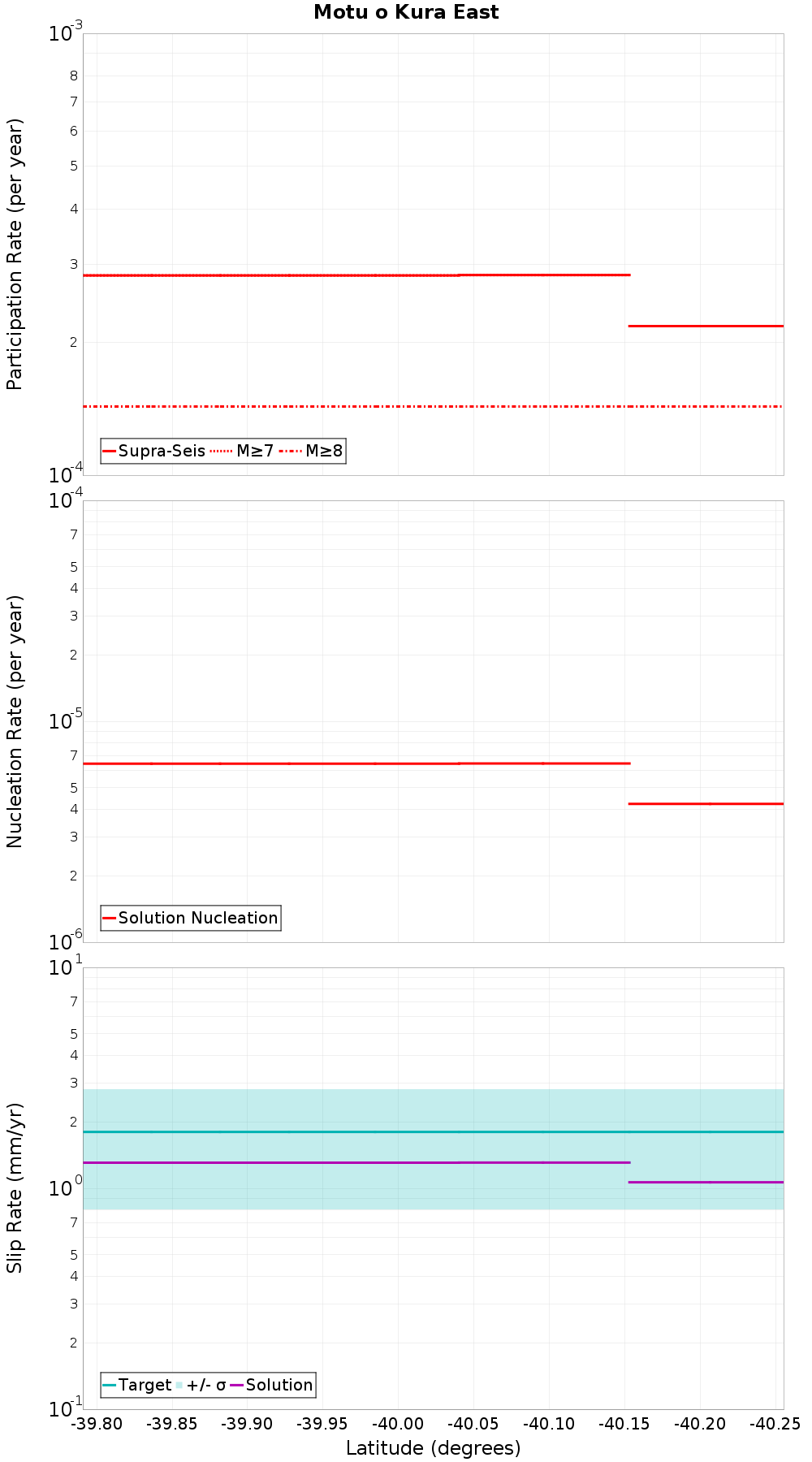

Along-Strike Values
Moment-Rates and b-Values

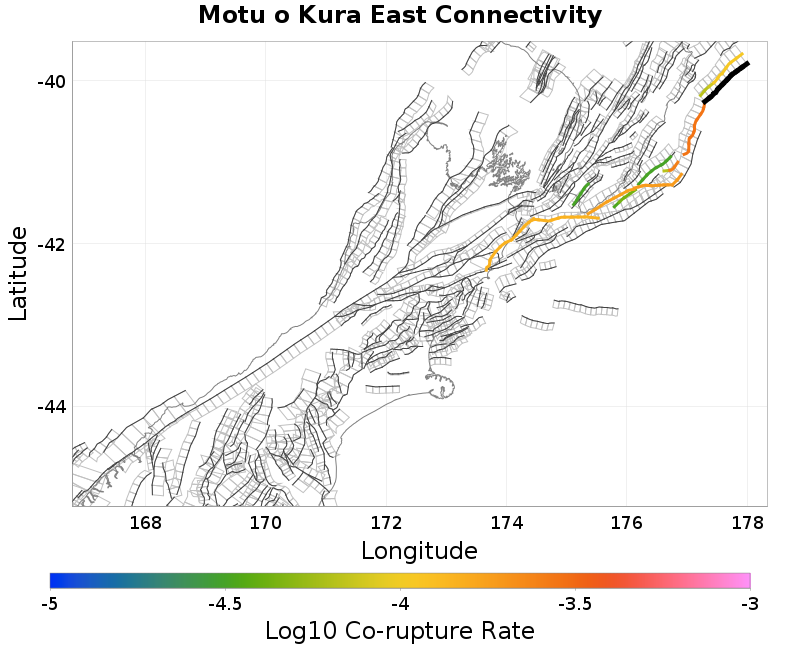

Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Madden Banks, 0.5 km away |
| Motu o Kura Ridge, 6.46 km away |
| Motuokura North, 7.07 km away |
Madden Banks, 0.5 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU1MTYuMHRGR3V3 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 7,570 |
| Co-rupture Rate | 2.836837E-4 |
Motu o Kura Ridge, 6.46 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU1MTYuMHRGR3V3 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 444 |
| Co-rupture Rate | 1.0922236E-4 |
Motuokura North, 7.07 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU1MTYuMHRGR3V3 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 306 |
| Co-rupture Rate | 1.0867215E-4 |
