Pa Valley Details

Property	Value
Rupture Count	3,573
Ruptures Above Sect Min Mag	3,557
Ruptures w/ Nonzero Rates	14
Magnitude Range	[6.58, 8.53]
Length Range	[17, 1,112] km
Total Rate	3.6967124E-4 /yr
Multi-Fault Rate	3.6967124E-4 /yr (100.00%)
Directly-Connected Faults	6
All Co-Rupturing Faults	68

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

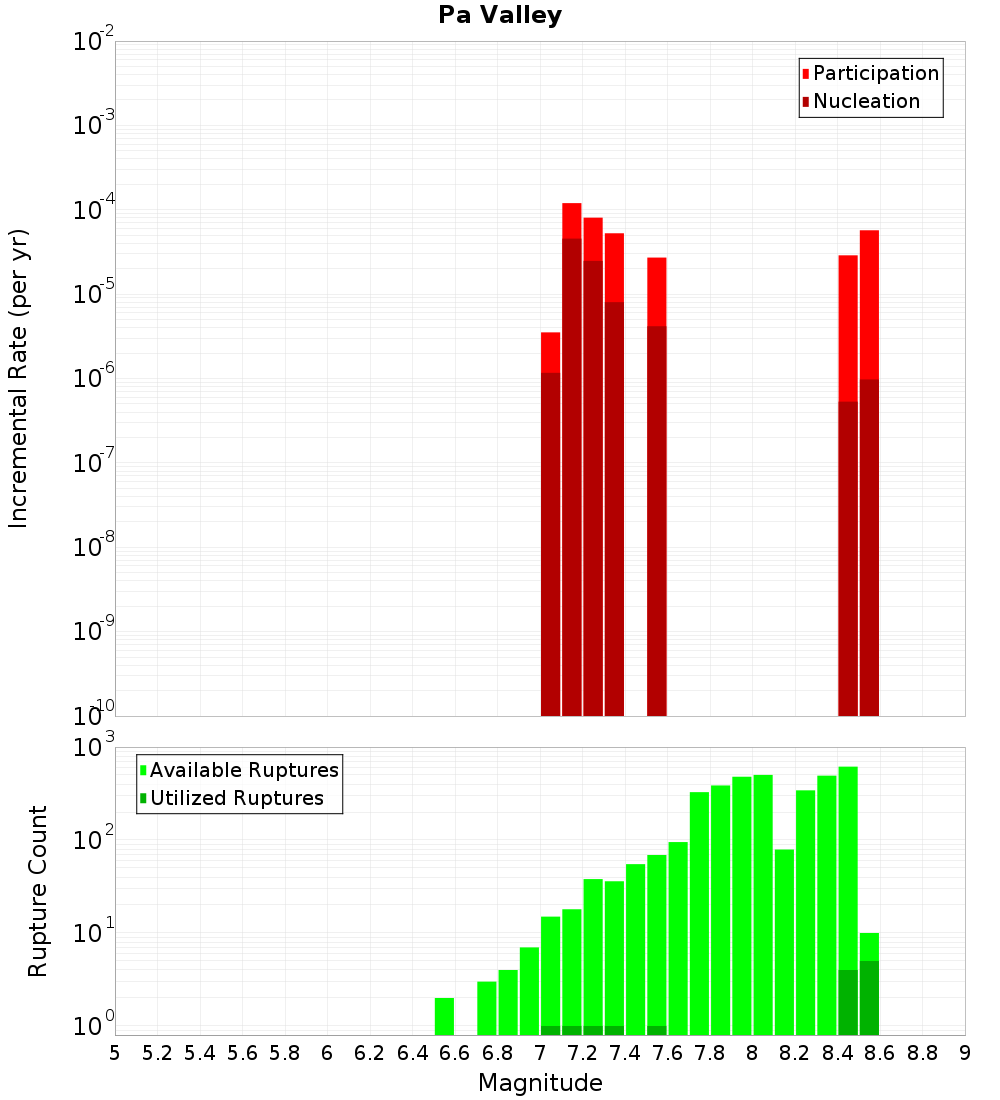

Magnitude-Frequency Distribution

Incremental	Cumulative

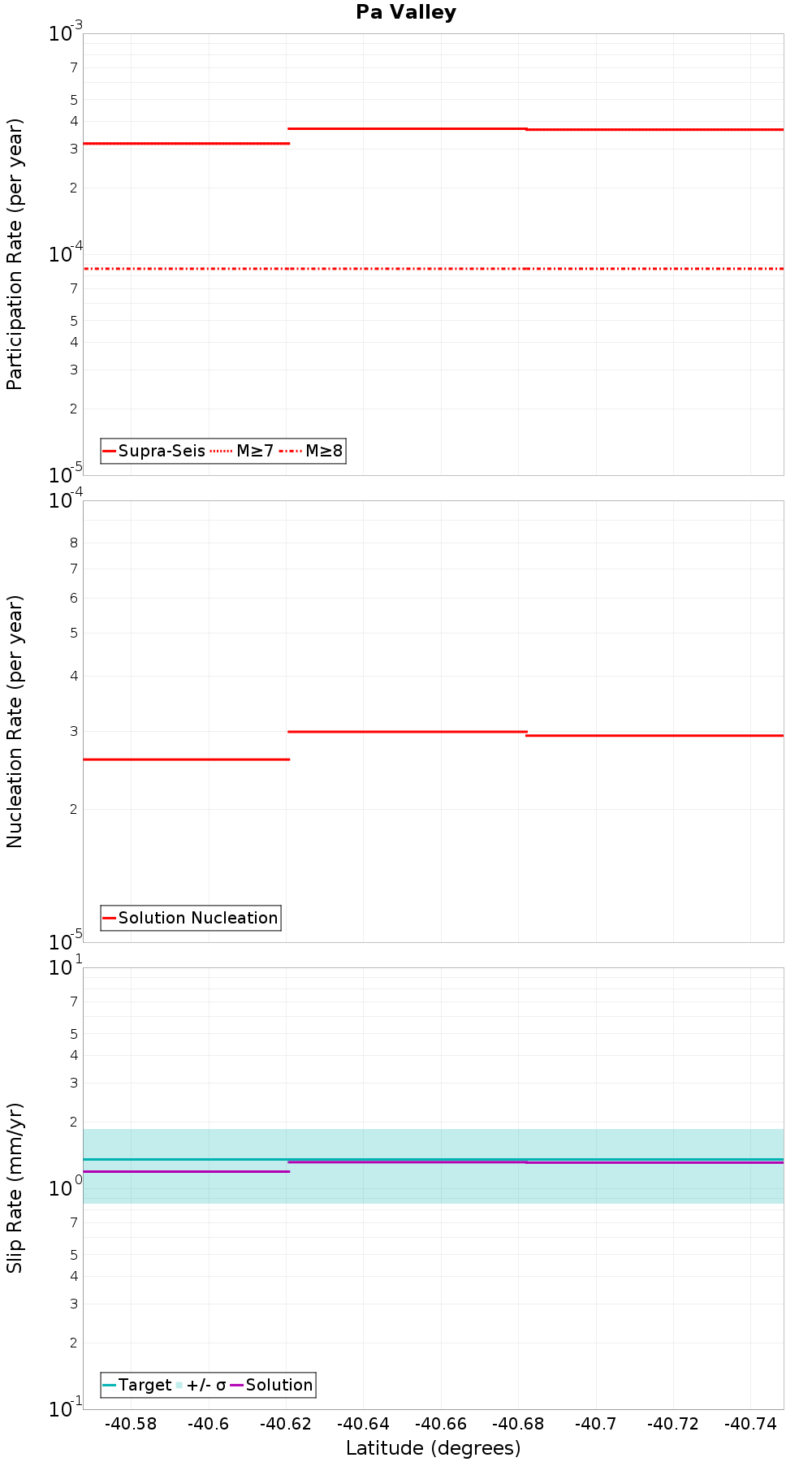

Along-Strike Values

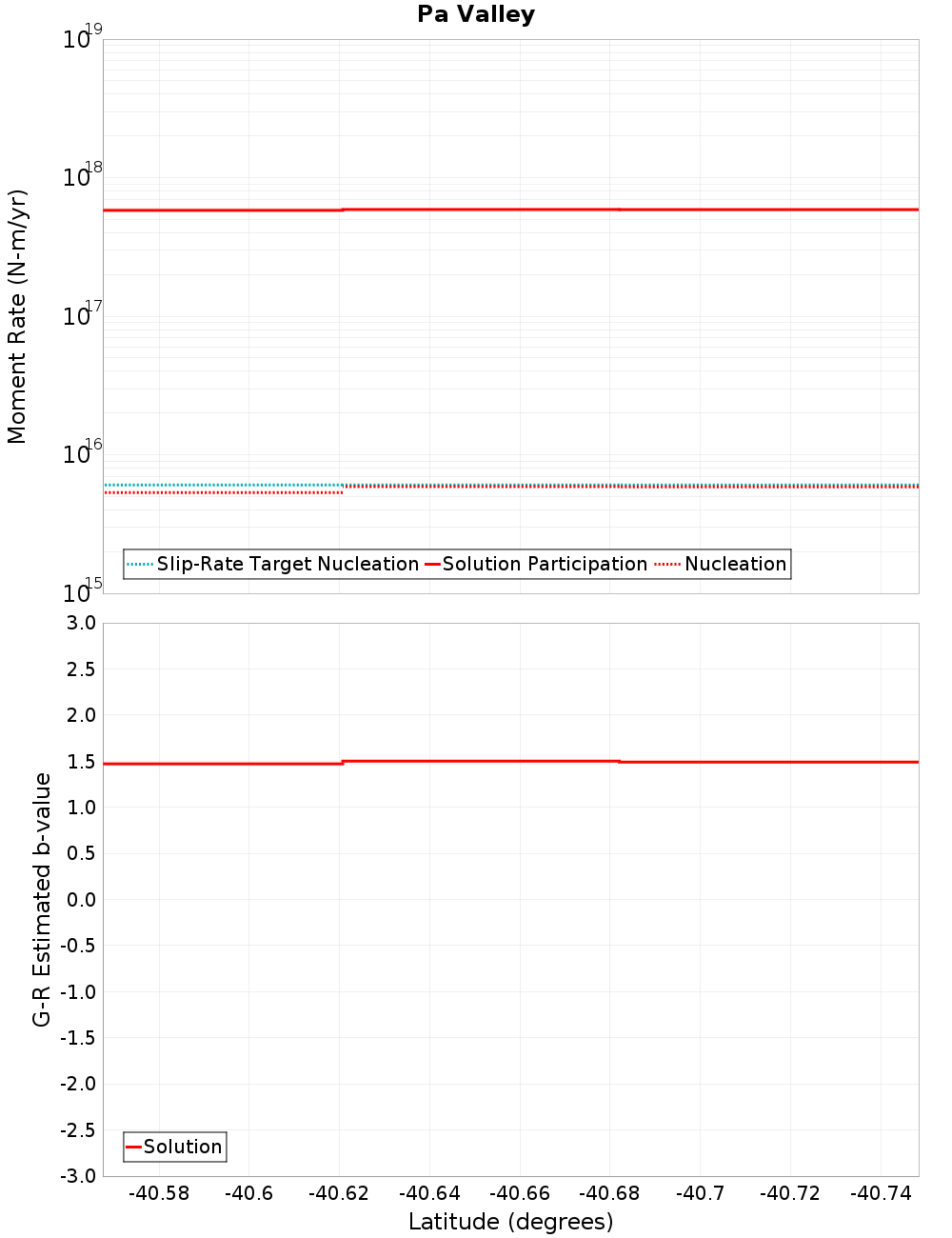

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Alfredton South, 0.07 km away
Dreyers Rock, 0.08 km away
Alfredton North, 0.21 km away
Saunders Road, 0.65 km away
Makuri - Waewaepa, 1.73 km away
Wairarapa: 3, 5.36 km away
Mokonui Northeast, 9.8 km away
Mokonui Southwest, 9.8 km away
Pahiatua, 14.33 km away
Waipukaka, 15.6 km away
Waitawhiti, 16.71 km away
Tokomaru, 17.93 km away
Wellington: Pahiatua, 19.21 km away

Alfredton South, 0.07 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU1MTYuMHRGR3V3
Connected?	true
Directly Connected?	true
Co-rupture Count	88
Co-rupture Rate	0.0

Dreyers Rock, 0.08 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU1MTYuMHRGR3V3
Connected?	true
Directly Connected?	true
Co-rupture Count	2,084
Co-rupture Rate	1.7579243E-4

Alfredton North, 0.21 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU1MTYuMHRGR3V3
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Saunders Road, 0.65 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU1MTYuMHRGR3V3
Connected?	true
Directly Connected?	true
Co-rupture Count	1,111
Co-rupture Rate	2.2772765E-5

Makuri - Waewaepa, 1.73 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU1MTYuMHRGR3V3
Connected?	true
Directly Connected?	true
Co-rupture Count	1,094
Co-rupture Rate	2.3777143E-4

Wairarapa: 3, 5.36 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU1MTYuMHRGR3V3
Connected?	true
Directly Connected?	true
Co-rupture Count	3,548
Co-rupture Rate	2.4631352E-4

Mokonui Northeast, 9.8 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU1MTYuMHRGR3V3
Connected?	true
Directly Connected?	false
Co-rupture Count	19
Co-rupture Rate	0.0

Mokonui Southwest, 9.8 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU1MTYuMHRGR3V3
Connected?	true
Directly Connected?	true
Co-rupture Count	47
Co-rupture Rate	5.26358E-5

Pahiatua, 14.33 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU1MTYuMHRGR3V3
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Waipukaka, 15.6 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU1MTYuMHRGR3V3
Connected?	true
Directly Connected?	false
Co-rupture Count	47
Co-rupture Rate	0.0

Waitawhiti, 16.71 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU1MTYuMHRGR3V3
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Tokomaru, 17.93 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU1MTYuMHRGR3V3
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Wellington: Pahiatua, 19.21 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU1MTYuMHRGR3V3
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
