Riversdale North Details

PropertyValue
Rupture Count371
Ruptures Above Sect Min Mag365
Ruptures w/ Nonzero Rates6
Magnitude Range[6.58, 8.06]
Length Range[16, 456] km
Total Rate6.62774E-4 /yr
Multi-Fault Rate6.62774E-4 /yr (100.00%)
Directly-Connected Faults3
All Co-Rupturing Faults24

Table Of Contents

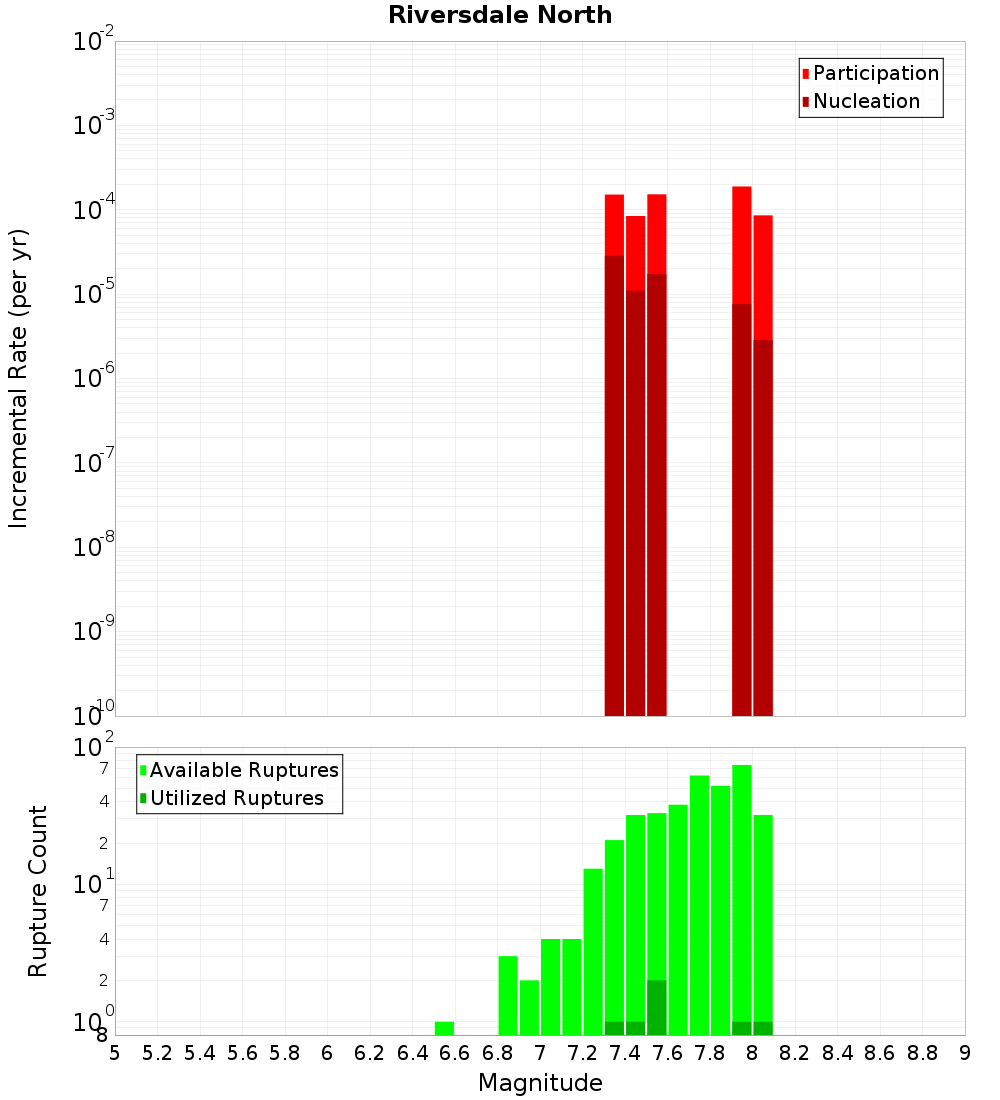

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

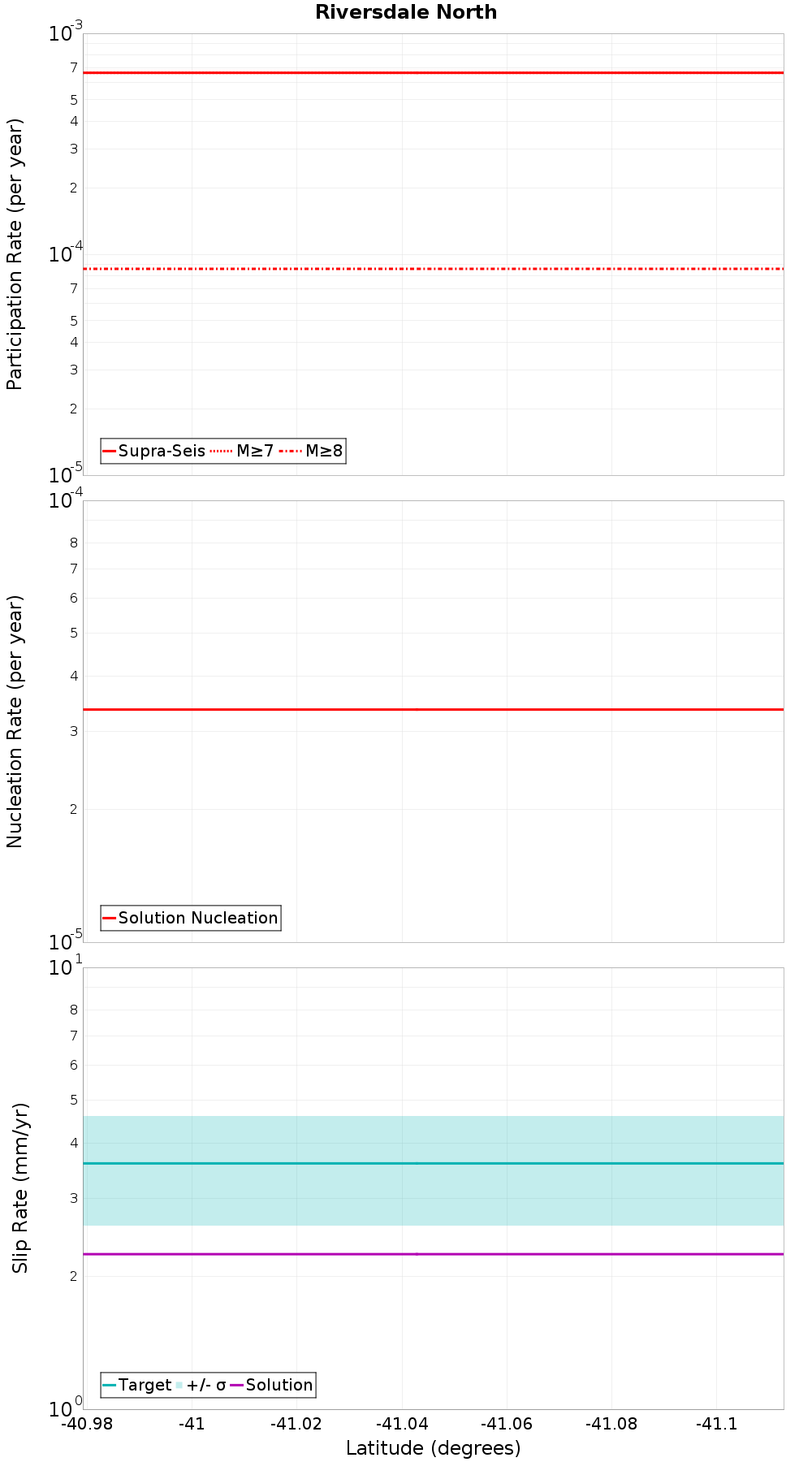

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

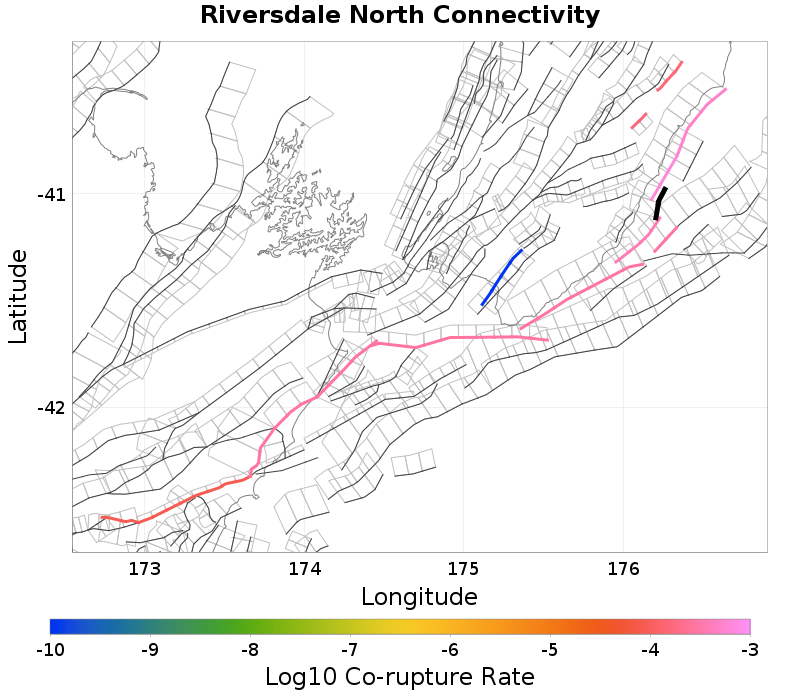

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Riversdale, 1.12 km away
Carterton, 2 km away
Mataikona, 2.18 km away
Uruti Point, 3.13 km away
Kaumingi, 4.3 km away
Whareama Bank, 7.05 km away
Mataikona East, 9.36 km away
Mokonui Northeast, 13.07 km away
Palliser - Kaiwhata, 14.39 km away
Honeycomb, 17.37 km away

Riversdale, 1.12 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU1MTYuMHRGR3V3
Connected?true
Directly Connected?true
Co-rupture Count31
Co-rupture Rate3.8808028E-4

Carterton, 2 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU1MTYuMHRGR3V3
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Mataikona, 2.18 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU1MTYuMHRGR3V3
Connected?true
Directly Connected?true
Co-rupture Count303
Co-rupture Rate6.627739E-4

Uruti Point, 3.13 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU1MTYuMHRGR3V3
Connected?true
Directly Connected?false
Co-rupture Count16
Co-rupture Rate0.0

Kaumingi, 4.3 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU1MTYuMHRGR3V3
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Whareama Bank, 7.05 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU1MTYuMHRGR3V3
Connected?true
Directly Connected?true
Co-rupture Count329
Co-rupture Rate2.746937E-4

Mataikona East, 9.36 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU1MTYuMHRGR3V3
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Mokonui Northeast, 13.07 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU1MTYuMHRGR3V3
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Palliser - Kaiwhata, 14.39 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU1MTYuMHRGR3V3
Connected?true
Directly Connected?false
Co-rupture Count336
Co-rupture Rate2.7469383E-4

Honeycomb, 17.37 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU1MTYuMHRGR3V3
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
