Wairarapa: Needles Details

PropertyValue
Rupture Count52,911
Ruptures Above Sect Min Mag52,906
Ruptures w/ Nonzero Rates48
Magnitude Range[6.75, 8.53]
Length Range[19, 1,119] km
Total Rate0.0014020631 /yr
Multi-Fault Rate0.0014020631 /yr (100.00%)
Directly-Connected Faults7
All Co-Rupturing Faults159

Table Of Contents

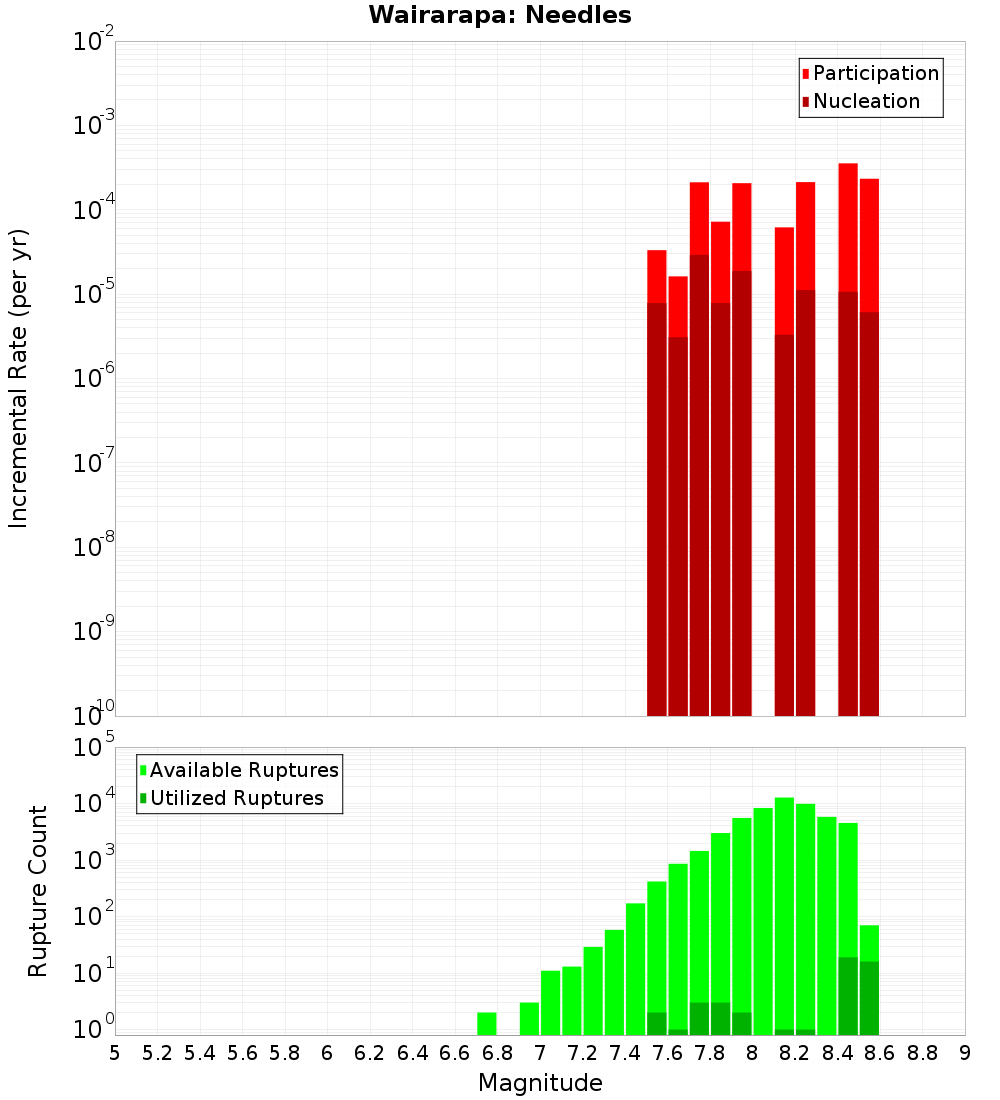

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

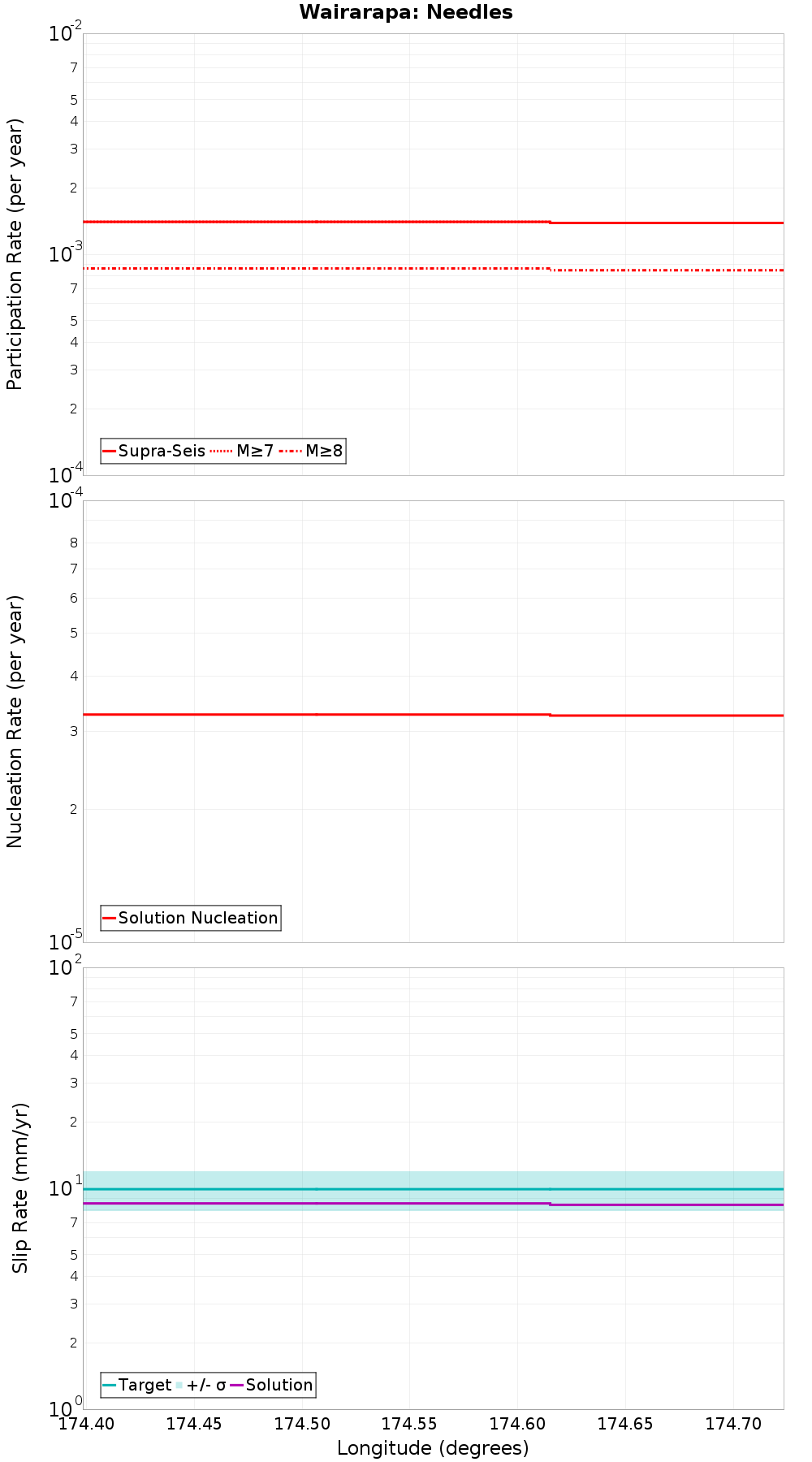

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Wairarapa: 1, 0 km awayNeedles East 2, 12.75 km away
Cloudy 3, 0.29 km awayVernon 2, 14.03 km away
Wharekauhau, 0.3 km awayWellington Hutt Valley: 1, 14.52 km away
Vernon 4, 0.42 km awayAwatere: Northeast 2, 14.79 km away
Needles, 4.57 km awayOhariu, 14.92 km away
BooBoo, 5.6 km awayCampbell Bank, 15.41 km away
Cloudy 2, 6.58 km awayWellington Hutt Valley: 3, 16.88 km away
Vernon 3, 9.01 km awayWairau 2, 18.8 km away
London Hill, 9.47 km awayOhariu South 1, 19.05 km away
Wairau 3, 9.87 km awayOhariu South 2, 19.11 km away
Cloudy 1, 10.84 km awayVernon 1, 19.36 km away
Wellington Hutt Valley: 2, 12.47 km awayAotea - Evans Bay, 19.45 km away

Wairarapa: 1, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU1MTYuMHRGR3V3
Connected?true
Directly Connected?true
Co-rupture Count49,655
Co-rupture Rate0.0010037737

Cloudy 3, 0.29 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU1MTYuMHRGR3V3
Connected?true
Directly Connected?true
Co-rupture Count34,996
Co-rupture Rate4.3050965E-4

Wharekauhau, 0.3 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU1MTYuMHRGR3V3
Connected?true
Directly Connected?true
Co-rupture Count3,060
Co-rupture Rate3.2763663E-4

Vernon 4, 0.42 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU1MTYuMHRGR3V3
Connected?true
Directly Connected?true
Co-rupture Count8,529
Co-rupture Rate2.1490964E-4

Needles, 4.57 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU1MTYuMHRGR3V3
Connected?true
Directly Connected?true
Co-rupture Count6,225
Co-rupture Rate4.7392843E-4

BooBoo, 5.6 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU1MTYuMHRGR3V3
Connected?true
Directly Connected?true
Co-rupture Count196
Co-rupture Rate0.0

Cloudy 2, 6.58 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU1MTYuMHRGR3V3
Connected?true
Directly Connected?false
Co-rupture Count559
Co-rupture Rate0.0

Vernon 3, 9.01 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU1MTYuMHRGR3V3
Connected?true
Directly Connected?false
Co-rupture Count234
Co-rupture Rate0.0

London Hill, 9.47 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU1MTYuMHRGR3V3
Connected?true
Directly Connected?false
Co-rupture Count62
Co-rupture Rate0.0

Wairau 3, 9.87 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU1MTYuMHRGR3V3
Connected?true
Directly Connected?true
Co-rupture Count538
Co-rupture Rate7.007378E-5

Cloudy 1, 10.84 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU1MTYuMHRGR3V3
Connected?true
Directly Connected?false
Co-rupture Count13,461
Co-rupture Rate2.1490964E-4

Wellington Hutt Valley: 2, 12.47 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU1MTYuMHRGR3V3
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Needles East 2, 12.75 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU1MTYuMHRGR3V3
Connected?true
Directly Connected?false
Co-rupture Count215
Co-rupture Rate0.0

Vernon 2, 14.03 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU1MTYuMHRGR3V3
Connected?true
Directly Connected?false
Co-rupture Count9,705
Co-rupture Rate2.1490964E-4

Wellington Hutt Valley: 1, 14.52 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU1MTYuMHRGR3V3
Connected?true
Directly Connected?false
Co-rupture Count8
Co-rupture Rate0.0

Awatere: Northeast 2, 14.79 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU1MTYuMHRGR3V3
Connected?true
Directly Connected?false
Co-rupture Count12,771
Co-rupture Rate3.6886002E-5

Ohariu, 14.92 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU1MTYuMHRGR3V3
Connected?true
Directly Connected?false
Co-rupture Count101
Co-rupture Rate0.0

Campbell Bank, 15.41 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU1MTYuMHRGR3V3
Connected?true
Directly Connected?false
Co-rupture Count27
Co-rupture Rate0.0

Wellington Hutt Valley: 3, 16.88 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU1MTYuMHRGR3V3
Connected?true
Directly Connected?false
Co-rupture Count4
Co-rupture Rate0.0

Wairau 2, 18.8 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU1MTYuMHRGR3V3
Connected?true
Directly Connected?false
Co-rupture Count17,512
Co-rupture Rate4.3050965E-4

Ohariu South 1, 19.05 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU1MTYuMHRGR3V3
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Ohariu South 2, 19.11 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU1MTYuMHRGR3V3
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Vernon 1, 19.36 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU1MTYuMHRGR3V3
Connected?true
Directly Connected?false
Co-rupture Count122
Co-rupture Rate0.0

Aotea - Evans Bay, 19.45 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU1MTYuMHRGR3V3
Connected?true
Directly Connected?false
Co-rupture Count3
Co-rupture Rate0.0
