Motu Details
| Property | Value |
|---|---|
| Rupture Count | 45 |
| Ruptures Above Sect Min Mag | 44 |
| Ruptures w/ Nonzero Rates | 11 |
| Magnitude Range | [6.85, 7.63] |
| Length Range | [21, 117] km |
| Total Rate | 1.8179223E-4 /yr |
| Multi-Fault Rate | 1.8179223E-4 /yr (100.00%) |
| Directly-Connected Faults | 3 |
| All Co-Rupturing Faults | 9 |
Table Of Contents

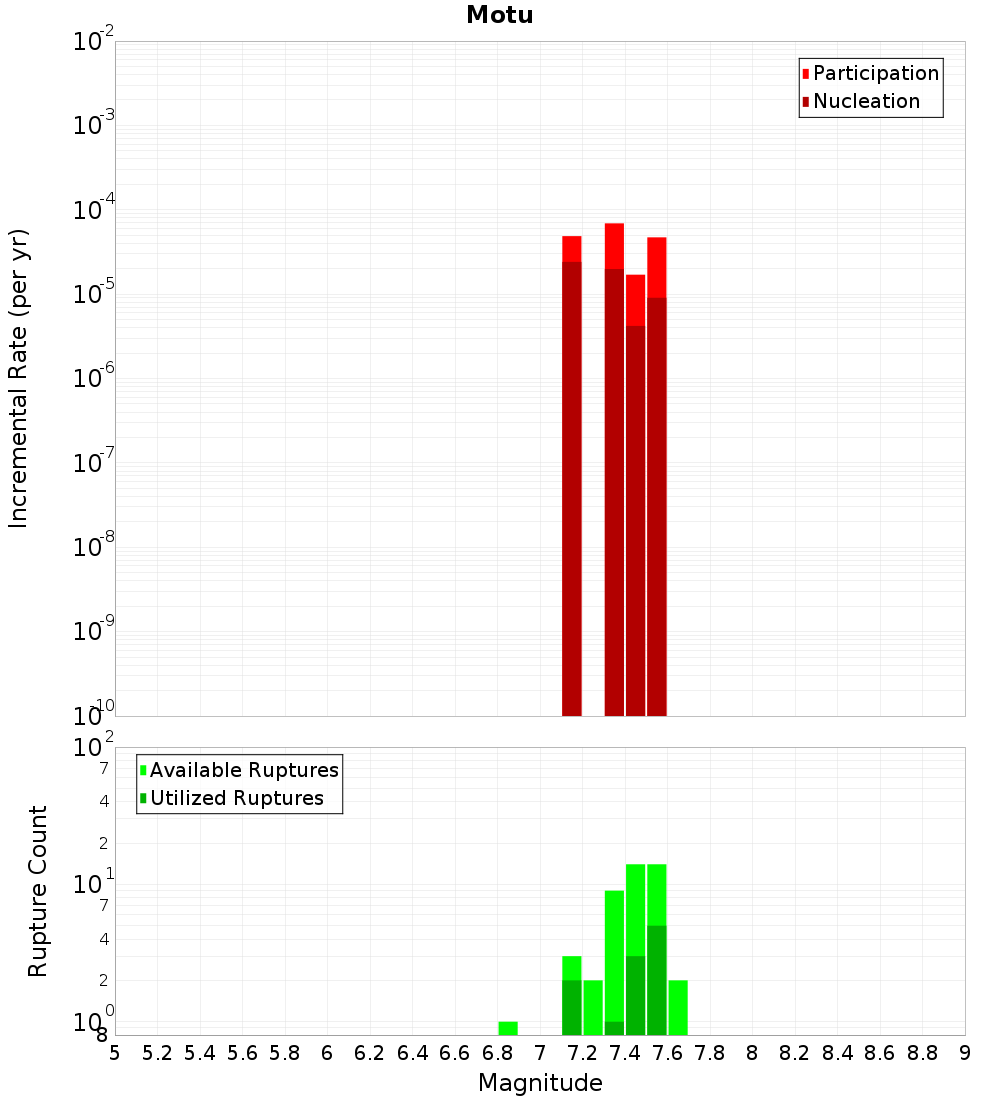

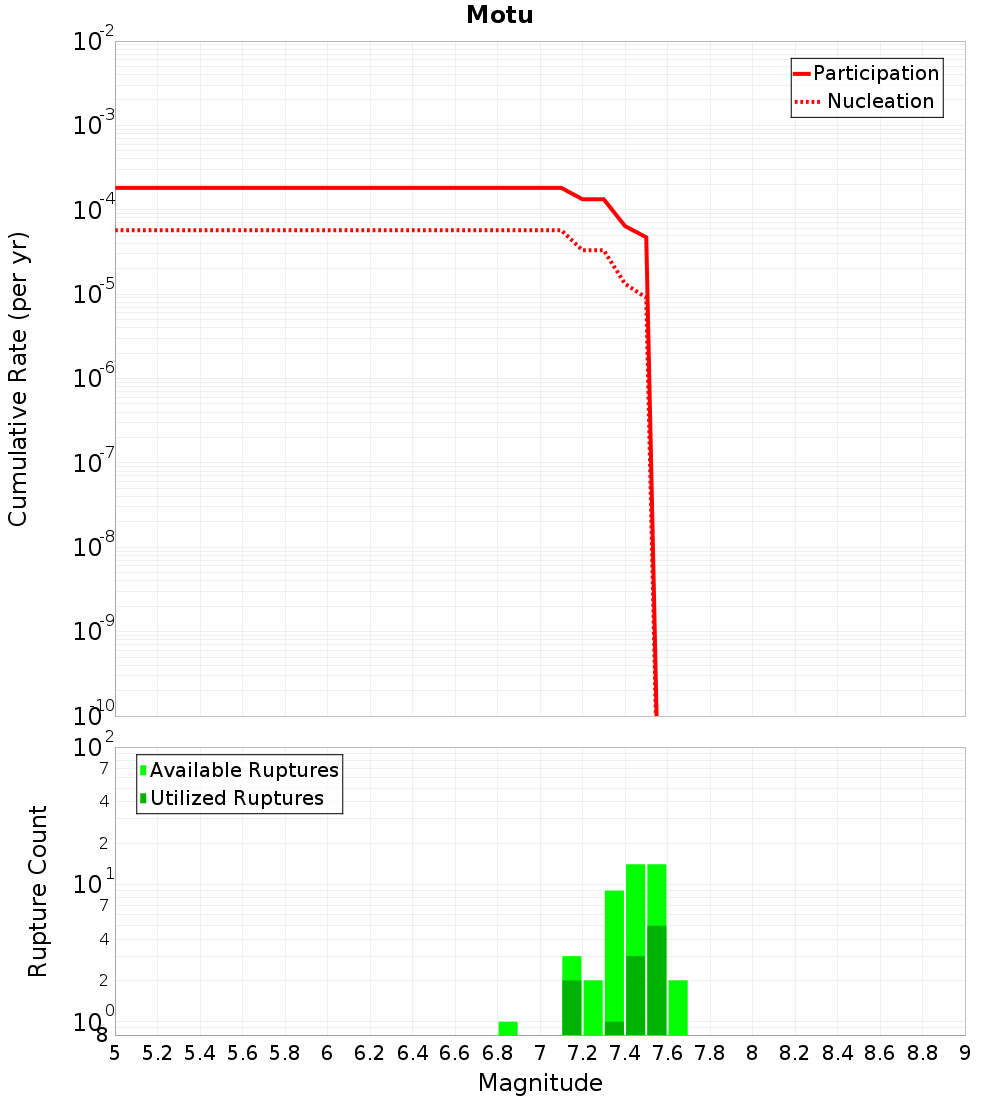

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

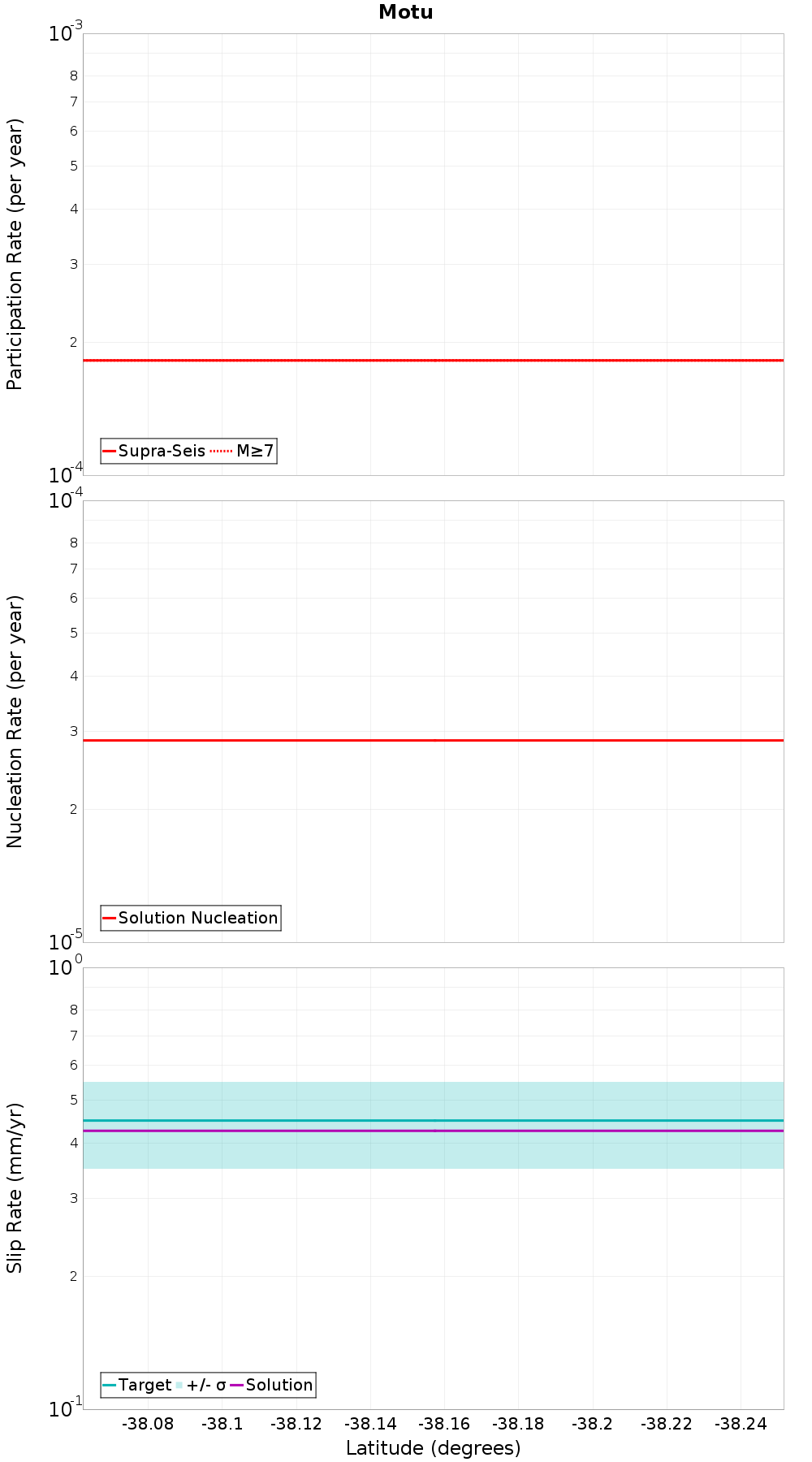

Along-Strike Values

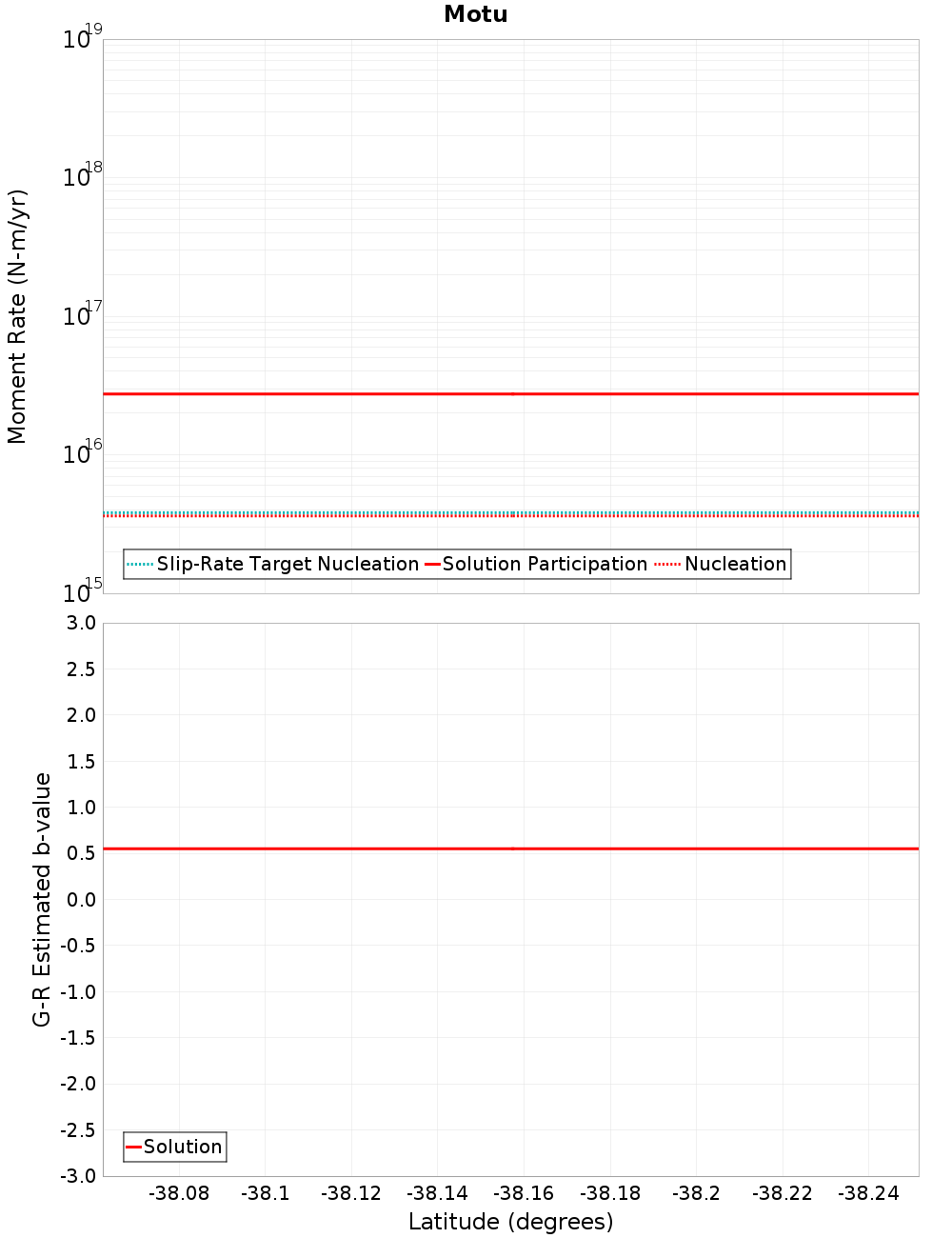

Moment-Rates and b-Values

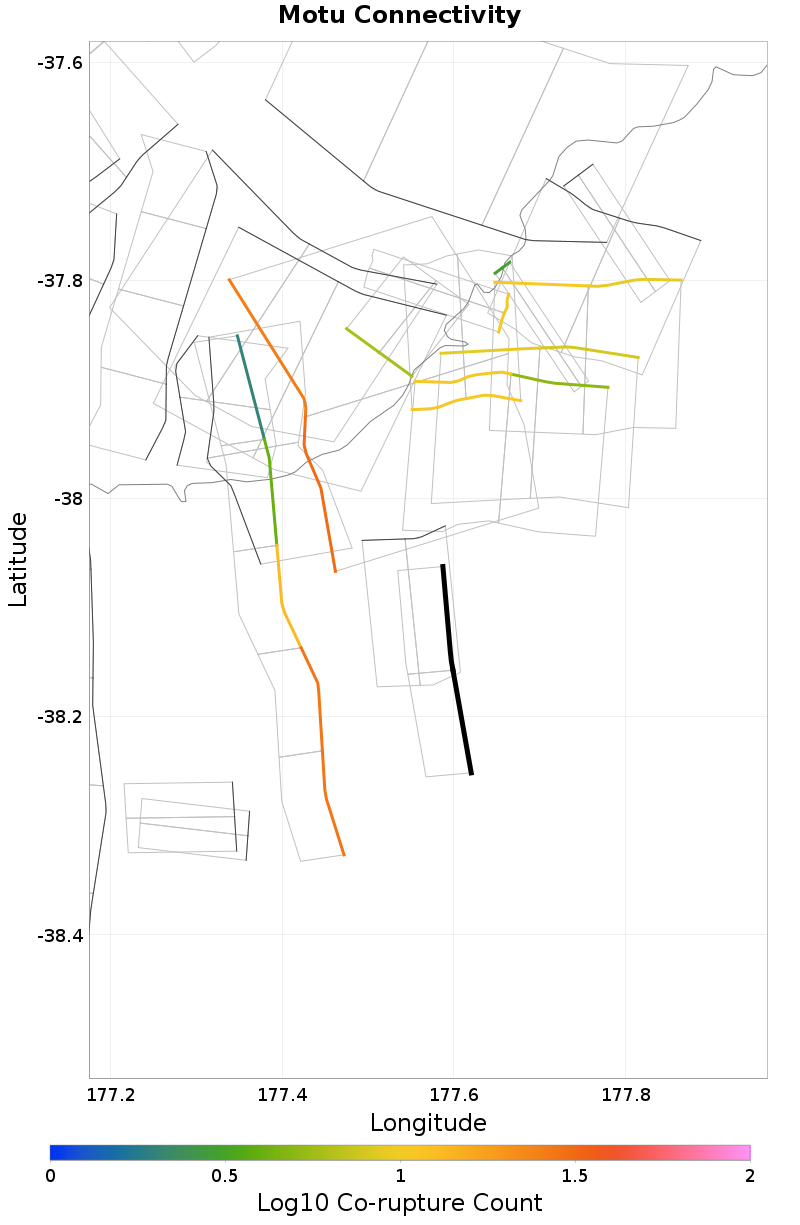

Connectivity
 |  |
|---|
Nearby Sections
Raukumara 16, 0.14 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU1MzMuMDh6dHY1 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Opape 1, 2.39 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU1MzMuMDh6dHY1 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 31 |
| Co-rupture Rate | 5.3403888E-5 |
Raukumara 18, 4.15 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU1MzMuMDh6dHY1 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 11 |
| Co-rupture Rate | 5.938704E-5 |
Tirohanga, 5.2 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU1MzMuMDh6dHY1 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Motu River, 7.65 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU1MzMuMDh6dHY1 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 9 |
| Co-rupture Rate | 1.06980715E-5 |
Ohae 2, 9.05 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU1MzMuMDh6dHY1 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Kotare - Moutuhora, 13.58 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU1MzMuMDh6dHY1 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 28 |
| Co-rupture Rate | 1.3021802E-4 |
Ohae 1, 14.86 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU1MzMuMDh6dHY1 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Raukumara 17, 16.14 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU1MzMuMDh6dHY1 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 11 |
| Co-rupture Rate | 3.9551294E-5 |
Opotiki 2, 16.34 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU1MzMuMDh6dHY1 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Raukumara 21, 16.99 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU1MzMuMDh6dHY1 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 11 |
| Co-rupture Rate | 9.409599E-6 |
Ohae 3, 19.67 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU1MzMuMDh6dHY1 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 6 |
| Co-rupture Rate | 2.3216953E-5 |
