Vernon 4 Details

PropertyValue
Rupture Count15,825
Ruptures Above Sect Min Mag15,820
Ruptures w/ Nonzero Rates6
Magnitude Range[6.71, 8.52]
Length Range[16, 1,204] km
Total Rate4.8488087E-4 /yr
Multi-Fault Rate4.8488087E-4 /yr (100.00%)
Directly-Connected Faults4
All Co-Rupturing Faults163

Table Of Contents

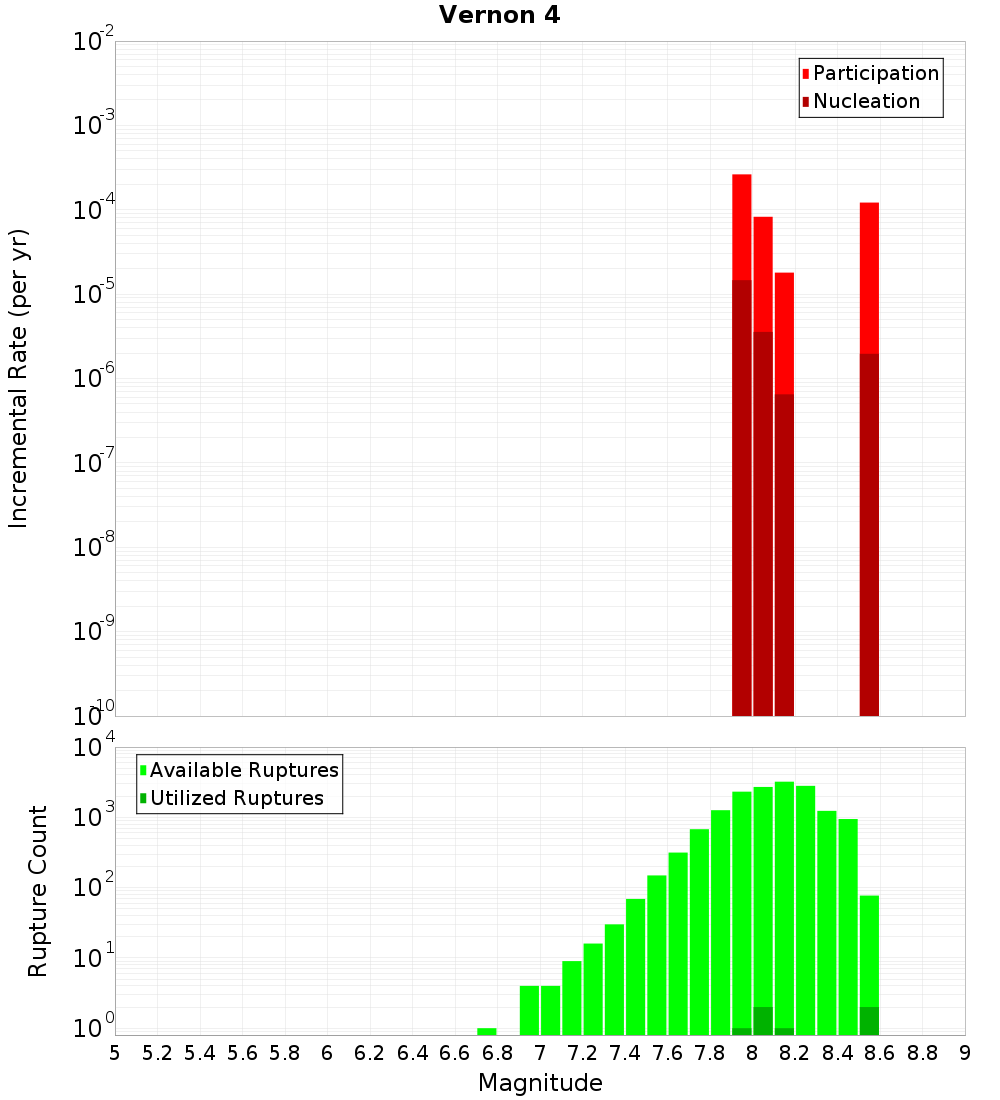

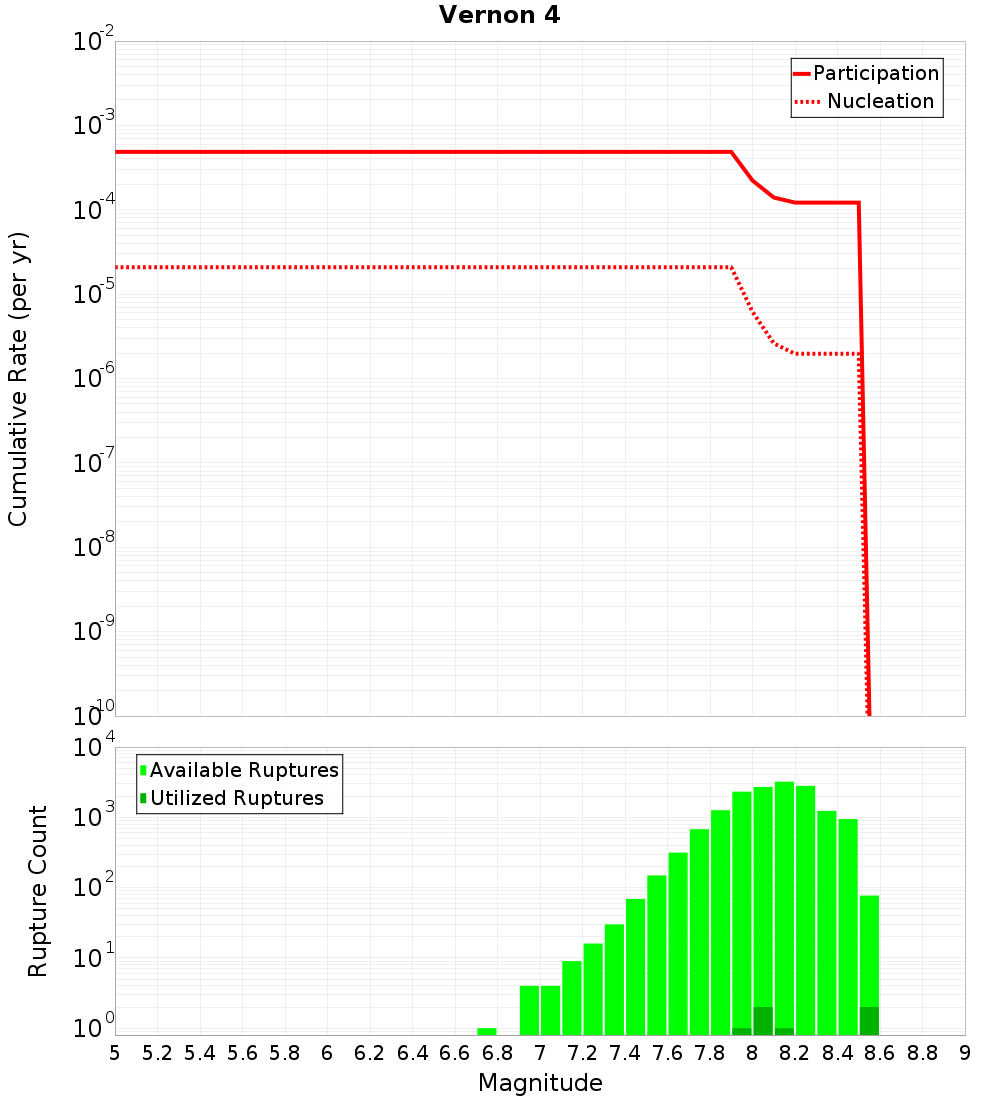

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Vernon 3, 0 km awayOhariu South 1, 8.87 km away
Awatere: Northeast 2, 0 km awayWellington Hutt Valley: 1, 9.17 km away
Wairarapa: Needles, 0.42 km awayVernon 1, 9.49 km away
BooBoo, 1.64 km awayLondon Hill, 10.91 km away
Cloudy 1, 3.49 km awayOhariu South 2, 16.56 km away
Needles, 3.69 km awayWairau 2, 16.75 km away
Needles East 2, 4.12 km awayWairau 3, 17.07 km away
Cloudy 3, 5.07 km awayWharekauhau, 17.31 km away
Vernon 2, 5.22 km awayWairau, 17.5 km away
Cloudy 2, 6.7 km away

Vernon 3, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU1MzMuMDh6dHY1
Connected?true
Directly Connected?false
Co-rupture Count322
Co-rupture Rate0.0

Awatere: Northeast 2, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU1MzMuMDh6dHY1
Connected?true
Directly Connected?true
Co-rupture Count9,912
Co-rupture Rate1.2166978E-4

Wairarapa: Needles, 0.42 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU1MzMuMDh6dHY1
Connected?true
Directly Connected?true
Co-rupture Count8,529
Co-rupture Rate3.0944785E-4

BooBoo, 1.64 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU1MzMuMDh6dHY1
Connected?true
Directly Connected?true
Co-rupture Count7,005
Co-rupture Rate1.7543303E-4

Cloudy 1, 3.49 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU1MzMuMDh6dHY1
Connected?true
Directly Connected?true
Co-rupture Count4,620
Co-rupture Rate3.4522335E-4

Needles, 3.69 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU1MzMuMDh6dHY1
Connected?true
Directly Connected?false
Co-rupture Count45
Co-rupture Rate0.0

Needles East 2, 4.12 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU1MzMuMDh6dHY1
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Cloudy 3, 5.07 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU1MzMuMDh6dHY1
Connected?true
Directly Connected?false
Co-rupture Count304
Co-rupture Rate0.0

Vernon 2, 5.22 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU1MzMuMDh6dHY1
Connected?true
Directly Connected?false
Co-rupture Count4,139
Co-rupture Rate3.4522335E-4

Cloudy 2, 6.7 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU1MzMuMDh6dHY1
Connected?true
Directly Connected?false
Co-rupture Count181
Co-rupture Rate0.0

Ohariu South 1, 8.87 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU1MzMuMDh6dHY1
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Wellington Hutt Valley: 1, 9.17 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU1MzMuMDh6dHY1
Connected?true
Directly Connected?false
Co-rupture Count8
Co-rupture Rate0.0

Vernon 1, 9.49 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU1MzMuMDh6dHY1
Connected?true
Directly Connected?false
Co-rupture Count184
Co-rupture Rate0.0

London Hill, 10.91 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU1MzMuMDh6dHY1
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Ohariu South 2, 16.56 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU1MzMuMDh6dHY1
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Wairau 2, 16.75 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU1MzMuMDh6dHY1
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Wairau 3, 17.07 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU1MzMuMDh6dHY1
Connected?true
Directly Connected?false
Co-rupture Count6
Co-rupture Rate0.0

Wharekauhau, 17.31 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU1MzMuMDh6dHY1
Connected?true
Directly Connected?false
Co-rupture Count277
Co-rupture Rate2.626635E-4

Wairau, 17.5 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU1MzMuMDh6dHY1
Connected?true
Directly Connected?false
Co-rupture Count143
Co-rupture Rate0.0
