Edgecumbe Coastal Details

PropertyValue
Rupture Count23,729
Ruptures Above Sect Min Mag23,629
Ruptures w/ Nonzero Rates9
Magnitude Range[6.23, 8.31]
Length Range[7, 594] km
Total Rate0.0021067038 /yr
Multi-Fault Rate0.0021067038 /yr (100.00%)
Directly-Connected Faults8
All Co-Rupturing Faults94

Table Of Contents

Magnitude-Frequency Distribution

(top)

IncrementalCumulative

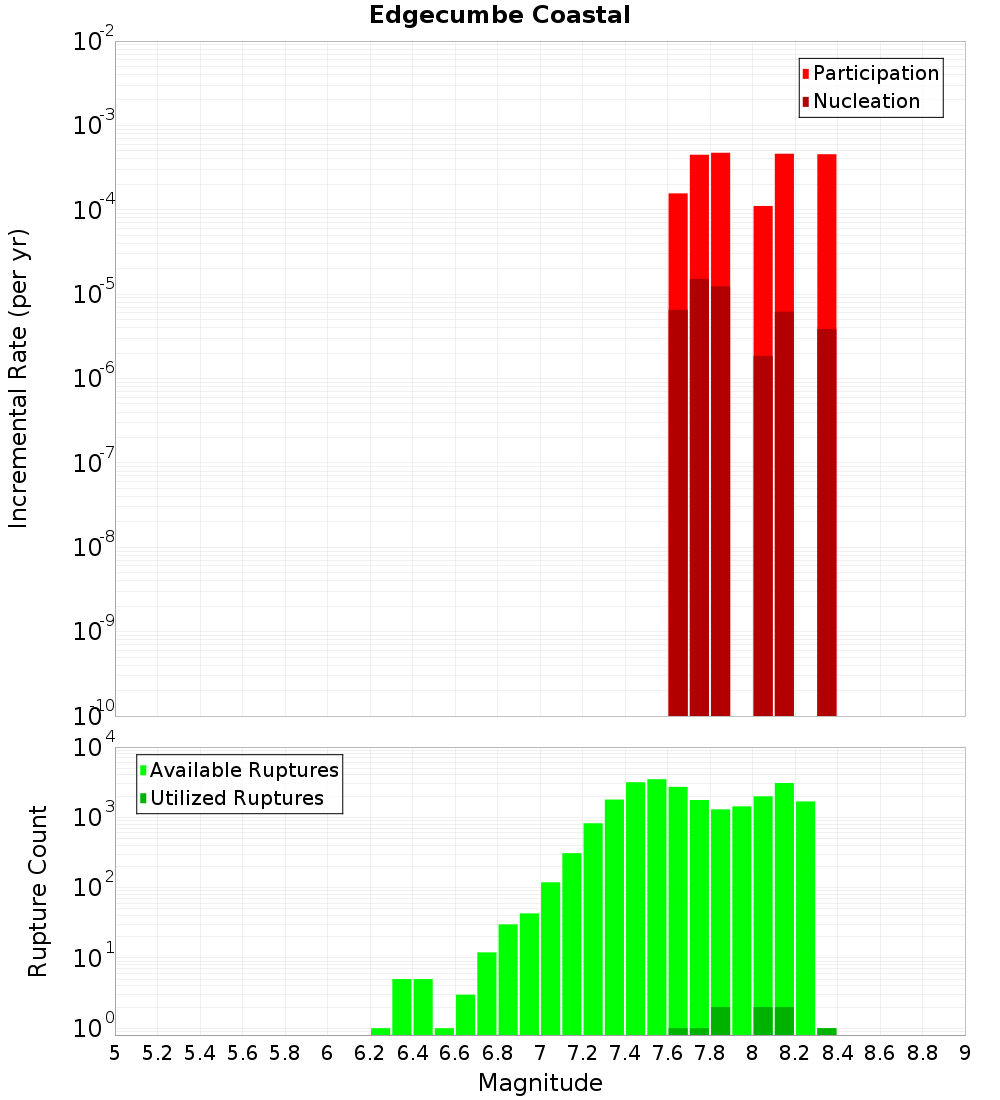

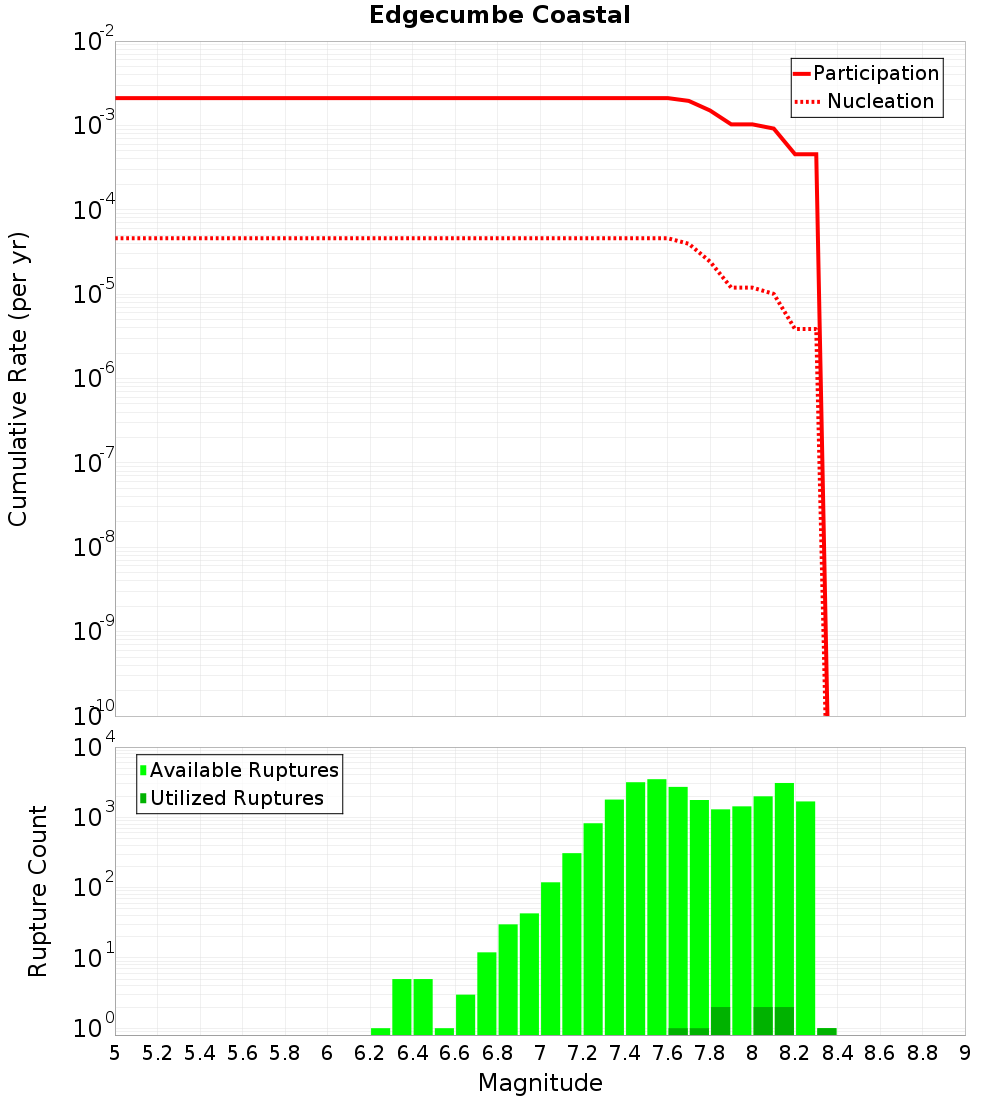

Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
White Island 1, 0 km away
Edgecumbe 1987, 0 km away
Awakeri, 0 km away
Otakiri, 0.37 km away
Matata, 2.64 km away
Whakatane: North, 3.09 km away
Braemar, 4.62 km away
Rangitaiki 1, 8.8 km away
Waiohau: North, 11.47 km away
Rangitaiki 2, 14.83 km away
Waimana: North, 15.94 km away
Waiotahi: North, 18.75 km away
Waimanawa - Waikaremoana, 19.37 km away

White Island 1, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU1NDUuMGFoYktT
Connected?true
Directly Connected?true
Co-rupture Count20,939
Co-rupture Rate0.0019503032

Edgecumbe 1987, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU1NDUuMGFoYktT
Connected?true
Directly Connected?true
Co-rupture Count12,095
Co-rupture Rate0.0012449812

Awakeri, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU1NDUuMGFoYktT
Connected?true
Directly Connected?true
Co-rupture Count7,612
Co-rupture Rate4.1283978E-4

Otakiri, 0.37 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU1NDUuMGFoYktT
Connected?true
Directly Connected?true
Co-rupture Count2,282
Co-rupture Rate4.488829E-4

Matata, 2.64 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU1NDUuMGFoYktT
Connected?true
Directly Connected?true
Co-rupture Count1,157
Co-rupture Rate0.0

Whakatane: North, 3.09 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU1NDUuMGFoYktT
Connected?true
Directly Connected?true
Co-rupture Count255
Co-rupture Rate0.0

Braemar, 4.62 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU1NDUuMGFoYktT
Connected?true
Directly Connected?true
Co-rupture Count6,907
Co-rupture Rate6.0528354E-4

Rangitaiki 1, 8.8 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU1NDUuMGFoYktT
Connected?true
Directly Connected?true
Co-rupture Count1,282
Co-rupture Rate1.5640062E-4

Waiohau: North, 11.47 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU1NDUuMGFoYktT
Connected?true
Directly Connected?false
Co-rupture Count14,810
Co-rupture Rate0.0015014203

Rangitaiki 2, 14.83 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU1NDUuMGFoYktT
Connected?true
Directly Connected?false
Co-rupture Count5,496
Co-rupture Rate8.0210436E-4

Waimana: North, 15.94 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU1NDUuMGFoYktT
Connected?true
Directly Connected?false
Co-rupture Count207
Co-rupture Rate0.0

Waiotahi: North, 18.75 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU1NDUuMGFoYktT
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Waimanawa - Waikaremoana, 19.37 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU1NDUuMGFoYktT
Connected?true
Directly Connected?false
Co-rupture Count98
Co-rupture Rate0.0
