Hope: Hope River Details

PropertyValue
Rupture Count42,350
Ruptures Above Sect Min Mag42,347
Ruptures w/ Nonzero Rates60
Magnitude Range[6.87, 8.62]
Length Range[20, 1,196] km
Total Rate0.0022195482 /yr
Multi-Fault Rate0.0022195482 /yr (100.00%)
Directly-Connected Faults5
All Co-Rupturing Faults114

Table Of Contents

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

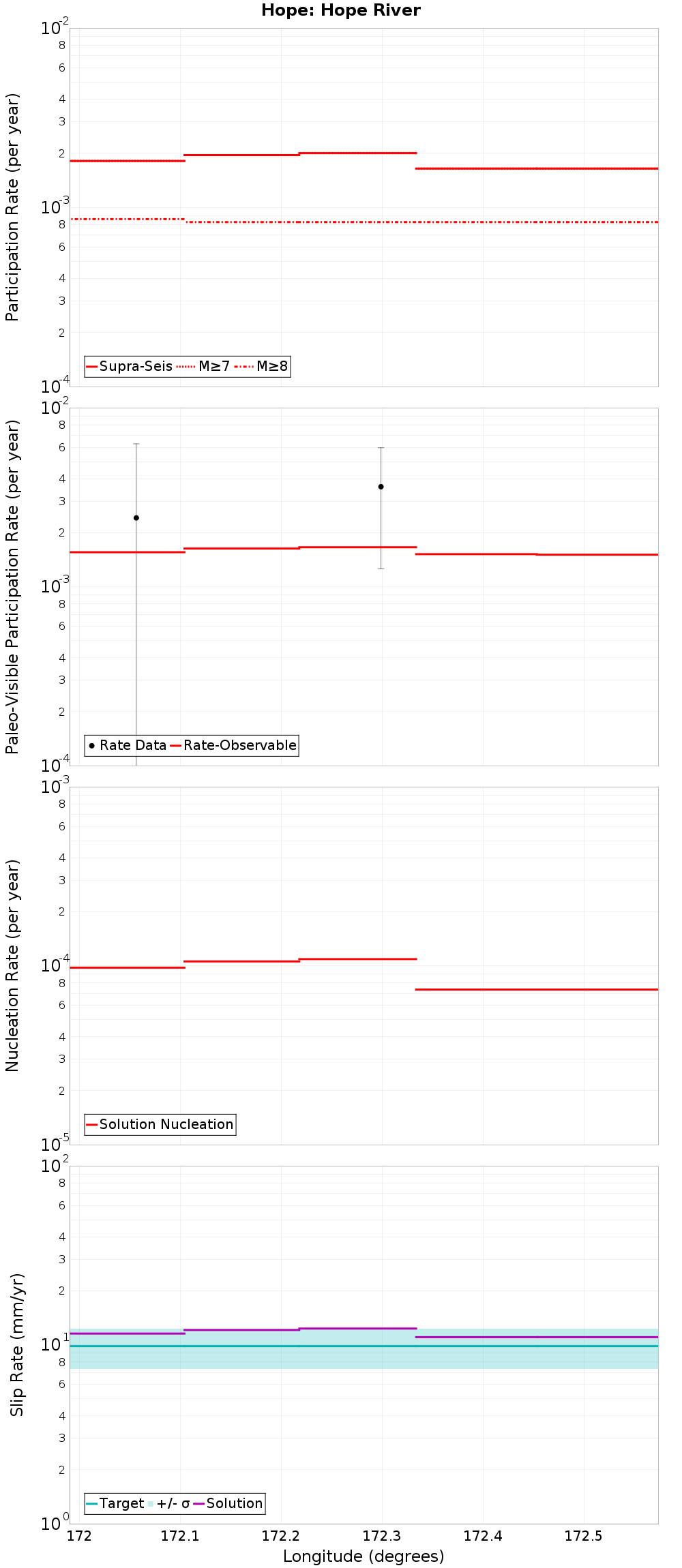

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Hope: Kakapo-2-Hamner, 0 km awayHanmer, 13.39 km away
Kakapo, 0 km awayAlpine: Springs Junction to Tophouse, 13.43 km away
Hope: Hurunui, 0 km awayHope: Taramakau, 14.38 km away
Esk North, 1.2 km awayKelly, 14.38 km away
Alpine: Kaniere to Springs Junction, 2.94 km awayFowlers, 16.06 km away
Clarence: Southwest, 5.56 km awayHope: Hamner SE, 16.82 km away
Hope: Hanmer NW, 6.3 km awayMt Culverden, 17.08 km away
Hope: Hamner SW, 6.3 km awayBalmoral, 17.33 km away
Poulter, 7.81 km awayWhite Creek - buried, 18.56 km away
Hurunui Peak, 11.86 km away

Hope: Kakapo-2-Hamner, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU1NDYuMDN0ZXJq
Connected?true
Directly Connected?true
Co-rupture Count31,264
Co-rupture Rate0.0015392705

Kakapo, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU1NDYuMDN0ZXJq
Connected?true
Directly Connected?true
Co-rupture Count589
Co-rupture Rate4.8893995E-5

Hope: Hurunui, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU1NDYuMDN0ZXJq
Connected?true
Directly Connected?true
Co-rupture Count40,826
Co-rupture Rate0.00168402

Esk North, 1.2 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU1NDYuMDN0ZXJq
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Alpine: Kaniere to Springs Junction, 2.94 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU1NDYuMDN0ZXJq
Connected?true
Directly Connected?false
Co-rupture Count6,453
Co-rupture Rate6.6320755E-4

Clarence: Southwest, 5.56 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU1NDYuMDN0ZXJq
Connected?true
Directly Connected?true
Co-rupture Count9,122
Co-rupture Rate3.2473996E-5

Hope: Hanmer NW, 6.3 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU1NDYuMDN0ZXJq
Connected?true
Directly Connected?false
Co-rupture Count8,352
Co-rupture Rate0.0012873235

Hope: Hamner SW, 6.3 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU1NDYuMDN0ZXJq
Connected?true
Directly Connected?false
Co-rupture Count22,389
Co-rupture Rate1.7275658E-4

Poulter, 7.81 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU1NDYuMDN0ZXJq
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Hurunui Peak, 11.86 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU1NDYuMDN0ZXJq
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Hanmer, 13.39 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU1NDYuMDN0ZXJq
Connected?true
Directly Connected?false
Co-rupture Count69
Co-rupture Rate0.0

Alpine: Springs Junction to Tophouse, 13.43 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU1NDYuMDN0ZXJq
Connected?true
Directly Connected?true
Co-rupture Count162
Co-rupture Rate1.8344836E-4

Hope: Taramakau, 14.38 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU1NDYuMDN0ZXJq
Connected?true
Directly Connected?false
Co-rupture Count30
Co-rupture Rate0.0

Kelly, 14.38 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU1NDYuMDN0ZXJq
Connected?true
Directly Connected?false
Co-rupture Count34,346
Co-rupture Rate7.8125566E-4

Fowlers, 16.06 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU1NDYuMDN0ZXJq
Connected?true
Directly Connected?false
Co-rupture Count73
Co-rupture Rate0.0

Hope: Hamner SE, 16.82 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU1NDYuMDN0ZXJq
Connected?true
Directly Connected?false
Co-rupture Count30,073
Co-rupture Rate0.0014600802

Mt Culverden, 17.08 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU1NDYuMDN0ZXJq
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Balmoral, 17.33 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU1NDYuMDN0ZXJq
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

White Creek - buried, 18.56 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU1NDYuMDN0ZXJq
Connected?true
Directly Connected?false
Co-rupture Count55
Co-rupture Rate0.0
