Kairakau North Details

PropertyValue
Rupture Count40
Ruptures Above Sect Min Mag39
Ruptures w/ Nonzero Rates4
Magnitude Range[6.73, 7.61]
Length Range[18, 127] km
Total Rate2.8617238E-4 /yr
Multi-Fault Rate2.8617238E-4 /yr (100.00%)
Directly-Connected Faults3
All Co-Rupturing Faults5

Table Of Contents

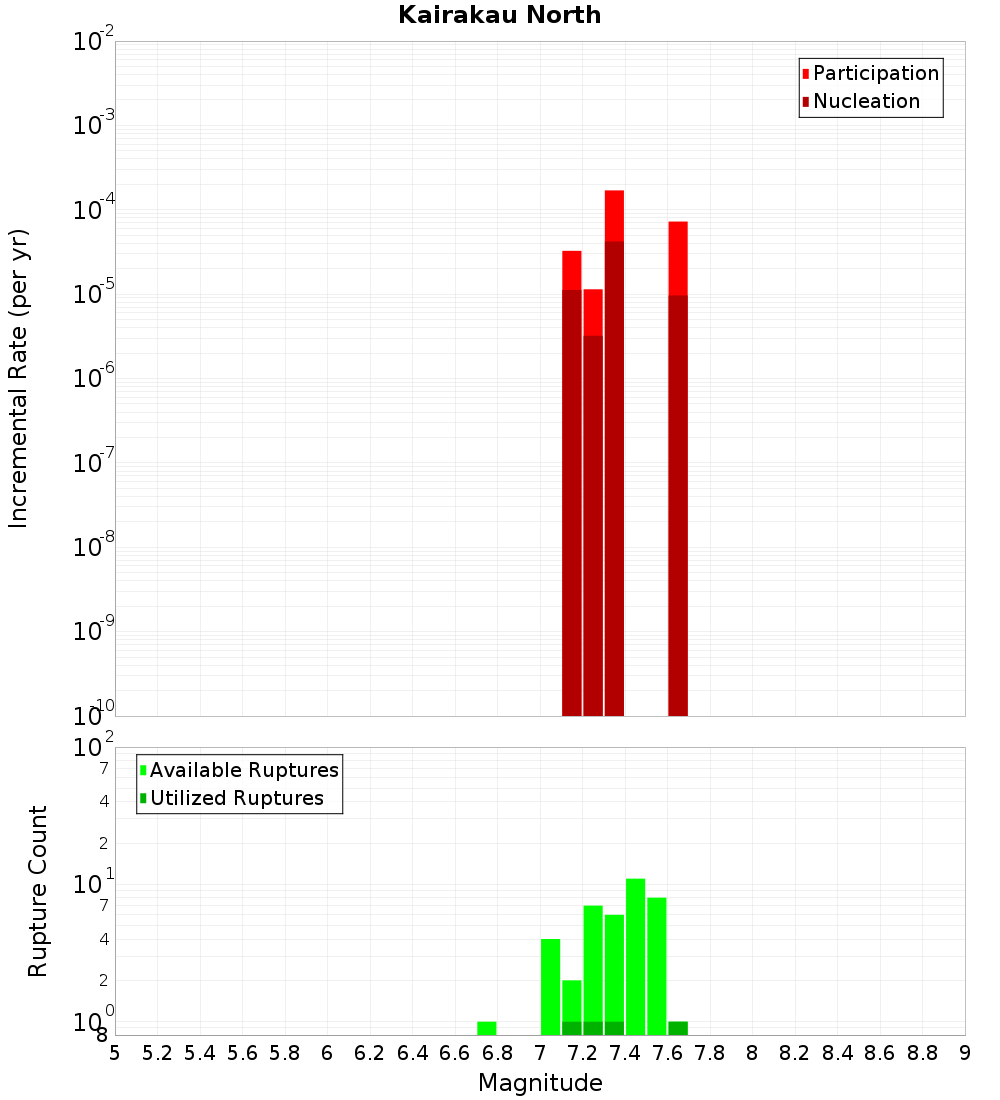

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Kairakau 2, 0 km away
Kairakau South, 1.29 km away
Waimarama 3 & 4, 2.41 km away
Waimarama 1 & 2, 5.05 km away
Motu o Kura Ridge, 15.92 km away
Kidnappers Ridge, 16.64 km away

Kairakau 2, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU1NDYuMDN0ZXJq
Connected?true
Directly Connected?false
Co-rupture Count8
Co-rupture Rate0.0

Kairakau South, 1.29 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU1NDYuMDN0ZXJq
Connected?true
Directly Connected?true
Co-rupture Count32
Co-rupture Rate2.8617238E-4

Waimarama 3 & 4, 2.41 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU1NDYuMDN0ZXJq
Connected?true
Directly Connected?true
Co-rupture Count30
Co-rupture Rate7.248881E-5

Waimarama 1 & 2, 5.05 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU1NDYuMDN0ZXJq
Connected?true
Directly Connected?true
Co-rupture Count5
Co-rupture Rate1.8108897E-4

Motu o Kura Ridge, 15.92 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU1NDYuMDN0ZXJq
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Kidnappers Ridge, 16.64 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU1NDYuMDN0ZXJq
Connected?true
Directly Connected?false
Co-rupture Count25
Co-rupture Rate7.248881E-5
