Raukumara 25 Details

Property	Value
Rupture Count	16
Ruptures Above Sect Min Mag	14
Ruptures w/ Nonzero Rates	1
Magnitude Range	[5.93, 7.66]
Length Range	[2, 100] km
Total Rate	6.724795E-6 /yr
Multi-Fault Rate	6.724795E-6 /yr (100.00%)
Directly-Connected Faults	3
All Co-Rupturing Faults	10

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

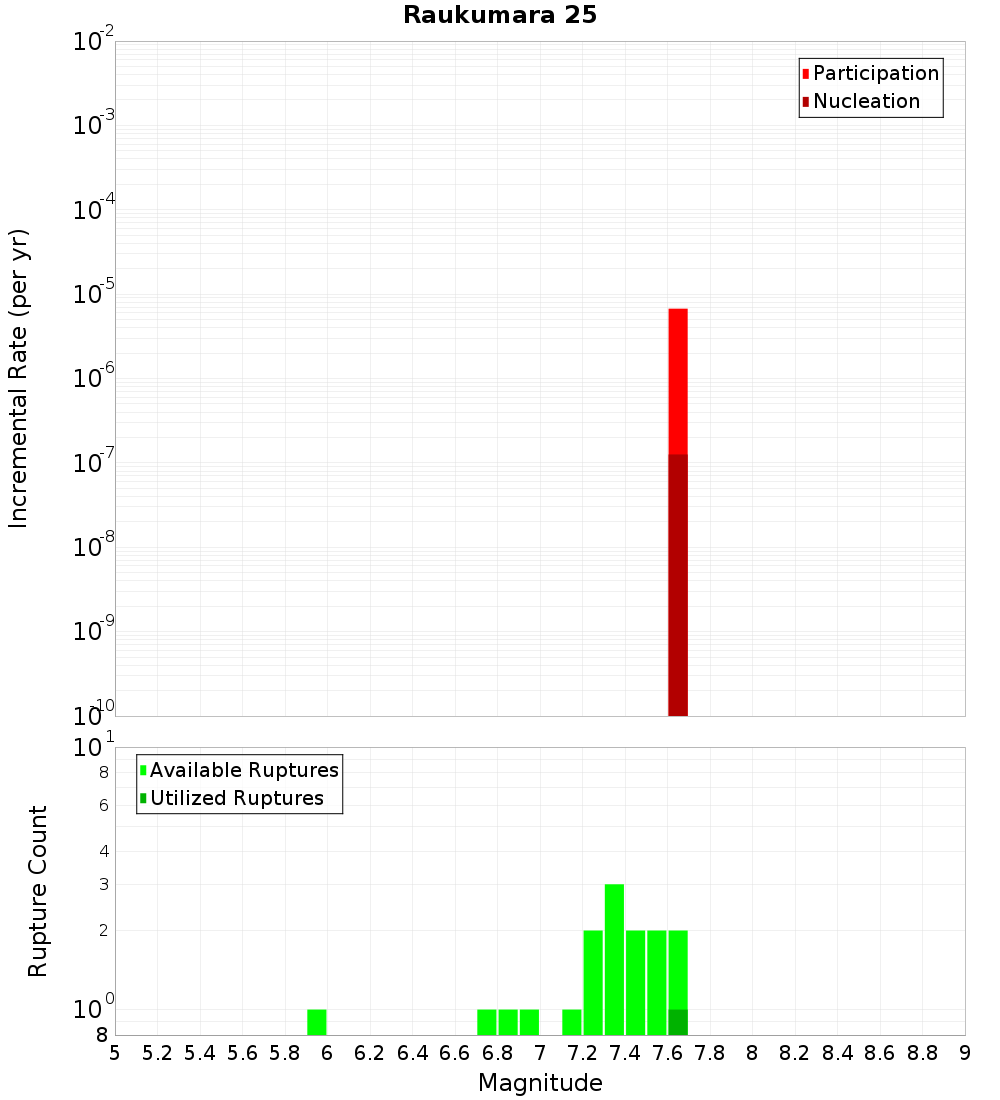

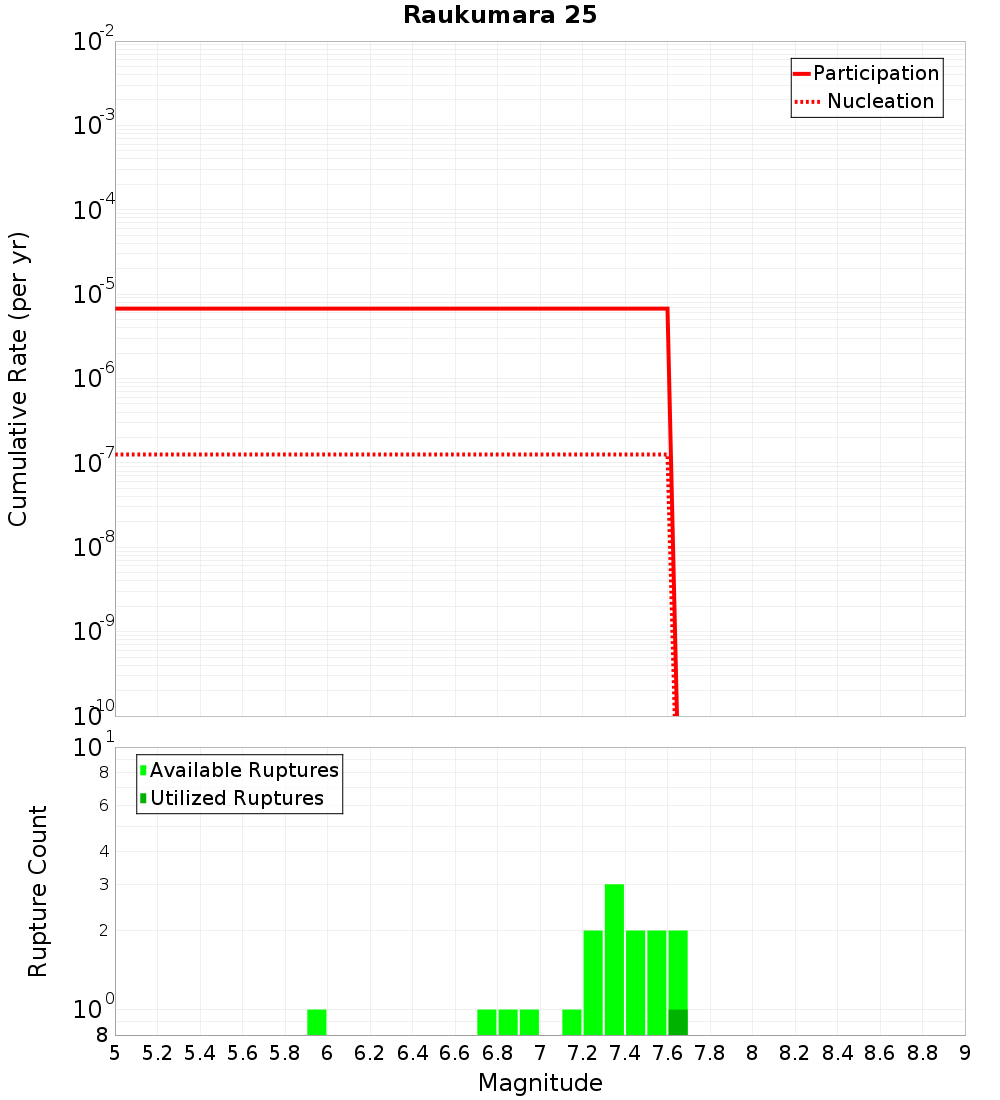

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Raukumara 21, 0.91 km away
Raukumara 20, 0.93 km away
Raukumara 17, 1.63 km away
Kereu, 2.36 km away
Hariki, 2.72 km away
Opape 1, 6.05 km away
Ohae 1, 6.06 km away
Ohae 2, 6.56 km away
Motu River, 7.05 km away
Raukumara 18, 9.12 km away
Ohae 3, 9.42 km away
Raukumara 24, 9.55 km away

Raukumara 21, 0.91 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU1NDYuMDN0ZXJq
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Raukumara 20, 0.93 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU1NDYuMDN0ZXJq
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Raukumara 17, 1.63 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU1NDYuMDN0ZXJq
Connected?	true
Directly Connected?	true
Co-rupture Count	10
Co-rupture Rate	6.724795E-6

Kereu, 2.36 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU1NDYuMDN0ZXJq
Connected?	true
Directly Connected?	true
Co-rupture Count	1
Co-rupture Rate	0.0

Hariki, 2.72 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU1NDYuMDN0ZXJq
Connected?	true
Directly Connected?	true
Co-rupture Count	8
Co-rupture Rate	0.0

Opape 1, 6.05 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU1NDYuMDN0ZXJq
Connected?	true
Directly Connected?	false
Co-rupture Count	4
Co-rupture Rate	6.724795E-6

Ohae 1, 6.06 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU1NDYuMDN0ZXJq
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Ohae 2, 6.56 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU1NDYuMDN0ZXJq
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Motu River, 7.05 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU1NDYuMDN0ZXJq
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Raukumara 18, 9.12 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU1NDYuMDN0ZXJq
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Ohae 3, 9.42 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU1NDYuMDN0ZXJq
Connected?	true
Directly Connected?	false
Co-rupture Count	3
Co-rupture Rate	0.0

Raukumara 24, 9.55 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU1NDYuMDN0ZXJq
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
