Middle Range Details

PropertyValue
Rupture Count98
Ruptures Above Sect Min Mag95
Ruptures w/ Nonzero Rates5
Magnitude Range[6.86, 7.85]
Length Range[21, 177] km
Total Rate1.51688255E-5 /yr
Multi-Fault Rate1.51688255E-5 /yr (100.00%)
Directly-Connected Faults5
All Co-Rupturing Faults12

Table Of Contents

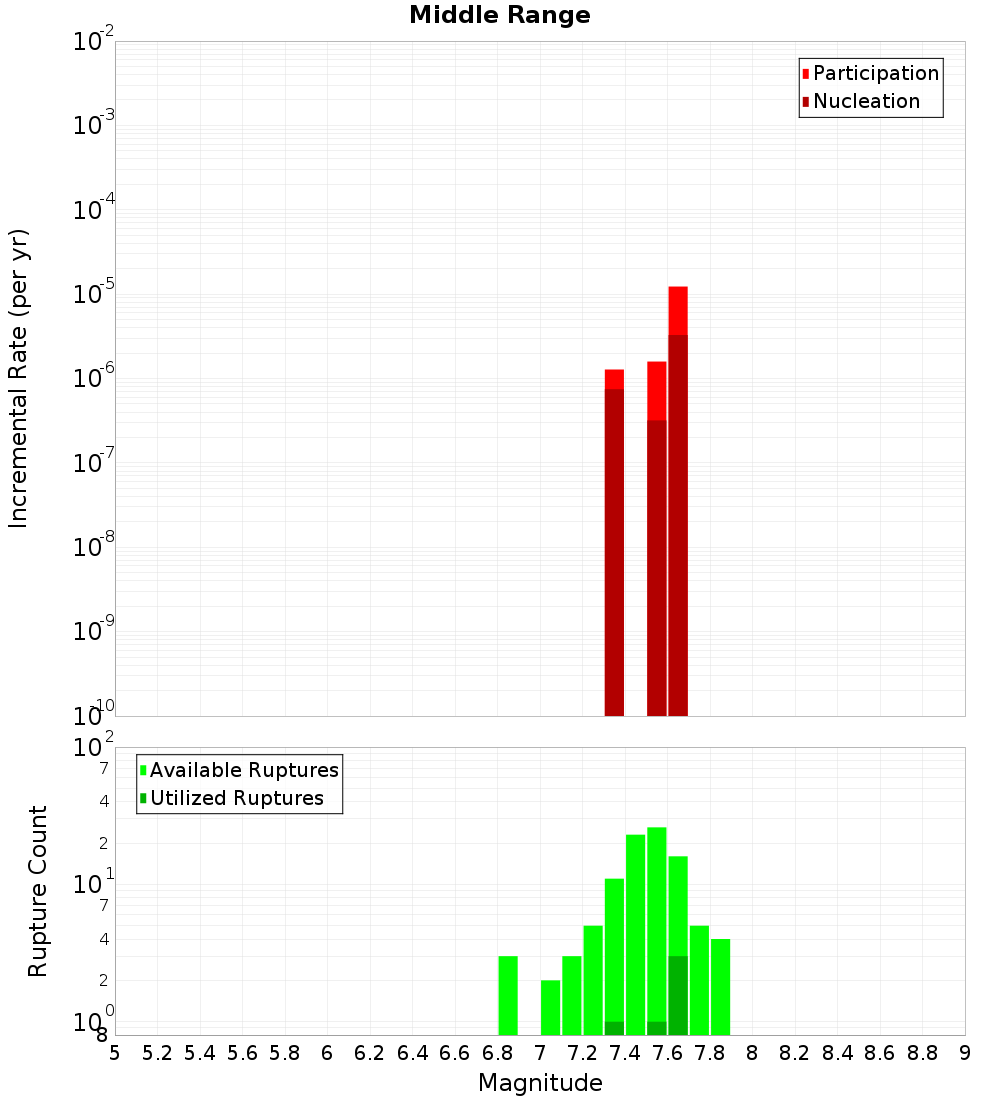

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

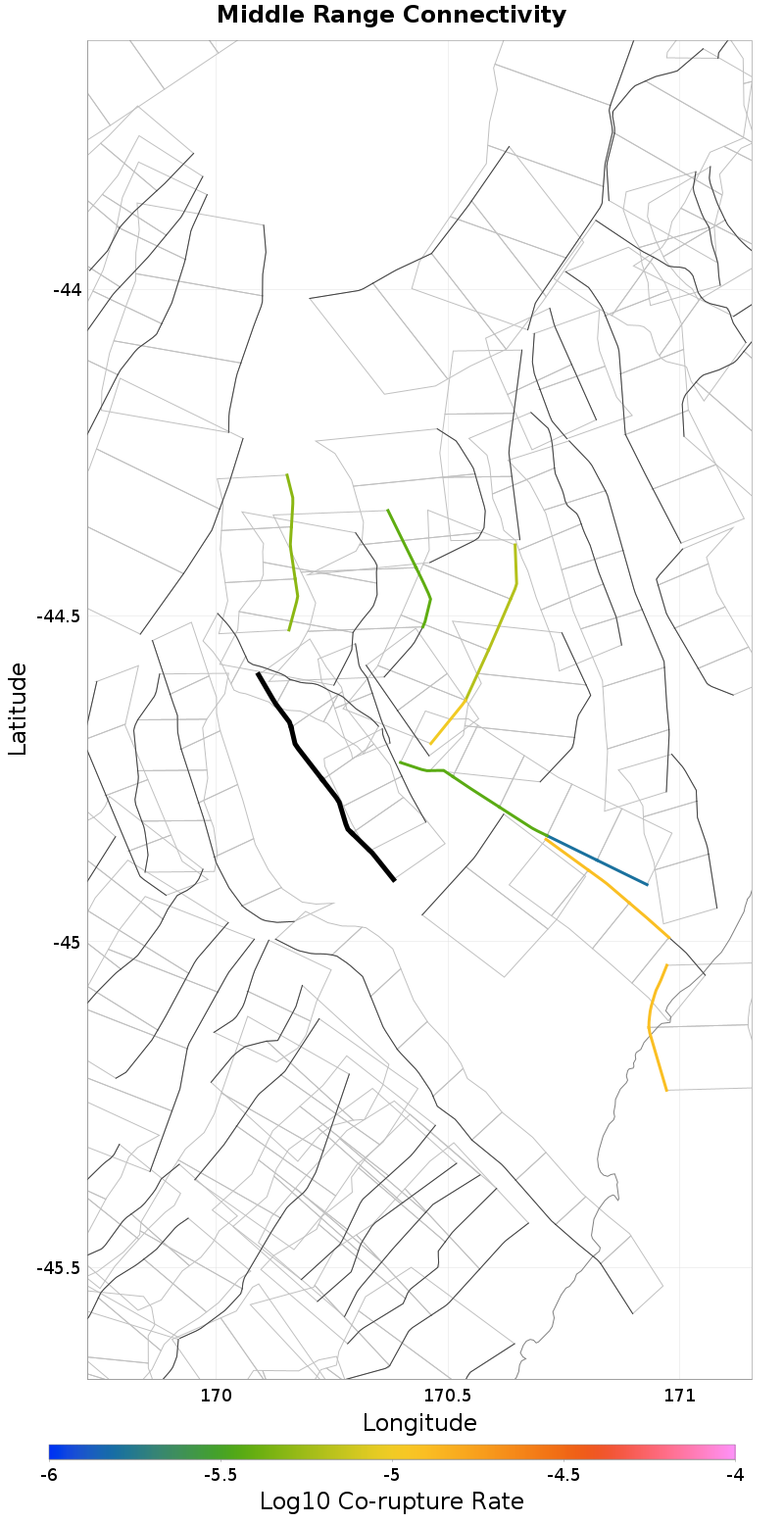

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Awahokomo, 0.03 km awayBlack Hill, 7.61 km away
Fern Gully, 0.1 km awayStonewall, 9.97 km away
Mt Sutton, 0.14 km awayGrampian, 11.17 km away
Gibson, 0.32 km awayWaitaki, 13.01 km away
Kirkliston, 0.33 km awayOmarama Saddle, 14.06 km away
Waitangi, 0.37 km awayDryburgh, 14.1 km away
Falstone, 5.49 km awayHawkdun, 14.45 km away
Campbell Hills, 6.3 km awayWaihemo, 15.29 km away

Awahokomo, 0.03 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU1NTcuMHBLWGhQ
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Fern Gully, 0.1 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU1NTcuMHBLWGhQ
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Mt Sutton, 0.14 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU1NTcuMHBLWGhQ
Connected?true
Directly Connected?true
Co-rupture Count33
Co-rupture Rate3.79152E-6

Gibson, 0.32 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU1NTcuMHBLWGhQ
Connected?true
Directly Connected?true
Co-rupture Count16
Co-rupture Rate0.0

Kirkliston, 0.33 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU1NTcuMHBLWGhQ
Connected?true
Directly Connected?true
Co-rupture Count39
Co-rupture Rate1.0098837E-5

Waitangi, 0.37 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU1NTcuMHBLWGhQ
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Falstone, 5.49 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU1NTcuMHBLWGhQ
Connected?true
Directly Connected?true
Co-rupture Count21
Co-rupture Rate4.941161E-6

Campbell Hills, 6.3 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU1NTcuMHBLWGhQ
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Black Hill, 7.61 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU1NTcuMHBLWGhQ
Connected?true
Directly Connected?false
Co-rupture Count4
Co-rupture Rate0.0

Stonewall, 9.97 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU1NTcuMHBLWGhQ
Connected?true
Directly Connected?false
Co-rupture Count10
Co-rupture Rate3.662693E-6

Grampian, 11.17 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU1NTcuMHBLWGhQ
Connected?true
Directly Connected?false
Co-rupture Count26
Co-rupture Rate0.0

Waitaki, 13.01 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU1NTcuMHBLWGhQ
Connected?true
Directly Connected?true
Co-rupture Count46
Co-rupture Rate1.2301907E-5

Omarama Saddle, 14.06 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU1NTcuMHBLWGhQ
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Dryburgh, 14.1 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU1NTcuMHBLWGhQ
Connected?true
Directly Connected?false
Co-rupture Count2
Co-rupture Rate0.0

Hawkdun, 14.45 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU1NTcuMHBLWGhQ
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Waihemo, 15.29 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU1NTcuMHBLWGhQ
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
