Cape Foulwind 2 Details
| Property | Value |
|---|---|
| Rupture Count | 45 |
| Ruptures Above Sect Min Mag | 36 |
| Ruptures w/ Nonzero Rates | 1 |
| Magnitude Range | [6.93, 7.63] |
| Length Range | [20, 101] km |
| Total Rate | 9.694629E-5 /yr |
| Multi-Fault Rate | 0.0 /yr (0.00%) |
| Directly-Connected Faults | 0 |
| All Co-Rupturing Faults | 0 |
Table Of Contents
Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values

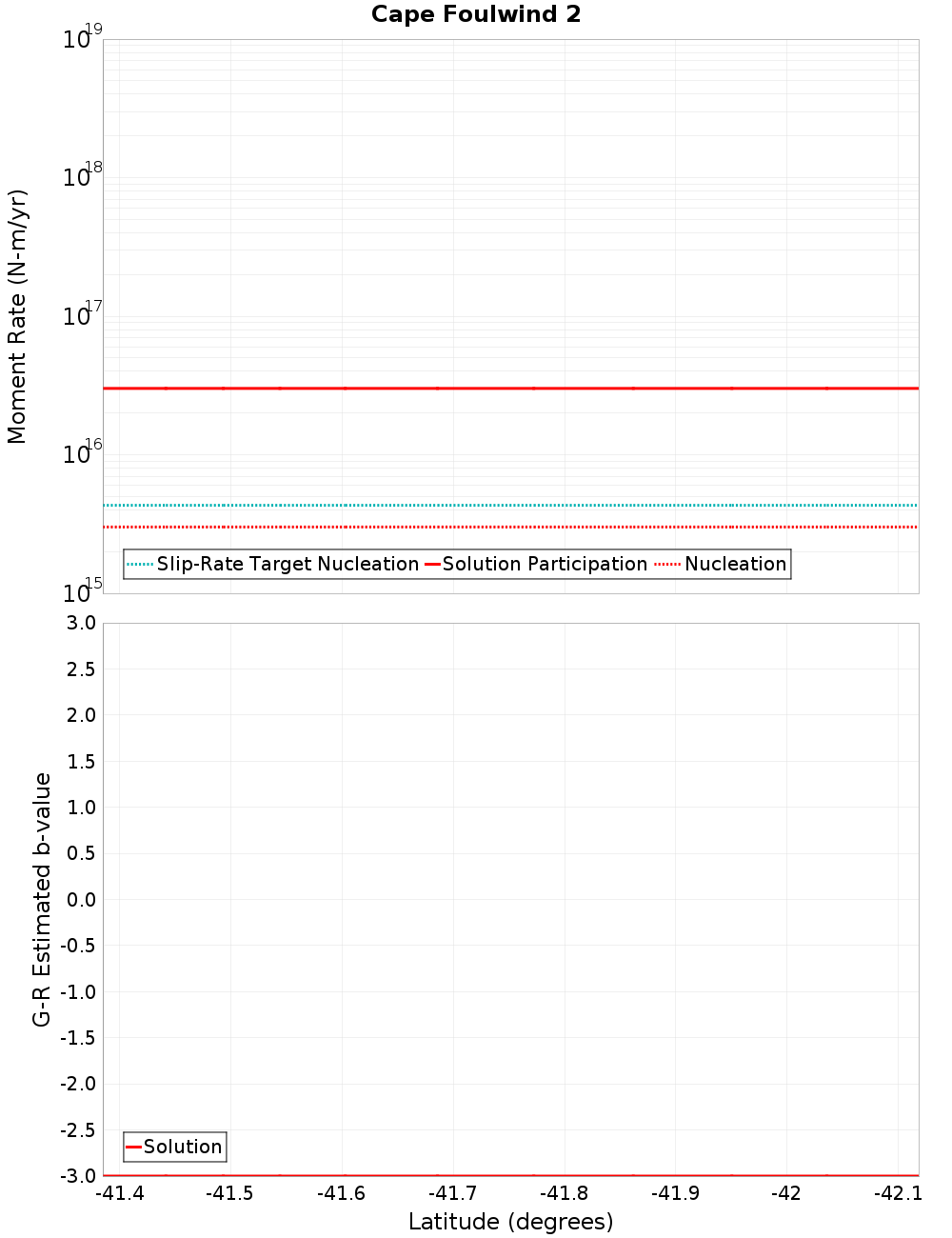

Moment-Rates and b-Values
Connectivity
 |  |
|---|
Nearby Sections
Cape Foulwind 1, 0 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU1OTMuMDZnN1ZC | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Maimai, 0.27 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU1OTMuMDZnN1ZC | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Maimai: South, 4.77 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU1OTMuMDZnN1ZC | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Paparoa West, 8.12 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU1OTMuMDZnN1ZC | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Cape Foulwind 4, 8.22 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU1OTMuMDZnN1ZC | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Kongahau, 8.54 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU1OTMuMDZnN1ZC | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Maimai: North, 14.88 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU1OTMuMDZnN1ZC | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Kohaihai South, 17.18 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU1OTMuMDZnN1ZC | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Inangahua, 17.34 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU1OTMuMDZnN1ZC | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Paparoa West: North, 18.95 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU1OTMuMDZnN1ZC | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Maimai: Brunner Anticline, 19.47 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU1OTMuMDZnN1ZC | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
