Clarence: Central Details

PropertyValue
Rupture Count17,545
Ruptures Above Sect Min Mag17,541
Ruptures w/ Nonzero Rates6
Magnitude Range[6.87, 8.52]
Length Range[22, 1,201] km
Total Rate6.0343493E-5 /yr
Multi-Fault Rate6.0343493E-5 /yr (100.00%)
Directly-Connected Faults5
All Co-Rupturing Faults123

Table Of Contents

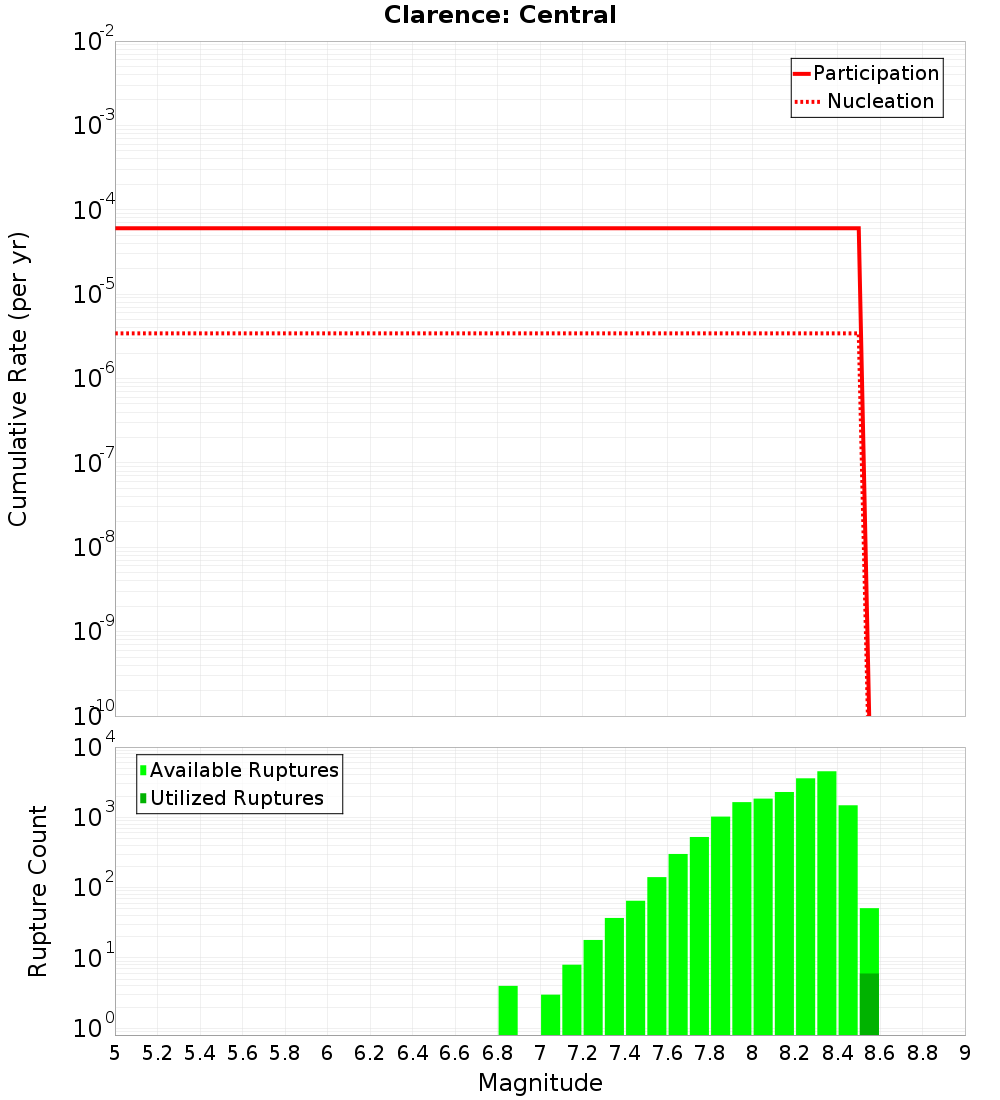

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

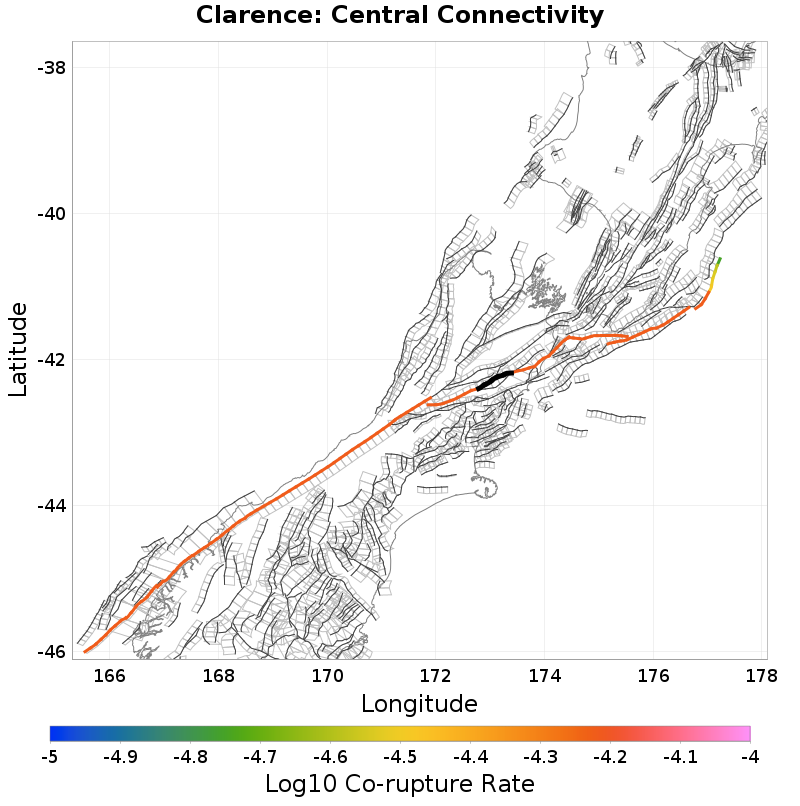

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Clarence: Southwest, 0 km away
Elliott, 0 km away
Fowlers, 0.07 km away
Clarence: Northeast, 0.09 km away
Barefell, 0.11 km away
Fidget, 3.22 km away
Jordan, 7.52 km away
Awatere: Northeast 1, 10.17 km away
Awatere: Southwest, 12.19 km away
Hanmer, 13.19 km away
Hope: Hanmer NW, 13.28 km away
Hope: Hamner SW, 17.74 km away
Hope: Hamner SE, 17.94 km away
Leader: North, 19.78 km away

Clarence: Southwest, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2MDQuMFk3TWlX
Connected?true
Directly Connected?true
Co-rupture Count15,288
Co-rupture Rate6.0343493E-5

Elliott, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2MDQuMFk3TWlX
Connected?true
Directly Connected?false
Co-rupture Count180
Co-rupture Rate0.0

Fowlers, 0.07 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2MDQuMFk3TWlX
Connected?true
Directly Connected?true
Co-rupture Count944
Co-rupture Rate0.0

Clarence: Northeast, 0.09 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2MDQuMFk3TWlX
Connected?true
Directly Connected?true
Co-rupture Count2,008
Co-rupture Rate0.0

Barefell, 0.11 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2MDQuMFk3TWlX
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Fidget, 3.22 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2MDQuMFk3TWlX
Connected?true
Directly Connected?true
Co-rupture Count13,536
Co-rupture Rate6.0343493E-5

Jordan, 7.52 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2MDQuMFk3TWlX
Connected?true
Directly Connected?false
Co-rupture Count1
Co-rupture Rate0.0

Awatere: Northeast 1, 10.17 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2MDQuMFk3TWlX
Connected?true
Directly Connected?false
Co-rupture Count1
Co-rupture Rate0.0

Awatere: Southwest, 12.19 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2MDQuMFk3TWlX
Connected?true
Directly Connected?true
Co-rupture Count9
Co-rupture Rate0.0

Hanmer, 13.19 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2MDQuMFk3TWlX
Connected?true
Directly Connected?false
Co-rupture Count8
Co-rupture Rate0.0

Hope: Hanmer NW, 13.28 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2MDQuMFk3TWlX
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Hope: Hamner SW, 17.74 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2MDQuMFk3TWlX
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Hope: Hamner SE, 17.94 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2MDQuMFk3TWlX
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Leader: North, 19.78 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2MDQuMFk3TWlX
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
