Cape Foulwind 1 Details
| Property | Value |
|---|---|
| Rupture Count | 117 |
| Ruptures Above Sect Min Mag | 101 |
| Ruptures w/ Nonzero Rates | 0 |
| Magnitude Range | [6.70, 7.67] |
| Length Range | [20, 171] km |
| Total Rate | 0.0 /yr |
| Multi-Fault Rate | 0.0 /yr (NaN) |
| Directly-Connected Faults | 4 |
| All Co-Rupturing Faults | 6 |
Table Of Contents
Along-Strike Values
Moment-Rates and b-Values

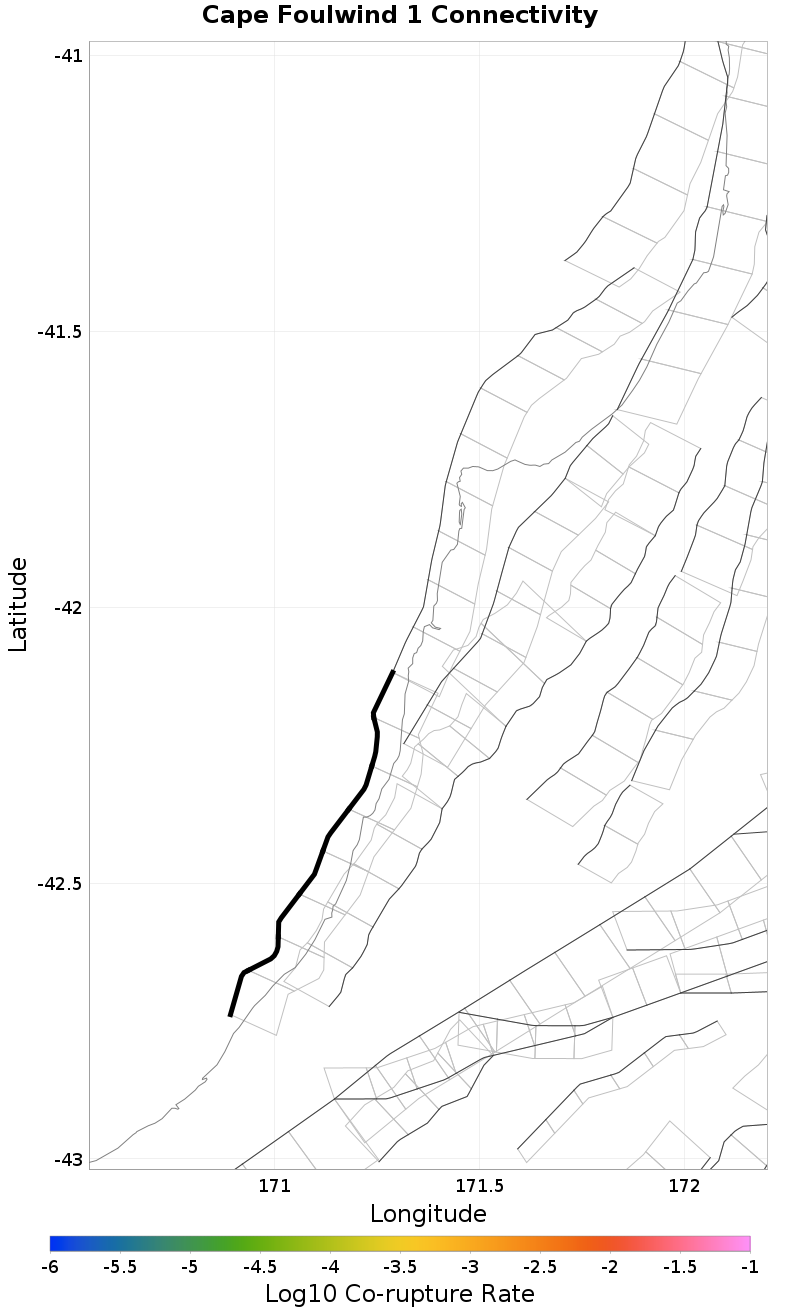

Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Cape Foulwind 2, 0 km away |
| Maimai: South, 0.4 km away |
| Maimai: Brunner Anticline, 0.41 km away |
| Paparoa West, 4.61 km away |
| Maimai, 4.83 km away |
| Kelly, 11.56 km away |
Cape Foulwind 2, 0 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2MDcuMEJDSE16 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Maimai: South, 0.4 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2MDcuMEJDSE16 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 17 |
| Co-rupture Rate | 0.0 |
Maimai: Brunner Anticline, 0.41 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2MDcuMEJDSE16 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 5 |
| Co-rupture Rate | 0.0 |
Paparoa West, 4.61 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2MDcuMEJDSE16 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 69 |
| Co-rupture Rate | 0.0 |
Maimai, 4.83 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2MDcuMEJDSE16 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 11 |
| Co-rupture Rate | 0.0 |
Kelly, 11.56 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2MDcuMEJDSE16 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
