Whitemans Valley Details
| Property | Value |
|---|---|
| Rupture Count | 1,871 |
| Ruptures Above Sect Min Mag | 1,868 |
| Ruptures w/ Nonzero Rates | 3 |
| Magnitude Range | [6.73, 8.46] |
| Length Range | [18, 1,013] km |
| Total Rate | 4.4979628E-5 /yr |
| Multi-Fault Rate | 4.4979628E-5 /yr (100.00%) |
| Directly-Connected Faults | 3 |
| All Co-Rupturing Faults | 94 |
Table Of Contents

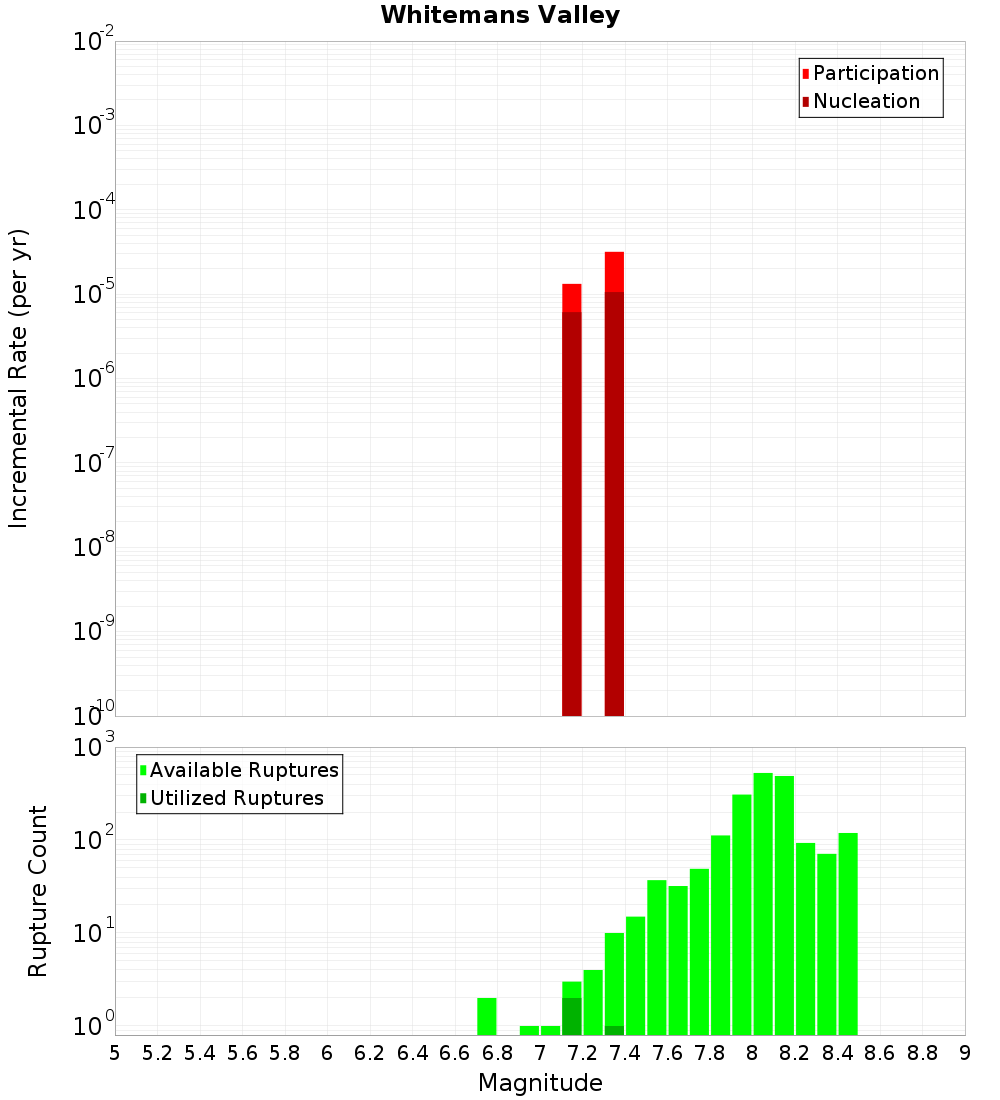

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

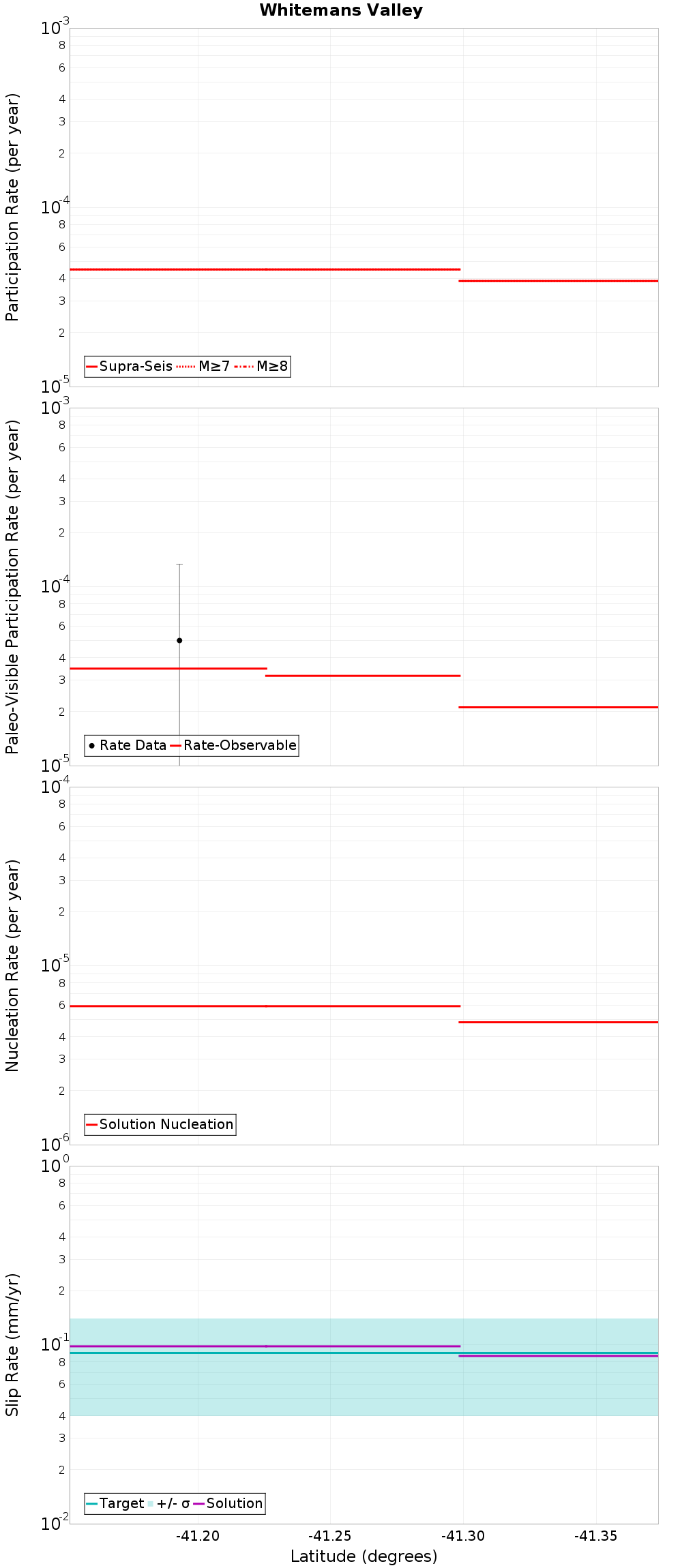

Along-Strike Values
Moment-Rates and b-Values

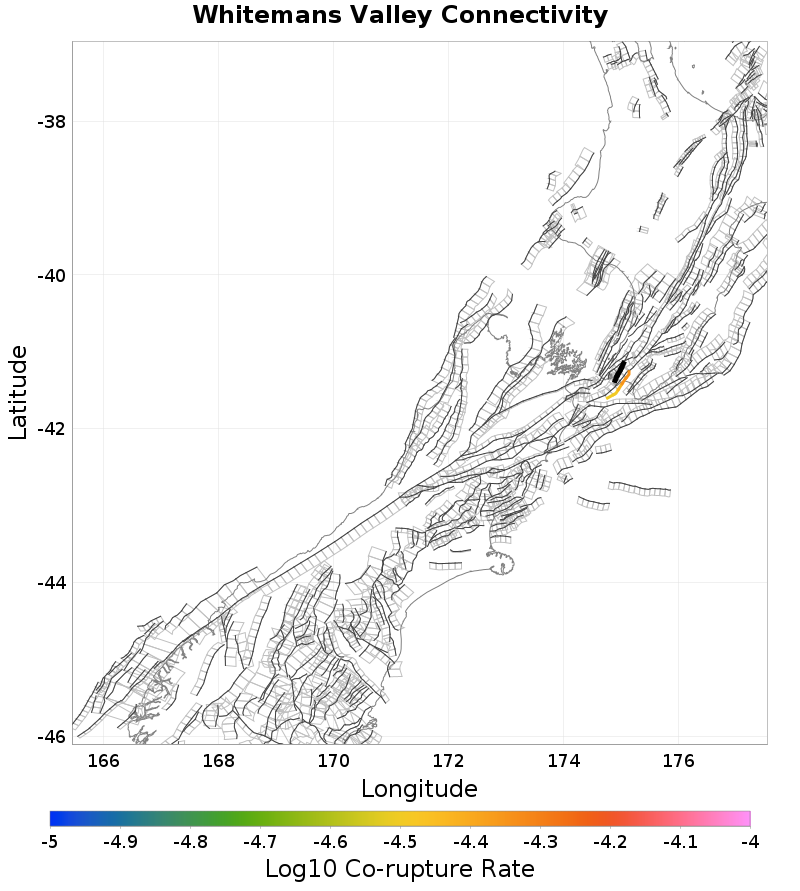

Connectivity
 |  |
|---|
Nearby Sections
Wellington Hutt Valley: 4, 0.09 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2MDcuMEJDSE16 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Moonshine, 0.2 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2MDcuMEJDSE16 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 740 |
| Co-rupture Rate | 0.0 |
Aotea - Evans Bay, 0.45 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2MDcuMEJDSE16 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Wellington Hutt Valley: 3, 1.35 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2MDcuMEJDSE16 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Wellington Hutt Valley: 5, 2.4 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2MDcuMEJDSE16 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Ohariu, 2.44 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2MDcuMEJDSE16 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 585 |
| Co-rupture Rate | 0.0 |
Akatarawa, 3.01 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2MDcuMEJDSE16 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 135 |
| Co-rupture Rate | 0.0 |
Wharekauhau, 3.03 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2MDcuMEJDSE16 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 552 |
| Co-rupture Rate | 4.4979628E-5 |
Wairarapa: 1, 5.26 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2MDcuMEJDSE16 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 219 |
| Co-rupture Rate | 0.0 |
Pukerua - Shepherds Gully: 3, 6.29 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2MDcuMEJDSE16 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 5 |
| Co-rupture Rate | 0.0 |
Wellington Hutt Valley: 2, 8.91 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2MDcuMEJDSE16 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Pukerua - Shepherds Gully: 2, 9.44 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2MDcuMEJDSE16 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Pukerua - Shepherds Gully: 1, 9.8 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2MDcuMEJDSE16 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Wairarapa: 2, 10.22 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2MDcuMEJDSE16 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Wellington Hutt Valley: 1, 15.19 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2MDcuMEJDSE16 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 1 |
| Co-rupture Rate | 0.0 |
Ohariu South 2, 16.28 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2MDcuMEJDSE16 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Shepherds Gully - Mana, 16.85 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2MDcuMEJDSE16 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Wellington: Tararua 1, 17.14 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2MDcuMEJDSE16 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Otaki Forks: 1, 17.17 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2MDcuMEJDSE16 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 736 |
| Co-rupture Rate | 0.0 |
Otaheke South, 18.1 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2MDcuMEJDSE16 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
