Ben McLeod Details
| Property | Value |
|---|---|
| Rupture Count | 117 |
| Ruptures Above Sect Min Mag | 115 |
| Ruptures w/ Nonzero Rates | 2 |
| Magnitude Range | [6.95, 8.01] |
| Length Range | [23, 345] km |
| Total Rate | 2.2985337E-6 /yr |
| Multi-Fault Rate | 2.2985337E-6 /yr (100.00%) |
| Directly-Connected Faults | 3 |
| All Co-Rupturing Faults | 20 |
Table Of Contents

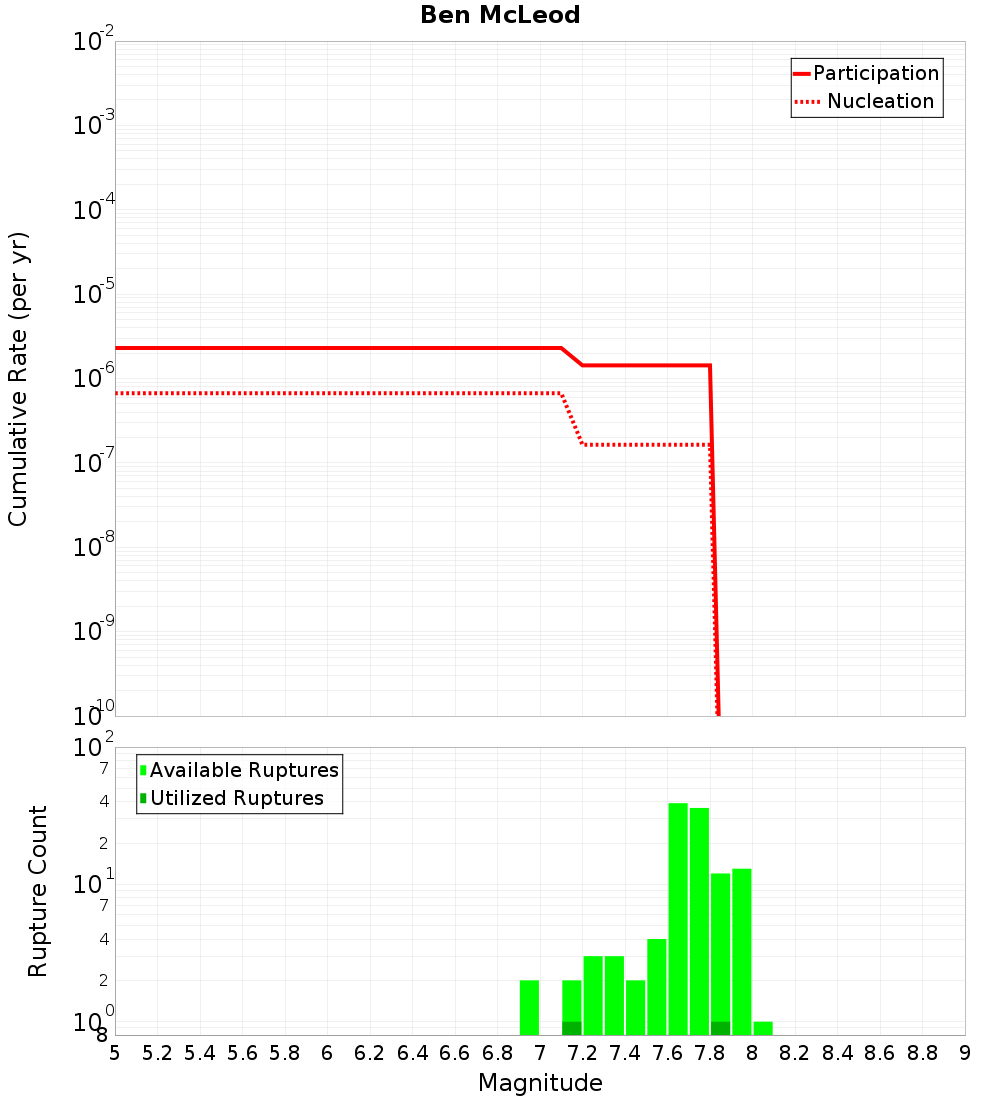

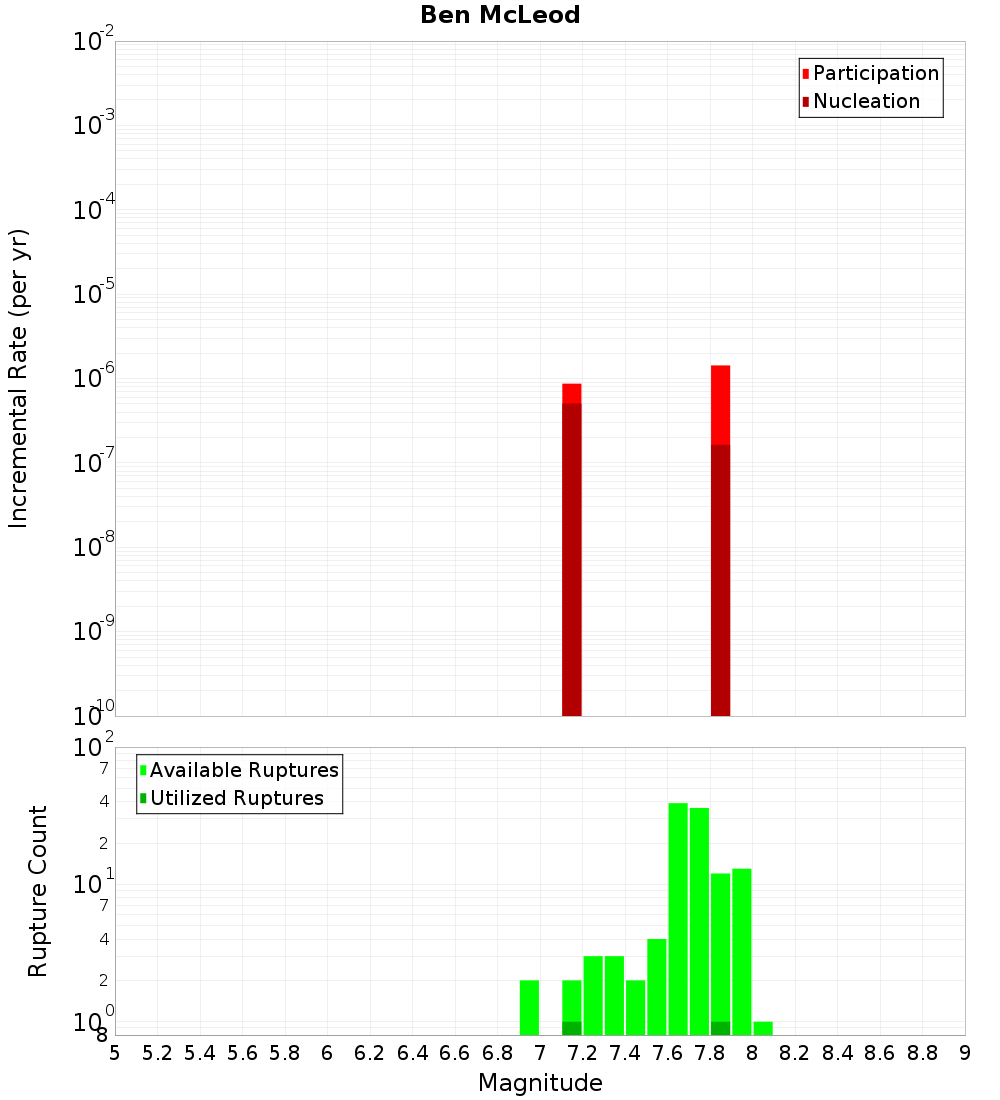

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values

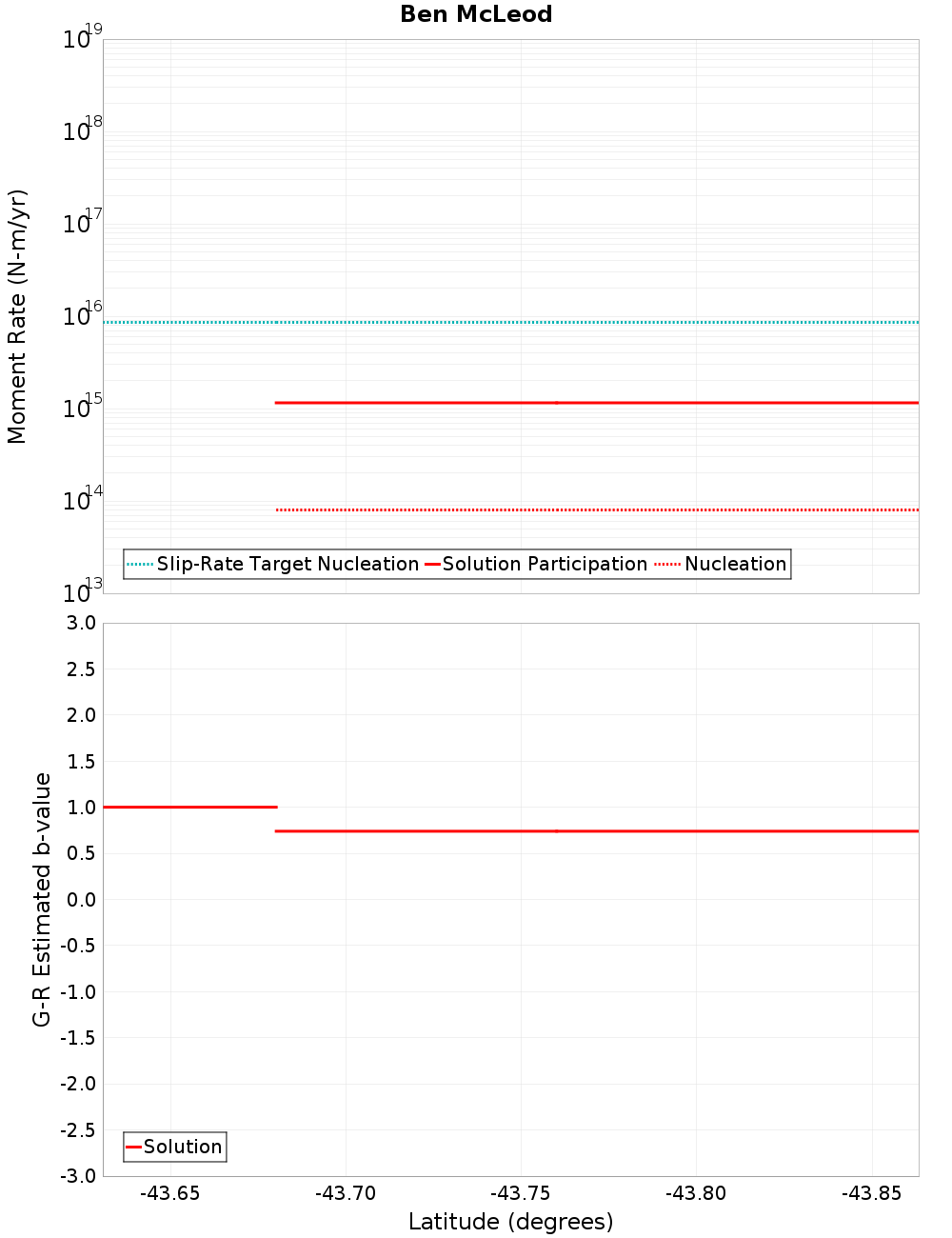

Moment-Rates and b-Values

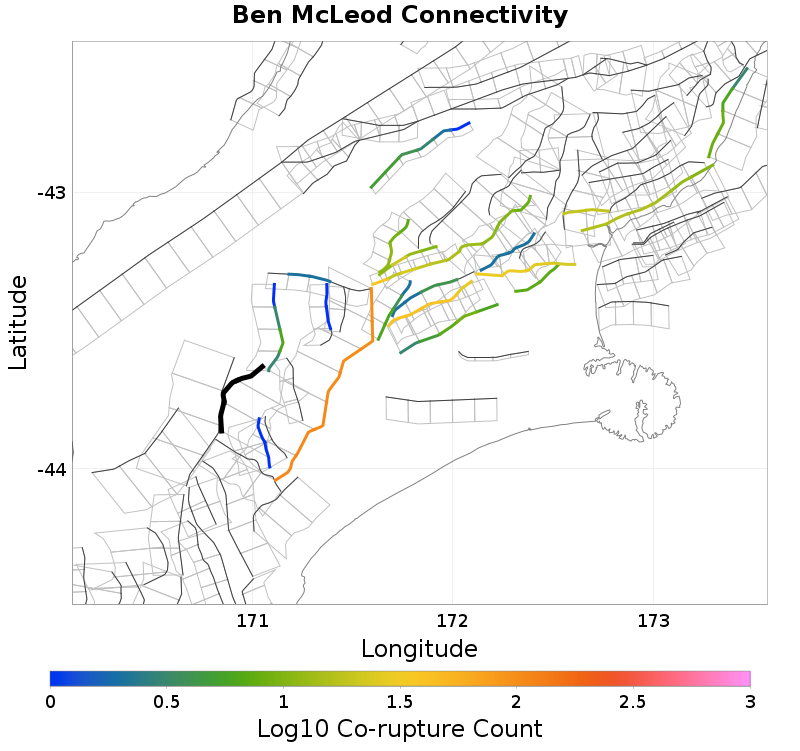

Connectivity
 |  |
|---|
Nearby Sections
Hutt Peel, 0.04 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2MTAuMDdNS0tk | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 110 |
| Co-rupture Rate | 1.4294235E-6 |
Klondyke Moor, 0.13 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2MTAuMDdNS0tk | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Edith, 0.21 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2MTAuMDdNS0tk | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Catherine, 0.22 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2MTAuMDdNS0tk | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 1 |
| Co-rupture Rate | 8.6911024E-7 |
Fox Peak, 0.38 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2MTAuMDdNS0tk | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Lake Heron, 0.47 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2MTAuMDdNS0tk | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 6 |
| Co-rupture Rate | 0.0 |
Sugarloaf, 4.07 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2MTAuMDdNS0tk | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Brothers, 8.04 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2MTAuMDdNS0tk | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Irishman Creek, 14.47 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2MTAuMDdNS0tk | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
North Branch, 16.5 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2MTAuMDdNS0tk | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 1 |
| Co-rupture Rate | 0.0 |
Opawa, 19.33 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2MTAuMDdNS0tk | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
