Takapu Details
| Property | Value |
|---|---|
| Rupture Count | 31 |
| Ruptures Above Sect Min Mag | 19 |
| Ruptures w/ Nonzero Rates | 5 |
| Magnitude Range | [6.70, 7.60] |
| Length Range | [19, 106] km |
| Total Rate | 4.5607567E-6 /yr |
| Multi-Fault Rate | 1.2161086E-6 /yr (26.66%) |
| Directly-Connected Faults | 2 |
| All Co-Rupturing Faults | 5 |
Table Of Contents

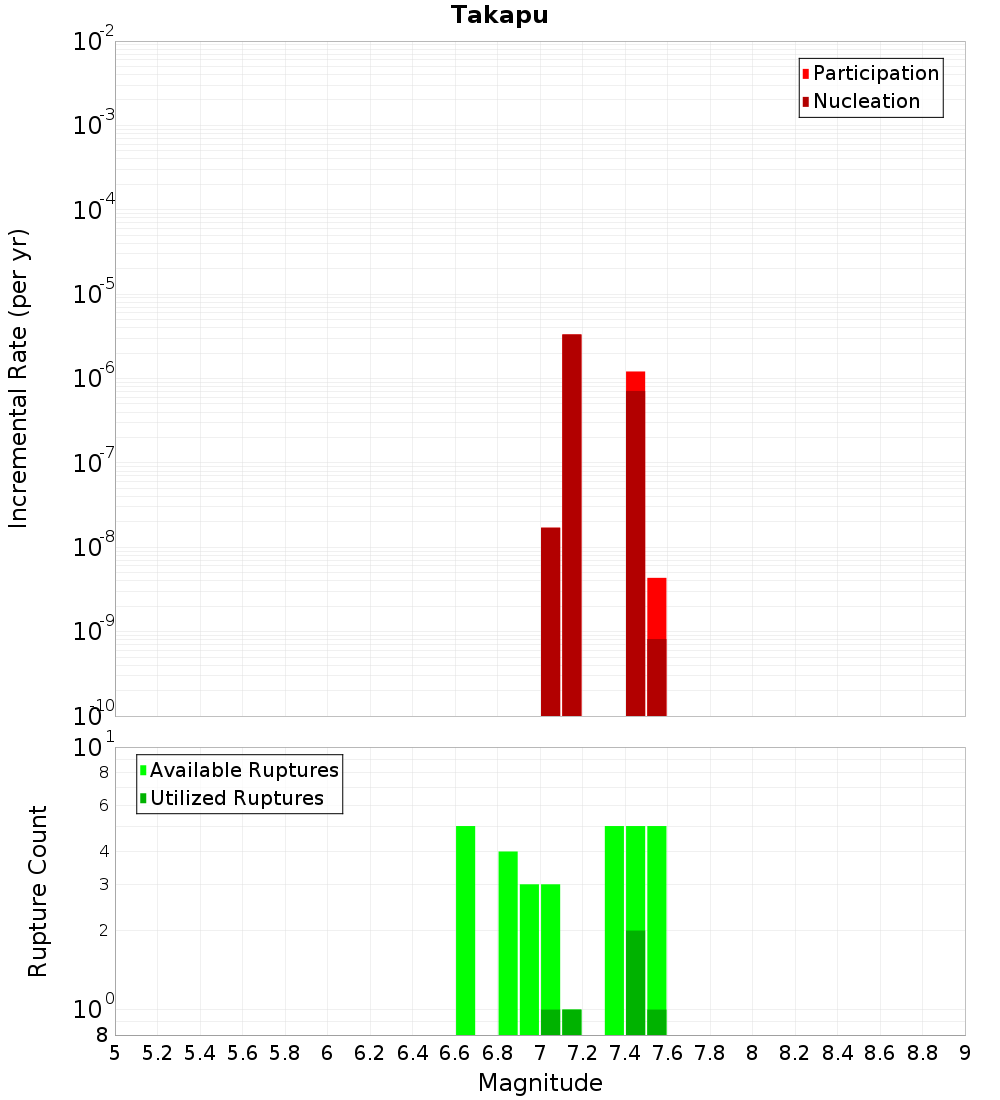

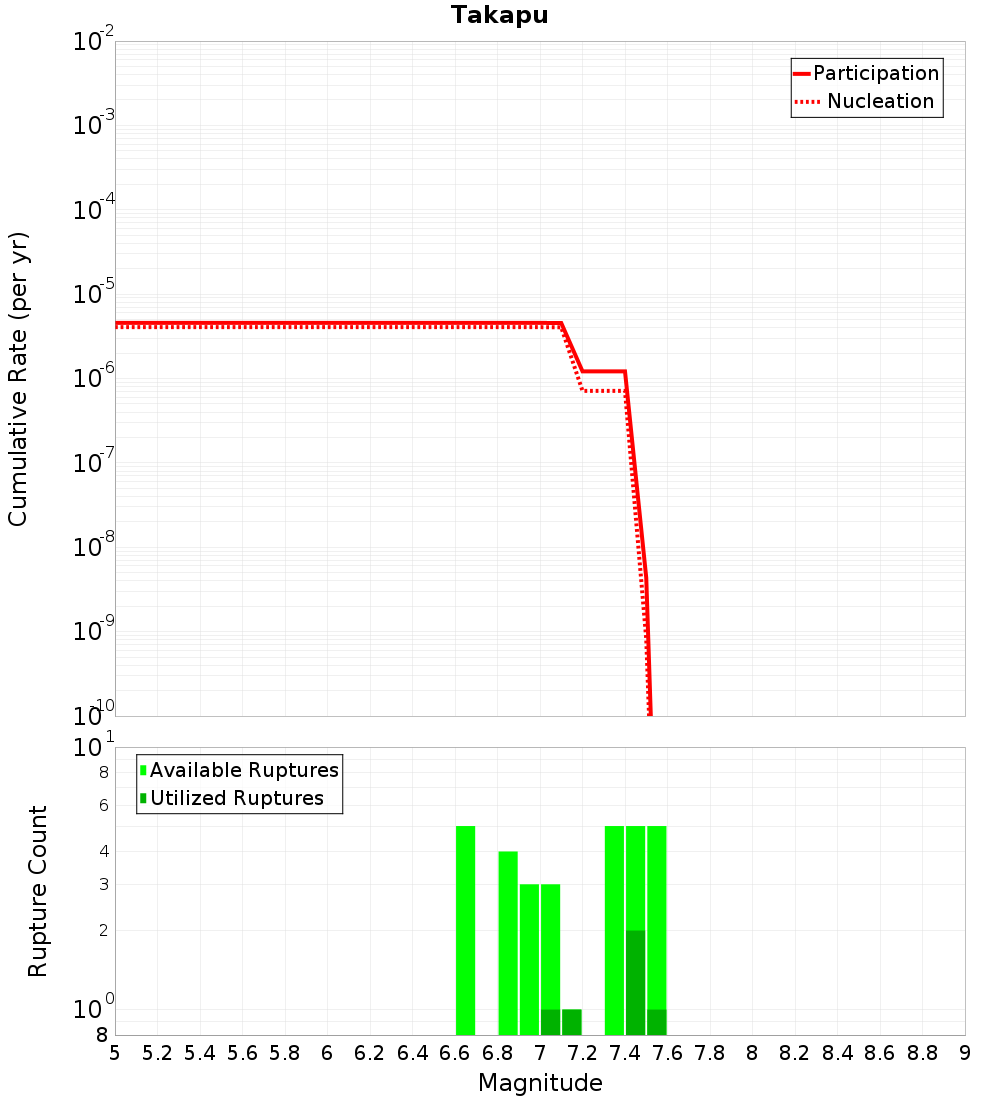

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

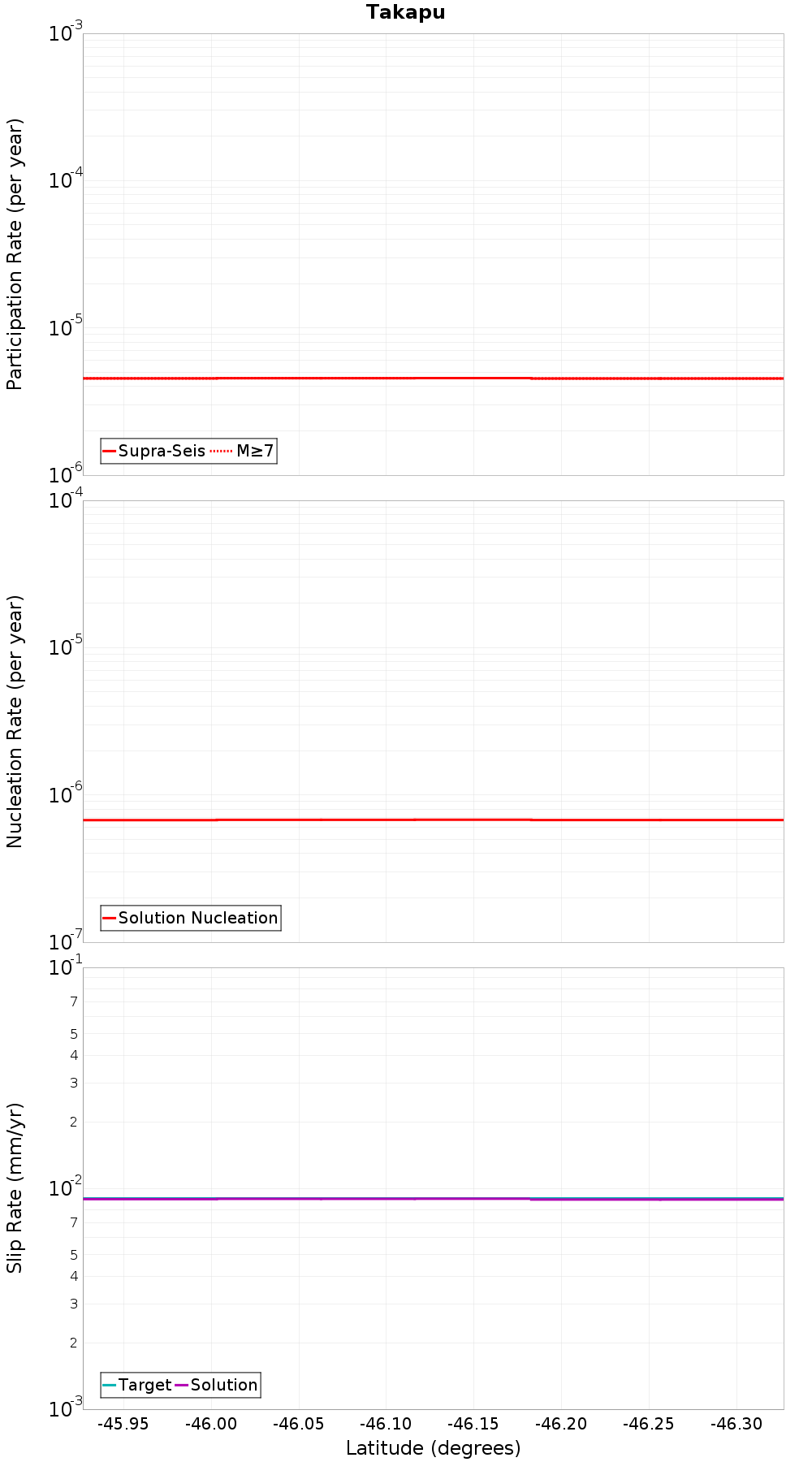

Along-Strike Values
Moment-Rates and b-Values

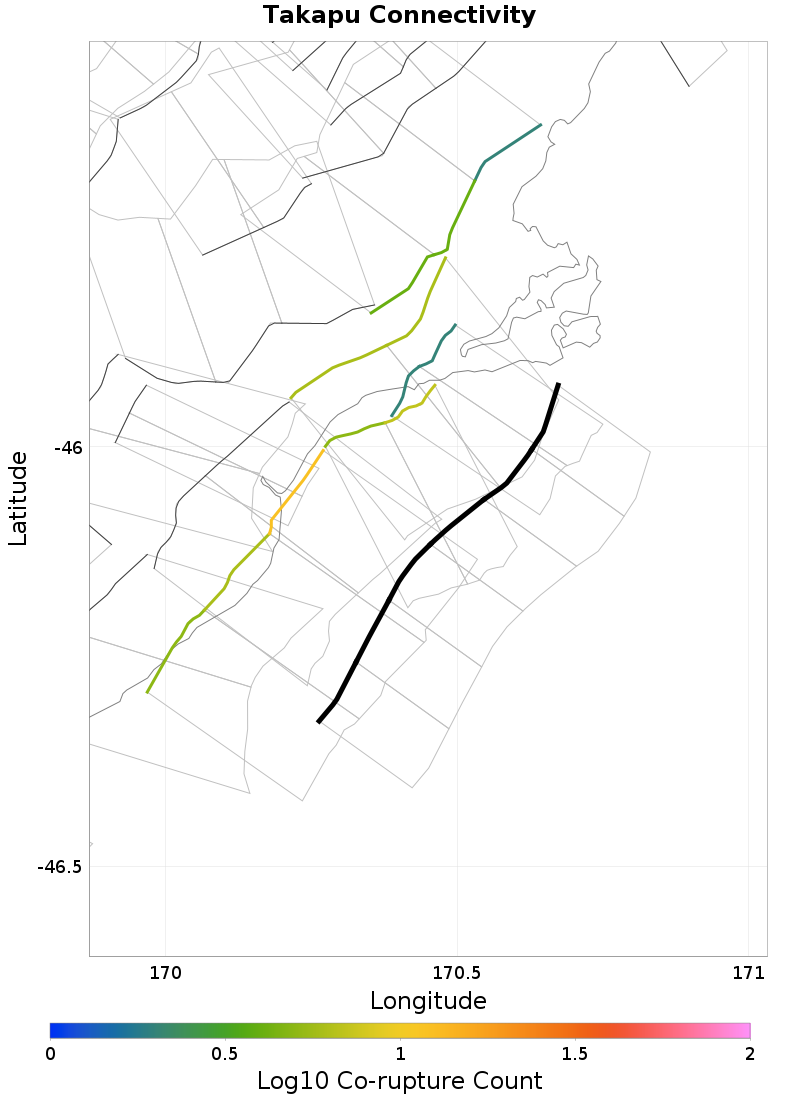

Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Green Island, 10.64 km away |
| Kaikorai, 11.17 km away |
| Akatore, 12.82 km away |
| Titri North, 15.38 km away |
| Titri Central, 18.86 km away |
Green Island, 10.64 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2MTAuMDdNS0tk | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 7 |
| Co-rupture Rate | 1.1832647E-6 |
Kaikorai, 11.17 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2MTAuMDdNS0tk | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 2 |
| Co-rupture Rate | 1.1832647E-6 |
Akatore, 12.82 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2MTAuMDdNS0tk | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 12 |
| Co-rupture Rate | 3.2843904E-8 |
Titri North, 15.38 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2MTAuMDdNS0tk | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 6 |
| Co-rupture Rate | 4.3401456E-9 |
Titri Central, 18.86 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2MTAuMDdNS0tk | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
