North Branch Details

PropertyValue
Rupture Count14
Ruptures Above Sect Min Mag13
Ruptures w/ Nonzero Rates3
Magnitude Range[6.85, 7.86]
Length Range[18, 142] km
Total Rate5.034968E-5 /yr
Multi-Fault Rate0.0 /yr (0.00%)
Directly-Connected Faults1
All Co-Rupturing Faults3

Table Of Contents

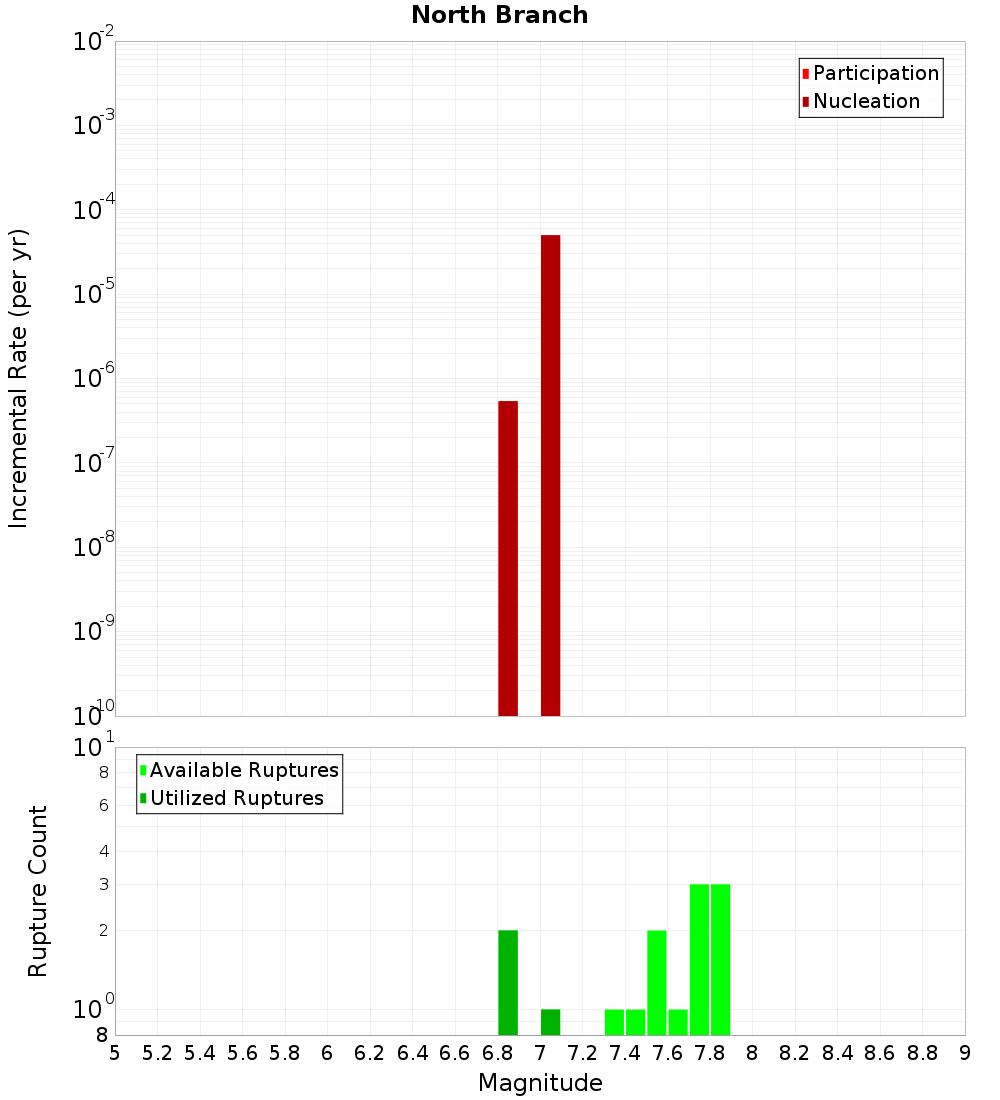

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

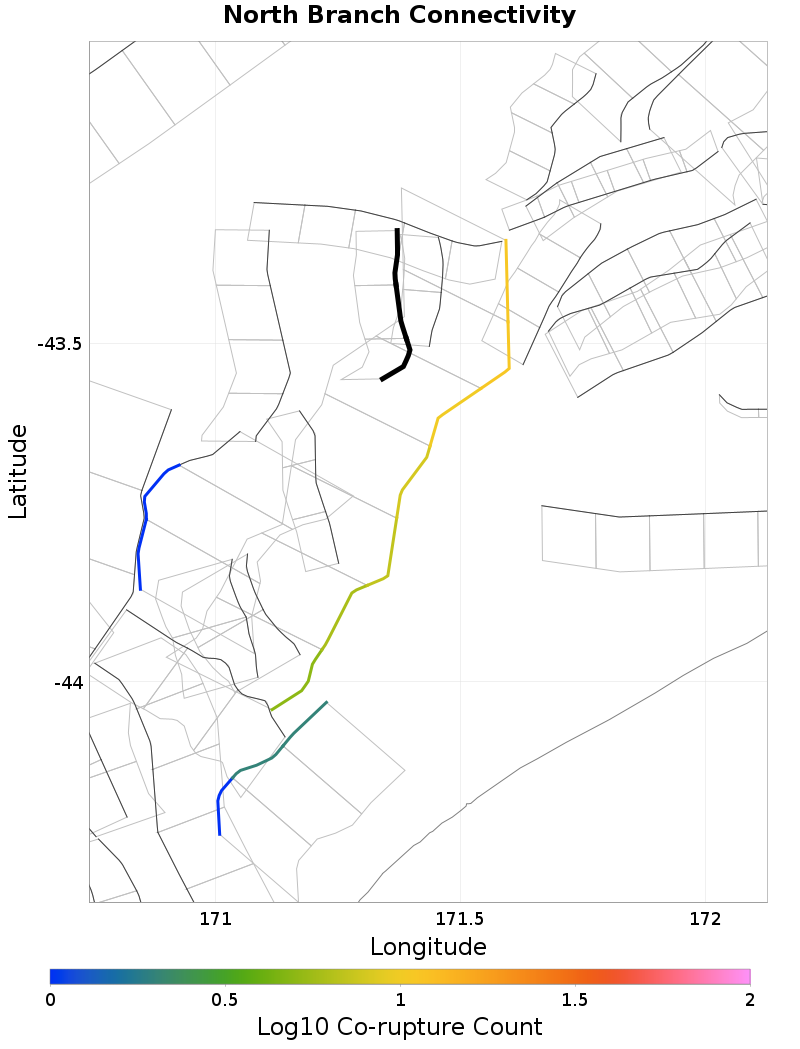

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Hutt Peel, 0.04 km away
Double Hill, 0.32 km away
Redcliffe, 3.06 km away
Klondyke Moor, 12.86 km away
Lake Heron, 14.3 km away
Big Ben, 15.85 km away
Ben McLeod, 16.5 km away
Porters Pass, 18.46 km away

Hutt Peel, 0.04 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2MTIuMHdBV241
Connected?true
Directly Connected?true
Co-rupture Count11
Co-rupture Rate0.0

Double Hill, 0.32 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2MTIuMHdBV241
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Redcliffe, 3.06 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2MTIuMHdBV241
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Klondyke Moor, 12.86 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2MTIuMHdBV241
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Lake Heron, 14.3 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2MTIuMHdBV241
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Big Ben, 15.85 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2MTIuMHdBV241
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Ben McLeod, 16.5 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2MTIuMHdBV241
Connected?true
Directly Connected?false
Co-rupture Count1
Co-rupture Rate0.0

Porters Pass, 18.46 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2MTIuMHdBV241
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
