Wellington: Tararua 2 Details

PropertyValue
Rupture Count52,517
Ruptures Above Sect Min Mag52,515
Ruptures w/ Nonzero Rates40
Magnitude Range[6.80, 8.70]
Length Range[17, 1,119] km
Total Rate0.0011151211 /yr
Multi-Fault Rate0.0011151211 /yr (100.00%)
Directly-Connected Faults5
All Co-Rupturing Faults135

Table Of Contents

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

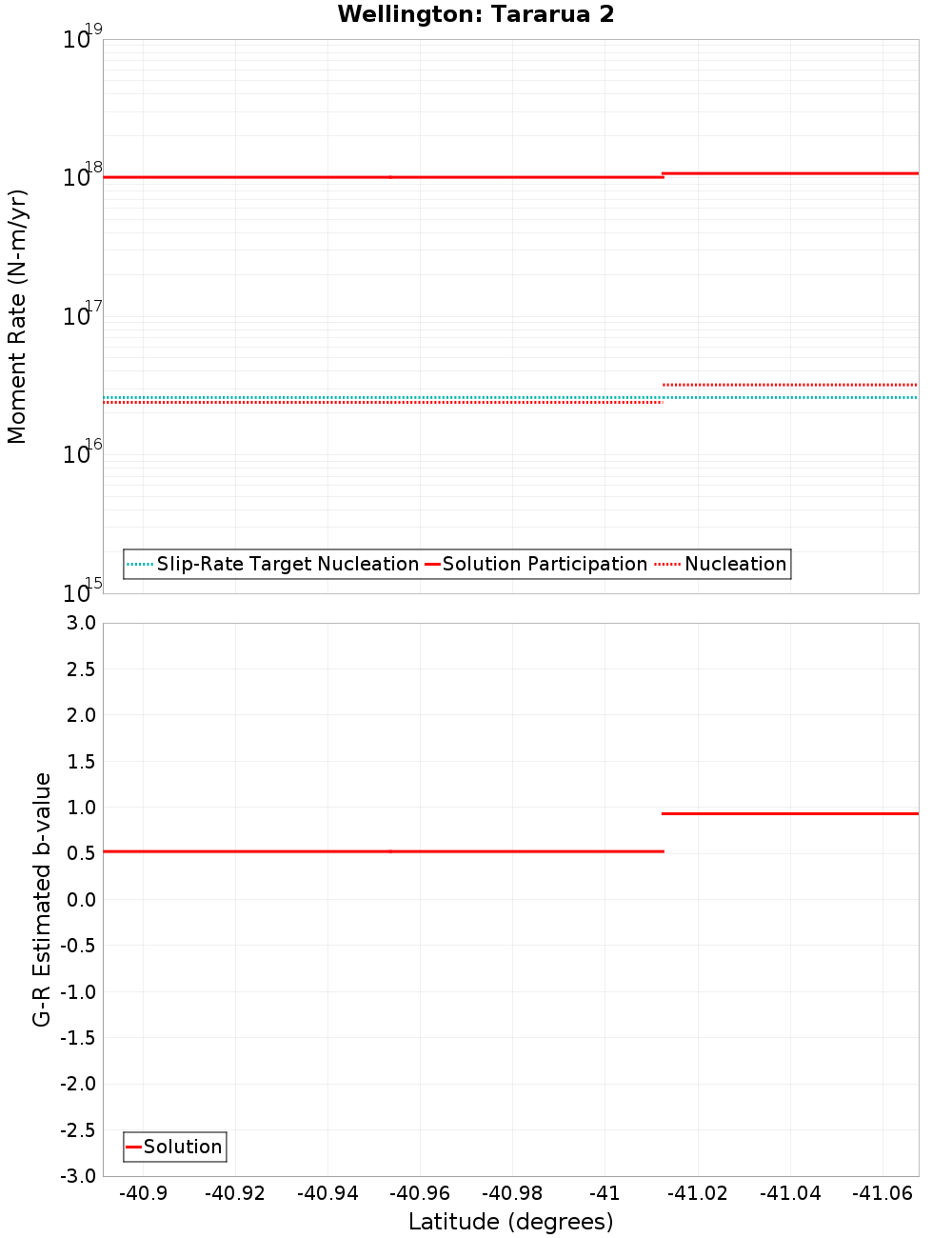

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Wellington: Tararua 3, 0 km awayMokonui Southwest, 9.75 km away
Wellington: Tararua 1, 0.11 km awayOtaki Forks: 1, 10.09 km away
Wellington Hutt Valley: 5, 4.56 km awayAkatarawa, 10.96 km away
Wairarapa: 2, 6.35 km awayBidwill, 15.22 km away
Otaki Forks: 2, 6.42 km awayWellington Hutt Valley: 4, 17.35 km away
Moonshine, 6.9 km awayMartinborough, 17.58 km away
Wairarapa: 3, 7.95 km awayNorthern Ohariu, 17.89 km away
Carterton, 8.44 km awayOhariu, 18.28 km away
Masterton, 9.41 km away

Wellington: Tararua 3, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2MTIuMHdBV241
Connected?true
Directly Connected?true
Co-rupture Count51,285
Co-rupture Rate6.052022E-4

Wellington: Tararua 1, 0.11 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2MTIuMHdBV241
Connected?true
Directly Connected?true
Co-rupture Count2,025
Co-rupture Rate6.321182E-4

Wellington Hutt Valley: 5, 4.56 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2MTIuMHdBV241
Connected?true
Directly Connected?true
Co-rupture Count26,173
Co-rupture Rate9.110603E-4

Wairarapa: 2, 6.35 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2MTIuMHdBV241
Connected?true
Directly Connected?true
Co-rupture Count19,893
Co-rupture Rate1.460912E-4

Otaki Forks: 2, 6.42 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2MTIuMHdBV241
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Moonshine, 6.9 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2MTIuMHdBV241
Connected?true
Directly Connected?false
Co-rupture Count91
Co-rupture Rate0.0

Wairarapa: 3, 7.95 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2MTIuMHdBV241
Connected?true
Directly Connected?false
Co-rupture Count56
Co-rupture Rate0.0

Carterton, 8.44 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2MTIuMHdBV241
Connected?true
Directly Connected?true
Co-rupture Count2,226
Co-rupture Rate1.157169E-4

Masterton, 9.41 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2MTIuMHdBV241
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Mokonui Southwest, 9.75 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2MTIuMHdBV241
Connected?true
Directly Connected?false
Co-rupture Count104
Co-rupture Rate0.0

Otaki Forks: 1, 10.09 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2MTIuMHdBV241
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Akatarawa, 10.96 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2MTIuMHdBV241
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Bidwill, 15.22 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2MTIuMHdBV241
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Wellington Hutt Valley: 4, 17.35 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2MTIuMHdBV241
Connected?true
Directly Connected?false
Co-rupture Count5,434
Co-rupture Rate6.420274E-4

Martinborough, 17.58 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2MTIuMHdBV241
Connected?true
Directly Connected?false
Co-rupture Count51
Co-rupture Rate0.0

Northern Ohariu, 17.89 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2MTIuMHdBV241
Connected?true
Directly Connected?false
Co-rupture Count1,223
Co-rupture Rate7.700832E-5

Ohariu, 18.28 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2MTIuMHdBV241
Connected?true
Directly Connected?false
Co-rupture Count1,718
Co-rupture Rate0.0
