Clarence: Northeast Details

PropertyValue
Rupture Count5,757
Ruptures Above Sect Min Mag5,752
Ruptures w/ Nonzero Rates17
Magnitude Range[6.74, 8.45]
Length Range[21, 894] km
Total Rate6.9440814E-4 /yr
Multi-Fault Rate6.9440814E-4 /yr (100.00%)
Directly-Connected Faults6
All Co-Rupturing Faults85

Table Of Contents

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

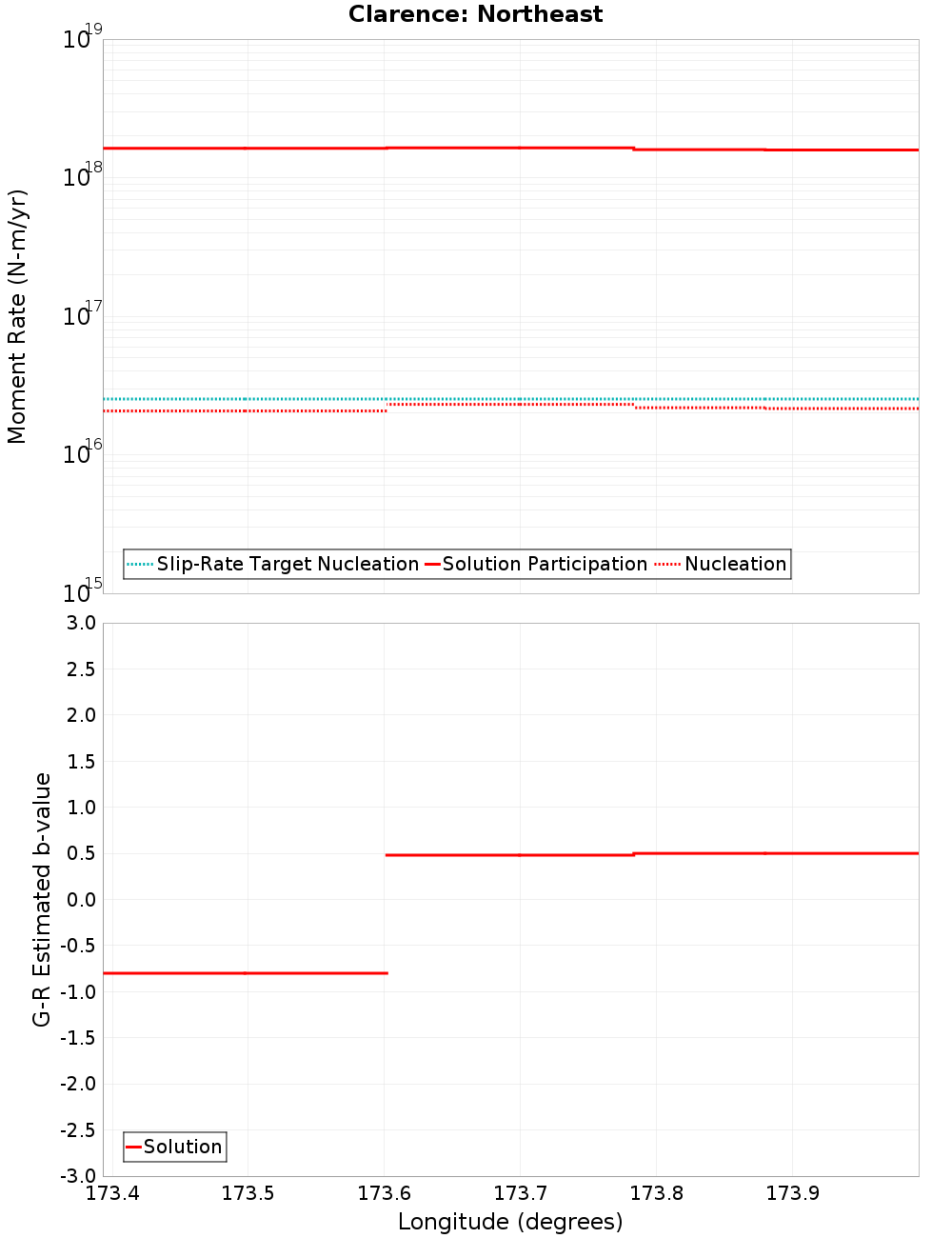

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Elliott, 0.01 km away
Clarence: Central, 0.09 km away
Fidget, 0.64 km away
Jordan, 0.78 km away
Needles East 2, 8.38 km away
Awatere: Northeast 1, 9.18 km away
Kekerengu 1, 10.43 km away
London Hill, 10.86 km away
Awatere: Southwest, 11.07 km away
Papatea, 11.87 km away
Needles, 11.97 km away
Barefell, 16.85 km away
Chancet, 18.61 km away

Elliott, 0.01 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2MTQuMDM2TEI0
Connected?true
Directly Connected?true
Co-rupture Count2,050
Co-rupture Rate9.916422E-5

Clarence: Central, 0.09 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2MTQuMDM2TEI0
Connected?true
Directly Connected?true
Co-rupture Count2,010
Co-rupture Rate0.0

Fidget, 0.64 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2MTQuMDM2TEI0
Connected?true
Directly Connected?false
Co-rupture Count109
Co-rupture Rate0.0

Jordan, 0.78 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2MTQuMDM2TEI0
Connected?true
Directly Connected?true
Co-rupture Count1,711
Co-rupture Rate3.9650127E-4

Needles East 2, 8.38 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2MTQuMDM2TEI0
Connected?true
Directly Connected?false
Co-rupture Count20
Co-rupture Rate0.0

Awatere: Northeast 1, 9.18 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2MTQuMDM2TEI0
Connected?true
Directly Connected?true
Co-rupture Count291
Co-rupture Rate0.0

Kekerengu 1, 10.43 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2MTQuMDM2TEI0
Connected?true
Directly Connected?true
Co-rupture Count164
Co-rupture Rate0.0

London Hill, 10.86 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2MTQuMDM2TEI0
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Awatere: Southwest, 11.07 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2MTQuMDM2TEI0
Connected?true
Directly Connected?false
Co-rupture Count4
Co-rupture Rate0.0

Papatea, 11.87 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2MTQuMDM2TEI0
Connected?true
Directly Connected?true
Co-rupture Count20
Co-rupture Rate1.9876169E-4

Needles, 11.97 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2MTQuMDM2TEI0
Connected?true
Directly Connected?false
Co-rupture Count9
Co-rupture Rate0.0

Barefell, 16.85 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2MTQuMDM2TEI0
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Chancet, 18.61 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2MTQuMDM2TEI0
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
