Timaru Creek Details

PropertyValue
Rupture Count630
Ruptures Above Sect Min Mag628
Ruptures w/ Nonzero Rates11
Magnitude Range[6.79, 8.12]
Length Range[19, 324] km
Total Rate2.7889553E-5 /yr
Multi-Fault Rate2.719529E-5 /yr (97.51%)
Directly-Connected Faults5
All Co-Rupturing Faults29

Table Of Contents

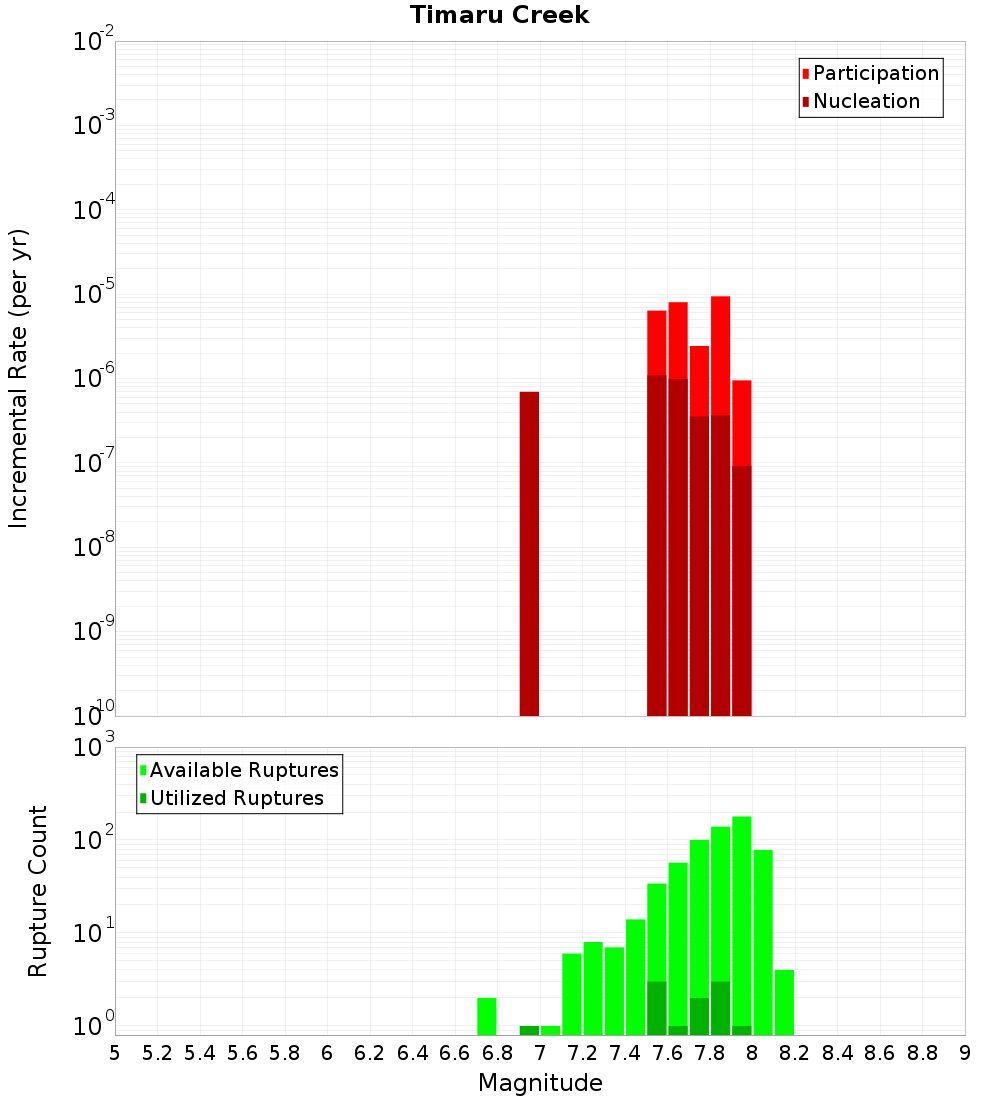

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Dromedary, 0.12 km away
Grandview, 0.3 km away
Wanaka, 0.46 km away
Lindis River, 2.49 km away
Cardrona - Hawea, 4.34 km away
Dingle, 4.92 km away
Hunter Valley, 4.93 km away
Motatapu, 7.02 km away
Barrier Range, 9.19 km away
Ostler South, 9.79 km away
Goodger, 16.27 km away
Blue Lake, 18.94 km away
NW Cardrona North, 19.19 km away

Dromedary, 0.12 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2MTQuMDM2TEI0
Connected?true
Directly Connected?true
Co-rupture Count133
Co-rupture Rate0.0

Grandview, 0.3 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2MTQuMDM2TEI0
Connected?true
Directly Connected?true
Co-rupture Count554
Co-rupture Rate1.2368938E-5

Wanaka, 0.46 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2MTQuMDM2TEI0
Connected?true
Directly Connected?false
Co-rupture Count228
Co-rupture Rate9.417144E-6

Lindis River, 2.49 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2MTQuMDM2TEI0
Connected?true
Directly Connected?true
Co-rupture Count63
Co-rupture Rate1.3573631E-5

Cardrona - Hawea, 4.34 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2MTQuMDM2TEI0
Connected?true
Directly Connected?false
Co-rupture Count2
Co-rupture Rate0.0

Dingle, 4.92 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2MTQuMDM2TEI0
Connected?true
Directly Connected?true
Co-rupture Count328
Co-rupture Rate1.0669866E-5

Hunter Valley, 4.93 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2MTQuMDM2TEI0
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Motatapu, 7.02 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2MTQuMDM2TEI0
Connected?true
Directly Connected?false
Co-rupture Count4
Co-rupture Rate0.0

Barrier Range, 9.19 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2MTQuMDM2TEI0
Connected?true
Directly Connected?true
Co-rupture Count201
Co-rupture Rate1.2652507E-5

Ostler South, 9.79 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2MTQuMDM2TEI0
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Goodger, 16.27 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2MTQuMDM2TEI0
Connected?true
Directly Connected?false
Co-rupture Count3
Co-rupture Rate0.0

Blue Lake, 18.94 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2MTQuMDM2TEI0
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

NW Cardrona North, 19.19 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2MTQuMDM2TEI0
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
