Tuakana 6 Details

Property	Value
Rupture Count	281
Ruptures Above Sect Min Mag	280
Ruptures w/ Nonzero Rates	4
Magnitude Range	[6.62, 7.74]
Length Range	[14, 228] km
Total Rate	8.726025E-4 /yr
Multi-Fault Rate	8.726025E-4 /yr (100.00%)
Directly-Connected Faults	3
All Co-Rupturing Faults	22

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

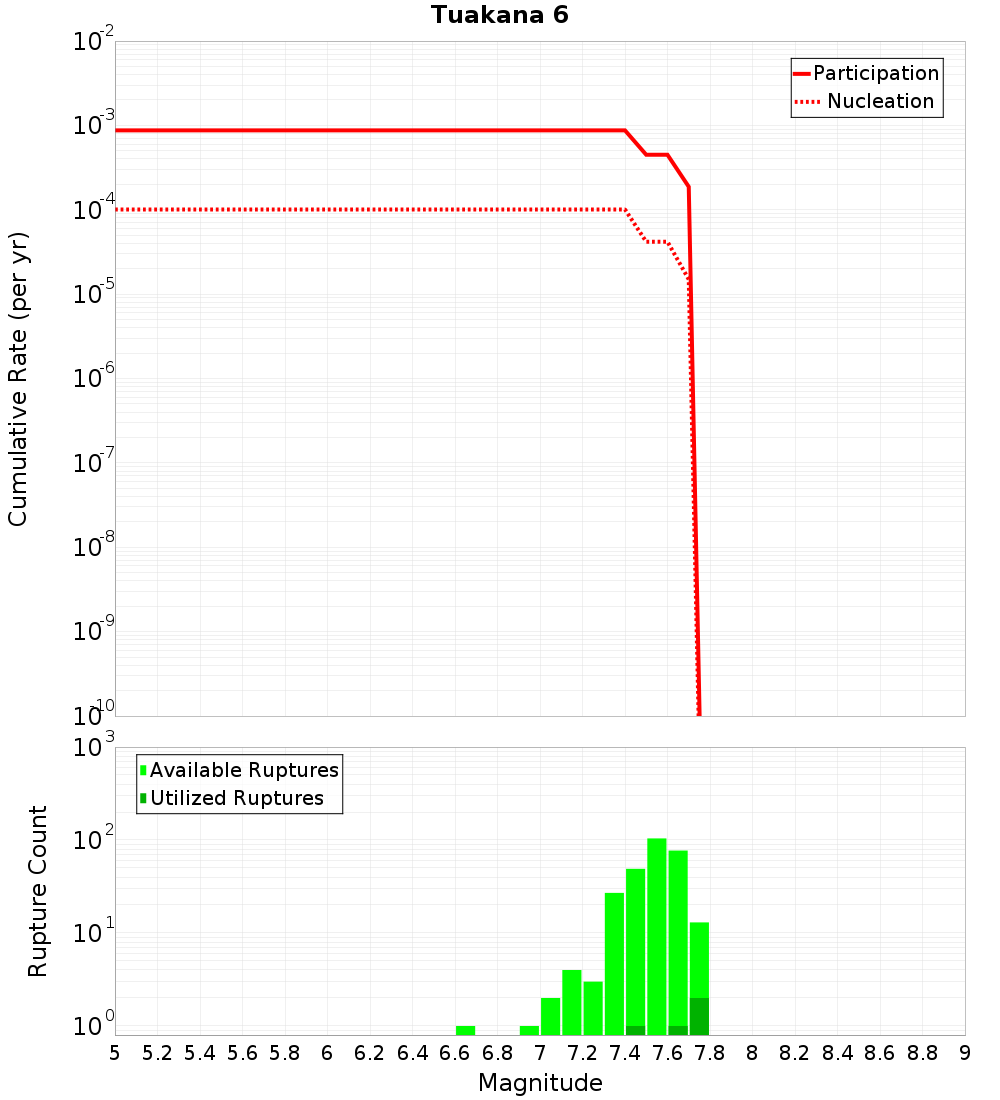

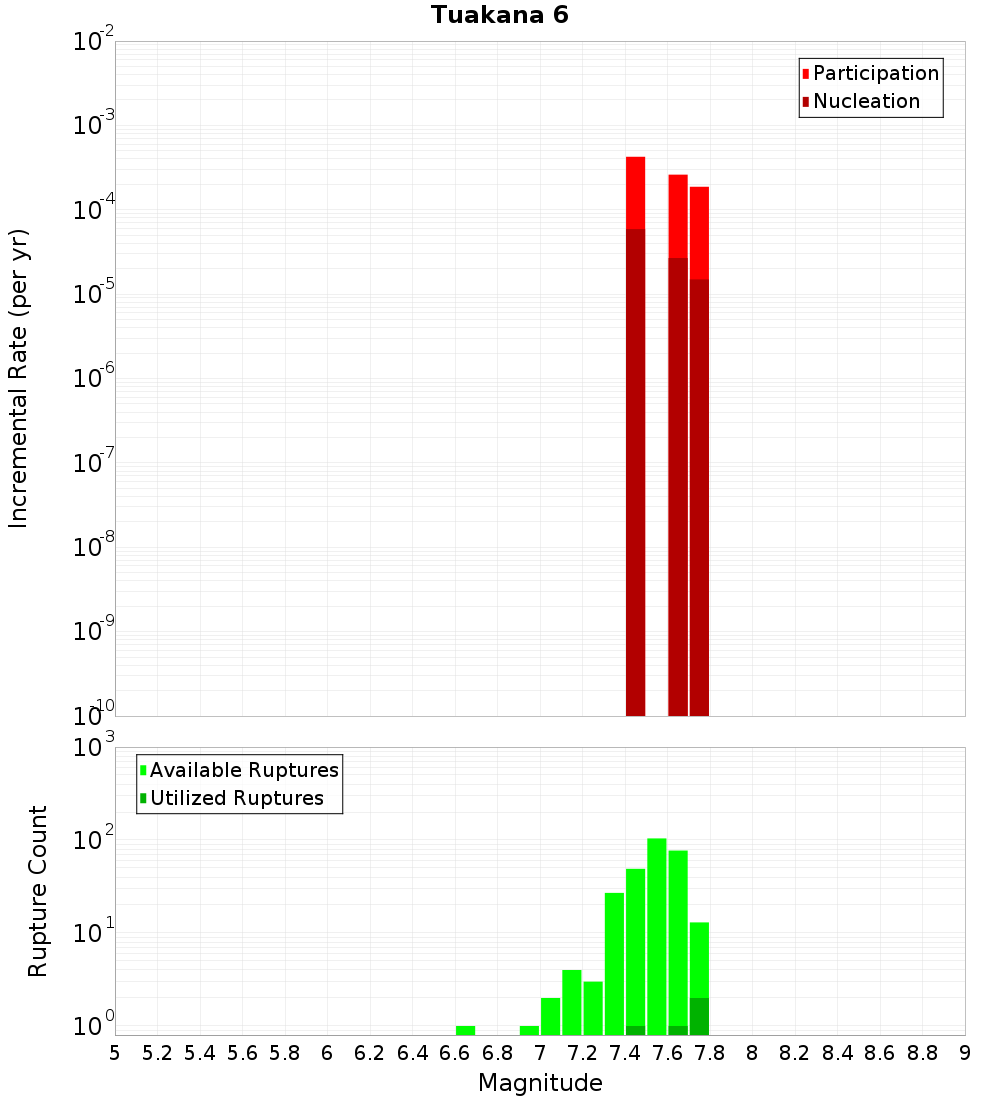

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Tuakana 7, 0.35 km away
Otara West 2, 3 km away
Otara West 1, 4.5 km away
Volkner 3, 7.1 km away
Volkner 4, 8.49 km away
Tauranga Trough West 2, 12.95 km away
Otara West 3, 14.97 km away
Tauranga Trough East 2, 19.71 km away

Tuakana 7, 0.35 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2MTQuMDM2TEI0
Connected?	true
Directly Connected?	true
Co-rupture Count	163
Co-rupture Rate	8.1333227E-4

Otara West 2, 3 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2MTQuMDM2TEI0
Connected?	true
Directly Connected?	true
Co-rupture Count	50
Co-rupture Rate	5.9270216E-5

Otara West 1, 4.5 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2MTQuMDM2TEI0
Connected?	true
Directly Connected?	false
Co-rupture Count	21
Co-rupture Rate	5.9270216E-5

Volkner 3, 7.1 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2MTQuMDM2TEI0
Connected?	true
Directly Connected?	true
Co-rupture Count	274
Co-rupture Rate	8.726025E-4

Volkner 4, 8.49 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2MTQuMDM2TEI0
Connected?	true
Directly Connected?	false
Co-rupture Count	266
Co-rupture Rate	4.4797975E-4

Tauranga Trough West 2, 12.95 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2MTQuMDM2TEI0
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Otara West 3, 14.97 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2MTQuMDM2TEI0
Connected?	true
Directly Connected?	false
Co-rupture Count	1
Co-rupture Rate	0.0

Tauranga Trough East 2, 19.71 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2MTQuMDM2TEI0
Connected?	true
Directly Connected?	false
Co-rupture Count	108
Co-rupture Rate	8.1333227E-4
