Wakarara Details
| Property | Value |
|---|---|
| Rupture Count | 8,053 |
| Ruptures Above Sect Min Mag | 8,053 |
| Ruptures w/ Nonzero Rates | 2 |
| Magnitude Range | [6.97, 8.21] |
| Length Range | [26, 540] km |
| Total Rate | 4.4095414E-5 /yr |
| Multi-Fault Rate | 4.4095414E-5 /yr (100.00%) |
| Directly-Connected Faults | 3 |
| All Co-Rupturing Faults | 98 |
Table Of Contents

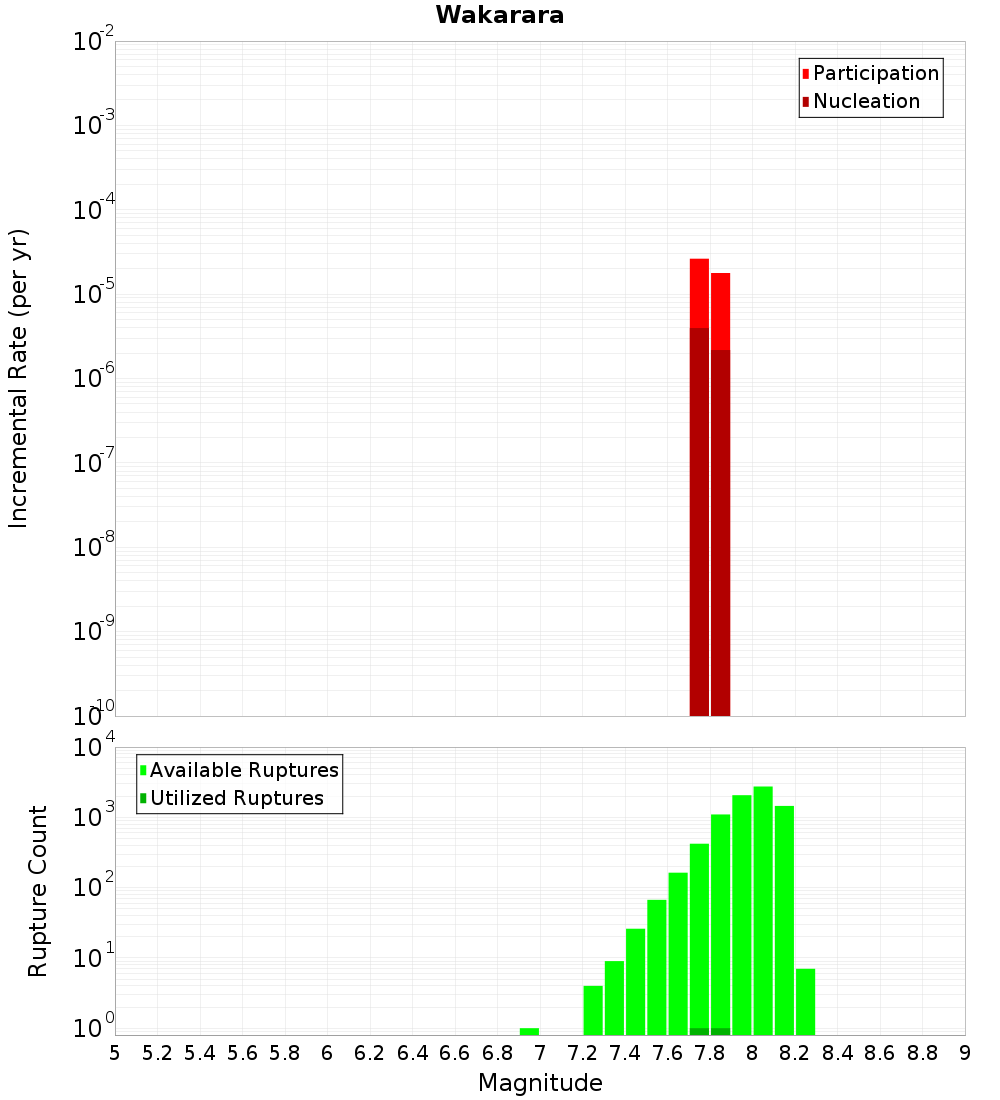

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

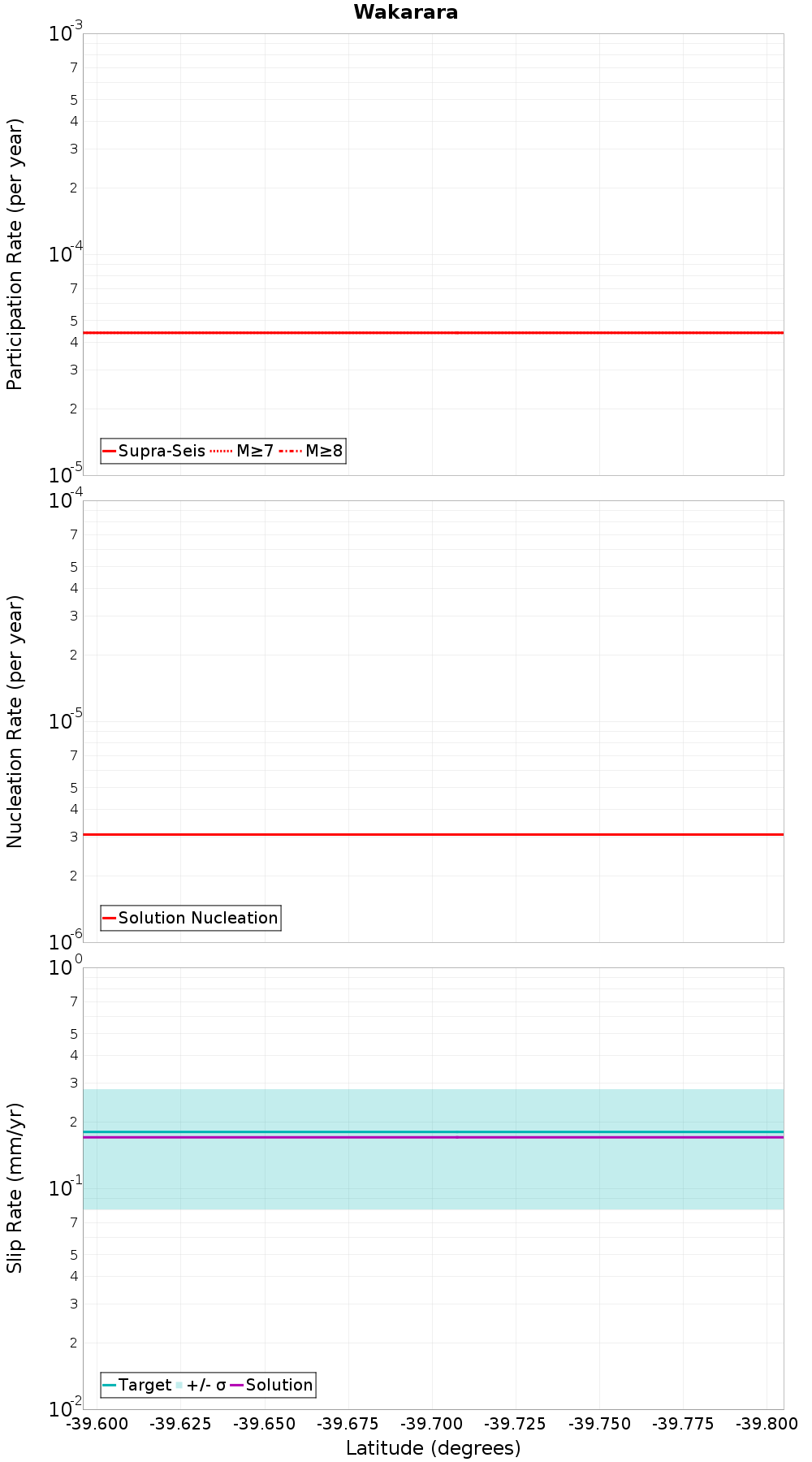

Along-Strike Values
Moment-Rates and b-Values
Connectivity
 |  |
|---|
Nearby Sections
Rangefront, 0 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2MTQuMDM2TEI0 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 7,494 |
| Co-rupture Rate | 4.4095414E-5 |
Ruahine: Central, 0.11 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2MTQuMDM2TEI0 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 499 |
| Co-rupture Rate | 0.0 |
Mohaka: South, 0.13 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2MTQuMDM2TEI0 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 9,783 |
| Co-rupture Rate | 4.4095414E-5 |
Ruahine: North, 4 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2MTQuMDM2TEI0 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 2,805 |
| Co-rupture Rate | 0.0 |
Mohaka: North, 9.63 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2MTQuMDM2TEI0 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 4,507 |
| Co-rupture Rate | 0.0 |
Ruataniwha, 13.37 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2MTQuMDM2TEI0 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Ruahine: South, 14.13 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2MTQuMDM2TEI0 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 1,988 |
| Co-rupture Rate | 0.0 |
Te Heka, 14.9 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2MTQuMDM2TEI0 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Patoka - Rangiora, 14.99 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2MTQuMDM2TEI0 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 193 |
| Co-rupture Rate | 0.0 |
Awanui, 18.32 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2MTQuMDM2TEI0 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 3 |
| Co-rupture Rate | 0.0 |
Oruawharo - Mangatoro, 18.53 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2MTQuMDM2TEI0 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Kaweka, 18.88 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2MTQuMDM2TEI0 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 4 |
| Co-rupture Rate | 0.0 |
