Kotare - Moutuhora Details

PropertyValue
Rupture Count96
Ruptures Above Sect Min Mag91
Ruptures w/ Nonzero Rates14
Magnitude Range[6.85, 7.63]
Length Range[22, 132] km
Total Rate2.1419622E-4 /yr
Multi-Fault Rate2.1419622E-4 /yr (100.00%)
Directly-Connected Faults7
All Co-Rupturing Faults20

Table Of Contents

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

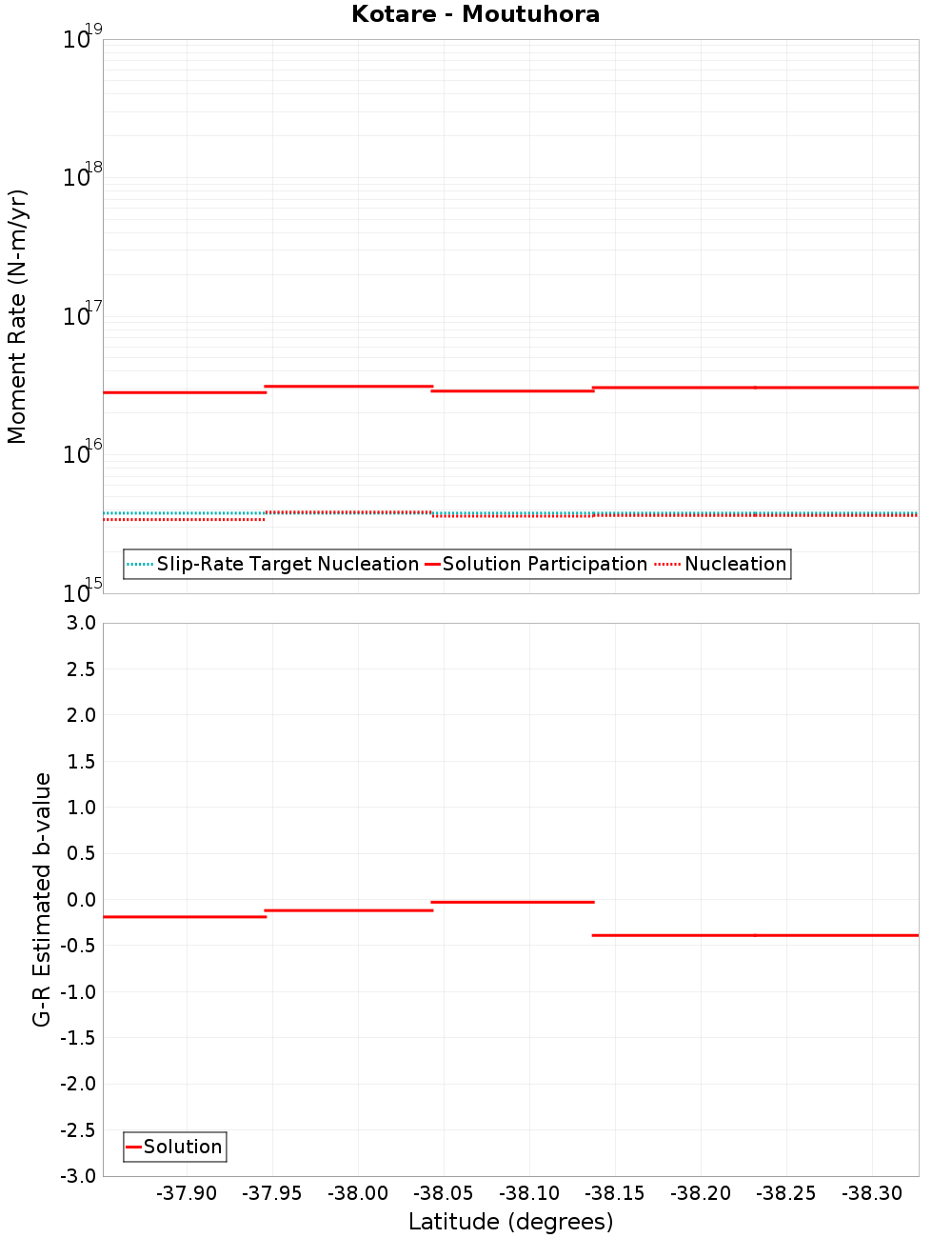

Moment-Rates and b-Values

(top)

Along-strike plot

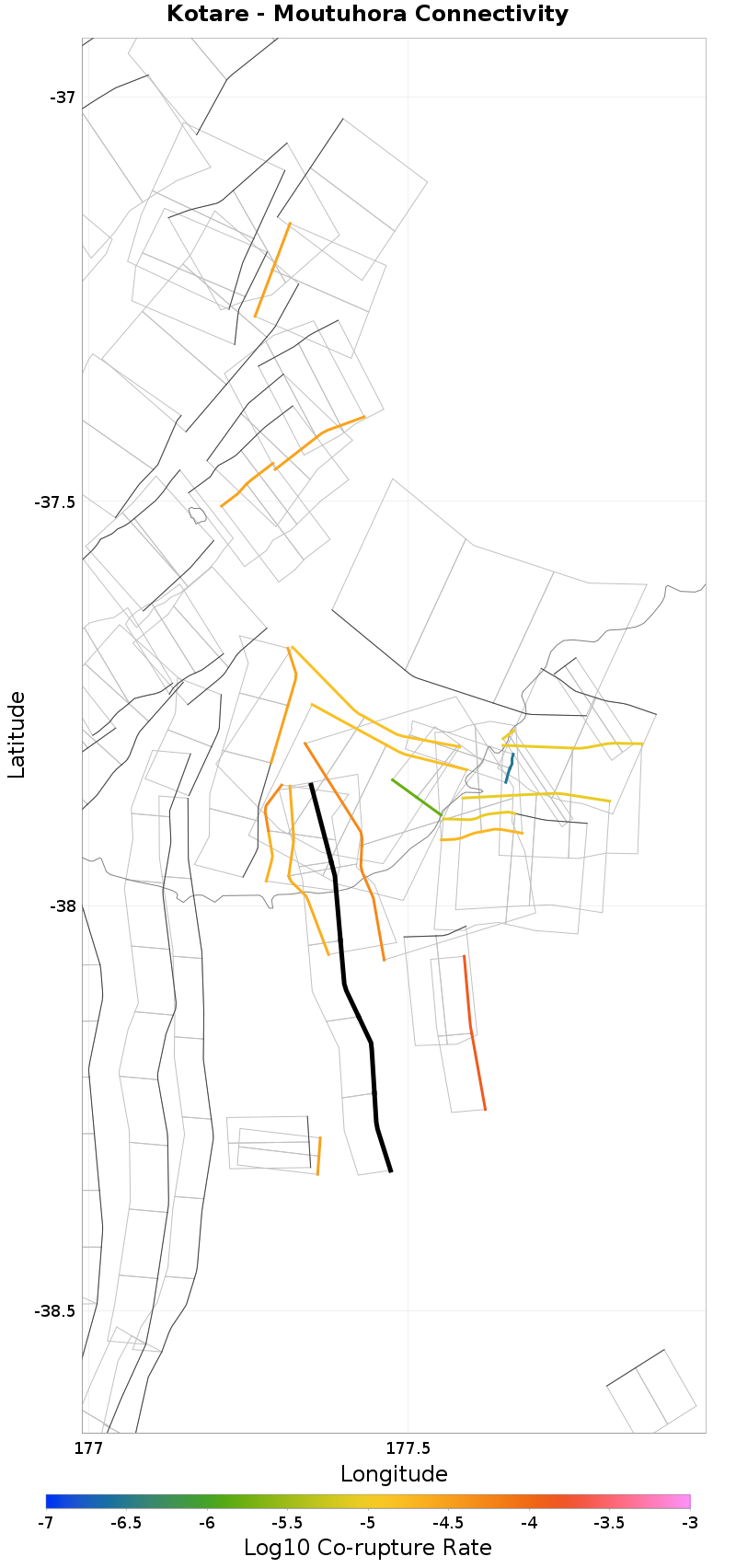

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Ohae 2, 0.13 km awayMotu, 13.58 km away
Opotiki 2, 0.14 km awayWaimanawa - Waikaremoana, 14.48 km away
Ohae 1, 0.17 km awayRaukumara 17, 15.37 km away
Tirohanga, 0.29 km awayRaukumara 18, 16.03 km away
Opape 1, 2.38 km awayWaiotahi: North, 16.72 km away
Opotiki 3, 6.08 km awayWaimana: North, 16.9 km away
Raukumara 9, 7.8 km awayRaukumara 20, 17.95 km away
Raukumara 16, 8.71 km awayWhite Island 2, 19.23 km away
Wairata, 9.2 km awayMotu River, 19.32 km away
Ohae 3, 10.99 km away

Ohae 2, 0.13 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2MjguMDRoYm55
Connected?true
Directly Connected?true
Co-rupture Count5
Co-rupture Rate1.4735858E-5

Opotiki 2, 0.14 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2MjguMDRoYm55
Connected?true
Directly Connected?true
Co-rupture Count35
Co-rupture Rate4.9845505E-5

Ohae 1, 0.17 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2MjguMDRoYm55
Connected?true
Directly Connected?true
Co-rupture Count4
Co-rupture Rate1.4385412E-5

Tirohanga, 0.29 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2MjguMDRoYm55
Connected?true
Directly Connected?true
Co-rupture Count2
Co-rupture Rate2.2610557E-5

Opape 1, 2.38 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2MjguMDRoYm55
Connected?true
Directly Connected?true
Co-rupture Count35
Co-rupture Rate5.1572584E-5

Opotiki 3, 6.08 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2MjguMDRoYm55
Connected?true
Directly Connected?false
Co-rupture Count30
Co-rupture Rate2.9121271E-5

Raukumara 9, 7.8 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2MjguMDRoYm55
Connected?true
Directly Connected?true
Co-rupture Count14
Co-rupture Rate3.0694086E-5

Raukumara 16, 8.71 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2MjguMDRoYm55
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Wairata, 9.2 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2MjguMDRoYm55
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Ohae 3, 10.99 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2MjguMDRoYm55
Connected?true
Directly Connected?false
Co-rupture Count3
Co-rupture Rate1.5557048E-6

Motu, 13.58 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2MjguMDRoYm55
Connected?true
Directly Connected?true
Co-rupture Count28
Co-rupture Rate1.4174017E-4

Waimanawa - Waikaremoana, 14.48 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2MjguMDRoYm55
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Raukumara 17, 15.37 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2MjguMDRoYm55
Connected?true
Directly Connected?false
Co-rupture Count9
Co-rupture Rate1.8513494E-5

Raukumara 18, 16.03 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2MjguMDRoYm55
Connected?true
Directly Connected?false
Co-rupture Count7
Co-rupture Rate8.684395E-6

Waiotahi: North, 16.72 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2MjguMDRoYm55
Connected?true
Directly Connected?false
Co-rupture Count1
Co-rupture Rate0.0

Waimana: North, 16.9 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2MjguMDRoYm55
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Raukumara 20, 17.95 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2MjguMDRoYm55
Connected?true
Directly Connected?false
Co-rupture Count6
Co-rupture Rate2.8779542E-7

White Island 2, 19.23 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2MjguMDRoYm55
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Motu River, 19.32 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2MjguMDRoYm55
Connected?true
Directly Connected?false
Co-rupture Count6
Co-rupture Rate8.684395E-6
