Alpine: Resolution - Dagg Details

PropertyValue
Rupture Count47,226
Ruptures Above Sect Min Mag47,220
Ruptures w/ Nonzero Rates92
Magnitude Range[6.83, 8.53]
Length Range[22, 1,204] km
Total Rate0.0029965423 /yr
Multi-Fault Rate0.0029965423 /yr (100.00%)
Directly-Connected Faults5
All Co-Rupturing Faults118

Table Of Contents

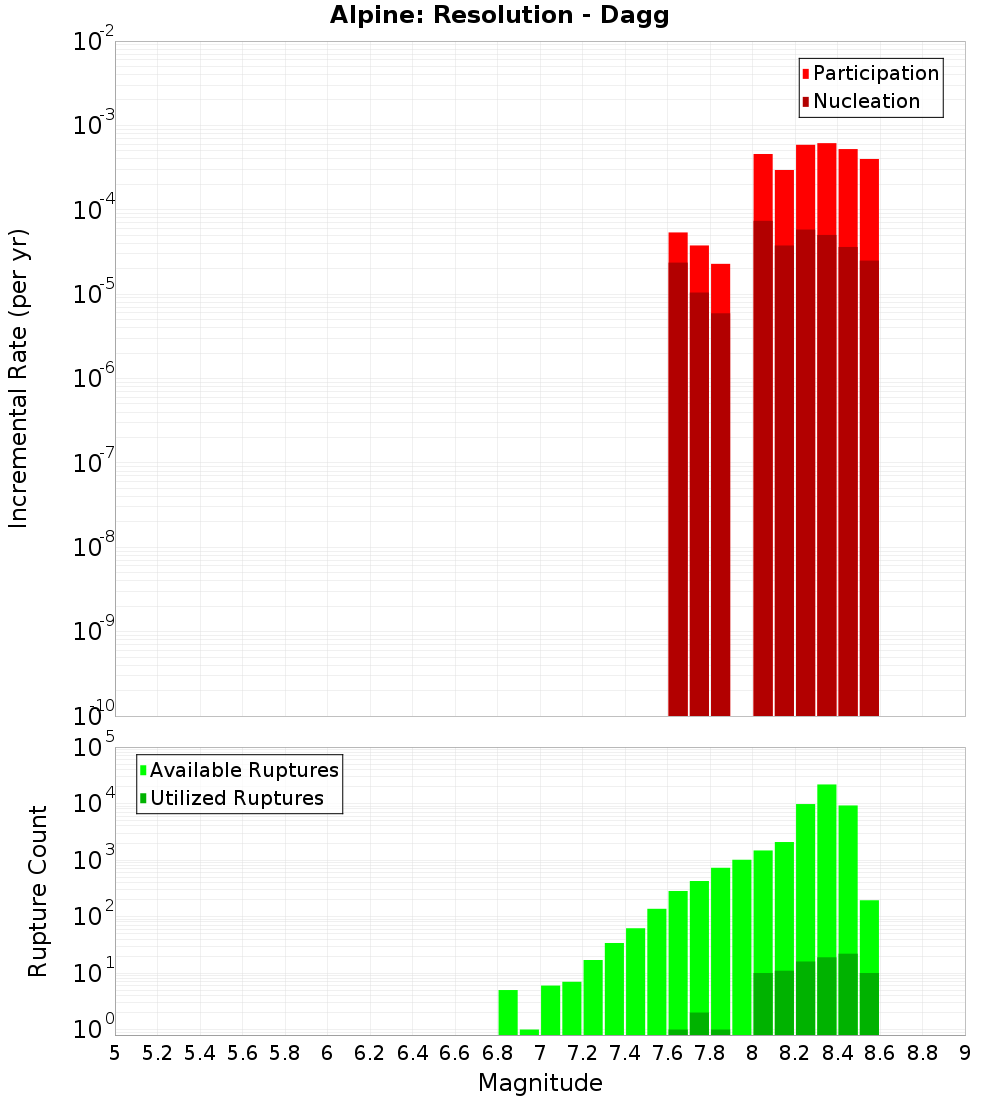

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Alpine: Resolution - Charles, 0 km away
South Wedge 3-6-10, 0.1 km away
South Wedge 5, 0.13 km away
South Wedge 2, 0.16 km away
South Wedge 1, 0.22 km away
Central Wedge 4 - South Wedge 411, 0.24 km away
Alpine: Resolution - Five Fingers, 0.91 km away
Alpine: Nancy, 2.58 km away
Alpine: Caswell, 11.23 km away
Central Wedge 1 & 2 & 3, 12.75 km away
Five Fingers, 18.37 km away

Alpine: Resolution - Charles, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2MzAuMHJQandN
Connected?true
Directly Connected?true
Co-rupture Count19,142
Co-rupture Rate0.0015779741

South Wedge 3-6-10, 0.1 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2MzAuMHJQandN
Connected?true
Directly Connected?true
Co-rupture Count4,722
Co-rupture Rate1.2661857E-4

South Wedge 5, 0.13 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2MzAuMHJQandN
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

South Wedge 2, 0.16 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2MzAuMHJQandN
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

South Wedge 1, 0.22 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2MzAuMHJQandN
Connected?true
Directly Connected?true
Co-rupture Count1,552
Co-rupture Rate5.7621073E-5

Central Wedge 4 - South Wedge 411, 0.24 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2MzAuMHJQandN
Connected?true
Directly Connected?false
Co-rupture Count538
Co-rupture Rate0.0

Alpine: Resolution - Five Fingers, 0.91 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2MzAuMHJQandN
Connected?true
Directly Connected?true
Co-rupture Count27,659
Co-rupture Rate0.0024011503

Alpine: Nancy, 2.58 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2MzAuMHJQandN
Connected?true
Directly Connected?true
Co-rupture Count27,885
Co-rupture Rate0.0014068546

Alpine: Caswell, 11.23 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2MzAuMHJQandN
Connected?true
Directly Connected?false
Co-rupture Count46,896
Co-rupture Rate0.002908115

Central Wedge 1 & 2 & 3, 12.75 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2MzAuMHJQandN
Connected?true
Directly Connected?false
Co-rupture Count157
Co-rupture Rate2.6037635E-5

Five Fingers, 18.37 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2MzAuMHJQandN
Connected?true
Directly Connected?false
Co-rupture Count111
Co-rupture Rate0.0
