Edgecumbe 1987 Details

Property	Value
Rupture Count	16,060
Ruptures Above Sect Min Mag	15,975
Ruptures w/ Nonzero Rates	5
Magnitude Range	[6.49, 8.31]
Length Range	[13, 594] km
Total Rate	7.4828765E-4 /yr
Multi-Fault Rate	7.4828765E-4 /yr (100.00%)
Directly-Connected Faults	6
All Co-Rupturing Faults	83

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

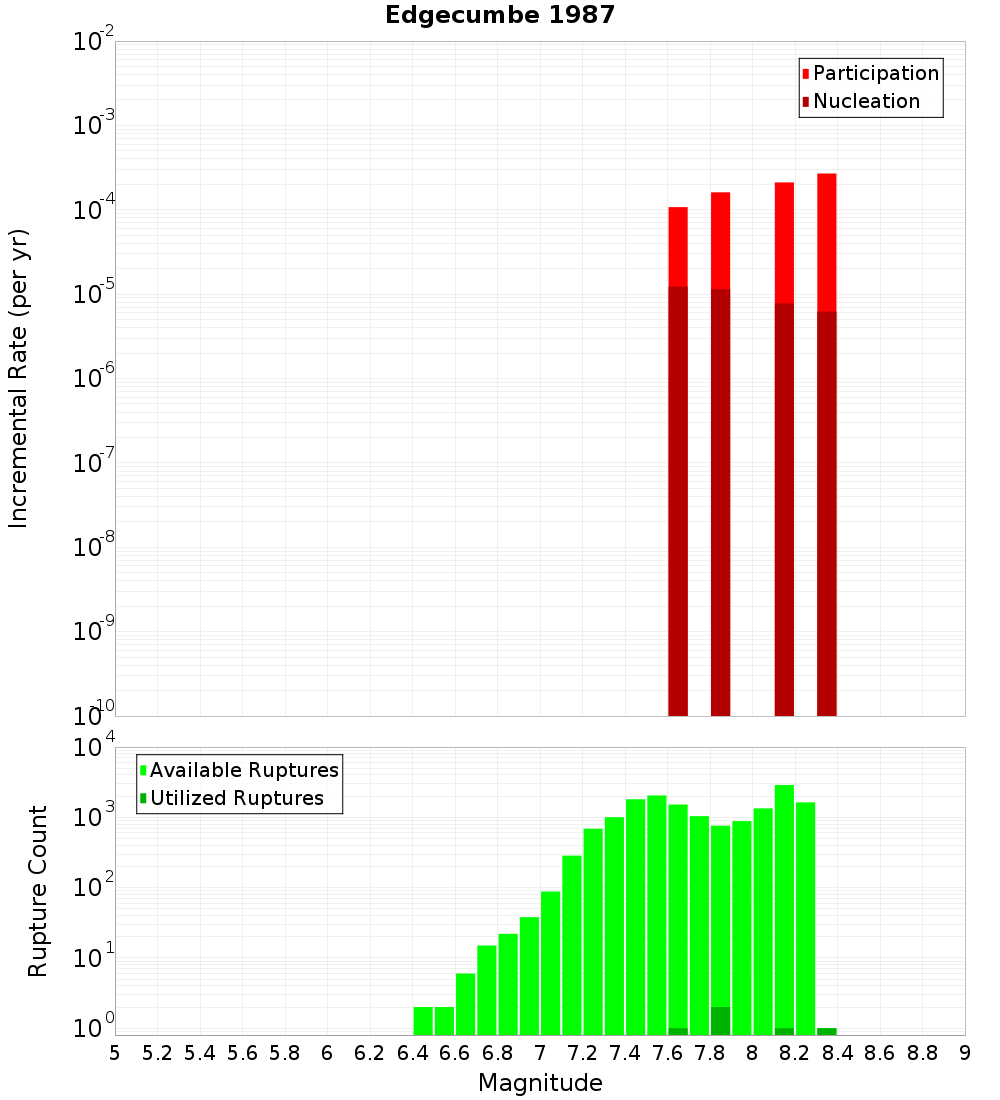

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

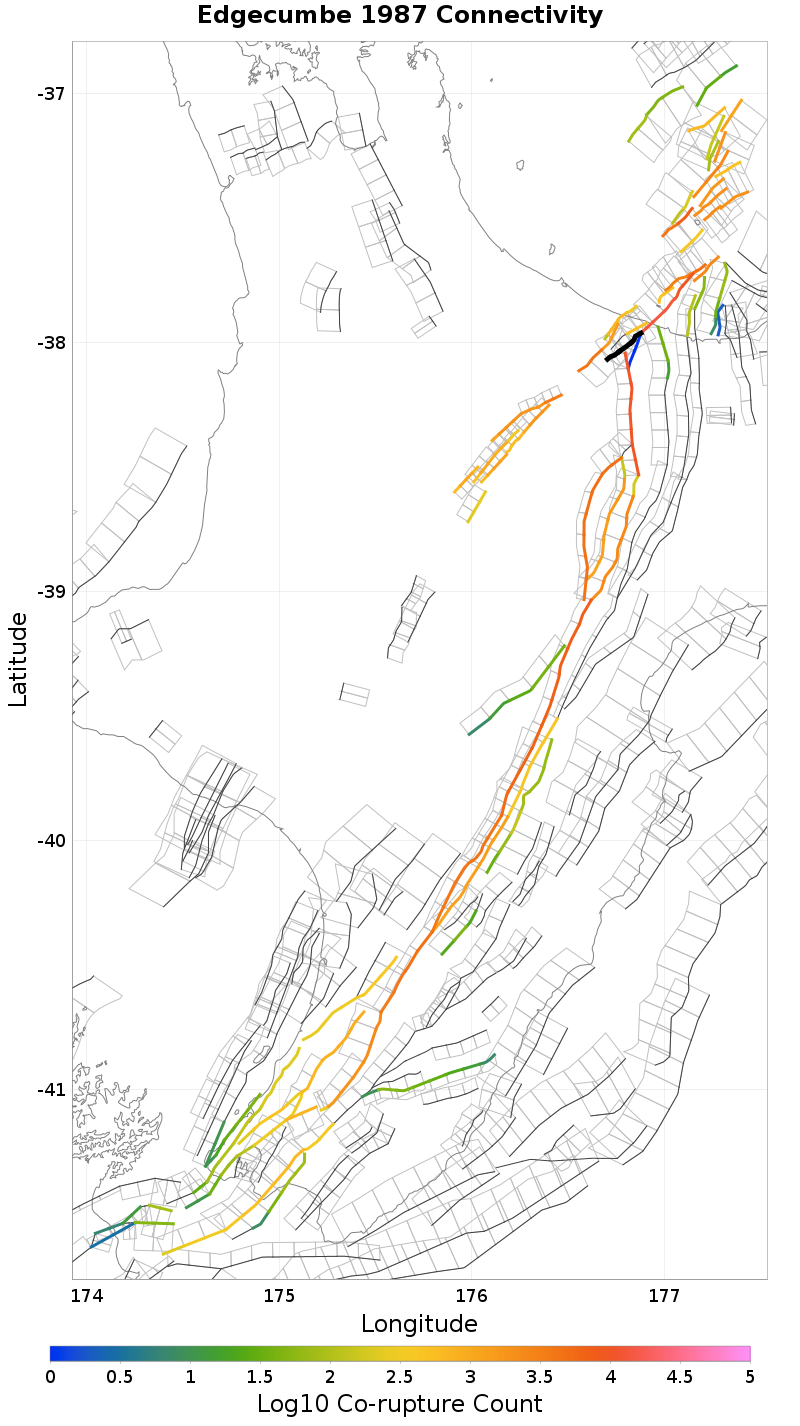

Connectivity

Nearby Sections

Fault Section
Edgecumbe Coastal, 0 km away
Awakeri, 0 km away
Otakiri, 0.16 km away
Braemar, 0.31 km away
Matata, 1.18 km away
Waiohau: North, 2.21 km away
White Island 1, 5.15 km away
Whakatane: North, 7.16 km away
Rangitaiki 1, 15.18 km away

Edgecumbe Coastal, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2MzMuMG5DbWNw
Connected?	true
Directly Connected?	true
Co-rupture Count	12,095
Co-rupture Rate	7.4828765E-4

Awakeri, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2MzMuMG5DbWNw
Connected?	true
Directly Connected?	false
Co-rupture Count	1
Co-rupture Rate	0.0

Otakiri, 0.16 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2MzMuMG5DbWNw
Connected?	true
Directly Connected?	true
Co-rupture Count	504
Co-rupture Rate	0.0

Braemar, 0.31 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2MzMuMG5DbWNw
Connected?	true
Directly Connected?	true
Co-rupture Count	3,994
Co-rupture Rate	1.07454754E-4

Matata, 1.18 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2MzMuMG5DbWNw
Connected?	true
Directly Connected?	true
Co-rupture Count	779
Co-rupture Rate	0.0

Waiohau: North, 2.21 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2MzMuMG5DbWNw
Connected?	true
Directly Connected?	true
Co-rupture Count	10,705
Co-rupture Rate	6.408329E-4

White Island 1, 5.15 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2MzMuMG5DbWNw
Connected?	true
Directly Connected?	true
Co-rupture Count	13,634
Co-rupture Rate	6.408329E-4

Whakatane: North, 7.16 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2MzMuMG5DbWNw
Connected?	true
Directly Connected?	false
Co-rupture Count	36
Co-rupture Rate	0.0

Rangitaiki 1, 15.18 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2MzMuMG5DbWNw
Connected?	true
Directly Connected?	false
Co-rupture Count	463
Co-rupture Rate	1.07454754E-4
