Rakaia Details
| Property | Value |
|---|---|
| Rupture Count | 10 |
| Ruptures Above Sect Min Mag | 3 |
| Ruptures w/ Nonzero Rates | 1 |
| Magnitude Range | [6.78, 7.18] |
| Length Range | [18, 44] km |
| Total Rate | 8.140167E-5 /yr |
| Multi-Fault Rate | 0.0 /yr (0.00%) |
| Directly-Connected Faults | 0 |
| All Co-Rupturing Faults | 0 |
Table Of Contents

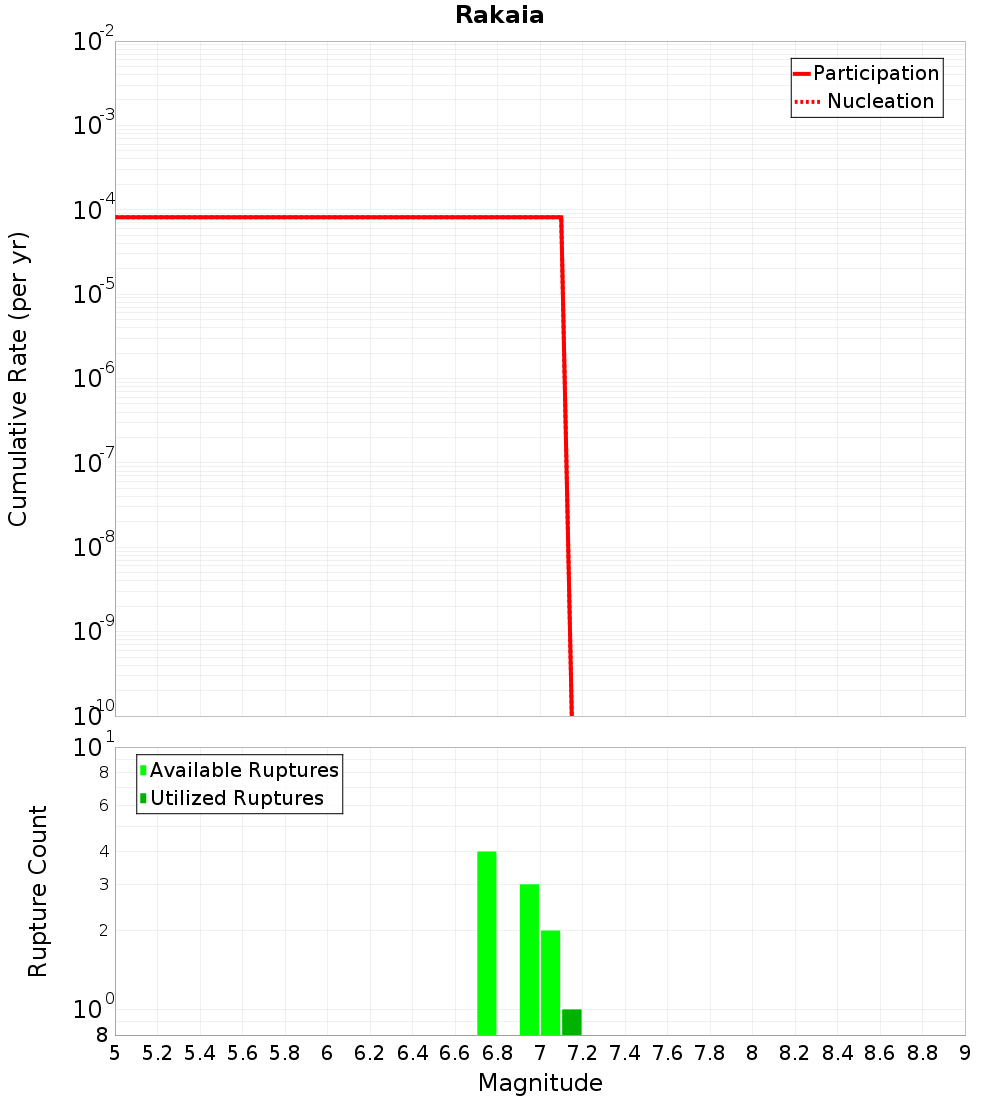

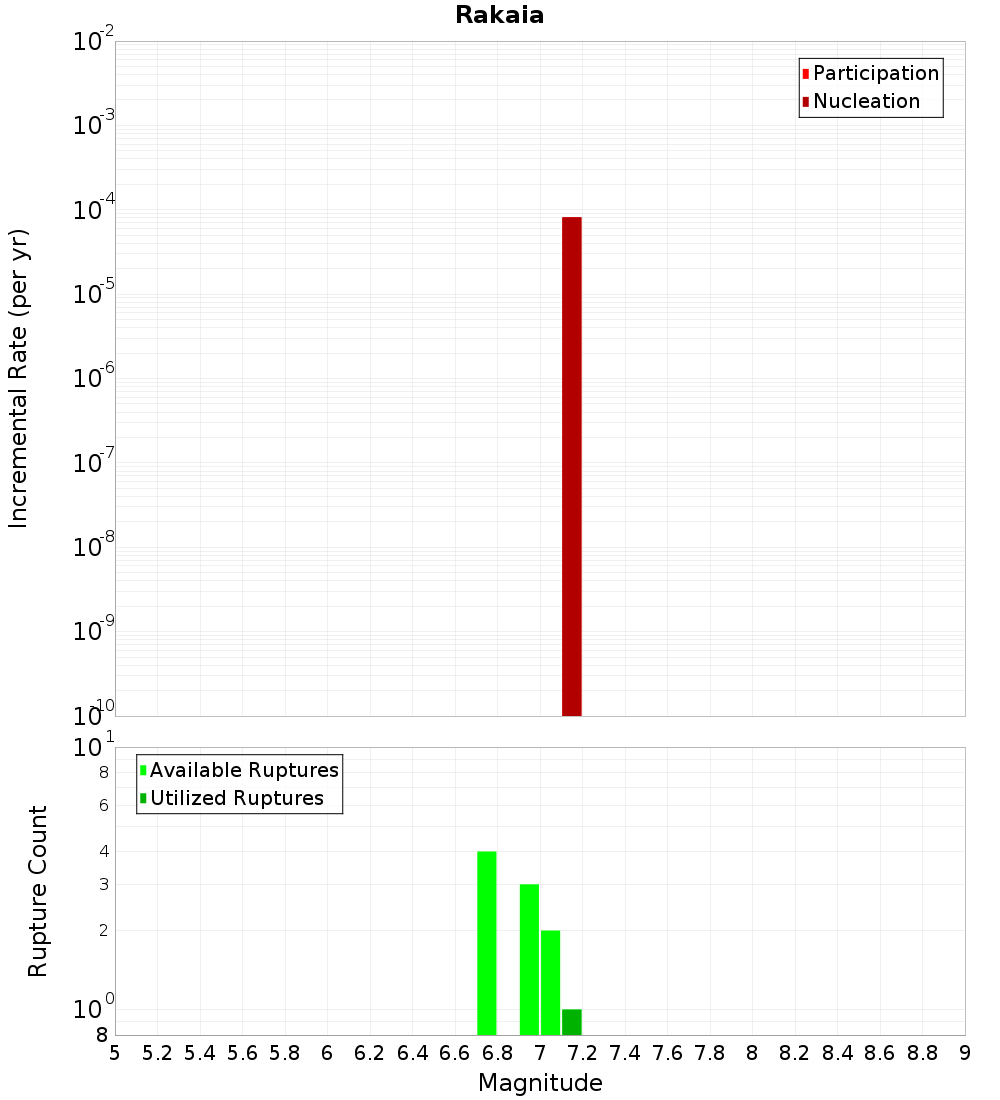

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

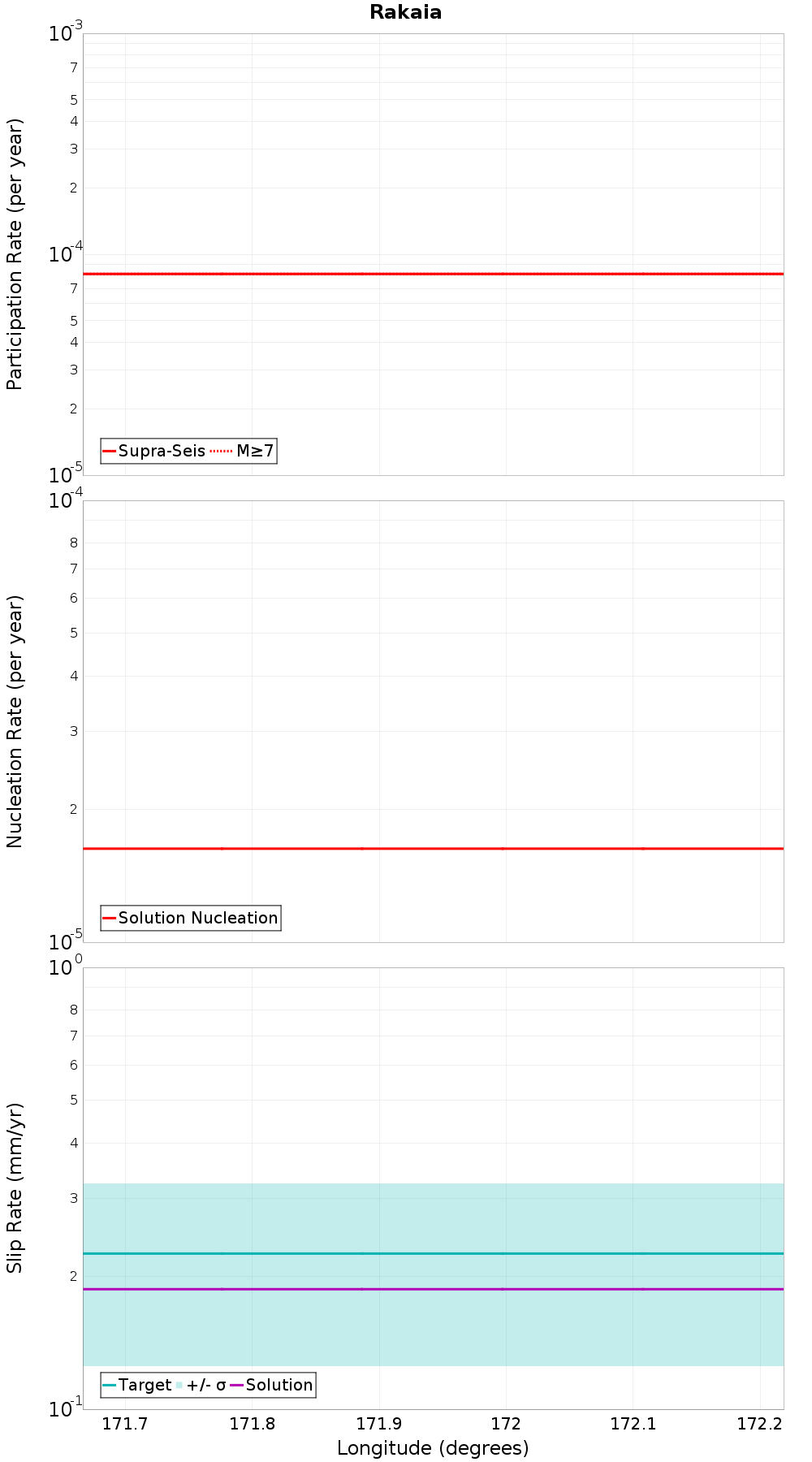

Along-Strike Values
Moment-Rates and b-Values

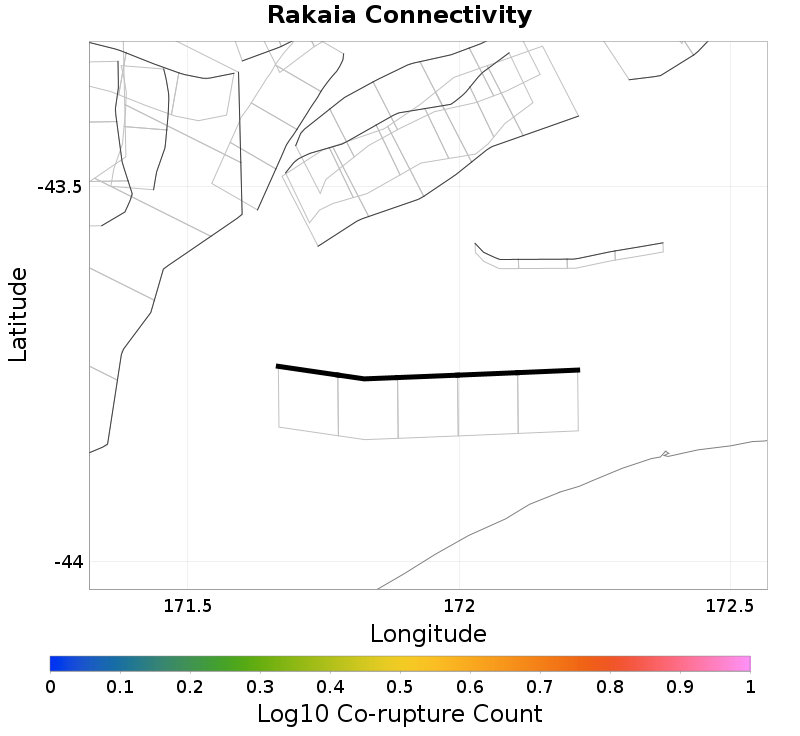

Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Greendale, 16.39 km away |
| Hororata, 18.46 km away |
Greendale, 16.39 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2MzMuMG5DbWNw | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Hororata, 18.46 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2MzMuMG5DbWNw | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
