Awanui Details

PropertyValue
Rupture Count982
Ruptures Above Sect Min Mag980
Ruptures w/ Nonzero Rates5
Magnitude Range[7.09, 8.30]
Length Range[26, 540] km
Total Rate1.1621257E-5 /yr
Multi-Fault Rate1.1621257E-5 /yr (100.00%)
Directly-Connected Faults5
All Co-Rupturing Faults36

Table Of Contents

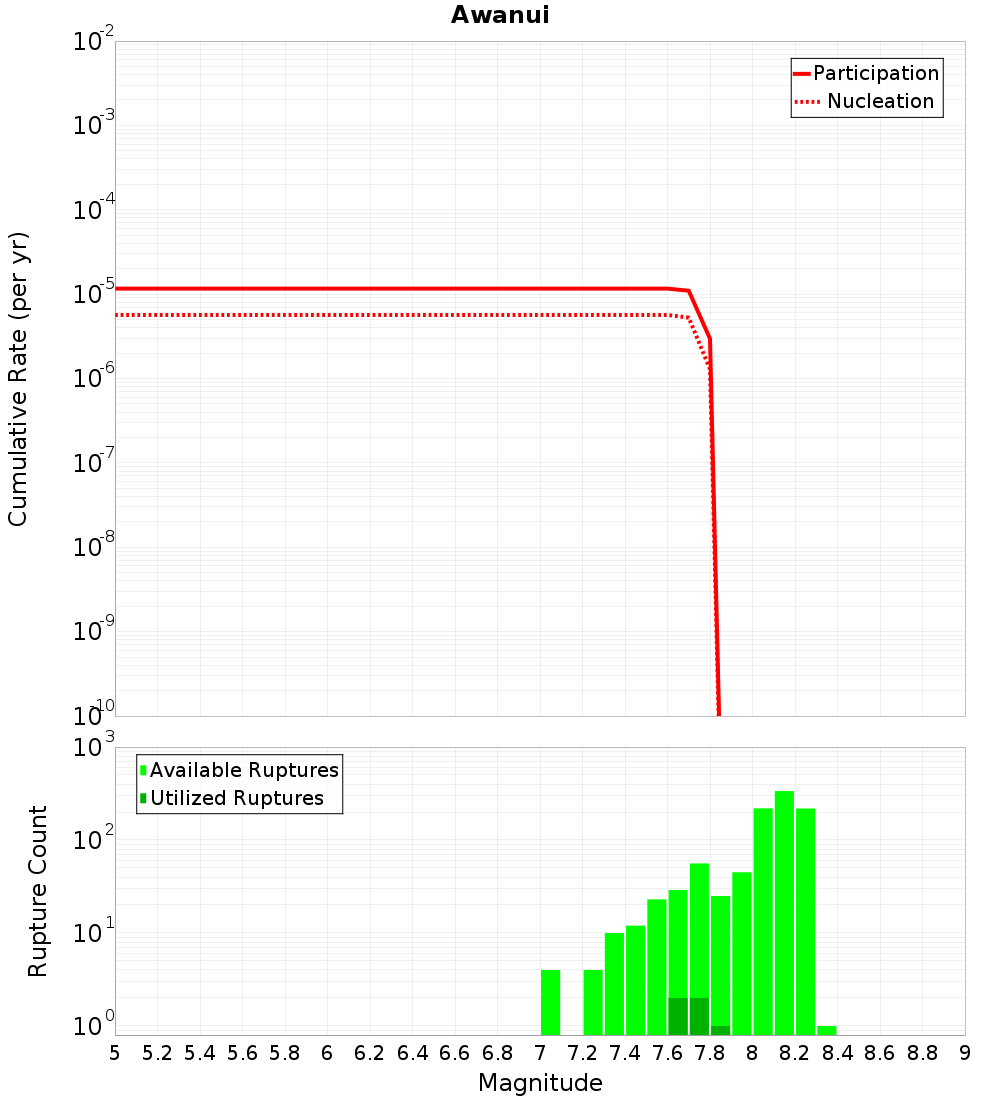

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

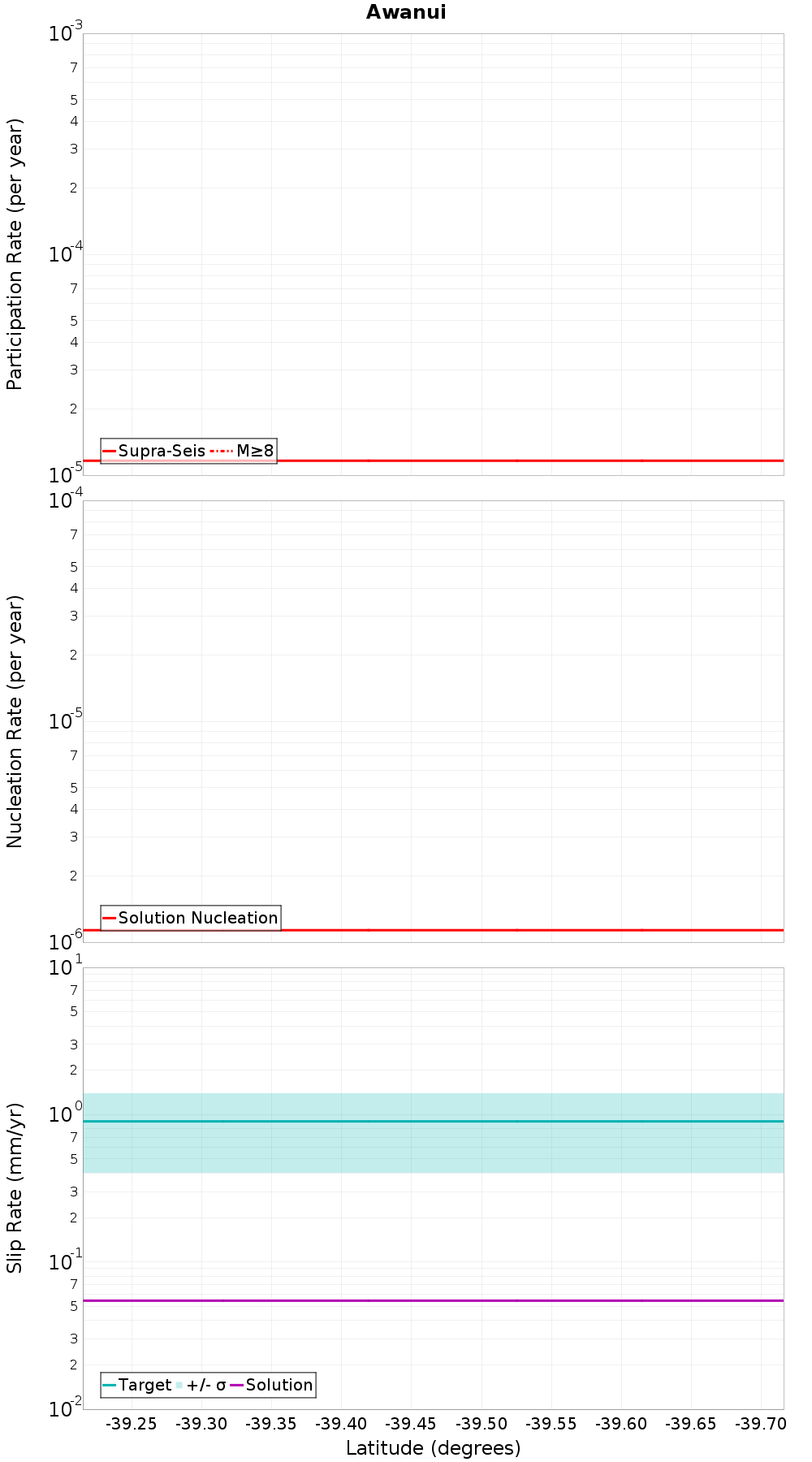

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

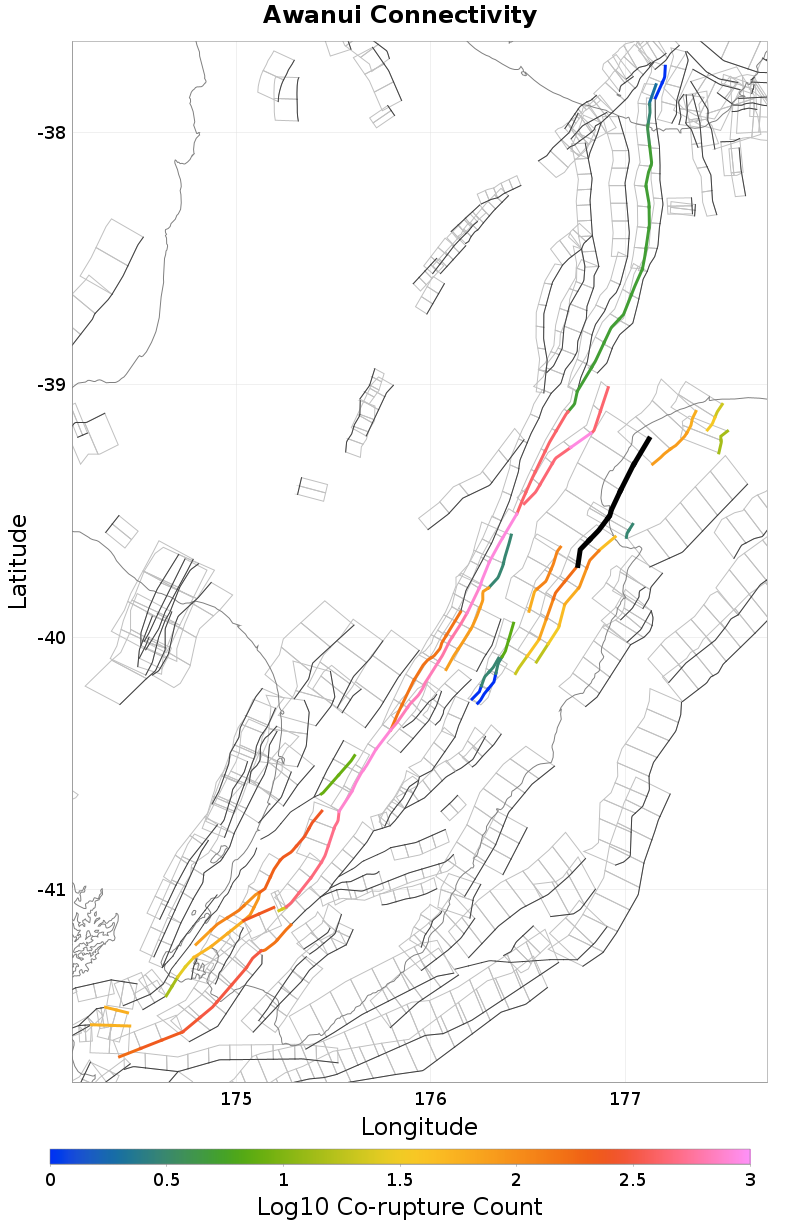

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Waipukurau - Poukawa, 0 km awayRuahine: North, 17.89 km away
Te Heka, 0.14 km awayKidnappers Ridge, 18.17 km away
Patoka - Rangiora, 3.5 km awayWakarara, 18.32 km away
Tukituki Thrust, 3.57 km awayWhakatane: South, 18.5 km away
Hawke Bay 1, 4.64 km awayWaimana: South, 18.53 km away
Hawke Bay 8, 6.81 km awayRuahine: Central, 18.65 km away
Mohaka: North, 11.19 km awayWaiotahi: South, 19.44 km away
Mohaka: South, 12.7 km awayWaimarama 1 & 2, 19.67 km away

Waipukurau - Poukawa, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2MzcuMFNDTHNl
Connected?true
Directly Connected?true
Co-rupture Count170
Co-rupture Rate2.957697E-6

Te Heka, 0.14 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2MzcuMFNDTHNl
Connected?true
Directly Connected?true
Co-rupture Count118
Co-rupture Rate6.4881755E-7

Patoka - Rangiora, 3.5 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2MzcuMFNDTHNl
Connected?true
Directly Connected?true
Co-rupture Count860
Co-rupture Rate0.0

Tukituki Thrust, 3.57 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2MzcuMFNDTHNl
Connected?true
Directly Connected?true
Co-rupture Count152
Co-rupture Rate1.0974111E-5

Hawke Bay 1, 4.64 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2MzcuMFNDTHNl
Connected?true
Directly Connected?true
Co-rupture Count78
Co-rupture Rate1.0972439E-5

Hawke Bay 8, 6.81 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2MzcuMFNDTHNl
Connected?true
Directly Connected?false
Co-rupture Count3
Co-rupture Rate0.0

Mohaka: North, 11.19 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2MzcuMFNDTHNl
Connected?true
Directly Connected?false
Co-rupture Count410
Co-rupture Rate0.0

Mohaka: South, 12.7 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2MzcuMFNDTHNl
Connected?true
Directly Connected?false
Co-rupture Count911
Co-rupture Rate0.0

Ruahine: North, 17.89 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2MzcuMFNDTHNl
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Kidnappers Ridge, 18.17 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2MzcuMFNDTHNl
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Wakarara, 18.32 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2MzcuMFNDTHNl
Connected?true
Directly Connected?false
Co-rupture Count3
Co-rupture Rate0.0

Whakatane: South, 18.5 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2MzcuMFNDTHNl
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Waimana: South, 18.53 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2MzcuMFNDTHNl
Connected?true
Directly Connected?false
Co-rupture Count5
Co-rupture Rate0.0

Ruahine: Central, 18.65 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2MzcuMFNDTHNl
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Waiotahi: South, 19.44 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2MzcuMFNDTHNl
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Waimarama 1 & 2, 19.67 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2MzcuMFNDTHNl
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
