Marlborough Slope 4 Details
| Property | Value |
|---|---|
| Rupture Count | 292 |
| Ruptures Above Sect Min Mag | 288 |
| Ruptures w/ Nonzero Rates | 1 |
| Magnitude Range | [6.74, 8.19] |
| Length Range | [17, 500] km |
| Total Rate | 3.4799436E-5 /yr |
| Multi-Fault Rate | 3.4799436E-5 /yr (100.00%) |
| Directly-Connected Faults | 2 |
| All Co-Rupturing Faults | 16 |
Table Of Contents

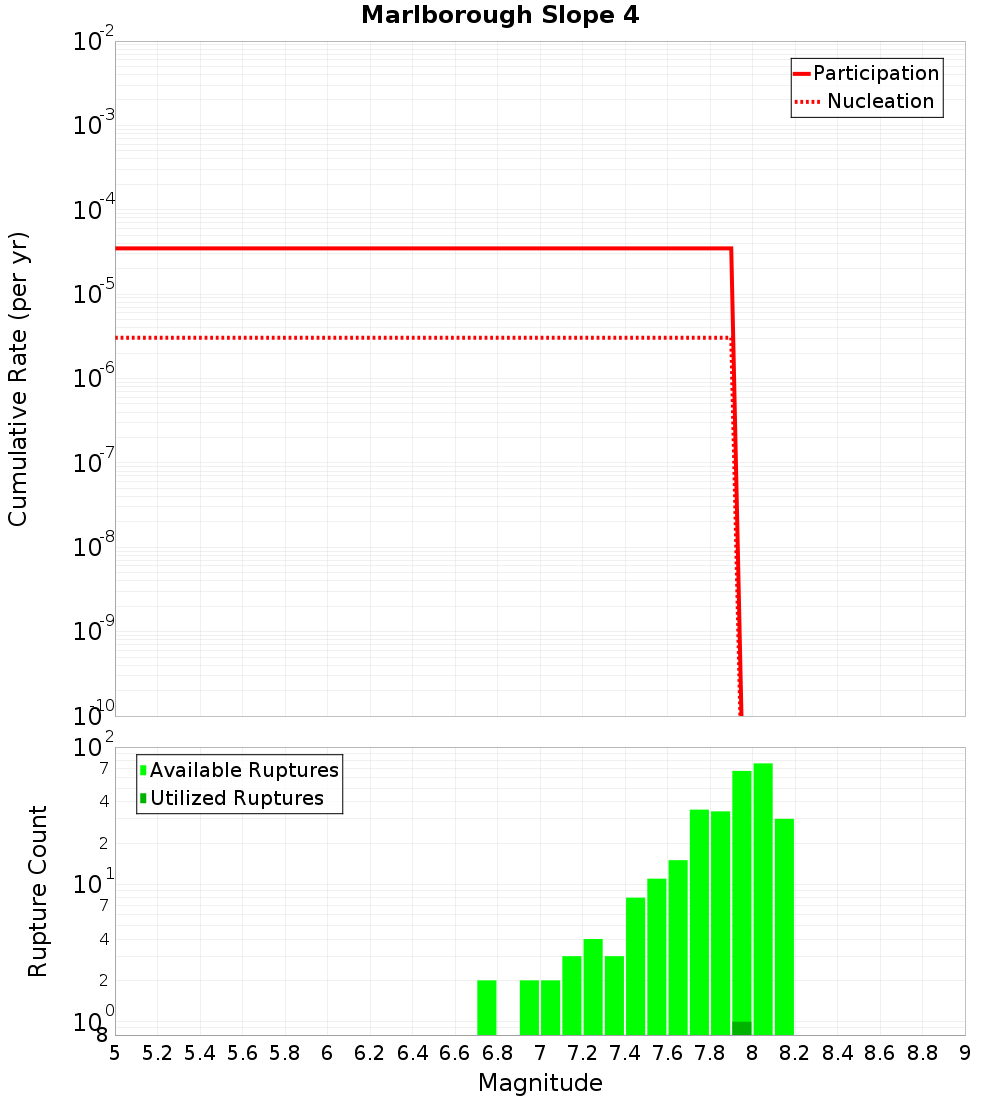

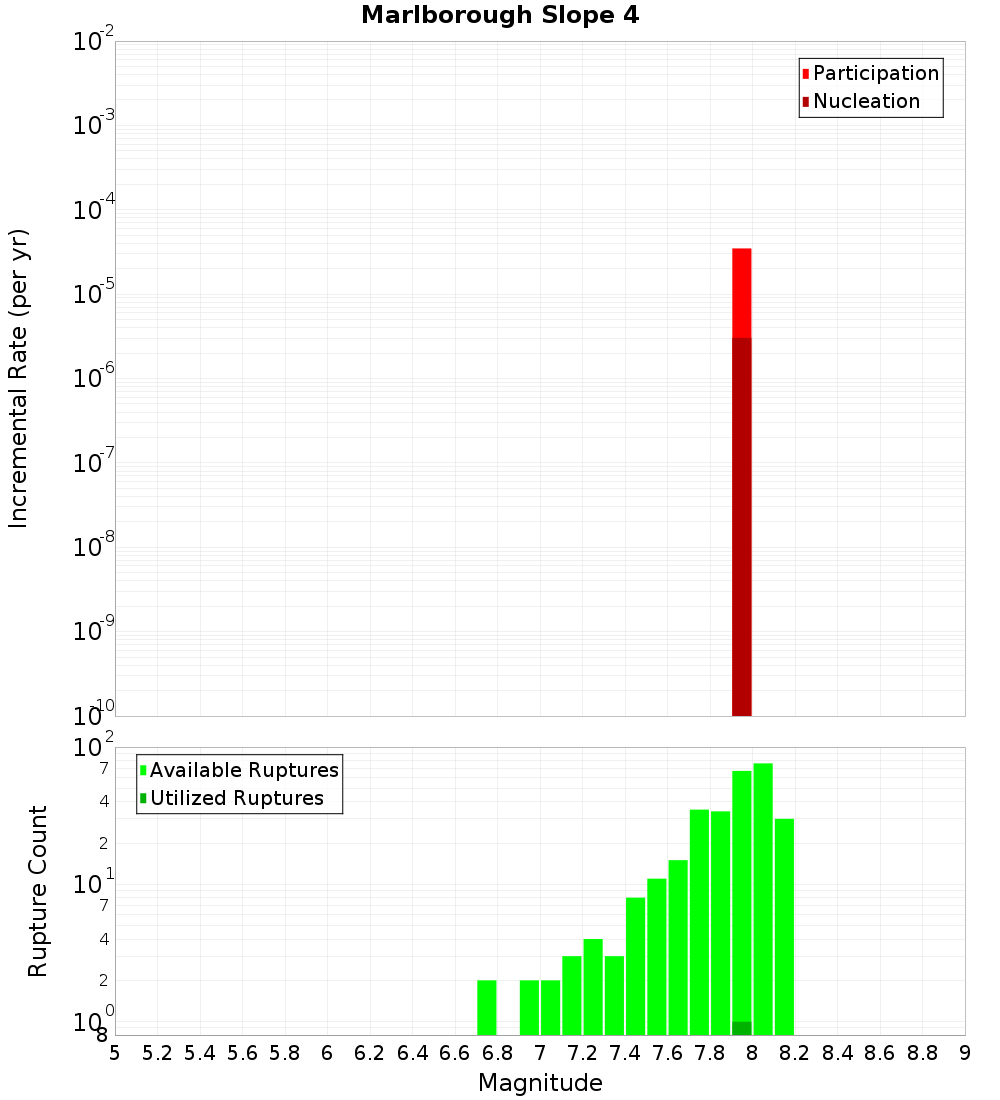

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values
Moment-Rates and b-Values
Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Kekerengu Bank, 4.72 km away |
| Marlborough Slope 3, 6.08 km away |
| Marlborough Slope 2, 6.6 km away |
| Upper Slope, 12.3 km away |
| Kaikoura - Mangamaunu, 13.21 km away |
Kekerengu Bank, 4.72 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2NTMuMExYRUVx | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 285 |
| Co-rupture Rate | 3.4799436E-5 |
Marlborough Slope 3, 6.08 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2NTMuMExYRUVx | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 64 |
| Co-rupture Rate | 3.4799436E-5 |
Marlborough Slope 2, 6.6 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2NTMuMExYRUVx | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 4 |
| Co-rupture Rate | 0.0 |
Upper Slope, 12.3 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2NTMuMExYRUVx | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Kaikoura - Mangamaunu, 13.21 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2NTMuMExYRUVx | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
