Alpine: Jacksons to Kaniere Details

PropertyValue
Rupture Count116,161
Ruptures Above Sect Min Mag116,145
Ruptures w/ Nonzero Rates134
Magnitude Range[6.92, 8.63]
Length Range[22, 1,204] km
Total Rate0.006315185 /yr
Multi-Fault Rate0.004817078 /yr (76.28%)
Directly-Connected Faults8
All Co-Rupturing Faults140

Table Of Contents

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

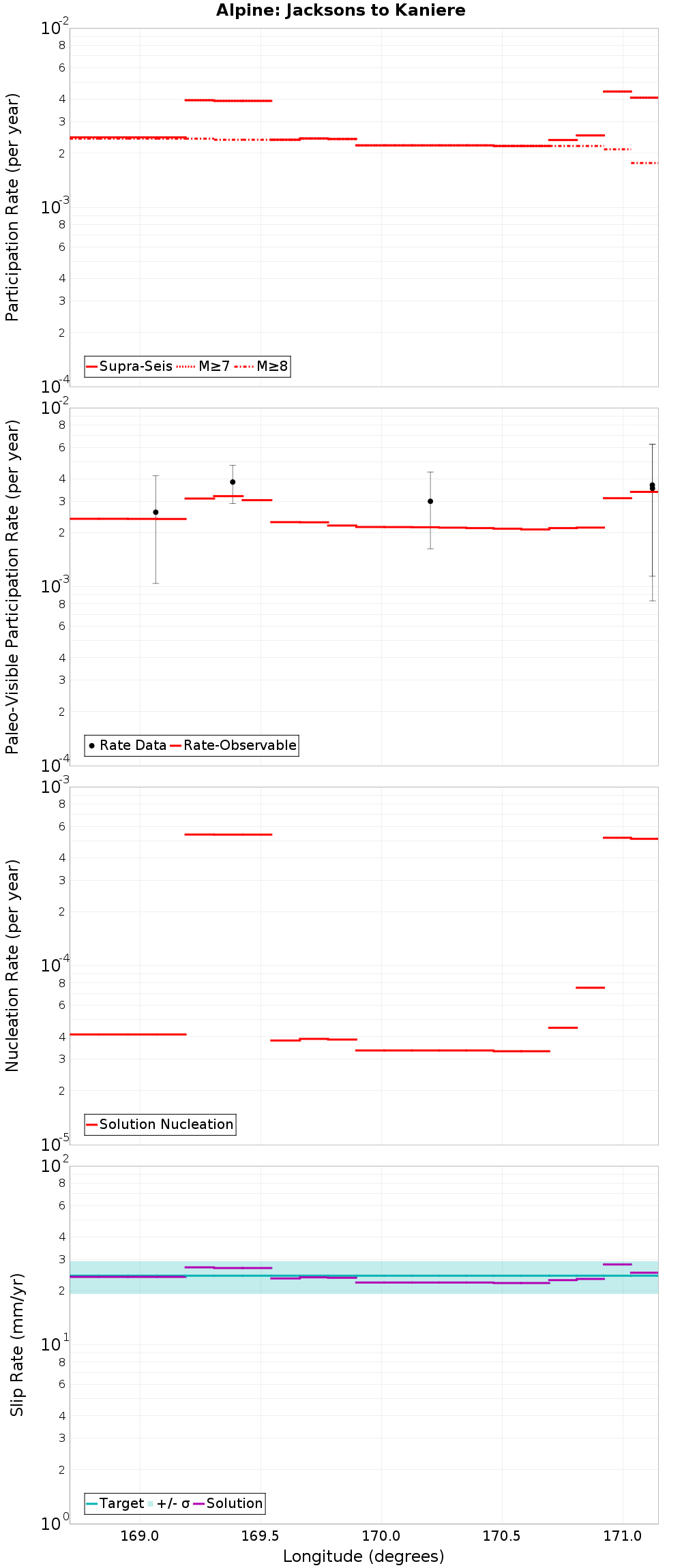

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Alpine: George to Jacksons, 0 km away
Kelly, 0 km away
Alpine: Kaniere to Springs Junction, 0 km away
Browning Pass, 0.34 km away
Moonlight North, 1.51 km away
Huxley, 1.8 km away
Hopkins, 5.91 km away
Barn, 8.94 km away
Barrier Range, 9.21 km away
Ostler North, 14.33 km away
Hunter Valley, 14.36 km away
Wanaka, 15.21 km away
Lake Heron, 17.93 km away
Maimai: Brunner Anticline, 18.68 km away

Alpine: George to Jacksons, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2NTQuMExRVXMy
Connected?true
Directly Connected?true
Co-rupture Count74,715
Co-rupture Rate0.0024462568

Kelly, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2NTQuMExRVXMy
Connected?true
Directly Connected?true
Co-rupture Count47,424
Co-rupture Rate6.648473E-4

Alpine: Kaniere to Springs Junction, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2NTQuMExRVXMy
Connected?true
Directly Connected?true
Co-rupture Count63,251
Co-rupture Rate0.003418195

Browning Pass, 0.34 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2NTQuMExRVXMy
Connected?true
Directly Connected?true
Co-rupture Count17,330
Co-rupture Rate1.0069446E-4

Moonlight North, 1.51 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2NTQuMExRVXMy
Connected?true
Directly Connected?true
Co-rupture Count11,308
Co-rupture Rate5.338628E-6

Huxley, 1.8 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2NTQuMExRVXMy
Connected?true
Directly Connected?true
Co-rupture Count1,356
Co-rupture Rate6.047389E-6

Hopkins, 5.91 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2NTQuMExRVXMy
Connected?true
Directly Connected?true
Co-rupture Count3,218
Co-rupture Rate6.0399736E-5

Barn, 8.94 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2NTQuMExRVXMy
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Barrier Range, 9.21 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2NTQuMExRVXMy
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Ostler North, 14.33 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2NTQuMExRVXMy
Connected?true
Directly Connected?false
Co-rupture Count1,593
Co-rupture Rate4.520129E-5

Hunter Valley, 14.36 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2NTQuMExRVXMy
Connected?true
Directly Connected?true
Co-rupture Count1,380
Co-rupture Rate3.2975044E-5

Wanaka, 15.21 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2NTQuMExRVXMy
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Lake Heron, 17.93 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2NTQuMExRVXMy
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Maimai: Brunner Anticline, 18.68 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2NTQuMExRVXMy
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
