Virginia Details
| Property | Value |
|---|---|
| Rupture Count | 2 |
| Ruptures Above Sect Min Mag | 2 |
| Ruptures w/ Nonzero Rates | 1 |
| Magnitude Range | [6.91, 7.32] |
| Length Range | [16, 36] km |
| Total Rate | 1.4783241E-4 /yr |
| Multi-Fault Rate | 0.0 /yr (0.00%) |
| Directly-Connected Faults | 1 |
| All Co-Rupturing Faults | 1 |
Table Of Contents

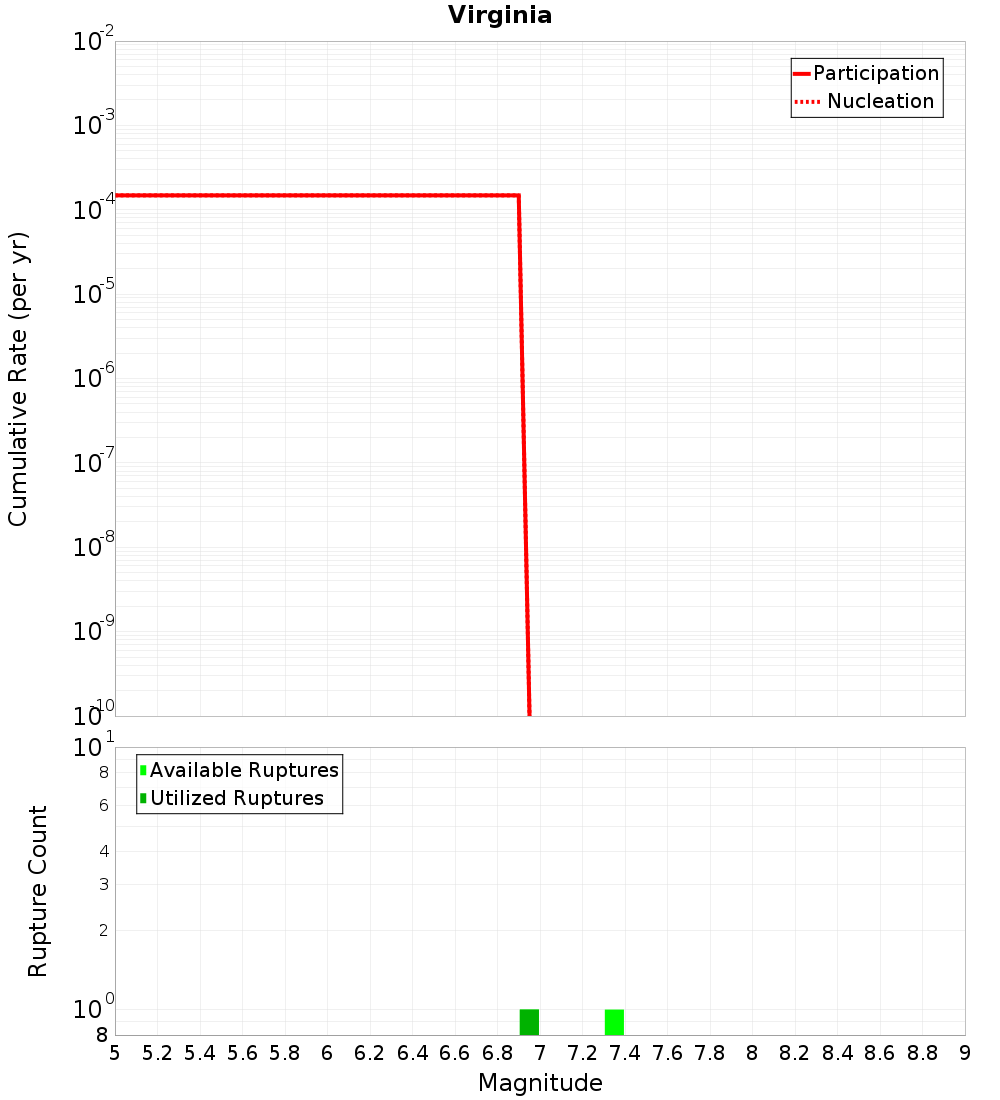

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

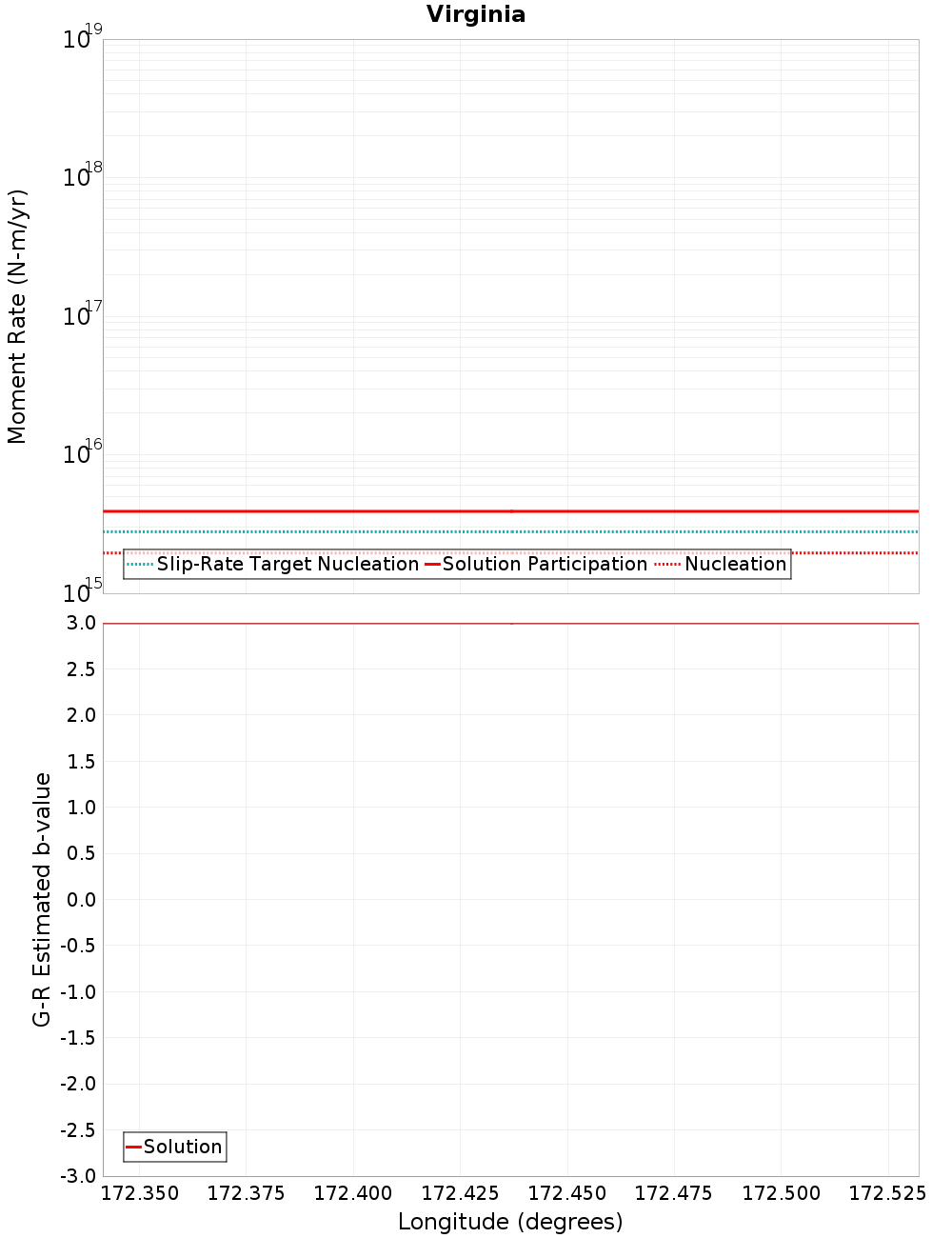

Along-Strike Values
Moment-Rates and b-Values
Connectivity
 |  |
|---|
Nearby Sections
Balmoral, 0.15 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2NTUuNUhjY3J4 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Hurunui Peak, 0.28 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2NTUuNUhjY3J4 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Mt Arden, 0.31 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2NTUuNUhjY3J4 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 1 |
| Co-rupture Rate | 0.0 |
Pancake, 0.5 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2NTUuNUhjY3J4 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Esk North, 2.08 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2NTUuNUhjY3J4 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Esk South, 6.88 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2NTUuNUhjY3J4 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Doctors, 7.82 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2NTUuNUhjY3J4 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Lowry, 9.27 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2NTUuNUhjY3J4 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Lees Valley, 9.67 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2NTUuNUhjY3J4 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Kaiwara South, 12.91 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2NTUuNUhjY3J4 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Alexander, 16.14 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2NTUuNUhjY3J4 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Boby Stream, 17.33 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2NTUuNUhjY3J4 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Mt Culverden, 17.86 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2NTUuNUhjY3J4 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
