Hope: Taramakau Details

PropertyValue
Rupture Count797
Ruptures Above Sect Min Mag792
Ruptures w/ Nonzero Rates5
Magnitude Range[6.78, 8.48]
Length Range[16, 702] km
Total Rate1.0441496E-4 /yr
Multi-Fault Rate1.0441496E-4 /yr (100.00%)
Directly-Connected Faults2
All Co-Rupturing Faults30

Table Of Contents

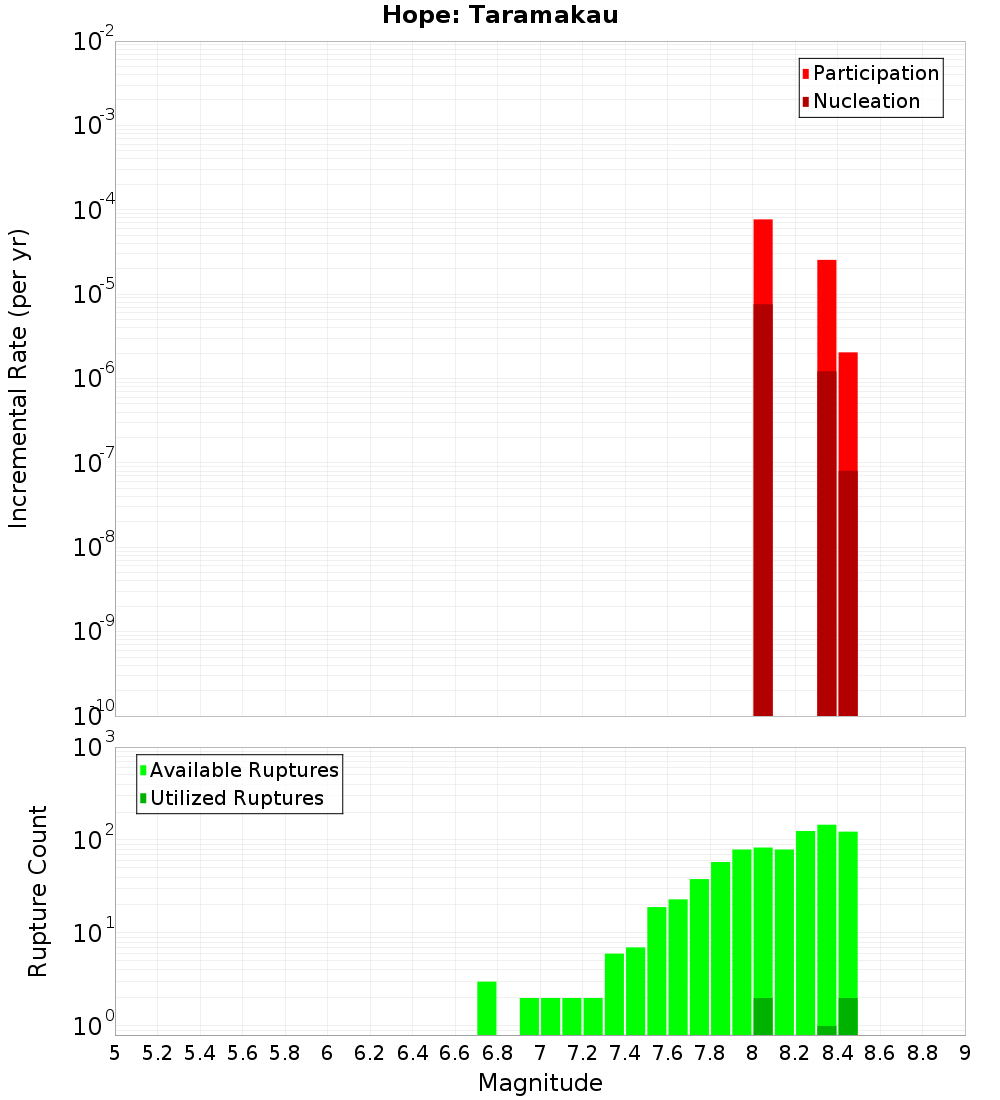

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

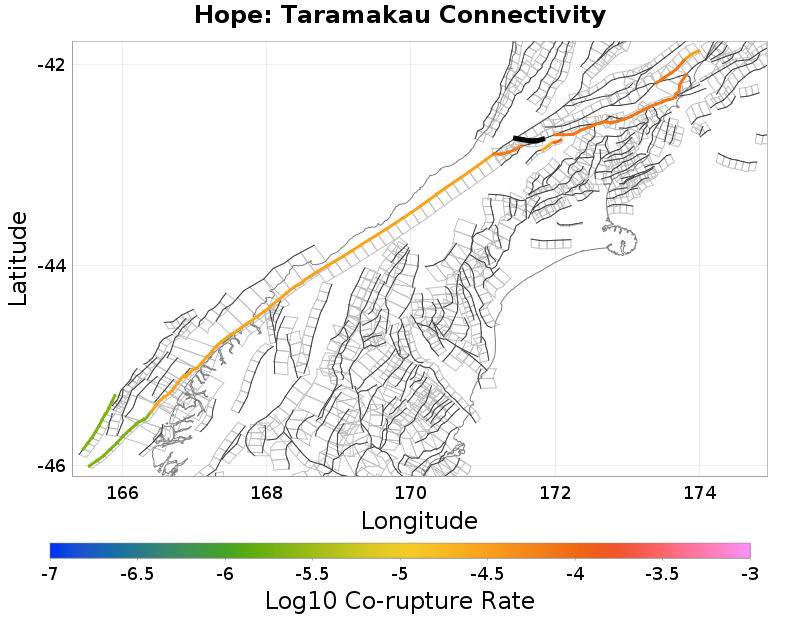

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Hope: Hurunui, 0 km away
Kelly, 0 km away
Alpine: Kaniere to Springs Junction, 0.23 km away
Browning Pass, 0.25 km away
Poulter, 7.5 km away
Clarence: Southwest, 13.86 km away
Kakapo, 14.38 km away
Hope: Hope River, 14.38 km away
Sailor, 18.51 km away

Hope: Hurunui, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2NjMuMFVMb0RZ
Connected?true
Directly Connected?false
Co-rupture Count60
Co-rupture Rate0.0

Kelly, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2NjMuMFVMb0RZ
Connected?true
Directly Connected?true
Co-rupture Count714
Co-rupture Rate7.244152E-5

Alpine: Kaniere to Springs Junction, 0.23 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2NjMuMFVMb0RZ
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Browning Pass, 0.25 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2NjMuMFVMb0RZ
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Poulter, 7.5 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2NjMuMFVMb0RZ
Connected?true
Directly Connected?true
Co-rupture Count458
Co-rupture Rate1.0237312E-4

Clarence: Southwest, 13.86 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2NjMuMFVMb0RZ
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Kakapo, 14.38 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2NjMuMFVMb0RZ
Connected?true
Directly Connected?false
Co-rupture Count327
Co-rupture Rate7.6905104E-5

Hope: Hope River, 14.38 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2NjMuMFVMb0RZ
Connected?true
Directly Connected?false
Co-rupture Count30
Co-rupture Rate0.0

Sailor, 18.51 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2NjMuMFVMb0RZ
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
