Ihaia Details

Property	Value
Rupture Count	284
Ruptures Above Sect Min Mag	283
Ruptures w/ Nonzero Rates	3
Magnitude Range	[6.84, 8.03]
Length Range	[14, 208] km
Total Rate	5.8274887E-5 /yr
Multi-Fault Rate	5.8274887E-5 /yr (100.00%)
Directly-Connected Faults	5
All Co-Rupturing Faults	14

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

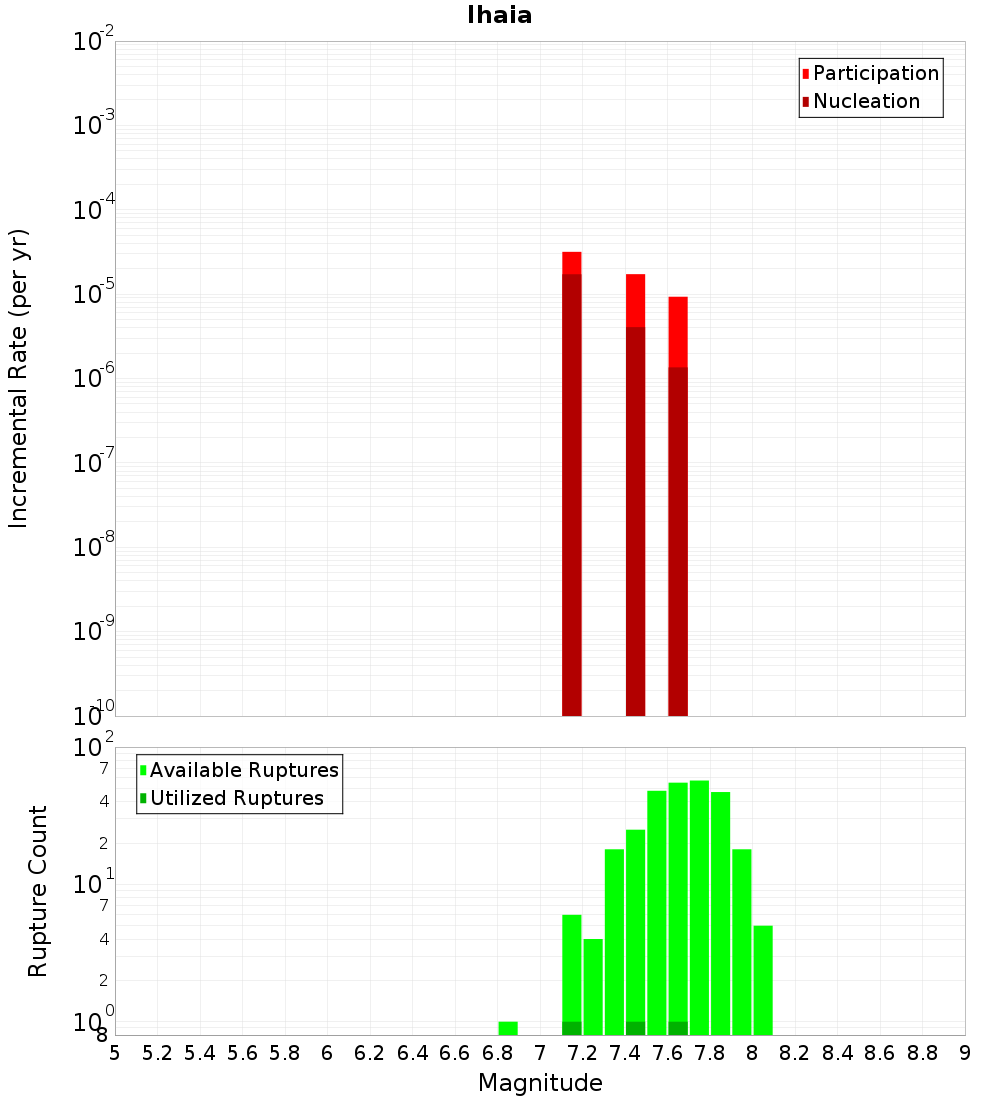

Magnitude-Frequency Distribution

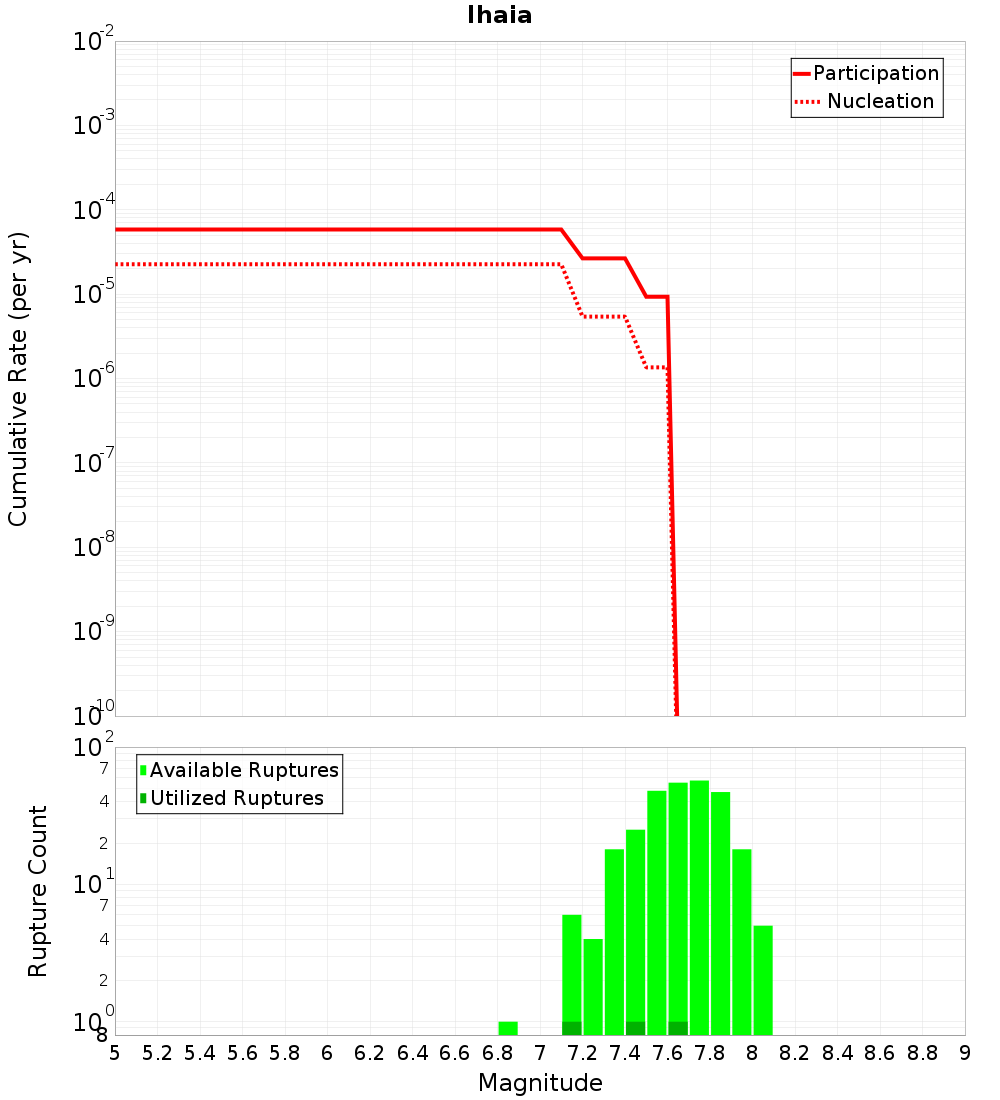

Incremental	Cumulative

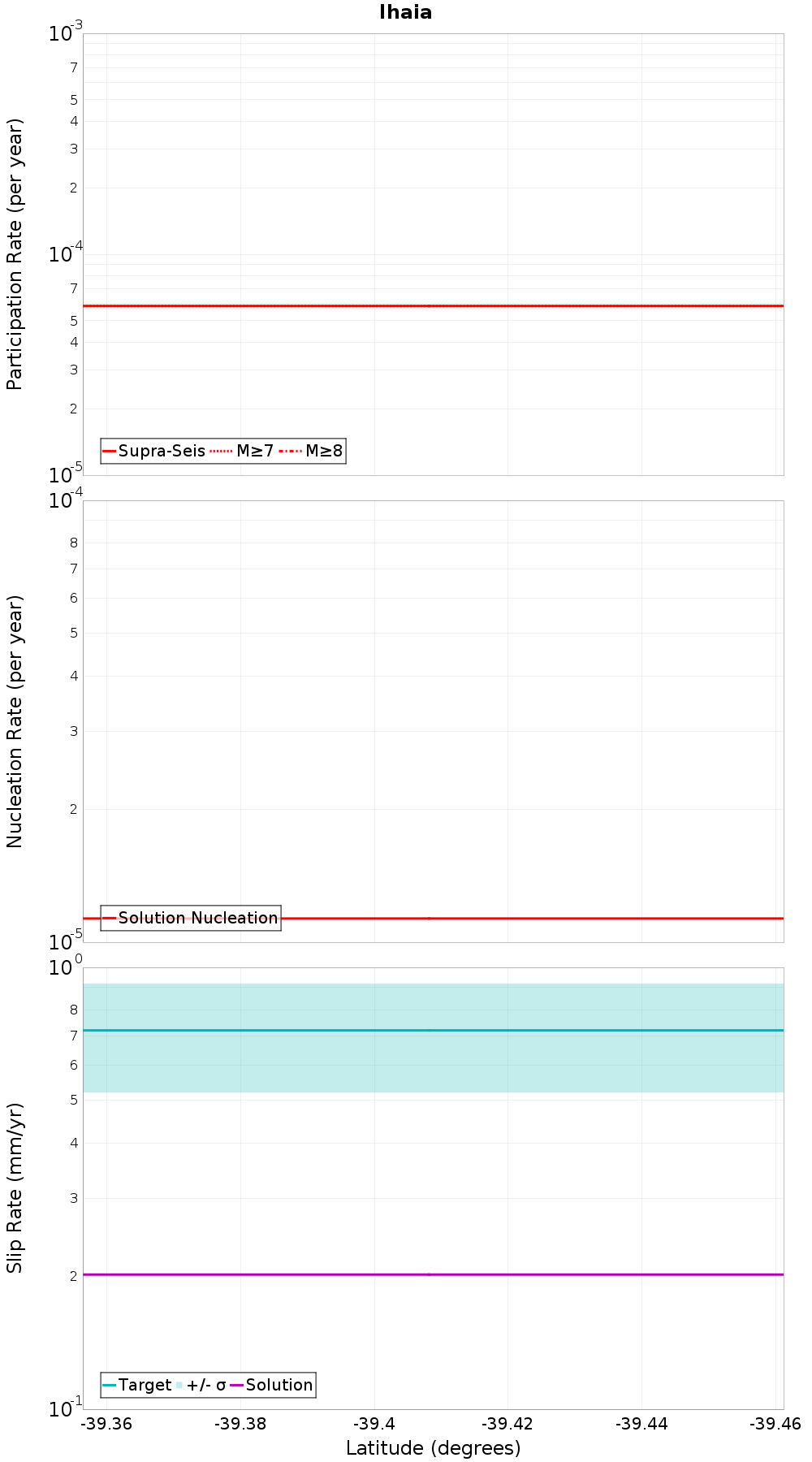

Along-Strike Values

Moment-Rates and b-Values

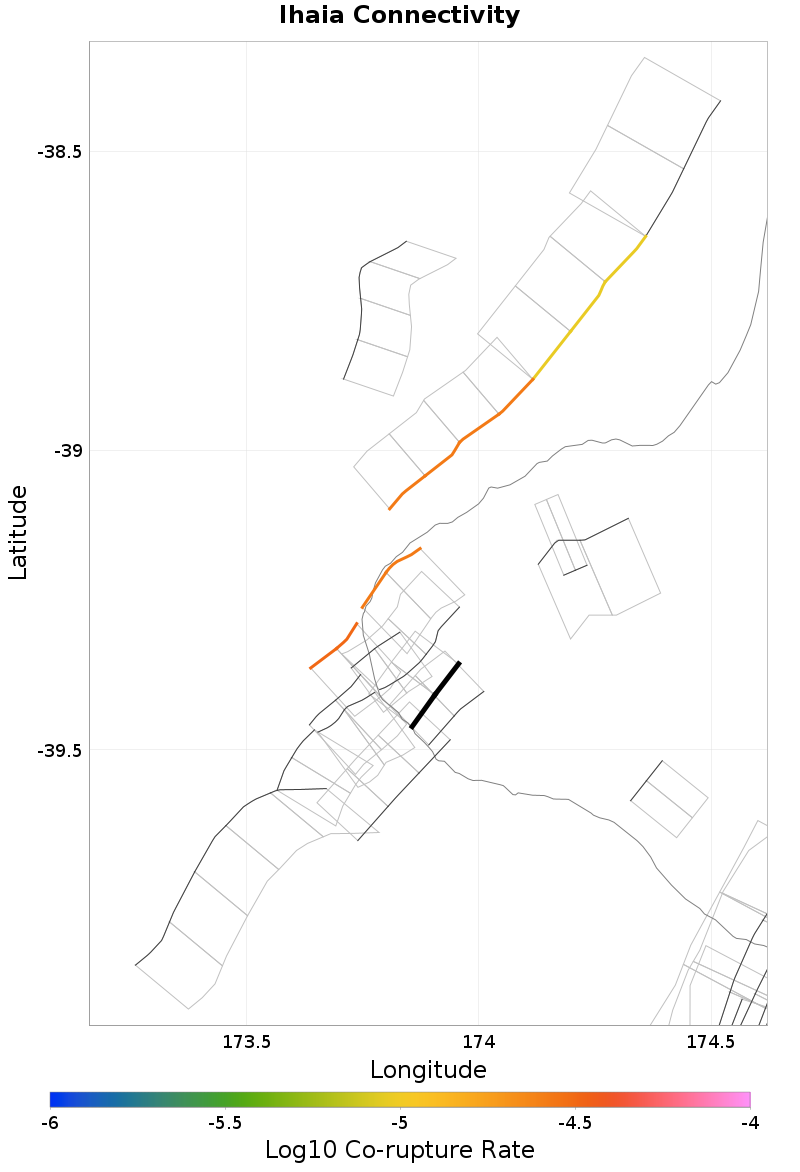

Connectivity

Nearby Sections

Fault Section
Warea, 0.33 km away
Manahi 2, 0.43 km away
Rahotu, 0.43 km away
Cape Egmont: North, 0.48 km away
Manahi 1, 0.72 km away
Kiri, 4.13 km away
Oaonui, 5.28 km away
Pihama, 6.14 km away
Cape Egmont: Central, 10.6 km away
Cape Egmont: South, 18.91 km away

Warea, 0.33 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2NjMuMFVMb0RZ
Connected?	true
Directly Connected?	true
Co-rupture Count	234
Co-rupture Rate	2.6560749E-5

Manahi 2, 0.43 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2NjMuMFVMb0RZ
Connected?	true
Directly Connected?	true
Co-rupture Count	16
Co-rupture Rate	3.171414E-5

Rahotu, 0.43 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2NjMuMFVMb0RZ
Connected?	true
Directly Connected?	false
Co-rupture Count	25
Co-rupture Rate	0.0

Cape Egmont: North, 0.48 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2NjMuMFVMb0RZ
Connected?	true
Directly Connected?	true
Co-rupture Count	133
Co-rupture Rate	0.0

Manahi 1, 0.72 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2NjMuMFVMb0RZ
Connected?	true
Directly Connected?	true
Co-rupture Count	107
Co-rupture Rate	0.0

Kiri, 4.13 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2NjMuMFVMb0RZ
Connected?	true
Directly Connected?	false
Co-rupture Count	27
Co-rupture Rate	0.0

Oaonui, 5.28 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2NjMuMFVMb0RZ
Connected?	true
Directly Connected?	false
Co-rupture Count	5
Co-rupture Rate	0.0

Pihama, 6.14 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2NjMuMFVMb0RZ
Connected?	true
Directly Connected?	true
Co-rupture Count	70
Co-rupture Rate	0.0

Cape Egmont: Central, 10.6 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2NjMuMFVMb0RZ
Connected?	true
Directly Connected?	false
Co-rupture Count	142
Co-rupture Rate	0.0

Cape Egmont: South, 18.91 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2NjMuMFVMb0RZ
Connected?	true
Directly Connected?	false
Co-rupture Count	144
Co-rupture Rate	0.0
