Kairakau South Details

PropertyValue
Rupture Count67
Ruptures Above Sect Min Mag62
Ruptures w/ Nonzero Rates4
Magnitude Range[6.81, 7.71]
Length Range[17, 129] km
Total Rate1.5678779E-4 /yr
Multi-Fault Rate1.5678779E-4 /yr (100.00%)
Directly-Connected Faults3
All Co-Rupturing Faults5

Table Of Contents

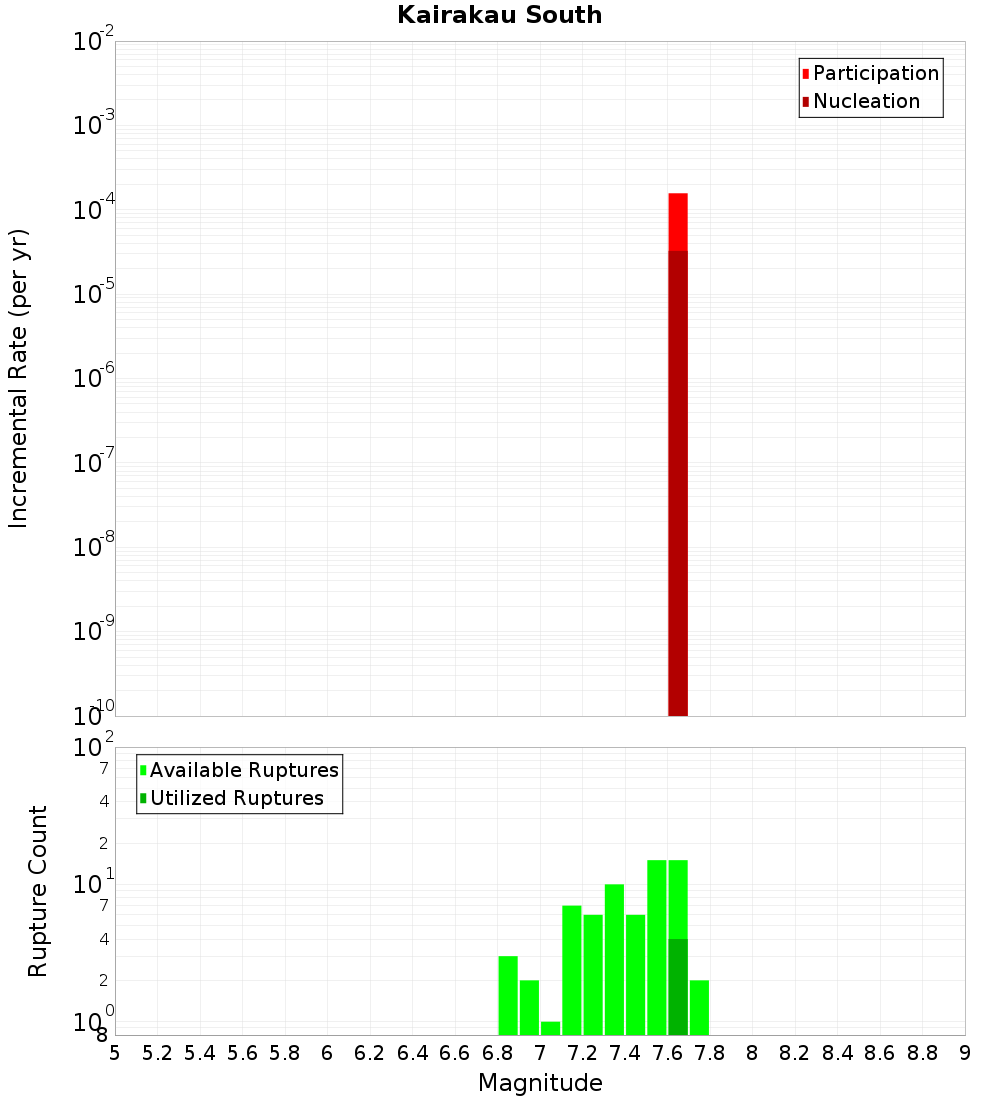

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

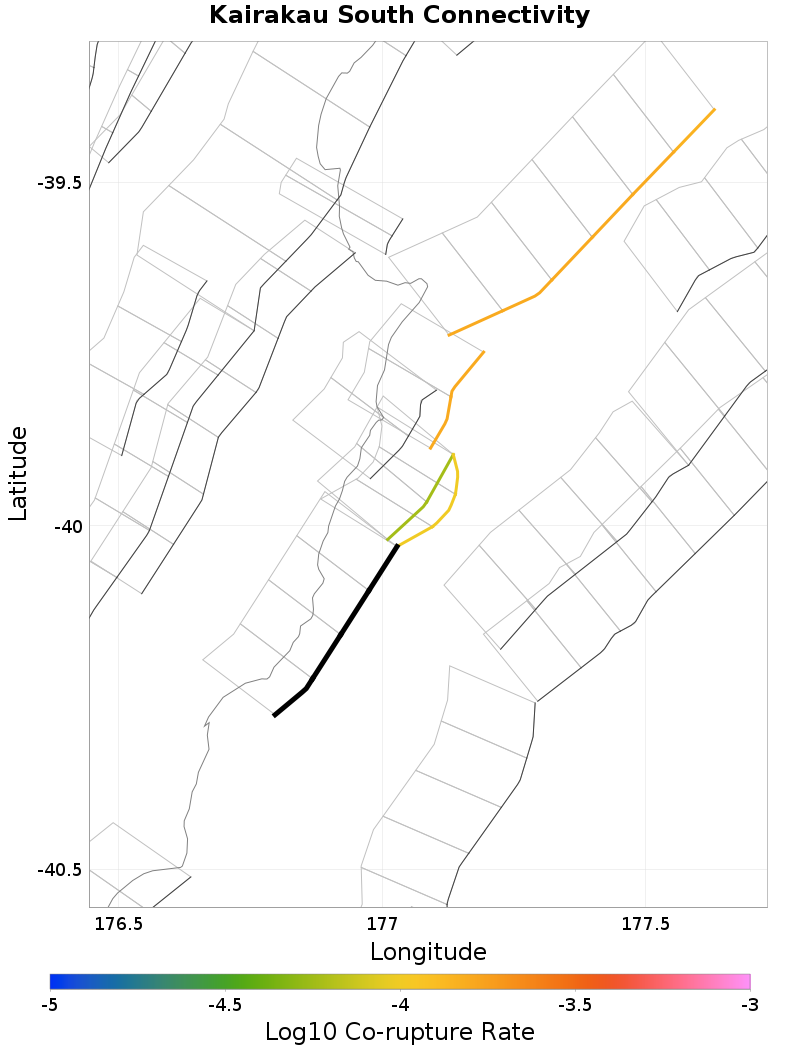

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Kairakau 2, 0 km away
Kairakau North, 1.29 km away
Waimarama 1 & 2, 8.89 km away
Waimarama 3 & 4, 14.88 km away
Motu o Kura Ridge, 15.16 km away
Tukituki Thrust, 18.71 km away

Kairakau 2, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2NjMuMFVMb0RZ
Connected?true
Directly Connected?true
Co-rupture Count34
Co-rupture Rate9.898739E-5

Kairakau North, 1.29 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2NjMuMFVMb0RZ
Connected?true
Directly Connected?true
Co-rupture Count32
Co-rupture Rate5.78004E-5

Waimarama 1 & 2, 8.89 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2NjMuMFVMb0RZ
Connected?true
Directly Connected?true
Co-rupture Count9
Co-rupture Rate0.0

Waimarama 3 & 4, 14.88 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2NjMuMFVMb0RZ
Connected?true
Directly Connected?false
Co-rupture Count42
Co-rupture Rate1.5678779E-4

Motu o Kura Ridge, 15.16 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2NjMuMFVMb0RZ
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Tukituki Thrust, 18.71 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2NjMuMFVMb0RZ
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
