Rangitaiki 1 Details

PropertyValue
Rupture Count1,356
Ruptures Above Sect Min Mag1,350
Ruptures w/ Nonzero Rates3
Magnitude Range[6.56, 8.30]
Length Range[9, 453] km
Total Rate2.1798079E-4 /yr
Multi-Fault Rate2.1798079E-4 /yr (100.00%)
Directly-Connected Faults2
All Co-Rupturing Faults53

Table Of Contents

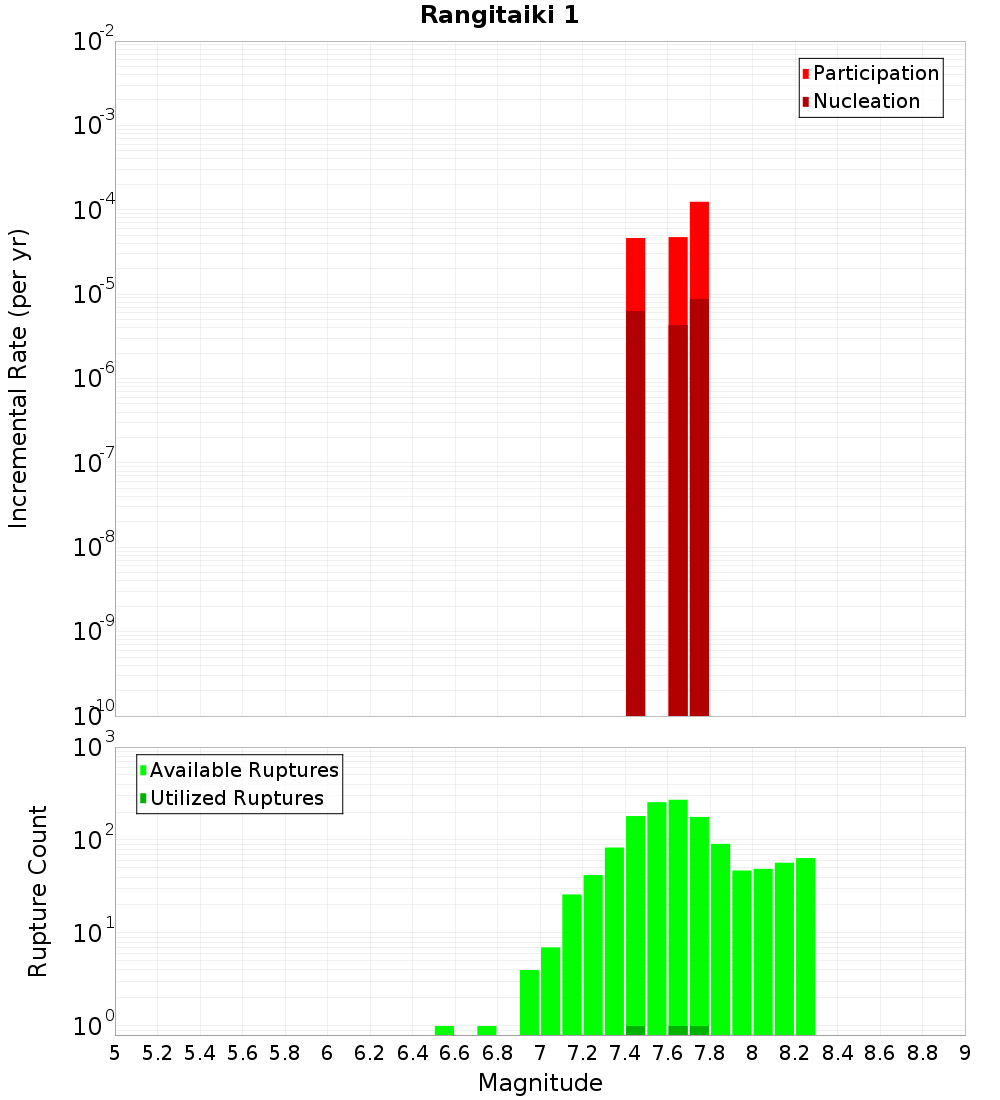

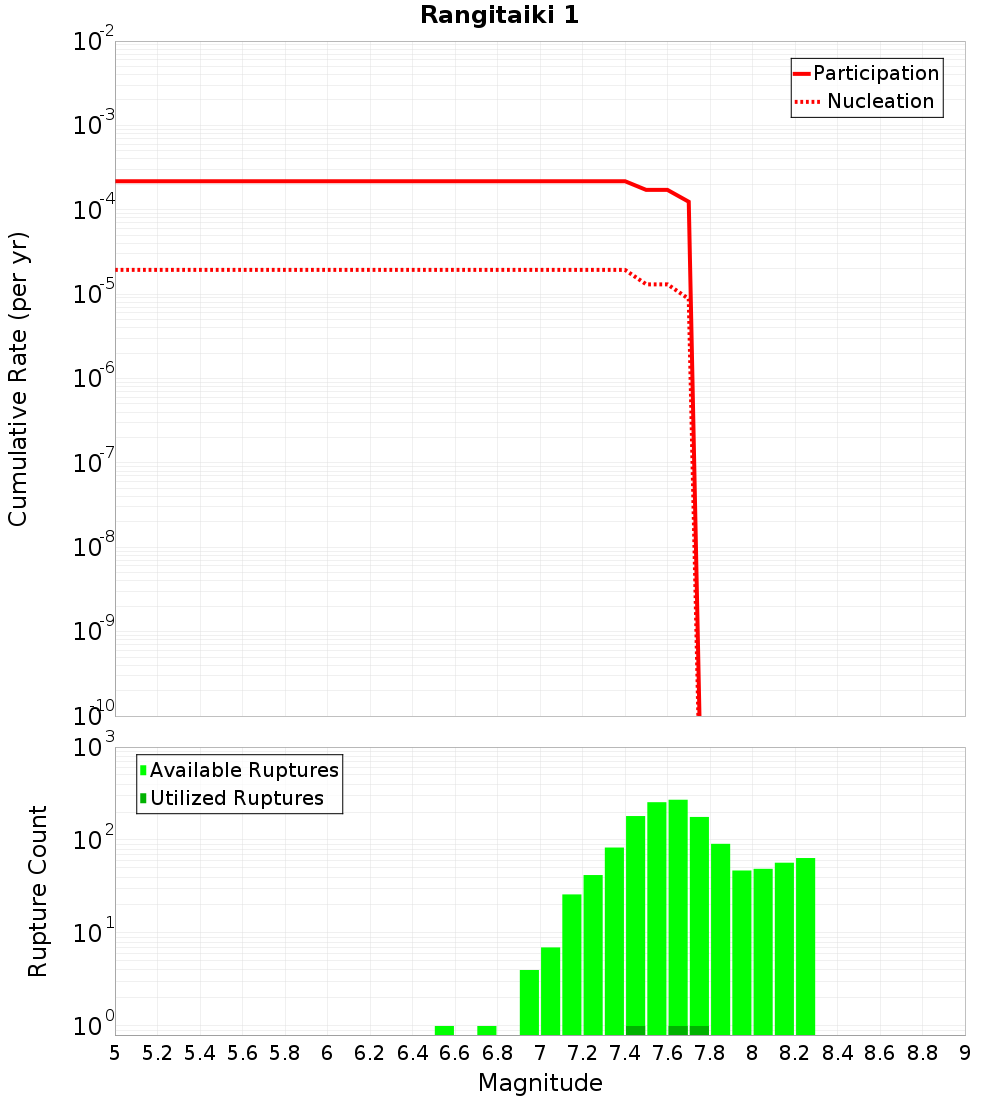

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

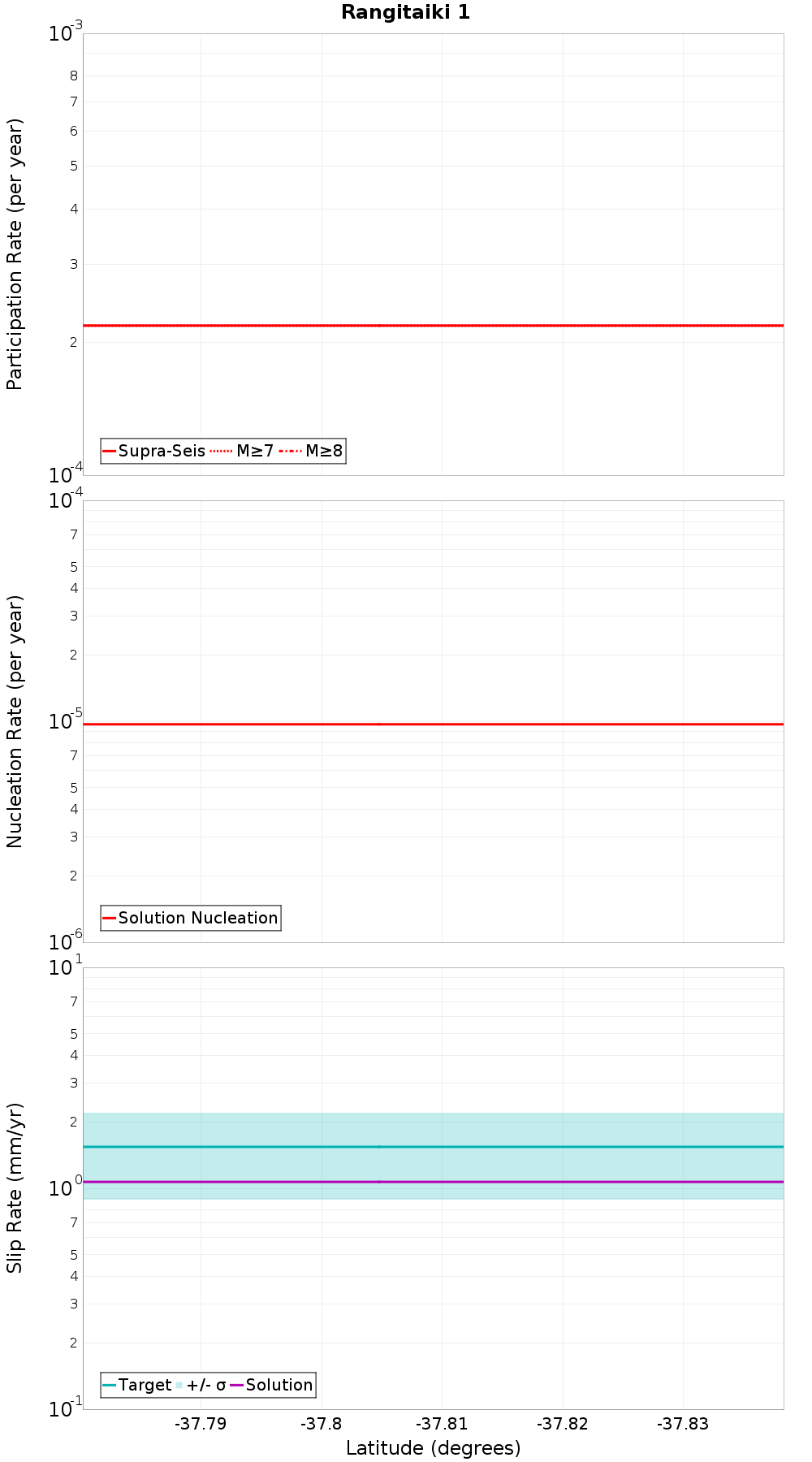

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

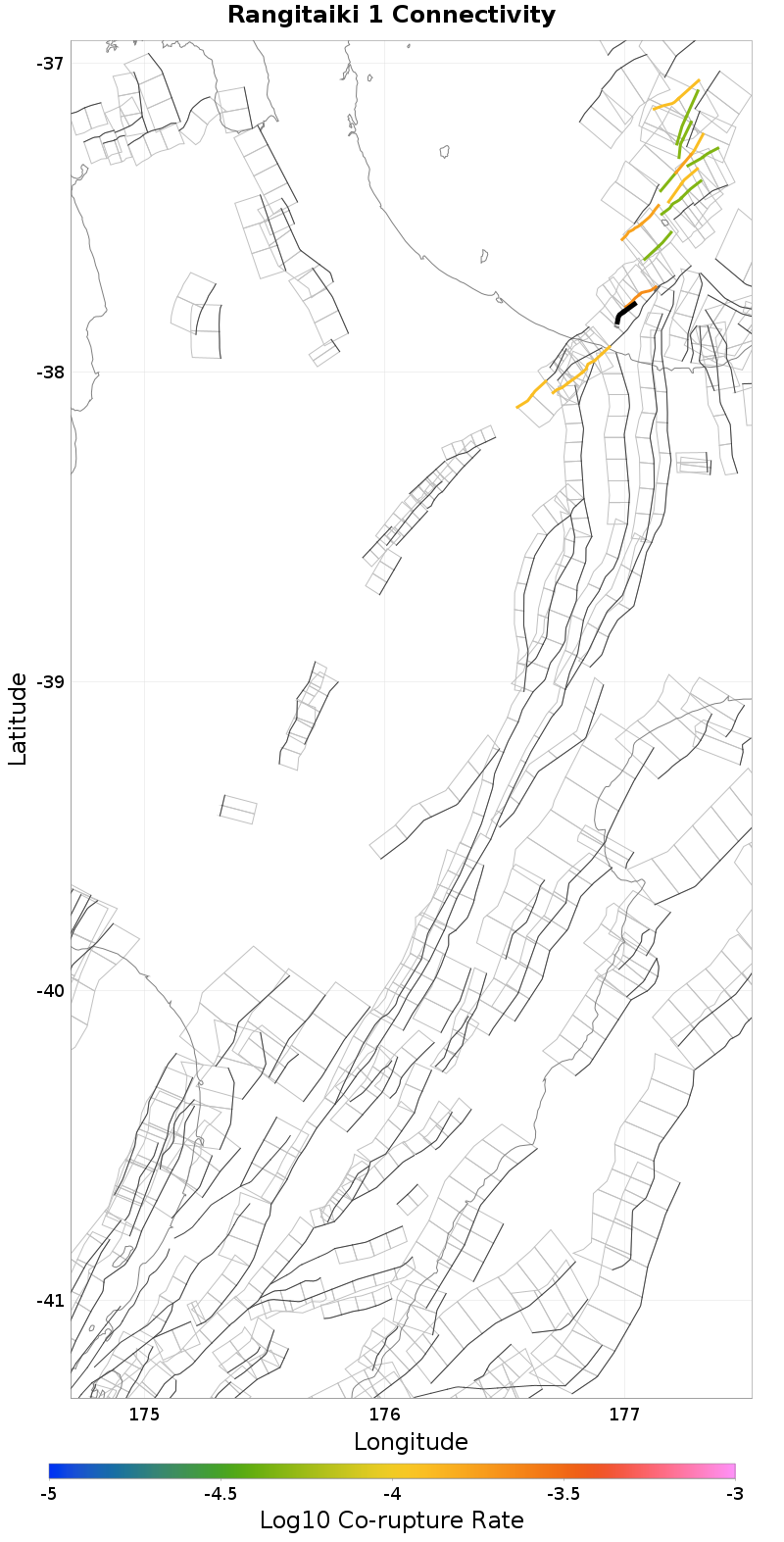

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Rangitaiki 2, 0.74 km away
White Island 1, 2.04 km away
Ohiwa 1, 8.72 km away
Edgecumbe Coastal, 8.8 km away
Matata, 9.11 km away
White Island 2, 9.52 km away
Waimana: North, 10.53 km away
Whakaari 4, 10.85 km away
Otakiri, 10.94 km away
Whakatane: North, 11.12 km away
Waimanawa - Waikaremoana, 12.26 km away
Waiotahi: North, 13.71 km away
Calypso 2, 14.74 km away
Edgecumbe 1987, 15.18 km away
Awakeri, 16.13 km away

Rangitaiki 2, 0.74 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2NjMuMFVMb0RZ
Connected?true
Directly Connected?true
Co-rupture Count1,205
Co-rupture Rate2.1798079E-4

White Island 1, 2.04 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2NjMuMFVMb0RZ
Connected?true
Directly Connected?false
Co-rupture Count168
Co-rupture Rate0.0

Ohiwa 1, 8.72 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2NjMuMFVMb0RZ
Connected?true
Directly Connected?false
Co-rupture Count48
Co-rupture Rate0.0

Edgecumbe Coastal, 8.8 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2NjMuMFVMb0RZ
Connected?true
Directly Connected?true
Co-rupture Count1,282
Co-rupture Rate1.2431976E-4

Matata, 9.11 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2NjMuMFVMb0RZ
Connected?true
Directly Connected?false
Co-rupture Count18
Co-rupture Rate0.0

White Island 2, 9.52 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2NjMuMFVMb0RZ
Connected?true
Directly Connected?false
Co-rupture Count260
Co-rupture Rate0.0

Waimana: North, 10.53 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2NjMuMFVMb0RZ
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Whakaari 4, 10.85 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2NjMuMFVMb0RZ
Connected?true
Directly Connected?false
Co-rupture Count586
Co-rupture Rate1.7174795E-4

Otakiri, 10.94 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2NjMuMFVMb0RZ
Connected?true
Directly Connected?false
Co-rupture Count104
Co-rupture Rate0.0

Whakatane: North, 11.12 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2NjMuMFVMb0RZ
Connected?true
Directly Connected?false
Co-rupture Count139
Co-rupture Rate0.0

Waimanawa - Waikaremoana, 12.26 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2NjMuMFVMb0RZ
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Waiotahi: North, 13.71 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2NjMuMFVMb0RZ
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Calypso 2, 14.74 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2NjMuMFVMb0RZ
Connected?true
Directly Connected?false
Co-rupture Count92
Co-rupture Rate4.6232835E-5

Edgecumbe 1987, 15.18 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2NjMuMFVMb0RZ
Connected?true
Directly Connected?false
Co-rupture Count463
Co-rupture Rate1.2431976E-4

Awakeri, 16.13 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2NjMuMFVMb0RZ
Connected?true
Directly Connected?false
Co-rupture Count555
Co-rupture Rate0.0
