South Wedge 3-6-10 Details

PropertyValue
Rupture Count4,745
Ruptures Above Sect Min Mag4,744
Ruptures w/ Nonzero Rates6
Magnitude Range[7.82, 8.73]
Length Range[58, 1,090] km
Total Rate2.3090324E-5 /yr
Multi-Fault Rate2.3090324E-5 /yr (100.00%)
Directly-Connected Faults6
All Co-Rupturing Faults78

Table Of Contents

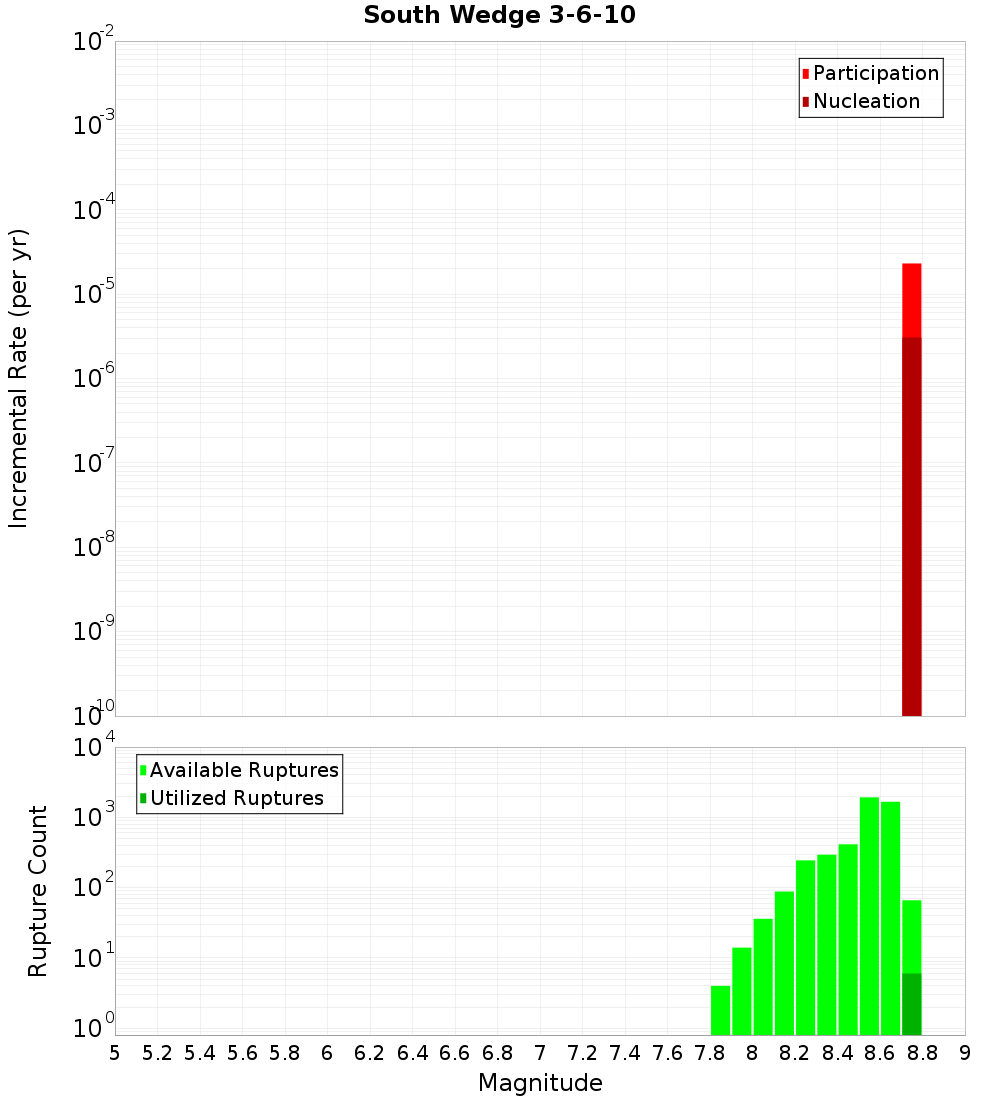

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

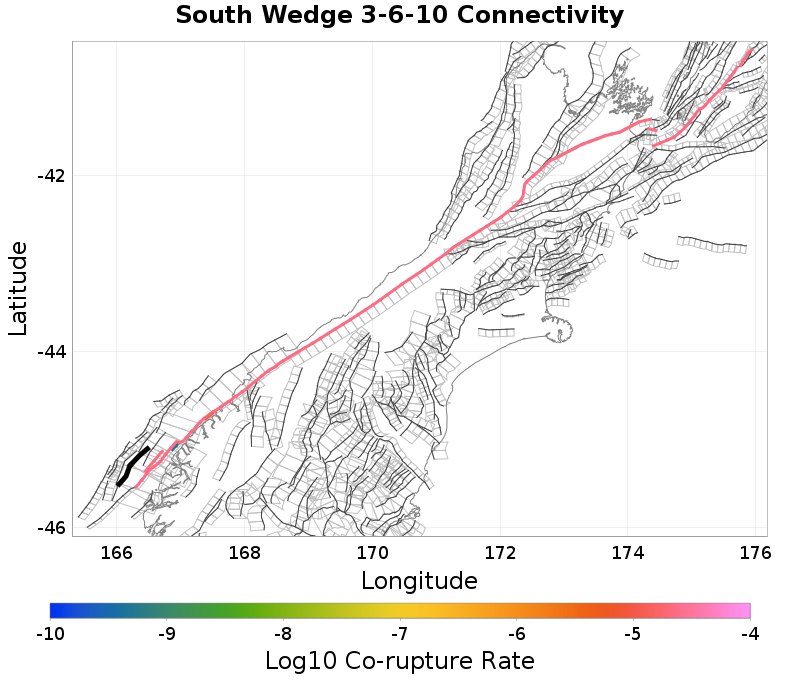

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
South Wedge 5, 0.05 km awayCaswell 211, 12.6 km away
Alpine: Resolution - Dagg, 0.1 km awayCaswell High 3, 12.92 km away
Alpine: Resolution - Five Fingers, 0.17 km awayCaswell High 5, 13.36 km away
South Wedge 1, 0.29 km awayAlpine: Nancy, 14.88 km away
Five Fingers, 0.3 km awayCaswell High 4, 15.05 km away
Central Wedge 4 - South Wedge 411, 1.85 km awayAlpine: Resolution - Charles, 16.42 km away
South Wedge 2, 2.02 km awayCaswell High 67, 16.64 km away
Spey - Mica Burn, 8.22 km awayCaswell High 1, 17.48 km away

South Wedge 5, 0.05 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2NjMuMFVMb0RZ
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Alpine: Resolution - Dagg, 0.1 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2NjMuMFVMb0RZ
Connected?true
Directly Connected?true
Co-rupture Count4,722
Co-rupture Rate2.3090324E-5

Alpine: Resolution - Five Fingers, 0.17 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2NjMuMFVMb0RZ
Connected?true
Directly Connected?true
Co-rupture Count16
Co-rupture Rate0.0

South Wedge 1, 0.29 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2NjMuMFVMb0RZ
Connected?true
Directly Connected?true
Co-rupture Count765
Co-rupture Rate2.3090324E-5

Five Fingers, 0.3 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2NjMuMFVMb0RZ
Connected?true
Directly Connected?true
Co-rupture Count117
Co-rupture Rate0.0

Central Wedge 4 - South Wedge 411, 1.85 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2NjMuMFVMb0RZ
Connected?true
Directly Connected?true
Co-rupture Count539
Co-rupture Rate0.0

South Wedge 2, 2.02 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2NjMuMFVMb0RZ
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Spey - Mica Burn, 8.22 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2NjMuMFVMb0RZ
Connected?true
Directly Connected?true
Co-rupture Count1,855
Co-rupture Rate0.0

Caswell 211, 12.6 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2NjMuMFVMb0RZ
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Caswell High 3, 12.92 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2NjMuMFVMb0RZ
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Caswell High 5, 13.36 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2NjMuMFVMb0RZ
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Alpine: Nancy, 14.88 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2NjMuMFVMb0RZ
Connected?true
Directly Connected?false
Co-rupture Count2,629
Co-rupture Rate4.4937715E-10

Caswell High 4, 15.05 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2NjMuMFVMb0RZ
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Alpine: Resolution - Charles, 16.42 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2NjMuMFVMb0RZ
Connected?true
Directly Connected?false
Co-rupture Count2,067
Co-rupture Rate2.3089875E-5

Caswell High 67, 16.64 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2NjMuMFVMb0RZ
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Caswell High 1, 17.48 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2NjMuMFVMb0RZ
Connected?true
Directly Connected?false
Co-rupture Count2
Co-rupture Rate0.0
