Surville Details
| Property | Value |
|---|---|
| Rupture Count | 46 |
| Ruptures Above Sect Min Mag | 42 |
| Ruptures w/ Nonzero Rates | 2 |
| Magnitude Range | [7.19, 7.82] |
| Length Range | [27, 118] km |
| Total Rate | 4.5378483E-6 /yr |
| Multi-Fault Rate | 3.3525864E-9 /yr (0.07%) |
| Directly-Connected Faults | 1 |
| All Co-Rupturing Faults | 1 |
Table Of Contents

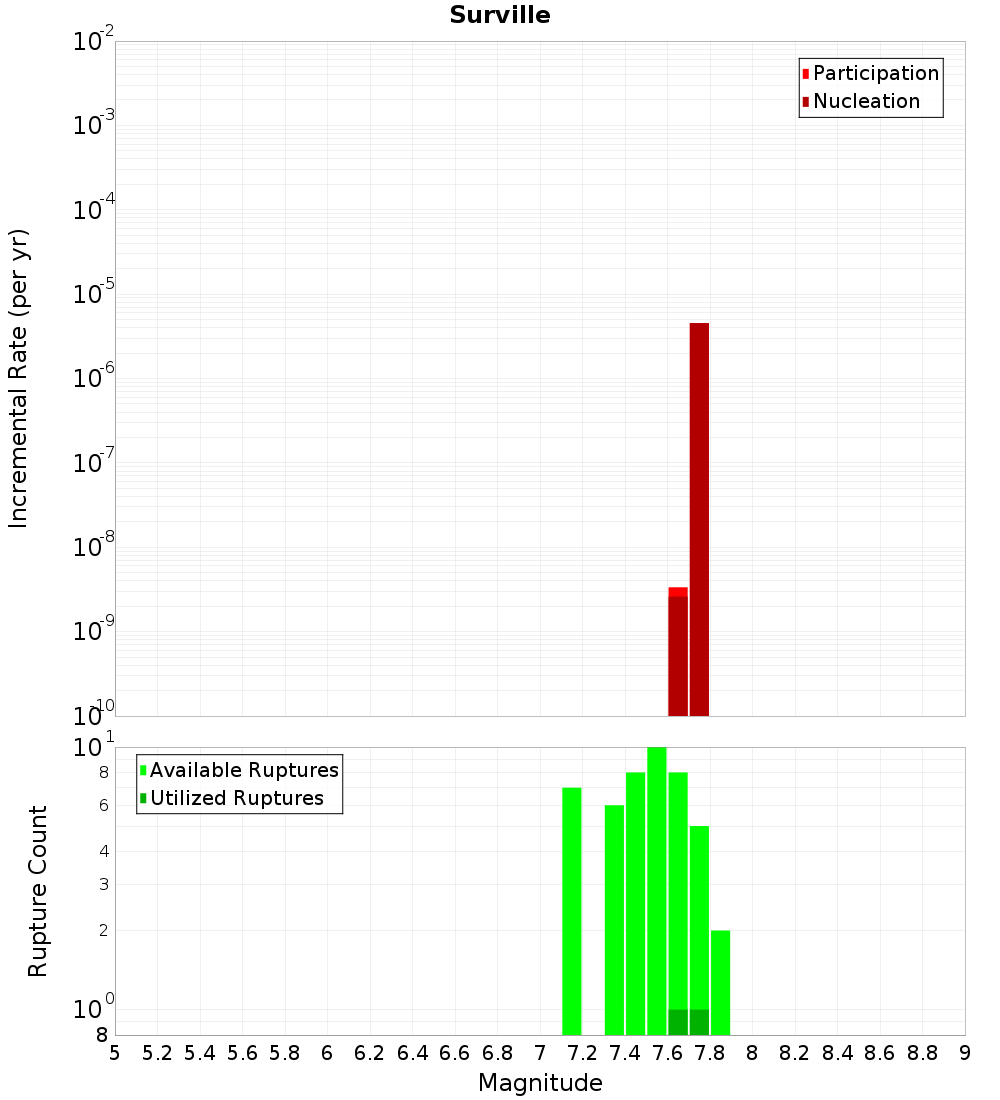

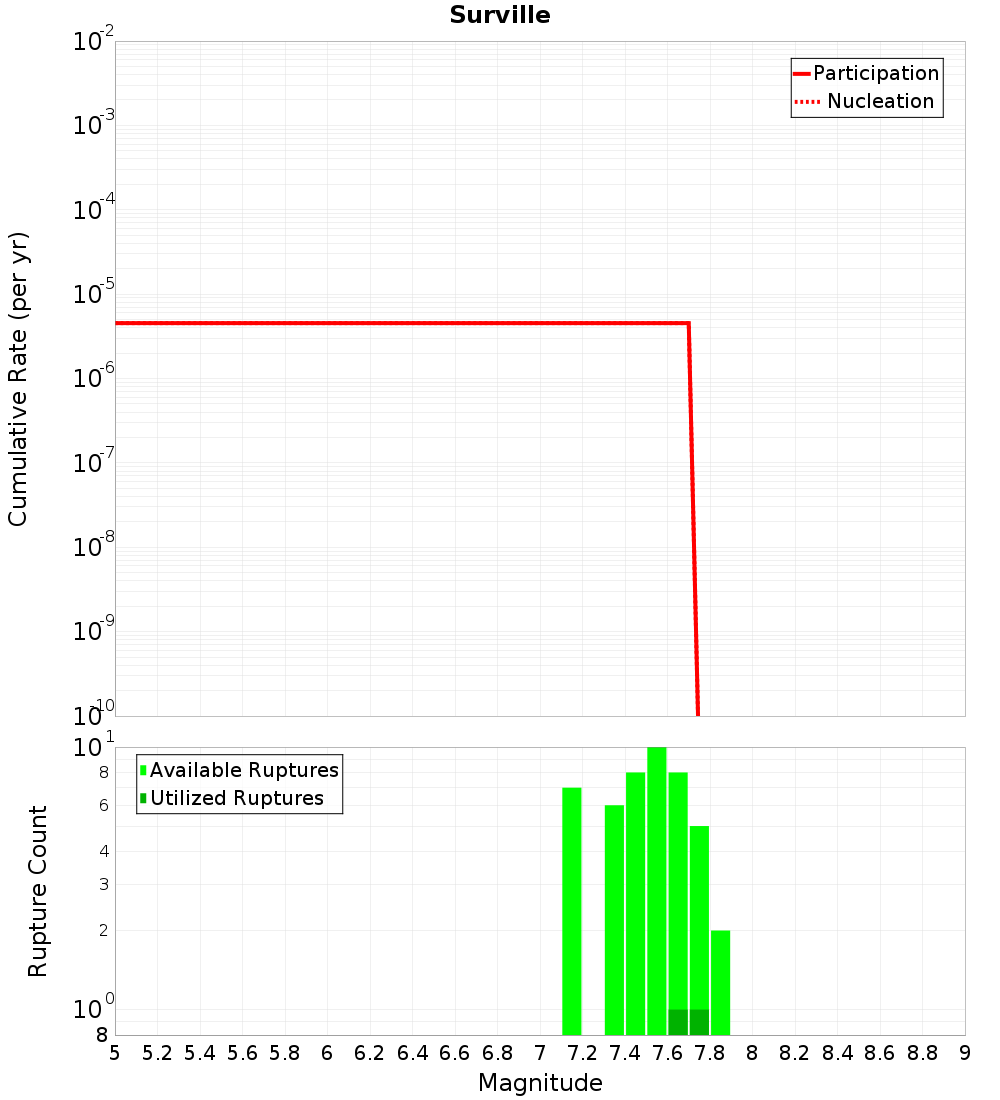

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

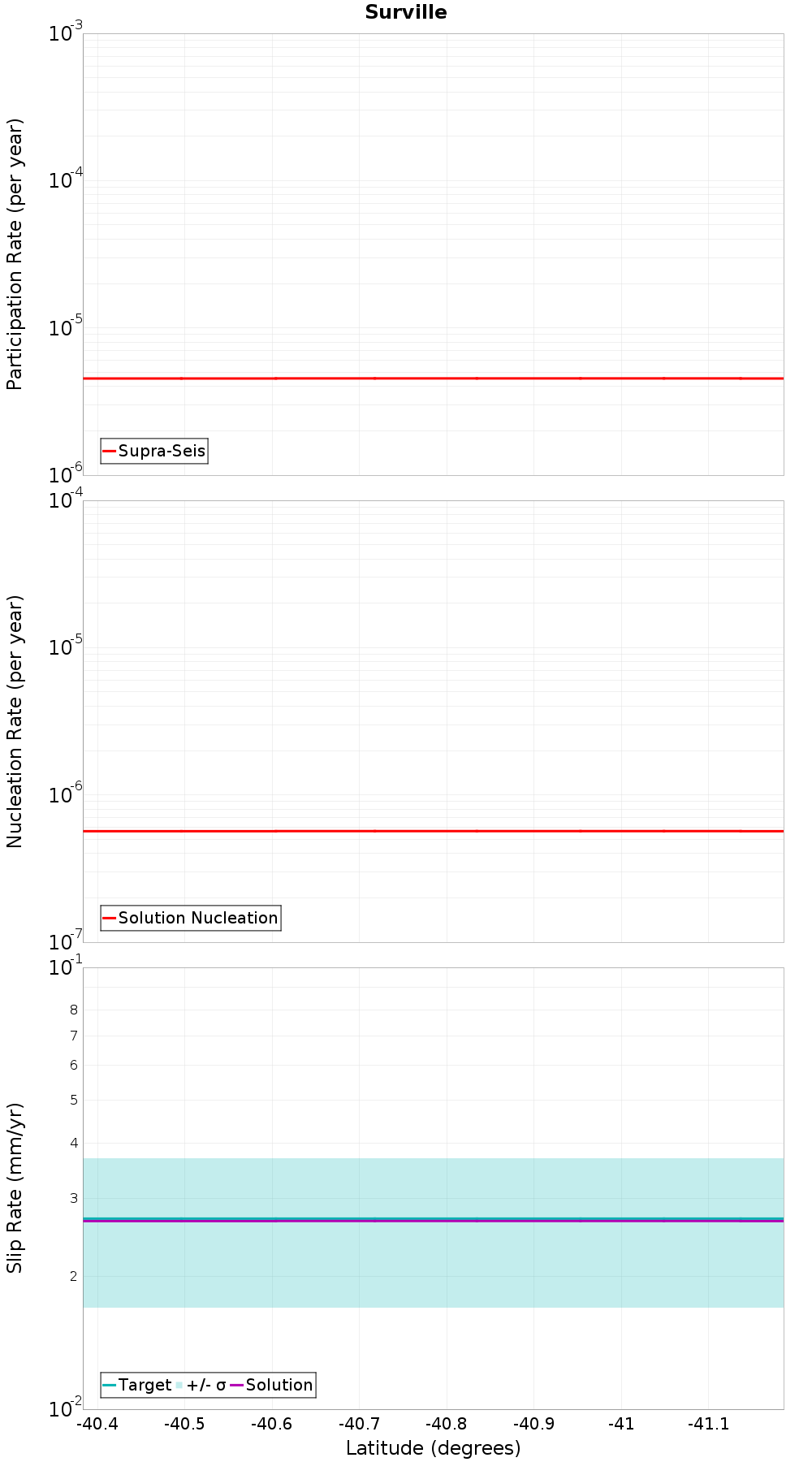

Along-Strike Values
Moment-Rates and b-Values

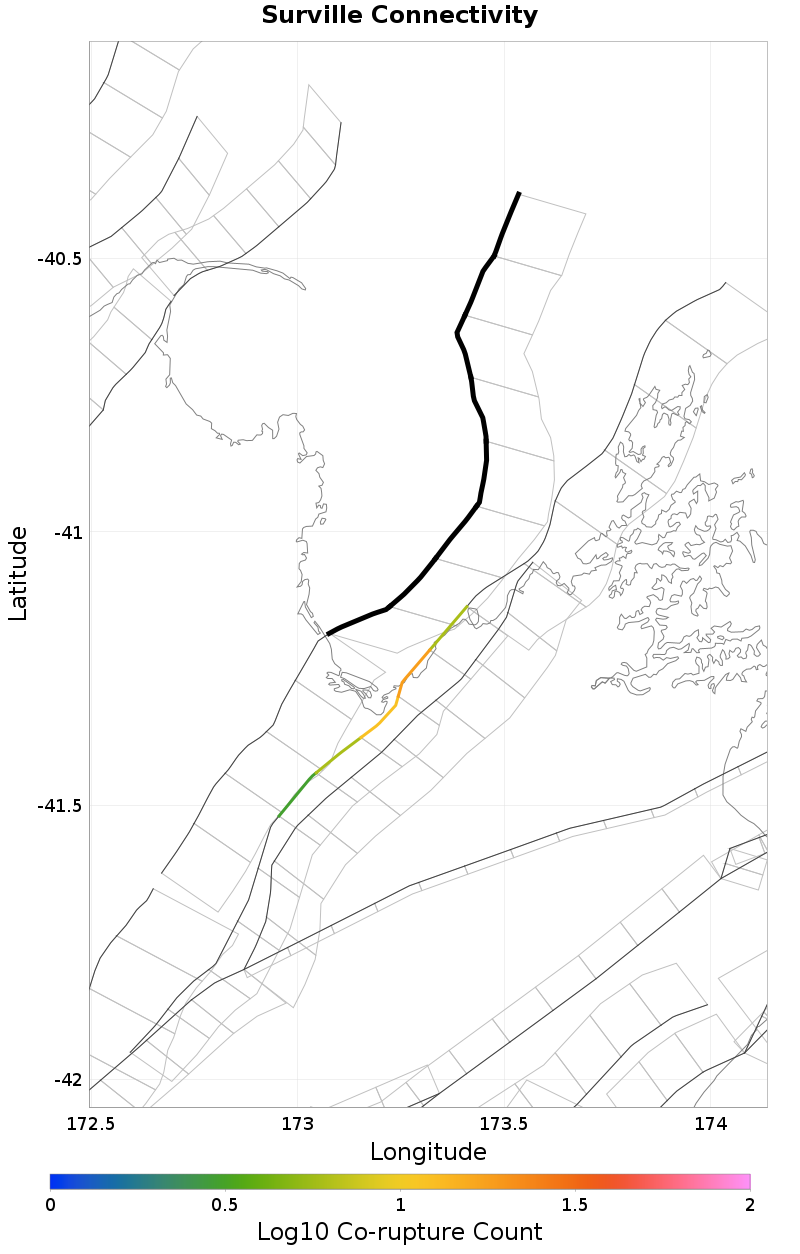

Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Ruby Bay - Moutere, 0.09 km away |
| Flaxmore - Waimea - Tahunanui, 8.79 km away |
| Waimea Offshore, 9.76 km away |
| Whangamoa, 14.06 km away |
Ruby Bay - Moutere, 0.09 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2NjMuMFVMb0RZ | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Flaxmore - Waimea - Tahunanui, 8.79 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2NjMuMFVMb0RZ | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 18 |
| Co-rupture Rate | 3.3525864E-9 |
Waimea Offshore, 9.76 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2NjMuMFVMb0RZ | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Whangamoa, 14.06 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2NjMuMFVMb0RZ | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
