Kohaihai Details
| Property | Value |
|---|---|
| Rupture Count | 31 |
| Ruptures Above Sect Min Mag | 29 |
| Ruptures w/ Nonzero Rates | 2 |
| Magnitude Range | [7.06, 7.76] |
| Length Range | [23, 120] km |
| Total Rate | 6.329221E-5 /yr |
| Multi-Fault Rate | 6.329221E-5 /yr (100.00%) |
| Directly-Connected Faults | 3 |
| All Co-Rupturing Faults | 3 |
Table Of Contents

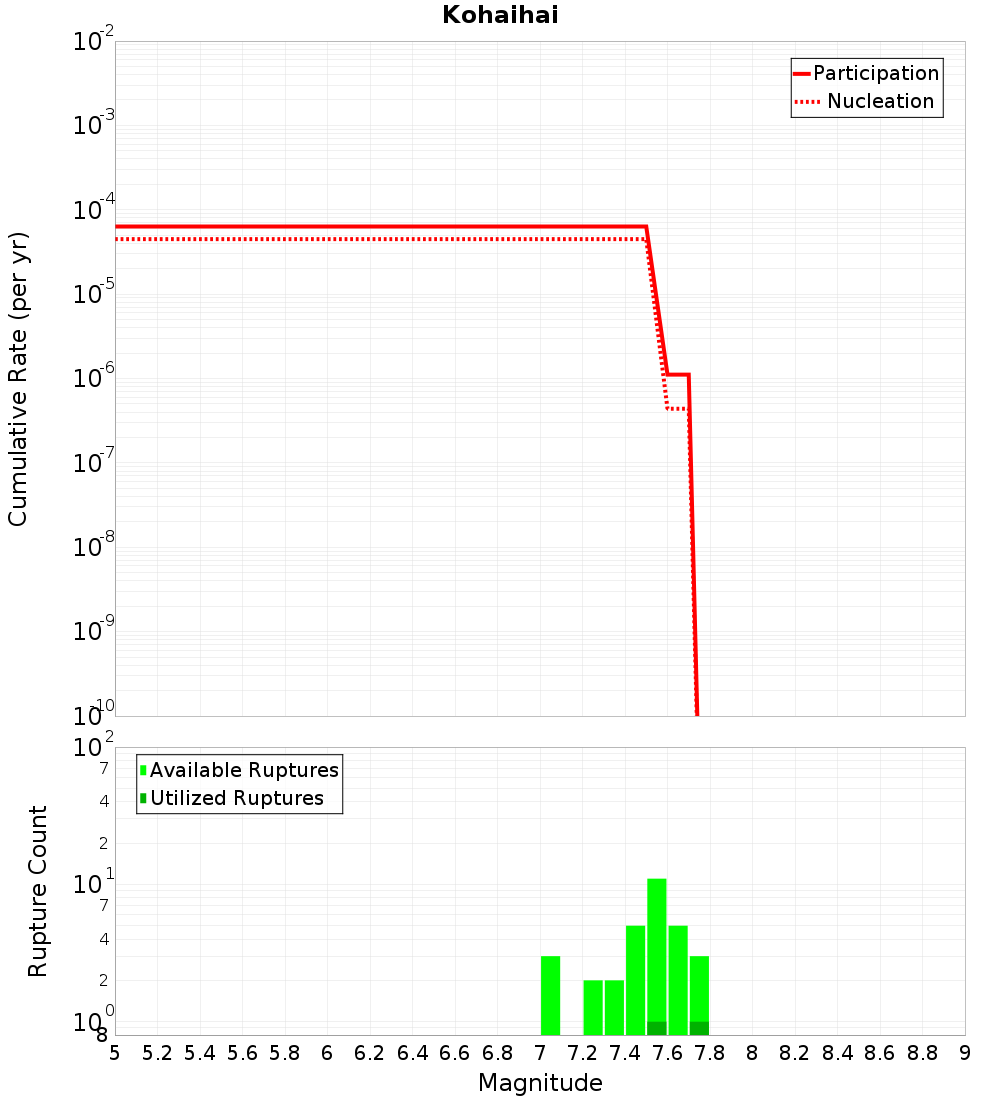

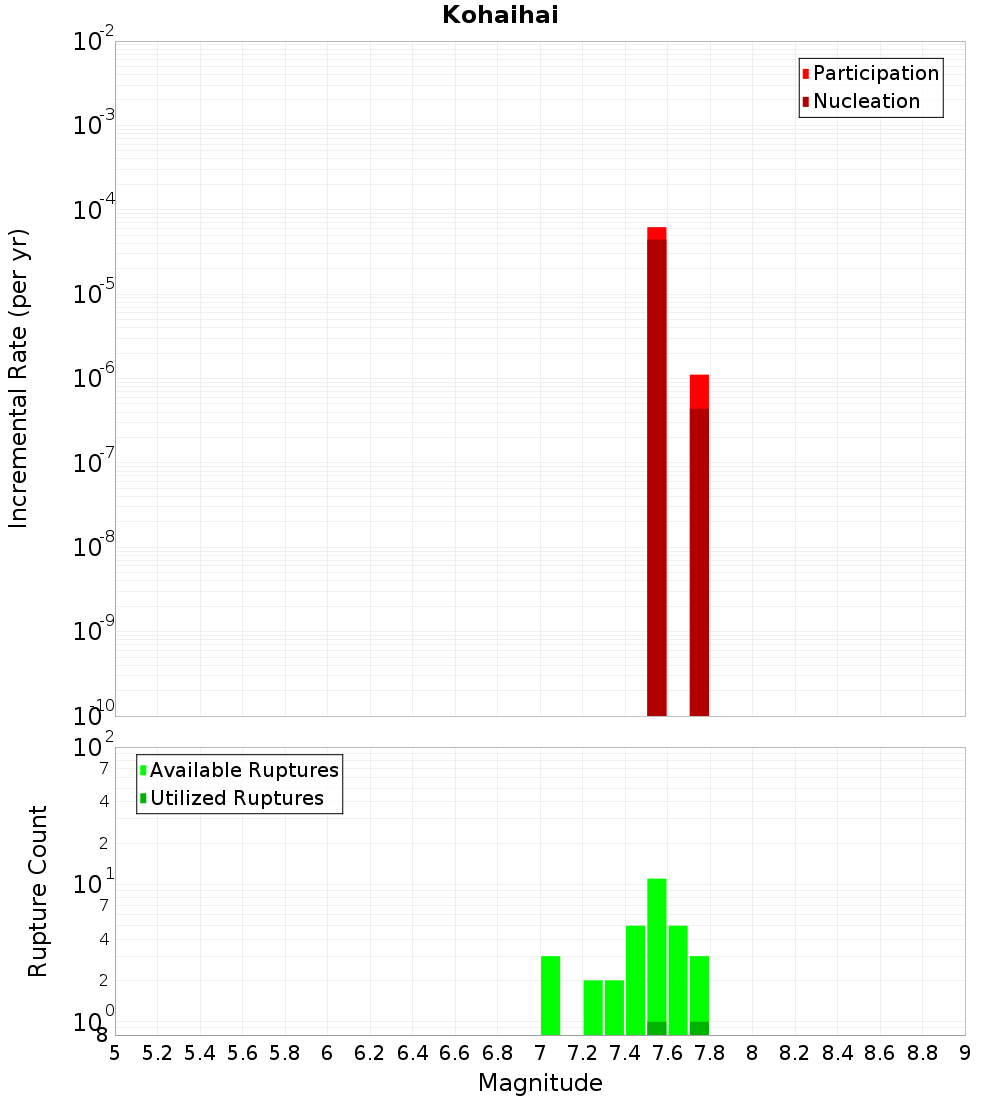

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

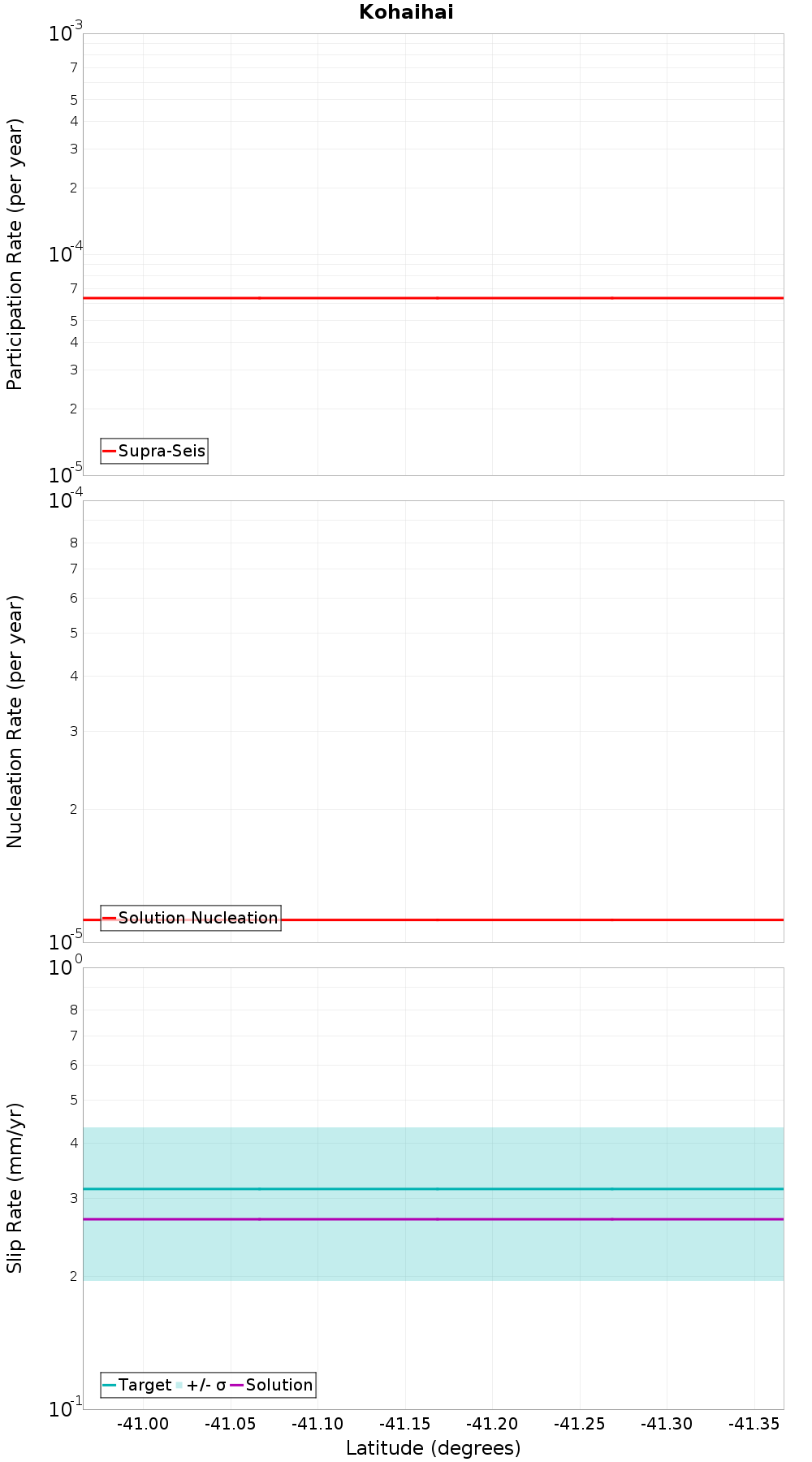

Along-Strike Values
Moment-Rates and b-Values

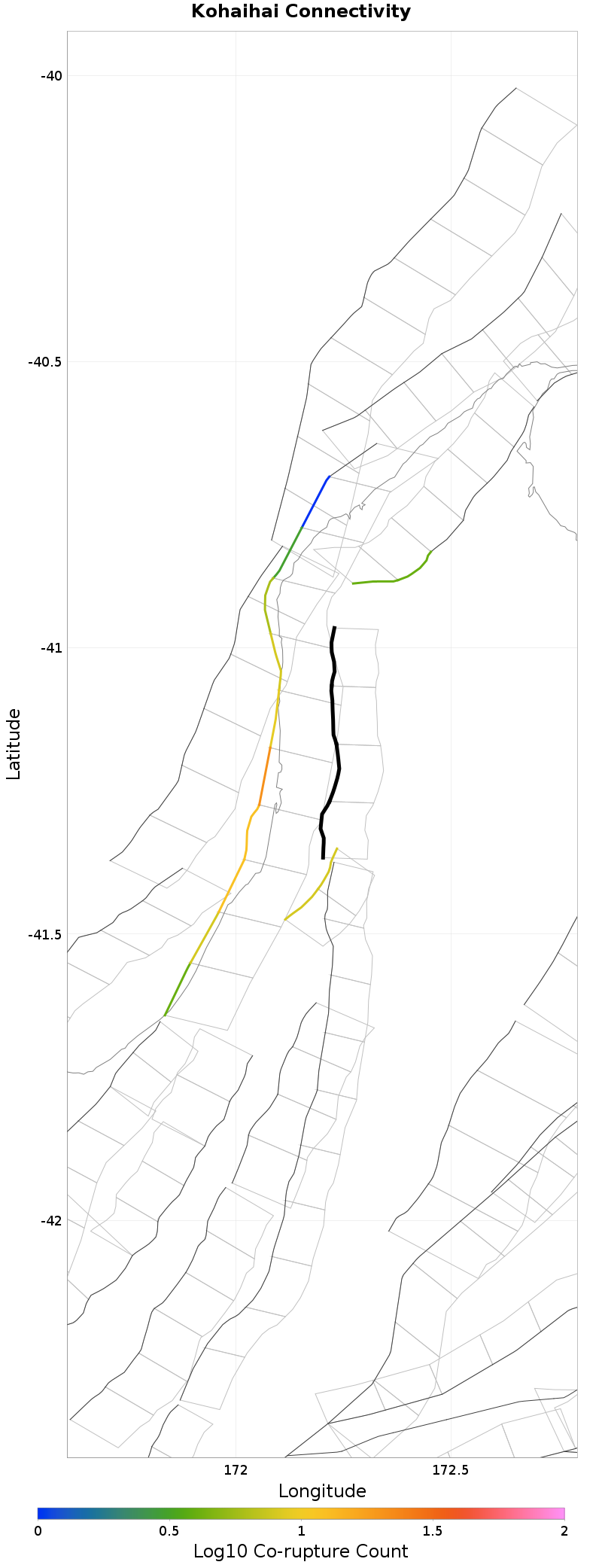

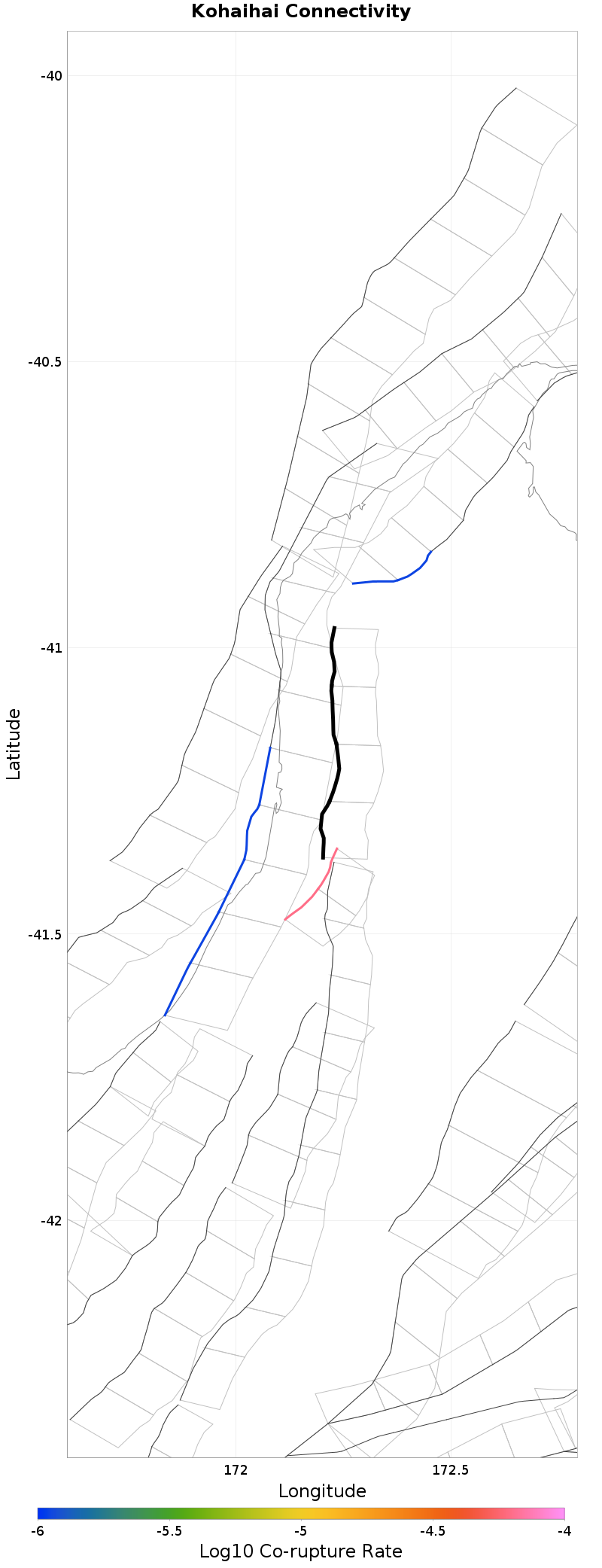

Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Kohaihai South, 1.73 km away |
| White Creek, 2.2 km away |
| Kongahau, 5.29 km away |
| Wakamarama, 9.33 km away |
| Cape Foulwind 4, 11.38 km away |
| Kahurangi, 11.7 km away |
Kohaihai South, 1.73 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2NjUuMGdnM0Z5 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 8 |
| Co-rupture Rate | 6.2181556E-5 |
White Creek, 2.2 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2NjUuMGdnM0Z5 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Kongahau, 5.29 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2NjUuMGdnM0Z5 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 21 |
| Co-rupture Rate | 1.11065E-6 |
Wakamarama, 9.33 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2NjUuMGdnM0Z5 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 4 |
| Co-rupture Rate | 1.11065E-6 |
Cape Foulwind 4, 11.38 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2NjUuMGdnM0Z5 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Kahurangi, 11.7 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2NjUuMGdnM0Z5 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
