Mangatangi Details
| Property | Value |
|---|---|
| Rupture Count | 17 |
| Ruptures Above Sect Min Mag | 17 |
| Ruptures w/ Nonzero Rates | 3 |
| Magnitude Range | [6.81, 7.67] |
| Length Range | [17, 121] km |
| Total Rate | 1.6302276E-5 /yr |
| Multi-Fault Rate | 1.6302276E-5 /yr (100.00%) |
| Directly-Connected Faults | 2 |
| All Co-Rupturing Faults | 7 |
Table Of Contents

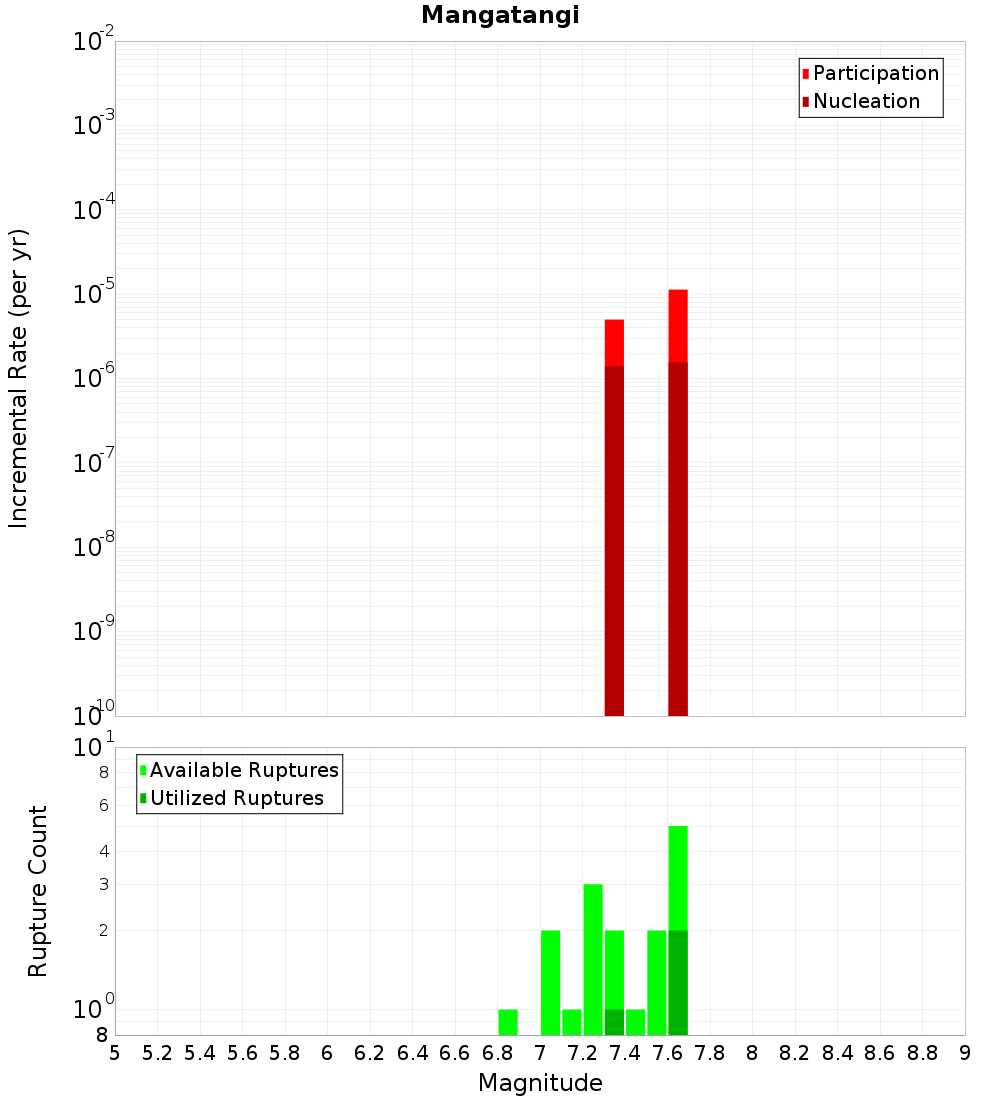

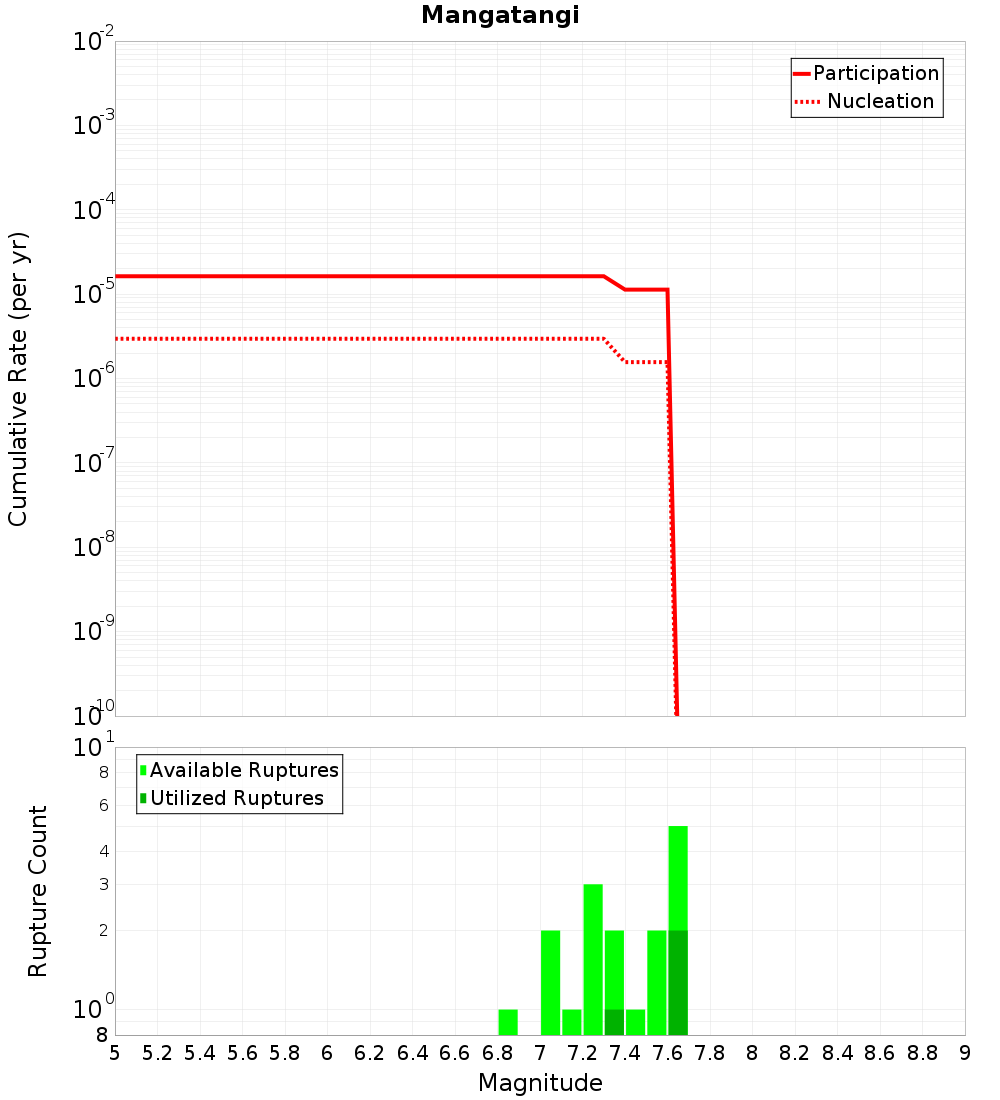

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

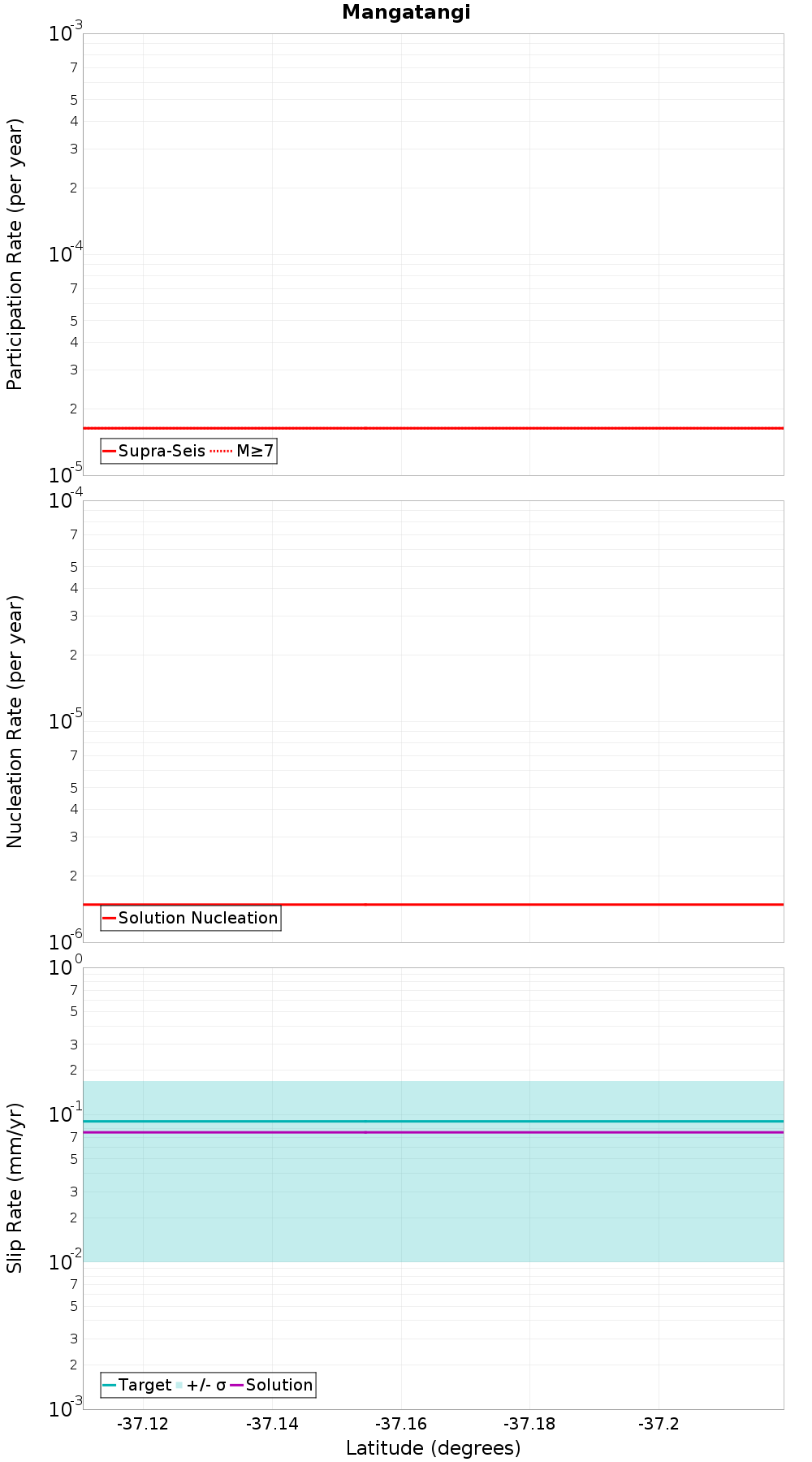

Along-Strike Values
Moment-Rates and b-Values

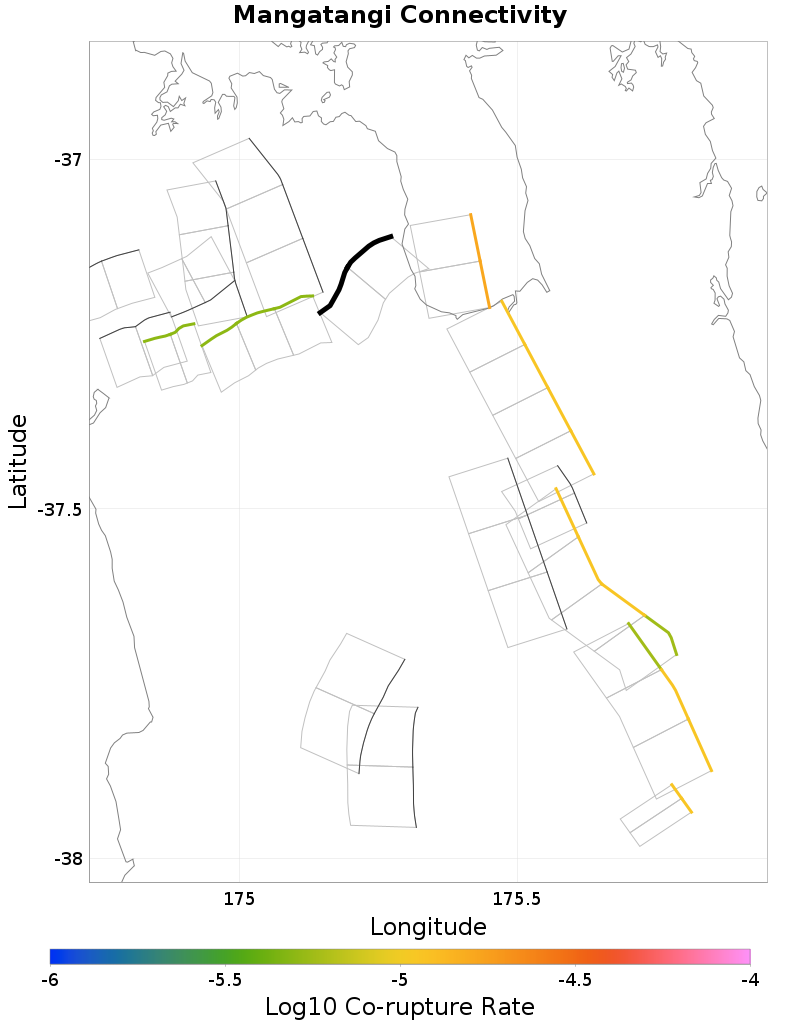

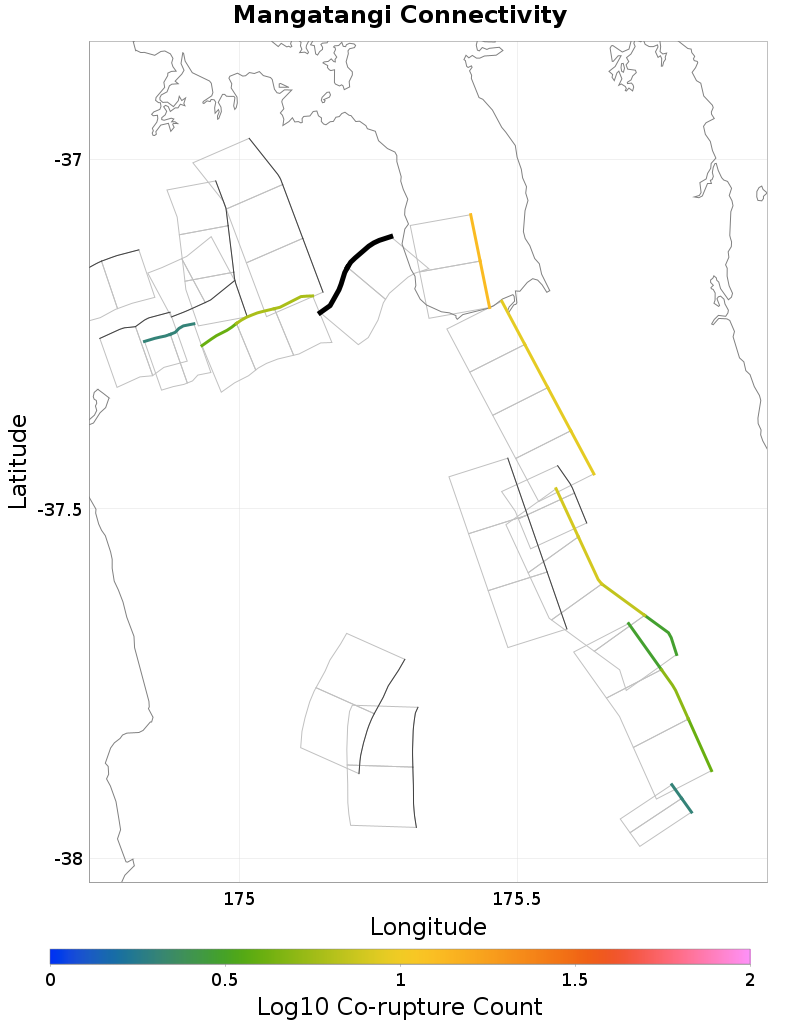

Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Kerepehi Offshore, 0.11 km away |
| Wairoa North, 2.07 km away |
| Pokeno, 2.61 km away |
| Kerepehi Awaiti, 9.99 km away |
| Drury, 11.66 km away |
| St Stephens, 14.57 km away |
Kerepehi Offshore, 0.11 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2NjUuMGdnM0Z5 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 13 |
| Co-rupture Rate | 1.6302276E-5 |
Wairoa North, 2.07 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2NjUuMGdnM0Z5 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Pokeno, 2.61 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2NjUuMGdnM0Z5 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 6 |
| Co-rupture Rate | 4.988913E-6 |
Kerepehi Awaiti, 9.99 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2NjUuMGdnM0Z5 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 9 |
| Co-rupture Rate | 1.1313362E-5 |
Drury, 11.66 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2NjUuMGdnM0Z5 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
St Stephens, 14.57 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2NjUuMGdnM0Z5 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
