Awakeri Details

Property	Value
Rupture Count	11,941
Ruptures Above Sect Min Mag	11,930
Ruptures w/ Nonzero Rates	3
Magnitude Range	[6.76, 8.37]
Length Range	[17, 537] km
Total Rate	7.830137E-5 /yr
Multi-Fault Rate	7.830137E-5 /yr (100.00%)
Directly-Connected Faults	5
All Co-Rupturing Faults	90

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

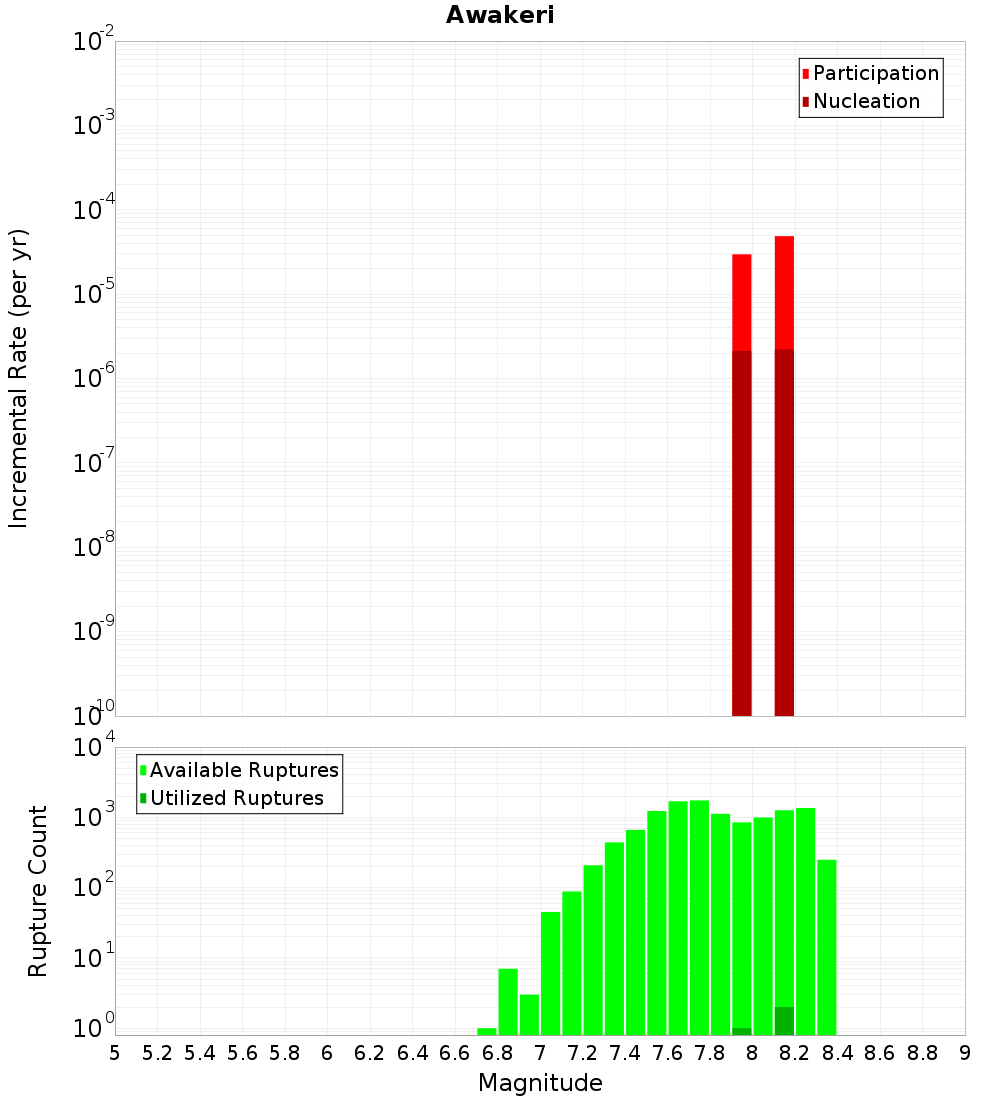

Magnitude-Frequency Distribution

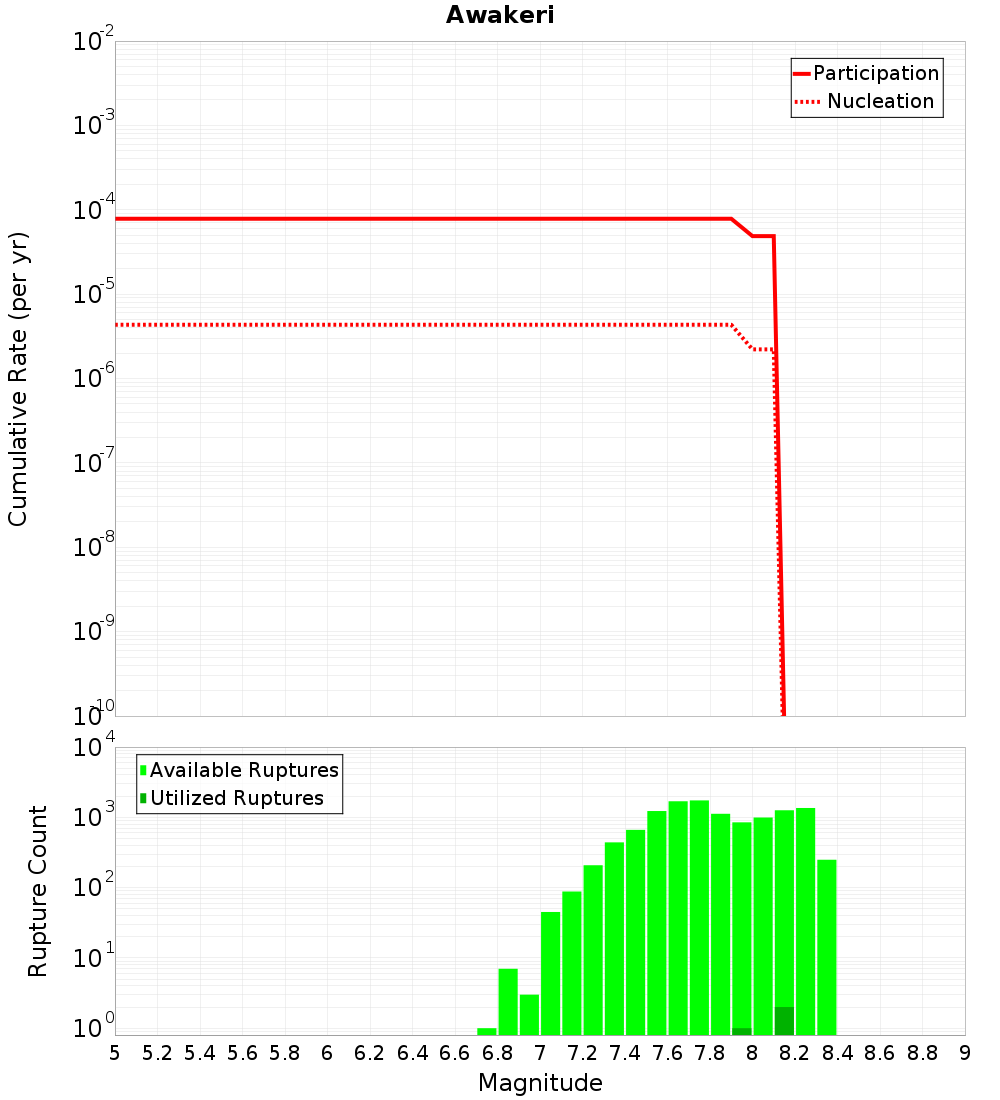

Incremental	Cumulative

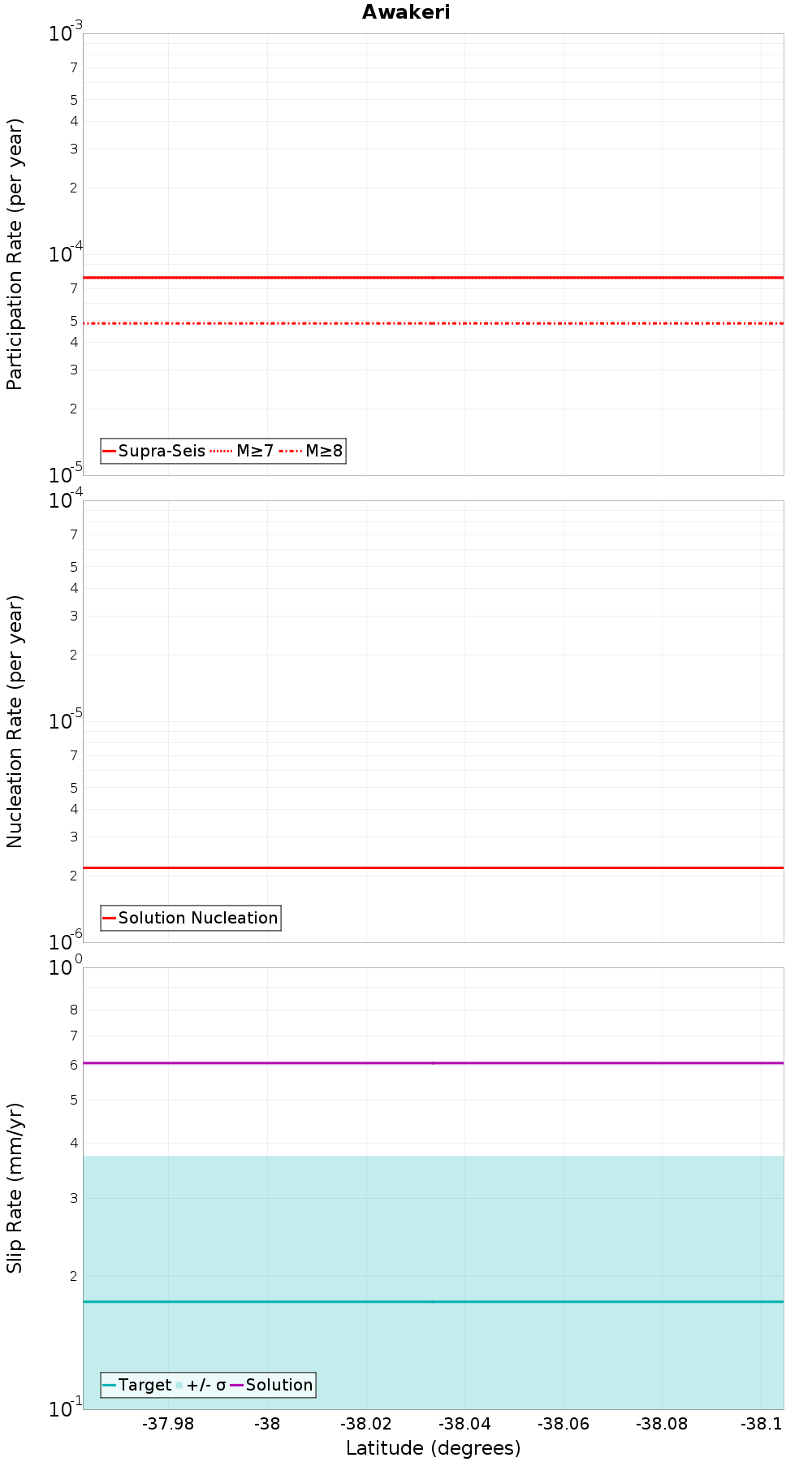

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Edgecumbe 1987, 0 km away
Edgecumbe Coastal, 0 km away
Waiohau: North, 0.13 km away
Braemar, 0.15 km away
Otakiri, 0.16 km away
Matata, 5.47 km away
White Island 1, 7.32 km away
Whakatane: North, 7.56 km away
Rangitaiki 1, 16.13 km away

Edgecumbe 1987, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2NzYuMGFmQ1pp
Connected?	true
Directly Connected?	false
Co-rupture Count	1
Co-rupture Rate	0.0

Edgecumbe Coastal, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2NzYuMGFmQ1pp
Connected?	true
Directly Connected?	true
Co-rupture Count	7,612
Co-rupture Rate	7.830137E-5

Waiohau: North, 0.13 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2NzYuMGFmQ1pp
Connected?	true
Directly Connected?	true
Co-rupture Count	9,078
Co-rupture Rate	7.830137E-5

Braemar, 0.15 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2NzYuMGFmQ1pp
Connected?	true
Directly Connected?	true
Co-rupture Count	2,785
Co-rupture Rate	0.0

Otakiri, 0.16 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2NzYuMGFmQ1pp
Connected?	true
Directly Connected?	true
Co-rupture Count	797
Co-rupture Rate	0.0

Matata, 5.47 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2NzYuMGFmQ1pp
Connected?	true
Directly Connected?	true
Co-rupture Count	3,030
Co-rupture Rate	0.0

White Island 1, 7.32 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2NzYuMGFmQ1pp
Connected?	true
Directly Connected?	false
Co-rupture Count	9,245
Co-rupture Rate	7.830137E-5

Whakatane: North, 7.56 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2NzYuMGFmQ1pp
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Rangitaiki 1, 16.13 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU2NzYuMGFmQ1pp
Connected?	true
Directly Connected?	false
Co-rupture Count	555
Co-rupture Rate	0.0
